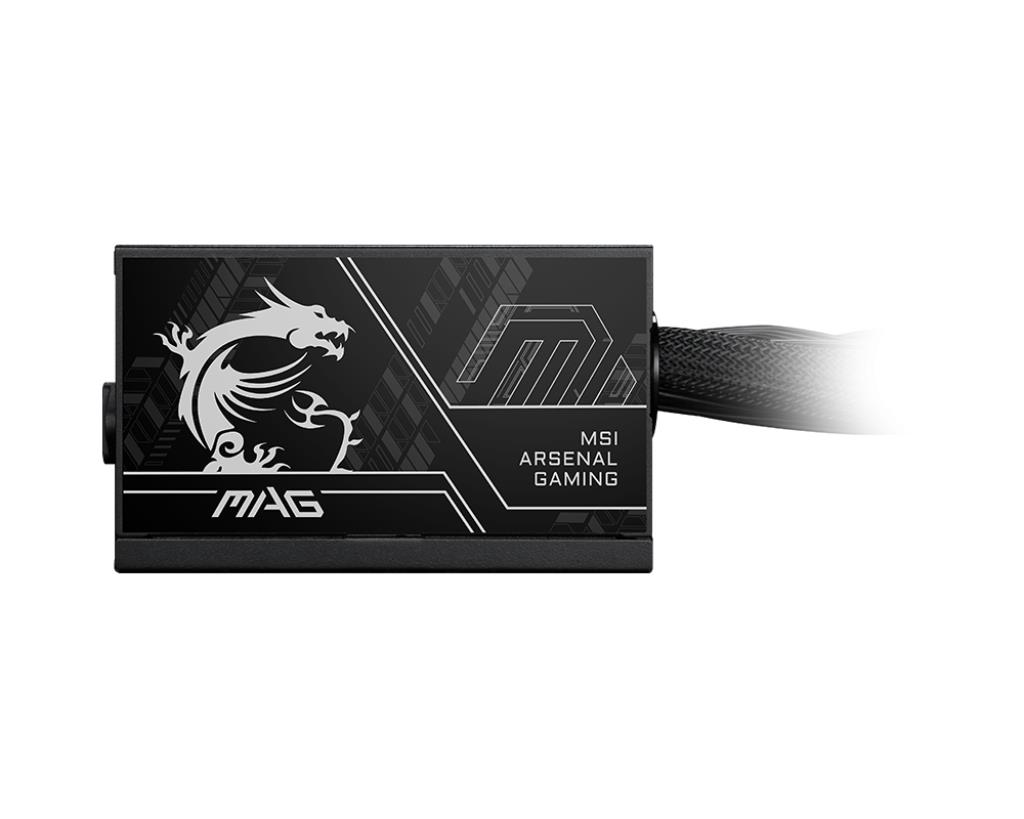

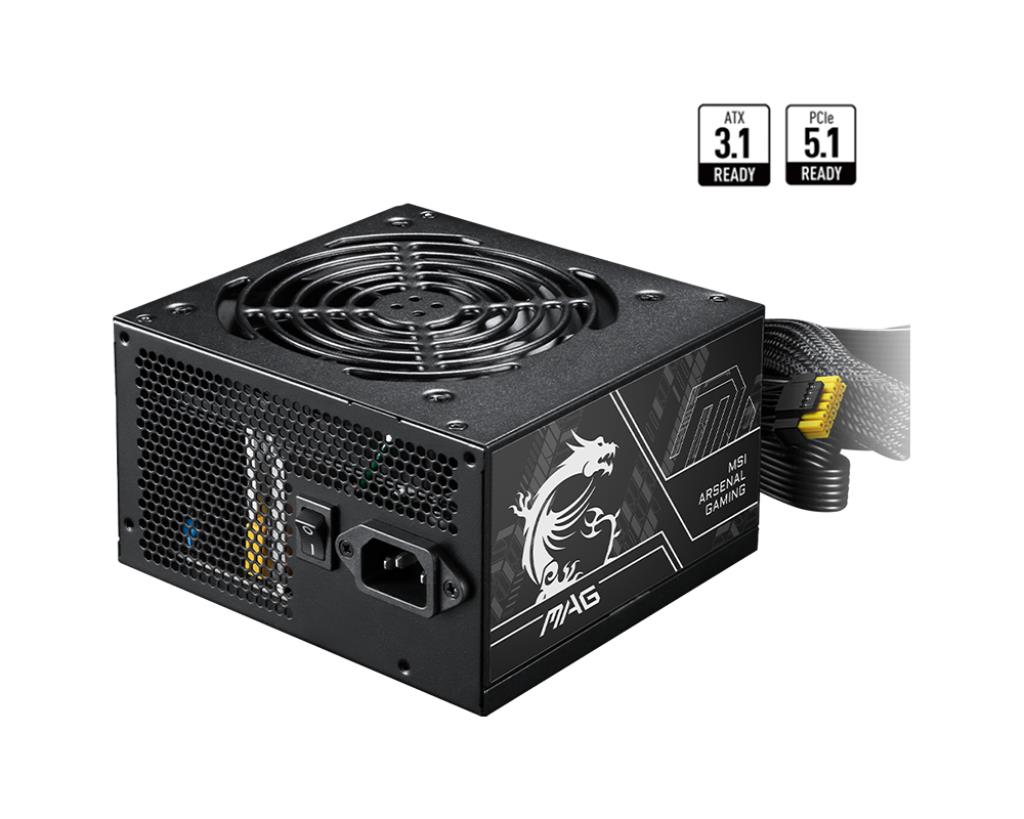

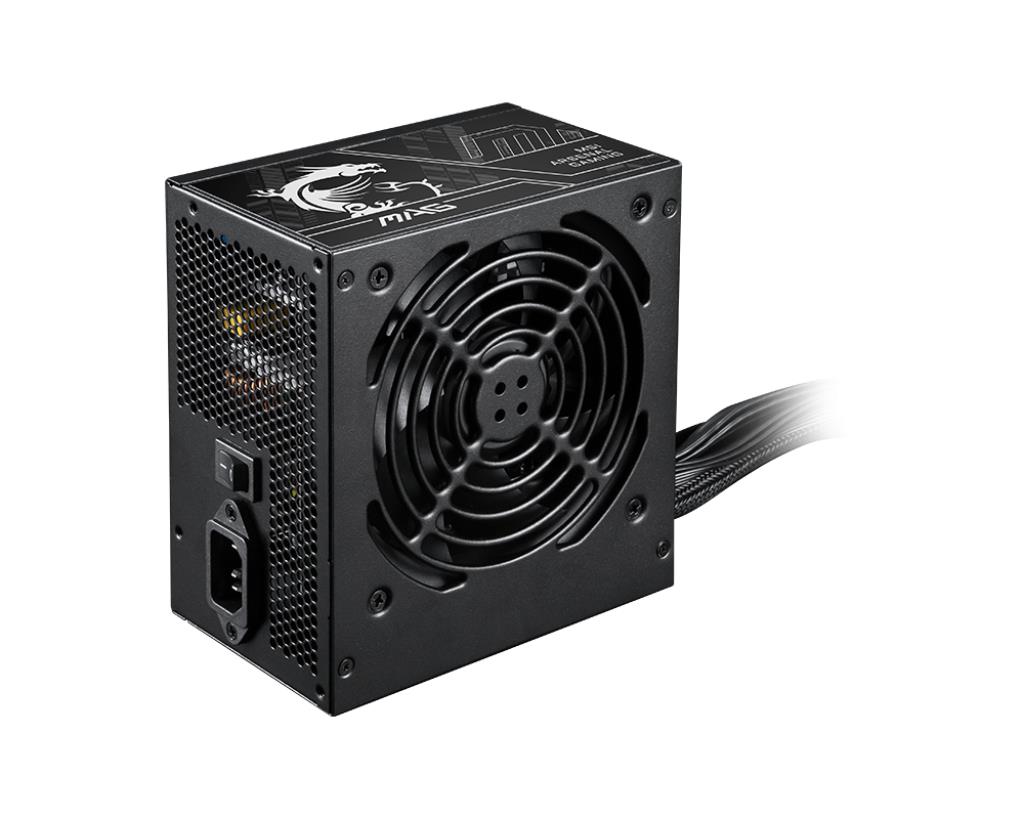

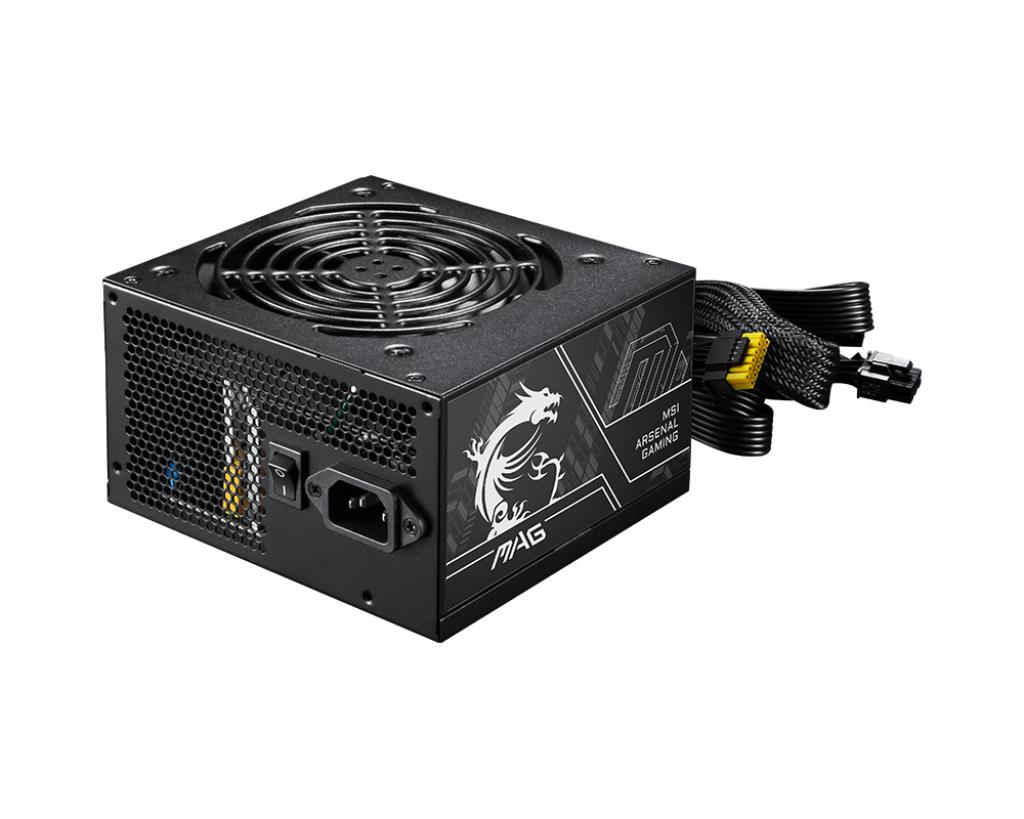

Power Supply|MSI|ATX|PC|100 - 240 V|650 W|MAGA650BNPCIE5II

Summary: MSI MAG A650BN PCIE5 II. Total power: 650 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 55 cm, Cabling type: Non-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Bronze. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Width: 150 mm, Depth: 140 mm, Height: 86 mm

Category Code: PSU

Unit Box Height: 0.115

Unit Box Length: 0.293

Unit Box Width: 0.195

AC input frequency: 50/60 Hz

AC input voltage: 100 - 240 V

Combined power (+12V): 648 W

Combined power (+3.3V): 120 W

Combined power (+5V): 120 W

Combined power (+5Vsb): 15 W

Efficiency: 85 %

Max output current (+12V): 54 A

Max output current (+3.3V): 20 A

Max output current (+5V): 0.3 A

Max output current (+5Vsb): 15 A

Maximum input current (@110V): 10 A

Maximum input current (@220V): 5 A

Power Factor Correction (PFC) type: Active

Power protection features: Over current/Over power/Over voltage/Short circuit

Total power: 650 W

ATX power connector (20+4 pin): Yes

ATX Power connector (24-pin): No

Cabling type: Non-Modular

CPU power connector (4+4 pin): Yes

EPS power connector (4+4 pin): Yes

EPS power connector (8-pin): Yes

Floppy disk drive connector: No

Motherboard power cable length: 550 mm

Motherboard power connector: 20+4 pin ATX

Number of SATA power connectors: 3

PCI Express power connectors (6+2 pin): 2

Peripheral (Molex) power connectors (4-pin): 2

80 PLUS certification: 80 PLUS Bronze

Power supply unit (PSU) form factor: ATX

Purpose: PC

Cooling type: Active

Fan diameter: 120 mm

Fan speed: 500 - 1800 rpm

Number of fans: 1 fan(s)

On/off switch: Yes

Product colour: Black

Depth: 140 mm

Height: 86 mm

Width: 150 mm

Units per Pallet: 0

Unit Calculated Volume: 0.008323 cubm

Unit Calculated Weight: 2.4 kg
