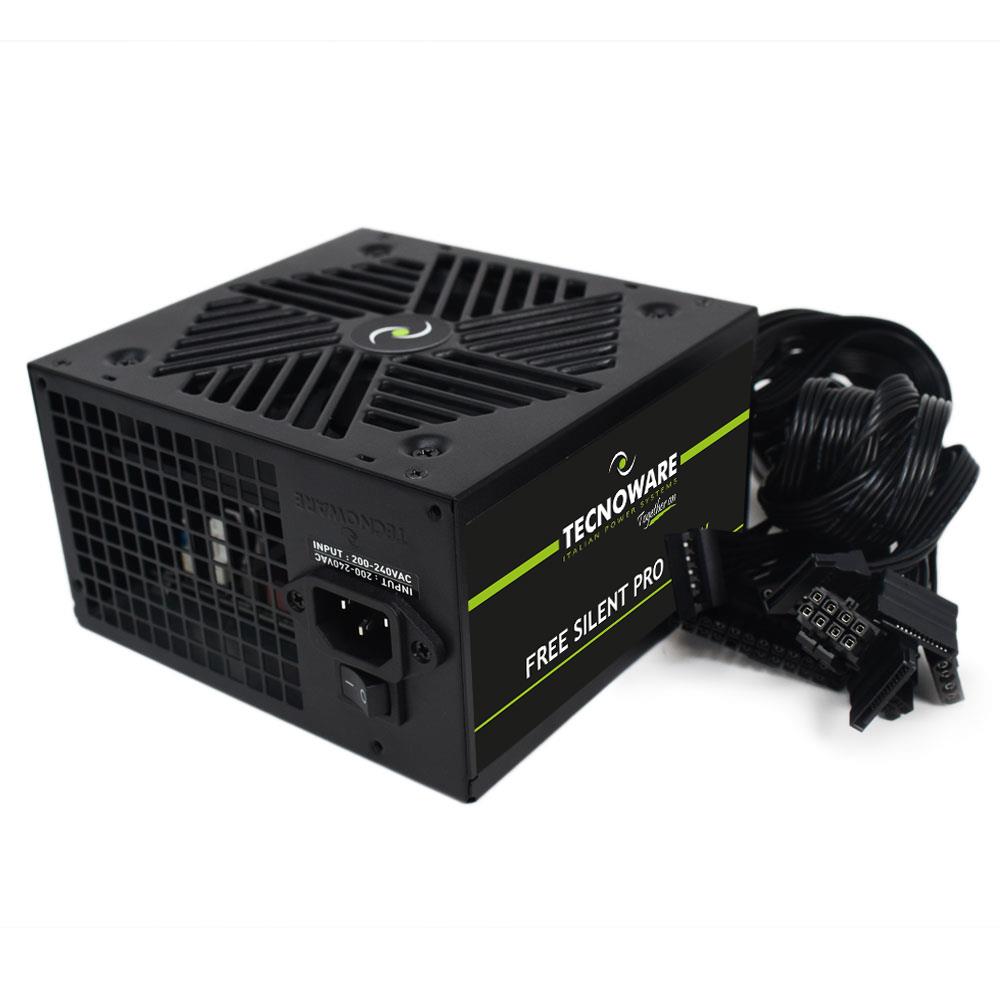

Power Supply|TECNOWARE|ATX|PC|180 - 264 V|750 W|FAL751FSP12

Summary: Tecnoware FAL751FSP12. Total power: 750 W, AC input voltage: 180 - 264 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 24-pin ATX. Purpose: PC, Power supply unit (PSU) form factor: ATX. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Width: 150 mm, Depth: 140 mm, Height: 86 mm

Category Code: PSU

AC input frequency: 47 - 63 Hz

AC input voltage: 180 - 264 V

Efficiency: 85 %

Max output current (+12V): 52 A

Max output current (+3.3V): 26 A

Max output current (+5V): 26 A

Max output current (+5Vsb): 2.5 A

Max output current (-12V): 0.8 A

Power Factor Correction (PFC) type: Active

Power protection features: Overload/Short circuit/Surge protection

Total power: 750 W

CPU power connector (4+4 pin): Yes

Motherboard power connector: 24-pin ATX

Number of SATA power connectors: 4

PCI Express power connectors (6+2 pin): 2

Peripheral (Molex) power connectors (4-pin): 2

80 PLUS certification: No

ATX version: 2.31

Power supply unit (PSU) form factor: ATX

Purpose: PC

Cooling type: Active

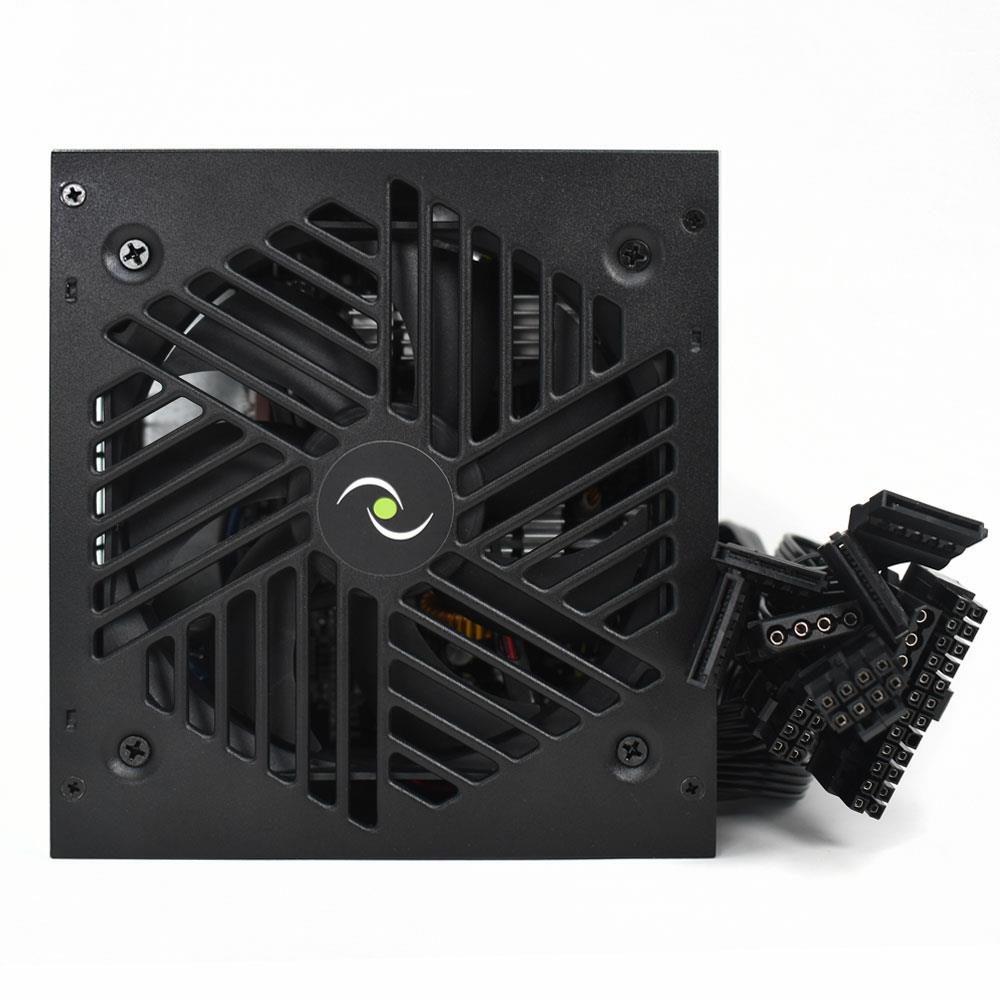

Fan diameter: 120 mm

Number of fans: 1 fan(s)

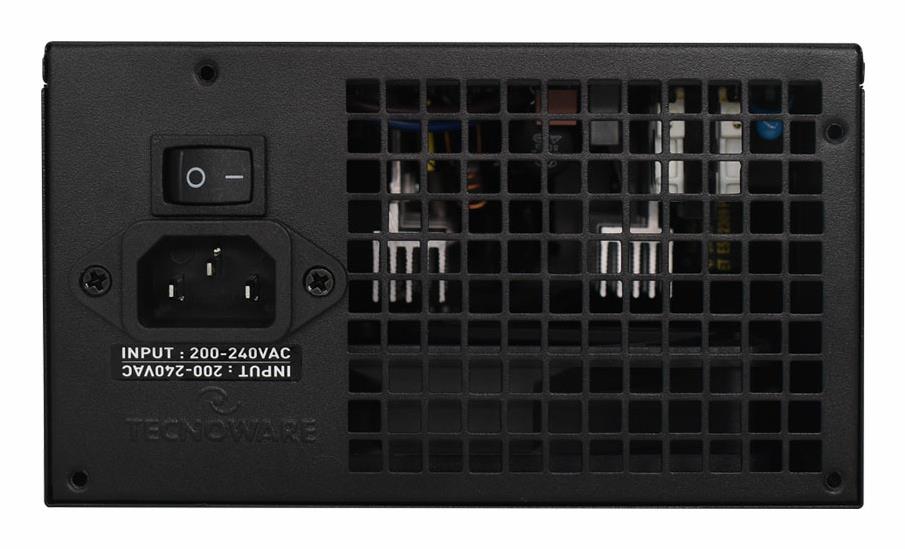

On/off switch: Yes

Product colour: Black

Operating temperature (T-T): 0 - 40 °C

Storage temperature (T-T): -15 - 40 °C

Depth: 140 mm

Height: 86 mm

Weight: 1000 g

Width: 150 mm

Unit Calculated Volume: 0.0045 cubm

Unit Calculated Weight: 2.2 kg
