Power Supply|BE QUIET|Pure Power 12|750 Watts|Peak Power 820 Watts|Efficiency 80 PLUS GOLD|PFC Active|MTBF 100000 hours|BP026EU

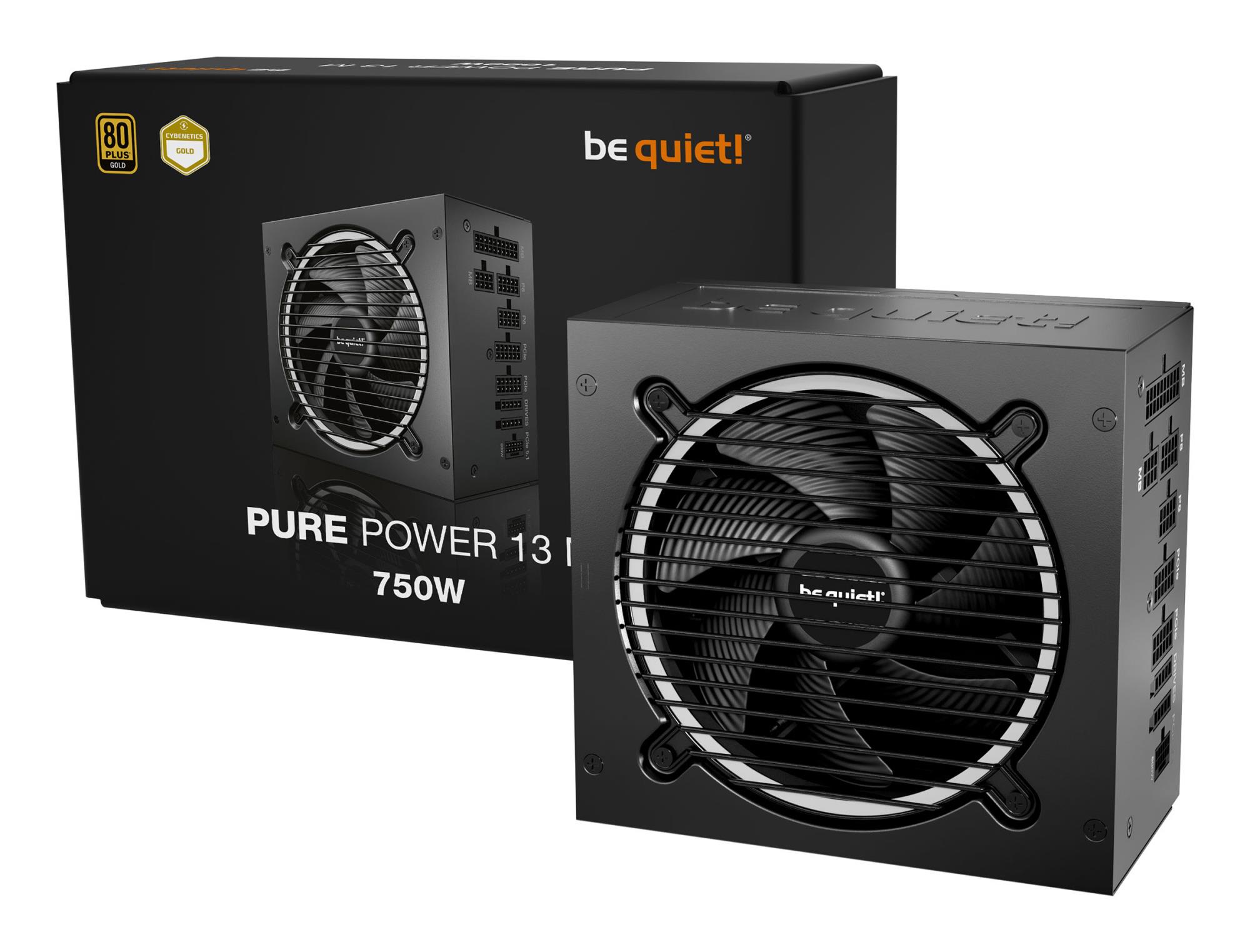

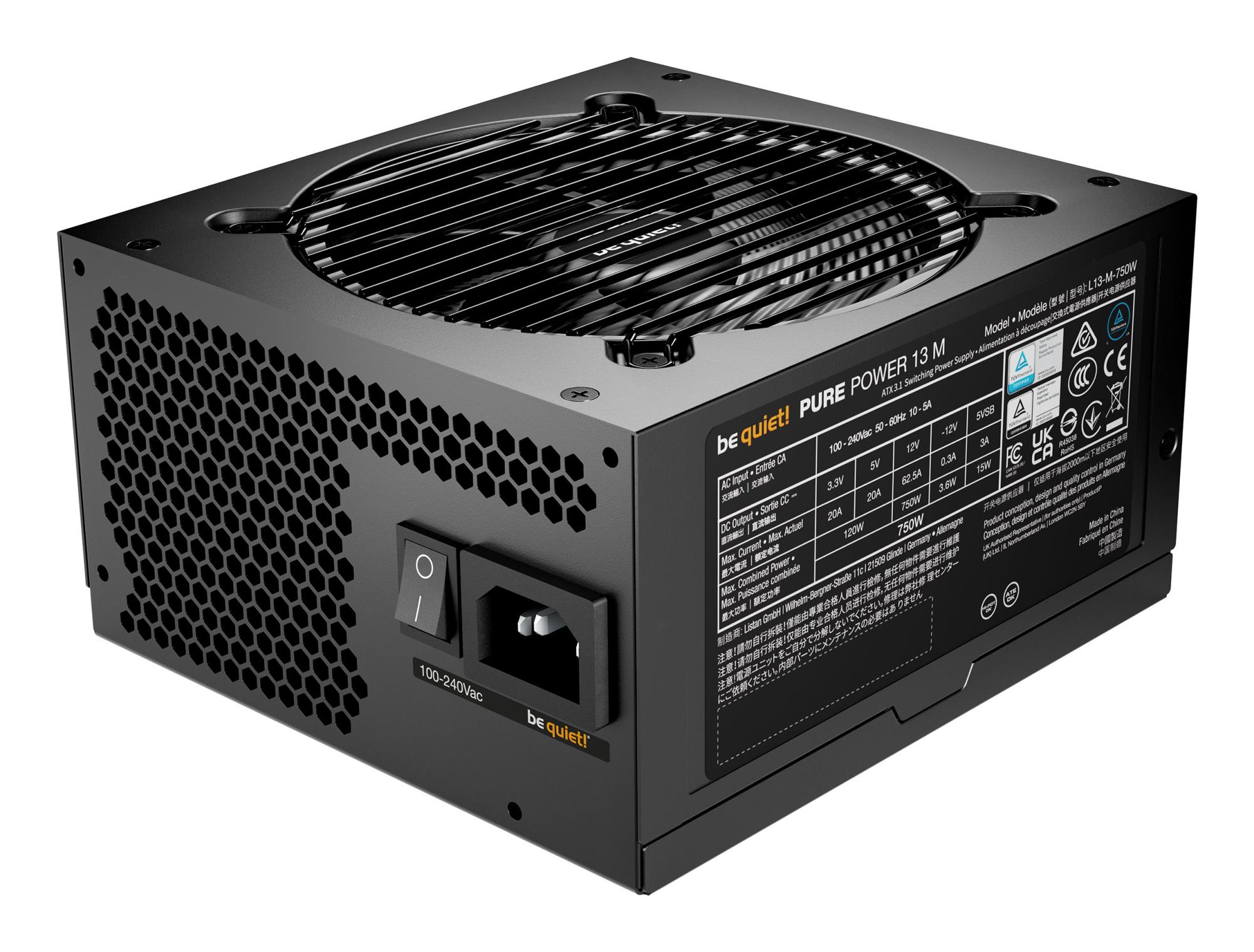

Summary: be quiet! Pure Power 13 M | 750W. Total power: 750 W, AC input voltage: 100 - 240 V, Peak power: 820 W. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 55 cm, SATA power cable length: 500,650,800,950 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Cables included: AC, CPU, PCIe, Peripheral (Molex), SATA

Category Code: PSU

Unit Box Height: 0.205

Unit Box Length: 0.29

Unit Box Width: 0.1

AC input frequency: 50/60 Hz

AC input voltage: 100 - 240 V

Combined power (+12V): 750 W

Combined power (+3.3V): 120 W

Combined power (+5V): 120 W

Combined power (+5Vsb): 15 W

Combined power (-12V): 3.6 W

Efficiency: 92.6 %

Hold time: 28.62 ms

Max output current (+12V1): 62.5 A

Max output current (+3.3V): 20 A

Max output current (+5V): 20 A

Max output current (+5Vsb): 3 A

Max output current (-12V): 0.3 A

Maximum input current (@110V): 10 A

Maximum input current (@220V): 5 A

Number of +12V rail(s): 1

Peak power: 820 W

Power factor: 0.98

Power Factor Correction (PFC) type: Active

Power protection features: Over current/Over power/Over voltage/Overheating/Short circuit/Surge & inrush protection (SIP)/Under voltage

Total power: 750 W

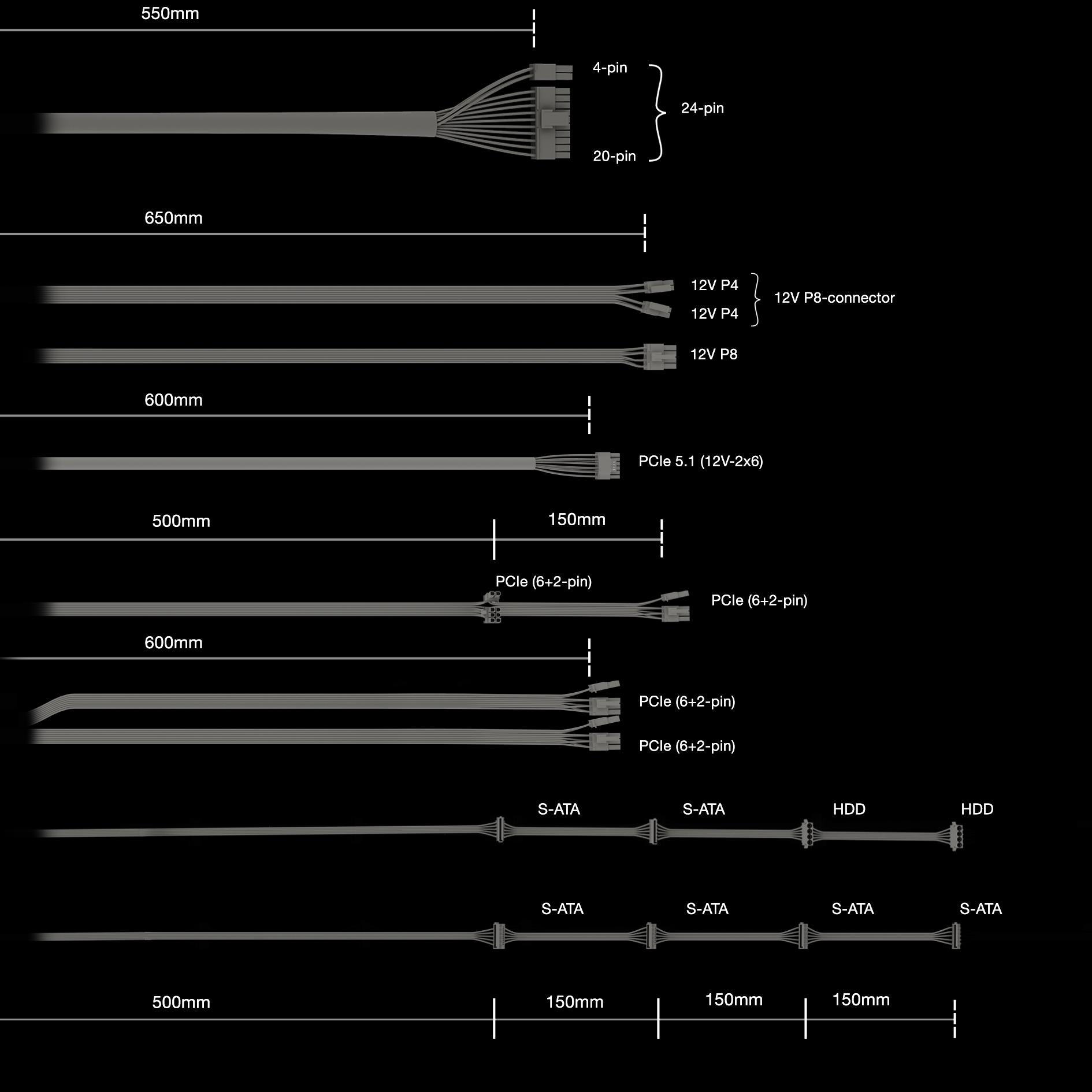

Cabling type: Fully-Modular

CPU P4 connector (4-pin): 2

CPU power cable length: 650 mm

CPU power connector (4+4 pin): Yes

EPS power connector (8-pin): Yes

Motherboard power cable length: 550 mm

Motherboard power connector: 20+4 pin ATX

Number of SATA power connectors: 6

PCI Express power connectors (12-pin): 1

PCI Express power connectors (6+2 pin): 4

Peripheral (Molex) power cable length: 800/950 mm

Peripheral (Molex) power connectors (4-pin): 2

SATA power cable length: 500/650/800/950 mm

80 PLUS certification: 80 PLUS Gold

ATX version: 3.1

Bearing technology: Rifle

EPS version: 2.92

Mean time between failures (MTBF): 100000 h

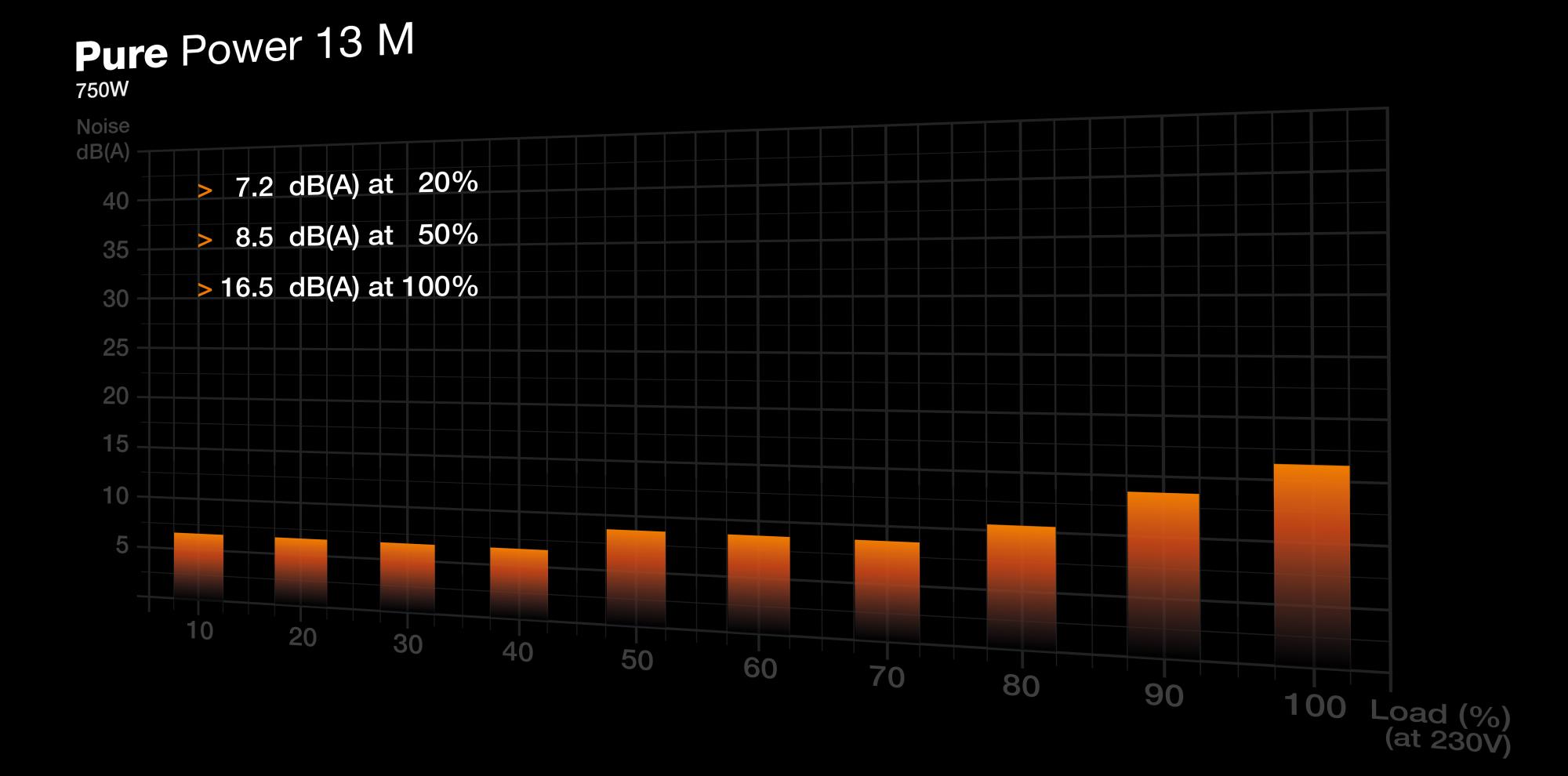

Noise level: 20.8 dB

Power supply unit (PSU) form factor: ATX

Purpose: PC

Cooling type: Active

Fan diameter: 120 mm

Fan speed: 0 - 1800 rpm

Number of fans: 1 fan(s)

On/off switch: Yes

Product colour: Black

Operating temperature (T-T): 0 - 40 °C

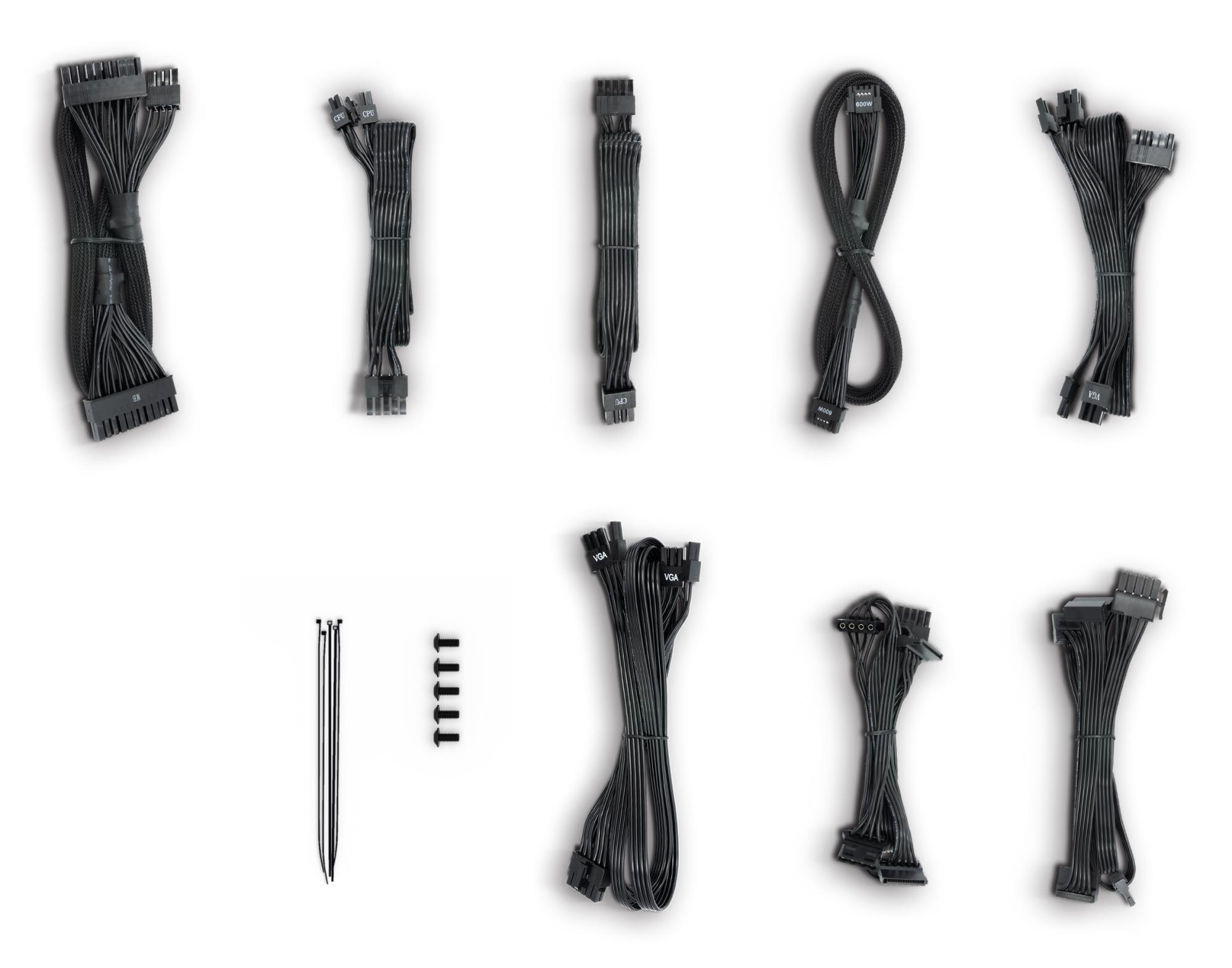

Cables included: AC,CPU,PCIe,Peripheral (Molex),SATA

Compliance certificates: BSMI/CB/CCC/CE/cTUVus/Federal Communications Commission (FCC)/IRAM/RCM/RoHS/TÜV mark/UKCA/WEEE

Depth: 160 mm

Height: 86 mm

Weight: 2460 g

Width: 150 mm

Package depth: 320 mm

Package height: 133 mm

Package weight: 3200 g

Package width: 210 mm

Sustainability certificates: ENERGY STAR/ErP

Products per shipping (inner) case: 6 pc(s)

Shipping (inner) case gross weight: 21500 g

Shipping (inner) case height: 233 mm

Shipping (inner) case length: 580 mm

Shipping (inner) case width: 325 mm

Cable ties included: Yes

Screws included: Yes

Model name: Pure Power 12

Units per Pallet: 0

Unit Calculated Volume: 0.008568 cubm

Unit Calculated Weight: 3.14 kg
