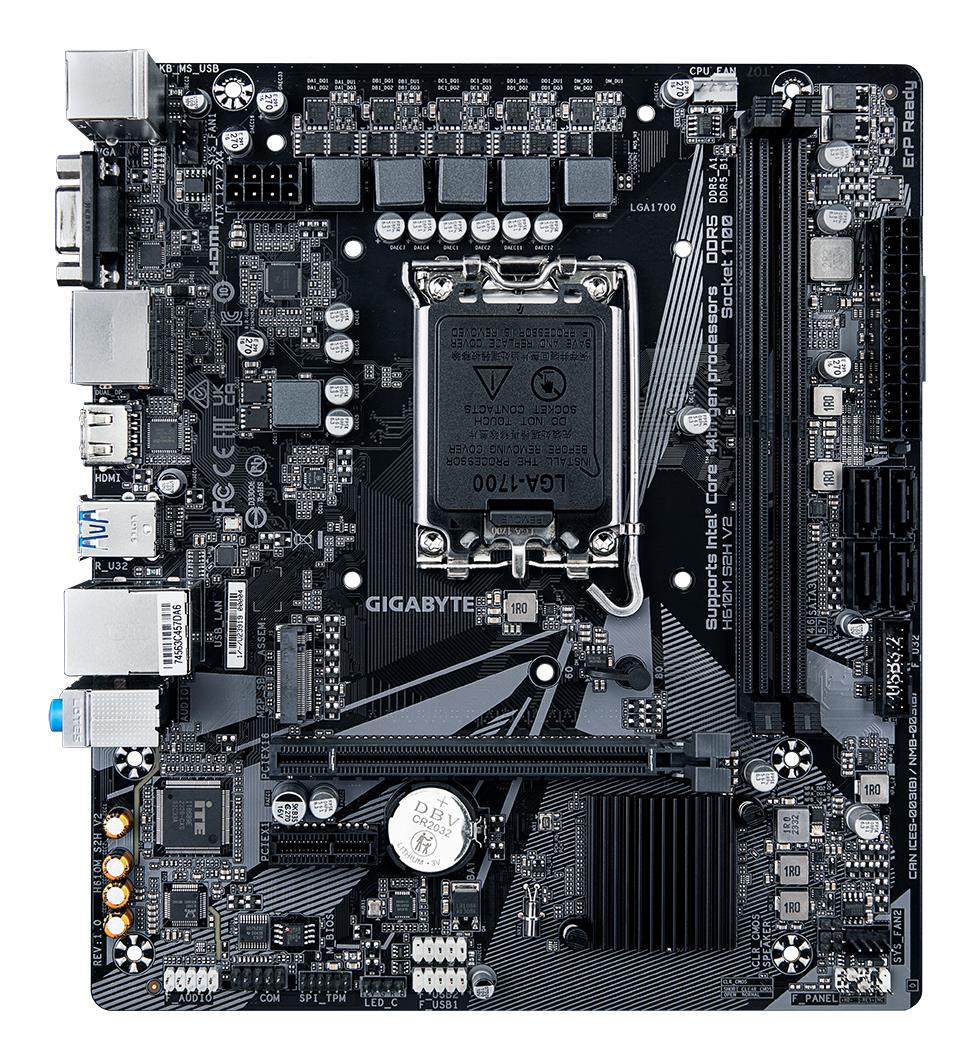

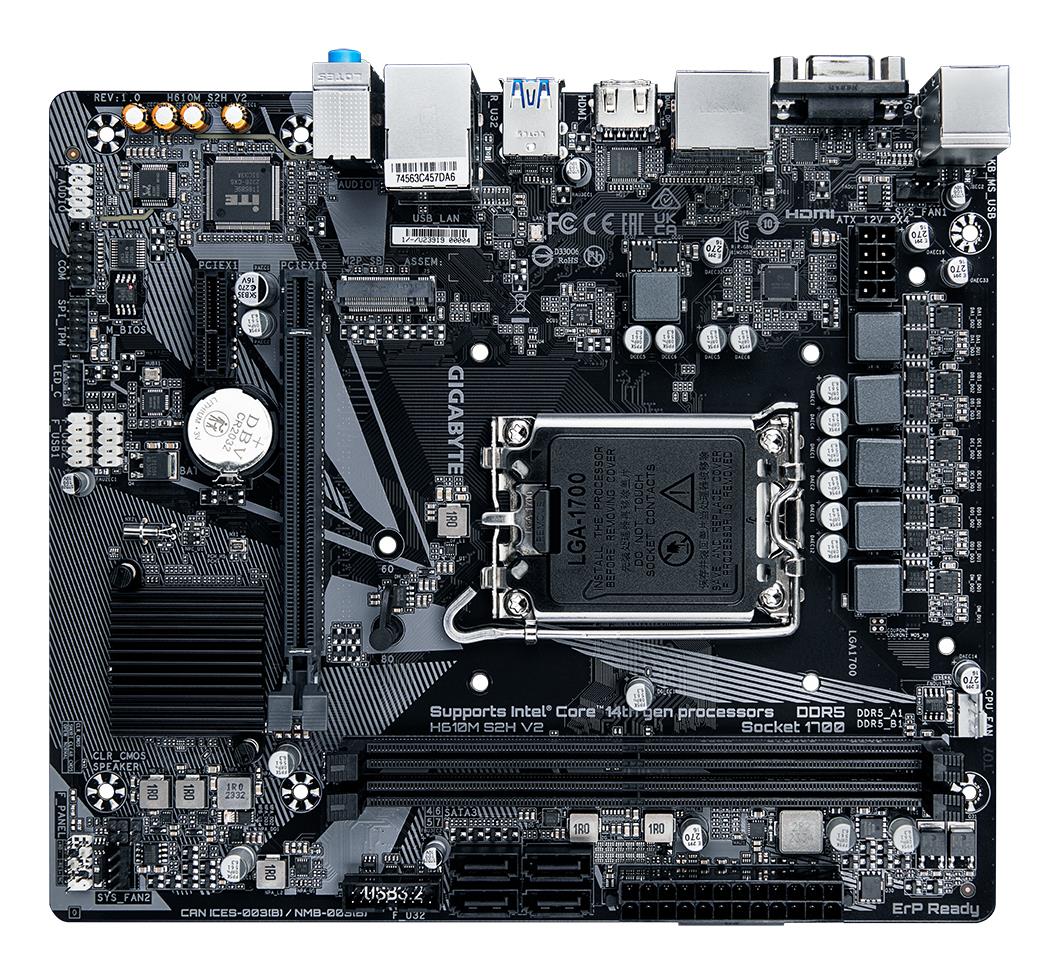

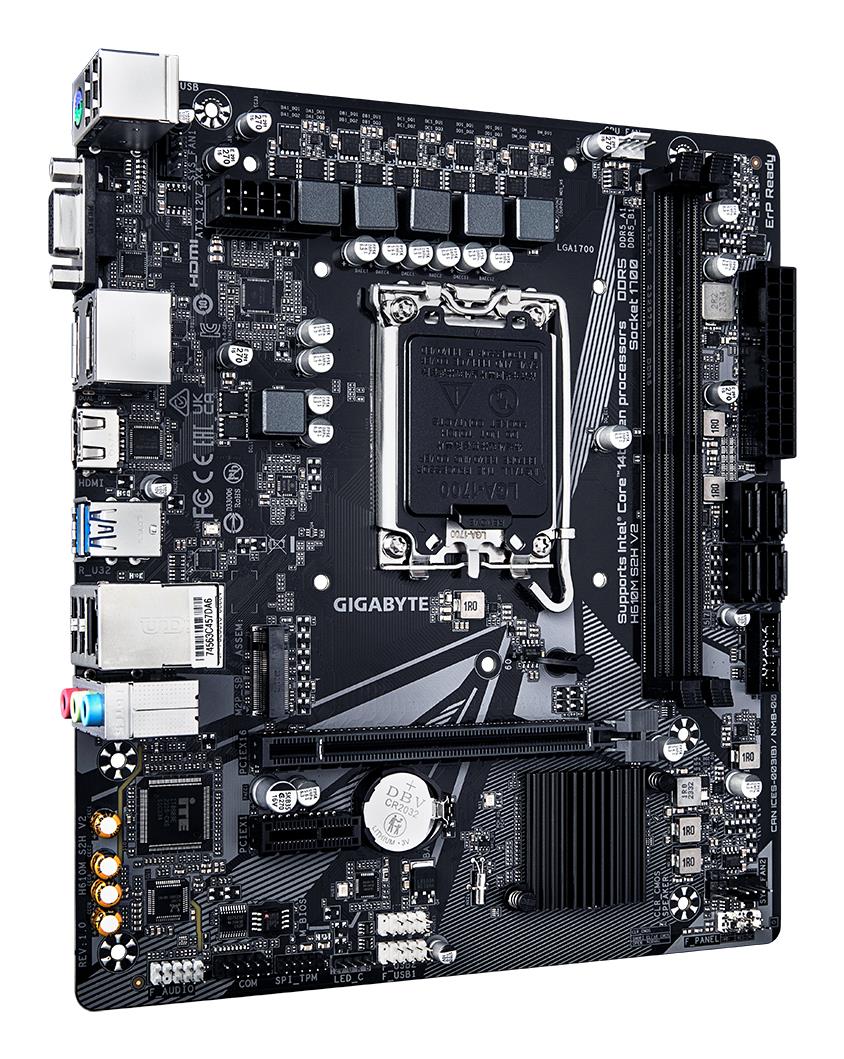

Mainboard|GIGABYTE|Intel H610|LGA1700|Micro-ATX|Memory DDR5|Memory slots 2|1xPCI-Express 3.0 1x|1xPCI-Express 4.0 16x|1xM.2|1x15pin D-sub|1xHDMI|2xDisplayPort|4xUSB 2.0|2xUSB 3.2|1xPS/2|1xRJ45|3xAudio port|H610MS2HV21.0
SKU: H610MS2HV21.0
€ 75.98
Pieejams : 50 gab.
Intel H610 Express
micro ATX
Audio 7.1 channels
CPU Intel
Socket LGA 1700
Series Intel® Celeron®/Intel® Core™ i3/Intel® Core™ i5/Intel® Core™ i7/Intel® Core™ i9/Intel® Pentium® Gold
Supported memory types DDR5-SDRAM
2xNumber of memory slots
Memory slots type DIMM
Supported storage drive interfaces M.2,SATA
On-board graphics card Yes
Graphics card HD Graphics
4096 x 2304 pixels
4xUSB 2.0 ports quantity
2xUSB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
1xEthernet LAN (RJ-45) ports
1xVGA (D-Sub) ports quantity
1xHDMI ports quantity
1xDVI-D ports quantity
-
Category Code: MBI
-
Unit Box Height: 0.055
-
Unit Box Length: 0.265
-
Unit Box Width: 0.235
-
M.2: 1
-
PCI-Express 3.0 1x: 1
-
PCI-Express 4.0 16x: 1
-
15pin D-sub: 1
-
Audio port: 3
-
DisplayPort: 2
-
HDMI: 1
-
PS/2: 1
-
RJ45: 1
-
USB 2.0: 4
-
USB 3.2: 2
-
SATA: Yes
-
Serial: Yes
-
USB 2.0: Yes
-
USB 3.2: Yes
-
Model: H610M S2H V2
-
Chipset: Intel H610
-
Socket: LGA1700
-
Form Factor: Micro-ATX
-
Memory type: DDR5
-
Frequency speed: 4400/4800/5200/5600 MHz
-
Memory slots: 2
-
Integrated video: Depending on CPU
-
Integrated LAN: Gigabit
-
TPM: Header
-
Unit Calculated Volume: 0.004113 cubm
-
Product Net Weight: 0.5 kg
-
Unit Calculated Weight: 0.787 kg
-
Manufacturer: GIGABYTE
