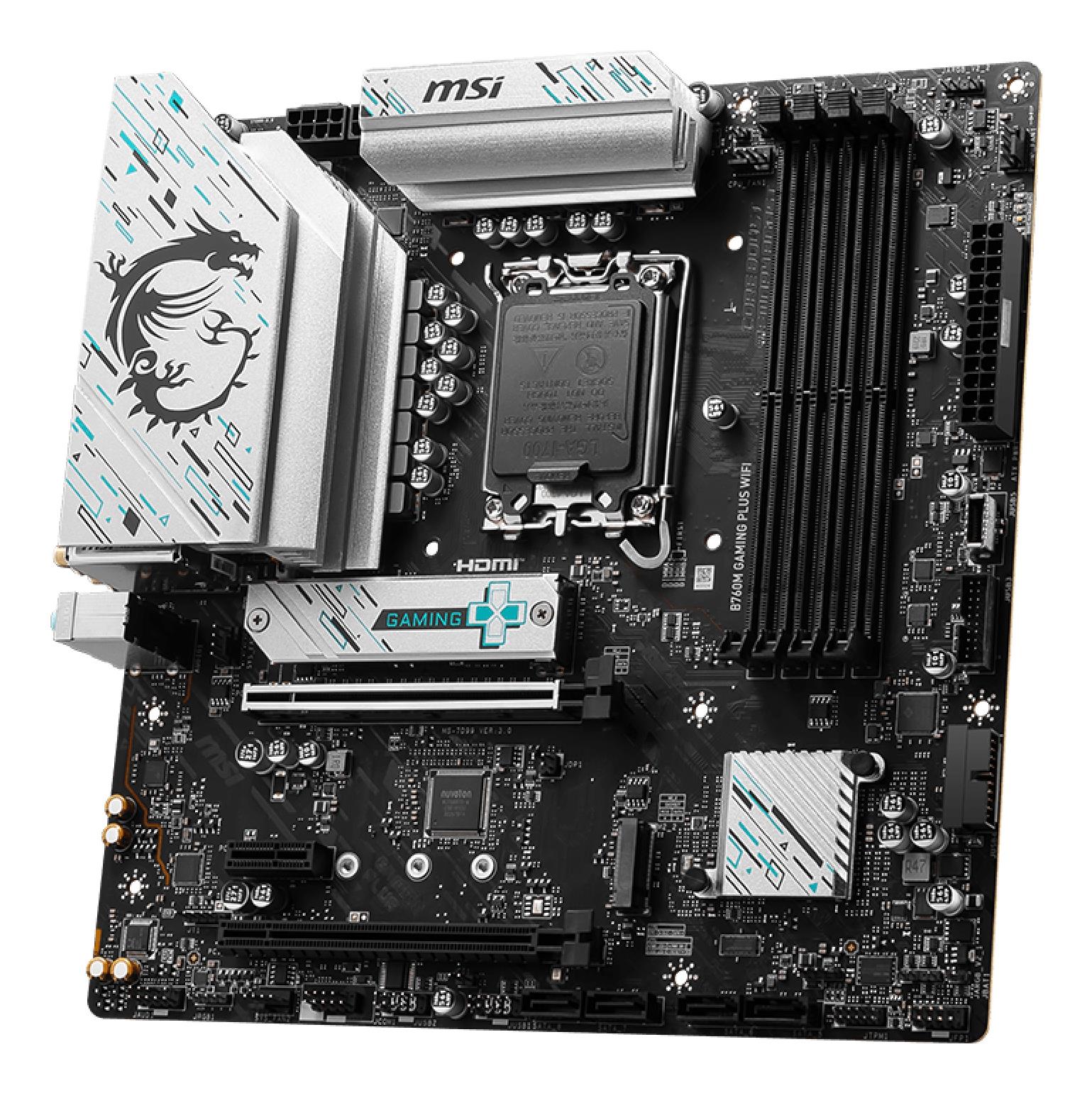

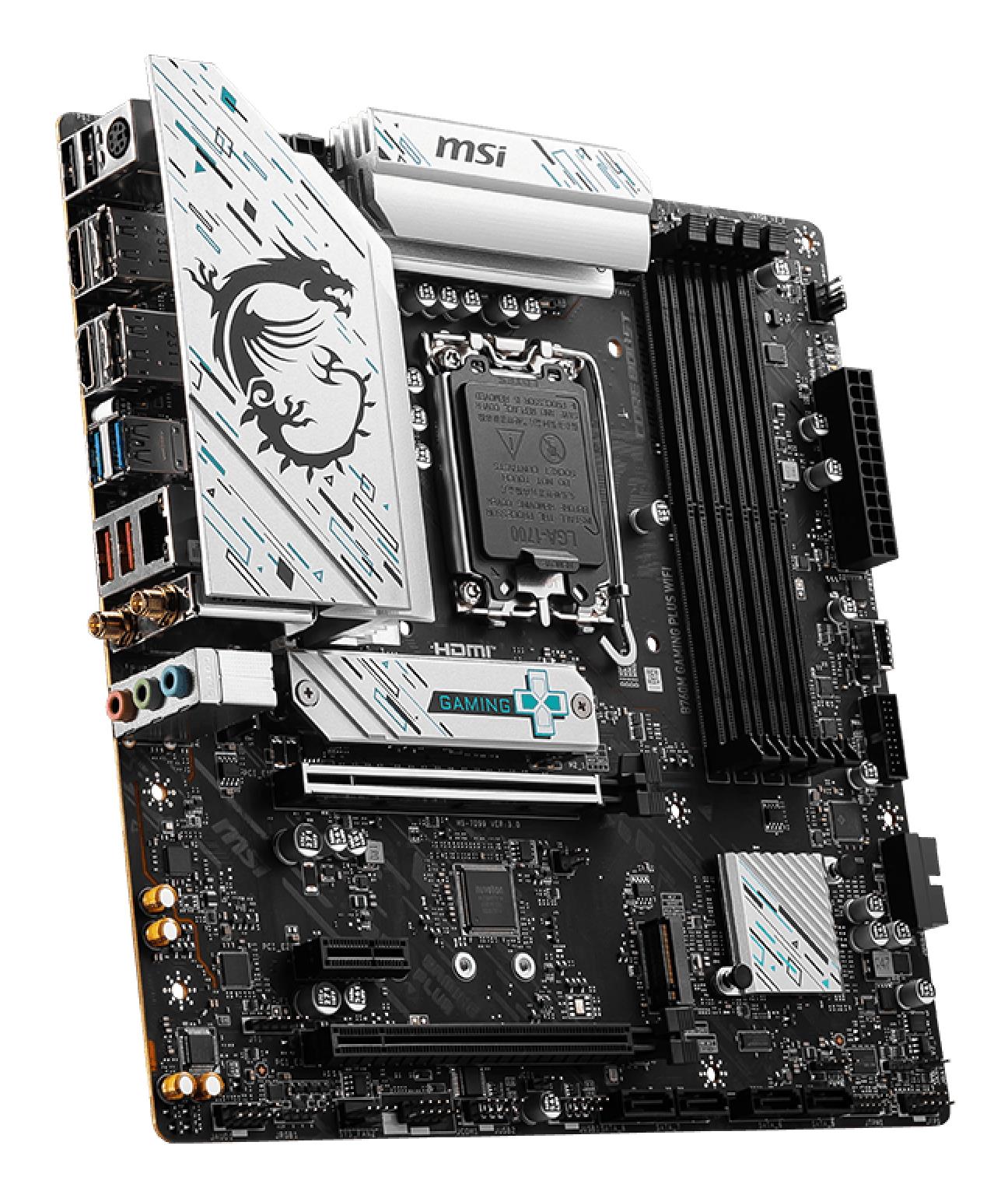

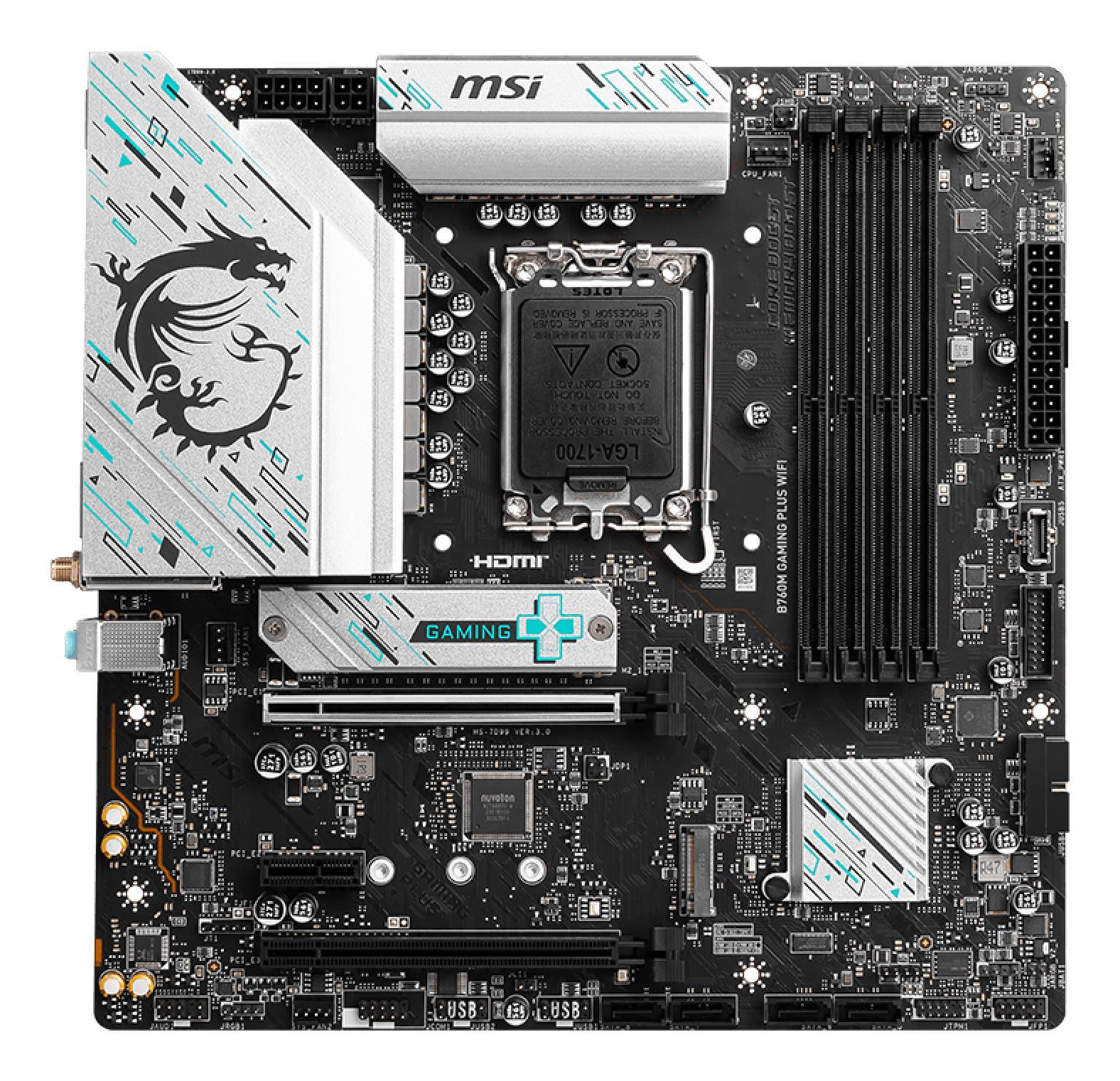

Mainboard|MSI|Intel B760 Express|LGA1700|Micro-ATX|Memory DDR5|Memory slots 4|1xPCI-Express 3.0 1x|1xPCI-Express 4.0 4x |1xPCI-Express 4.0 16x|2xM.2|2xHDMI|2xDisplayPort|2xUSB 2.0|4xUSB 3.2|1xPS/2|1xRJ45|3xAudio port|B760MGAMINGPLUSWIFI
SKU: B760MGAMINGPLUSWIFI
€ 146.13
Pieejams : 50 gab.
Intel B760
micro ATX
Audio 7.1 channels
CPU Intel
Socket LGA 1700
Series Intel® Celeron®/Intel® Pentium® Gold
Supported memory types DDR5-SDRAM
4xNumber of memory slots
Memory slots type DIMM
Supported storage drive interfaces M.2,SATA III
2xUSB 2.0 ports quantity
2xUSB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2xUSB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
1xEthernet LAN (RJ-45) ports
2xHDMI ports quantity
Wi-Fi Yes
Bluetooth Yes
-
Category Code: MBI
-
Unit Box Height: 0.055
-
Unit Box Length: 0.3
-
Unit Box Width: 0.0275
-
M.2: 2
-
PCI-Express 3.0 1x: 1
-
PCI-Express 4.0 16x: 1
-
PCI-Express 4.0 4x : 1
-
Audio port: 3
-
DisplayPort: 2
-
HDMI: 2
-
PS/2: 1
-
RJ45: 1
-
USB 2.0: 2
-
USB 3.2: 4
-
Bluetooth: Yes
-
SATA: Yes
-
Serial: Yes
-
USB 2.0: Yes
-
USB 3.2: Yes
-
WiFi: Yes
-
Model: B760M GAMING PLUS WIFI
-
Chipset: Intel B760 Express
-
Socket: LGA1700
-
Form Factor: Micro-ATX
-
Memory type: DDR5
-
Frequency speed: 4800/5000/5200/5400/5600/5800/6000/6200/6400/6600/6800 MHz
-
Memory slots: 4
-
Integrated video: Depending on CPU
-
Integrated LAN: 2.5 Gigabit
-
Integrated audio: Realtek ALC897
-
RAID: SATA 0, 1, 5, 10
-
TPM: Header
-
Unit Calculated Volume: 0.005495 cubm
-
Product Net Weight: 1.1 kg
-
Unit Calculated Weight: 1.34 kg
-
Manufacturer: MSI
