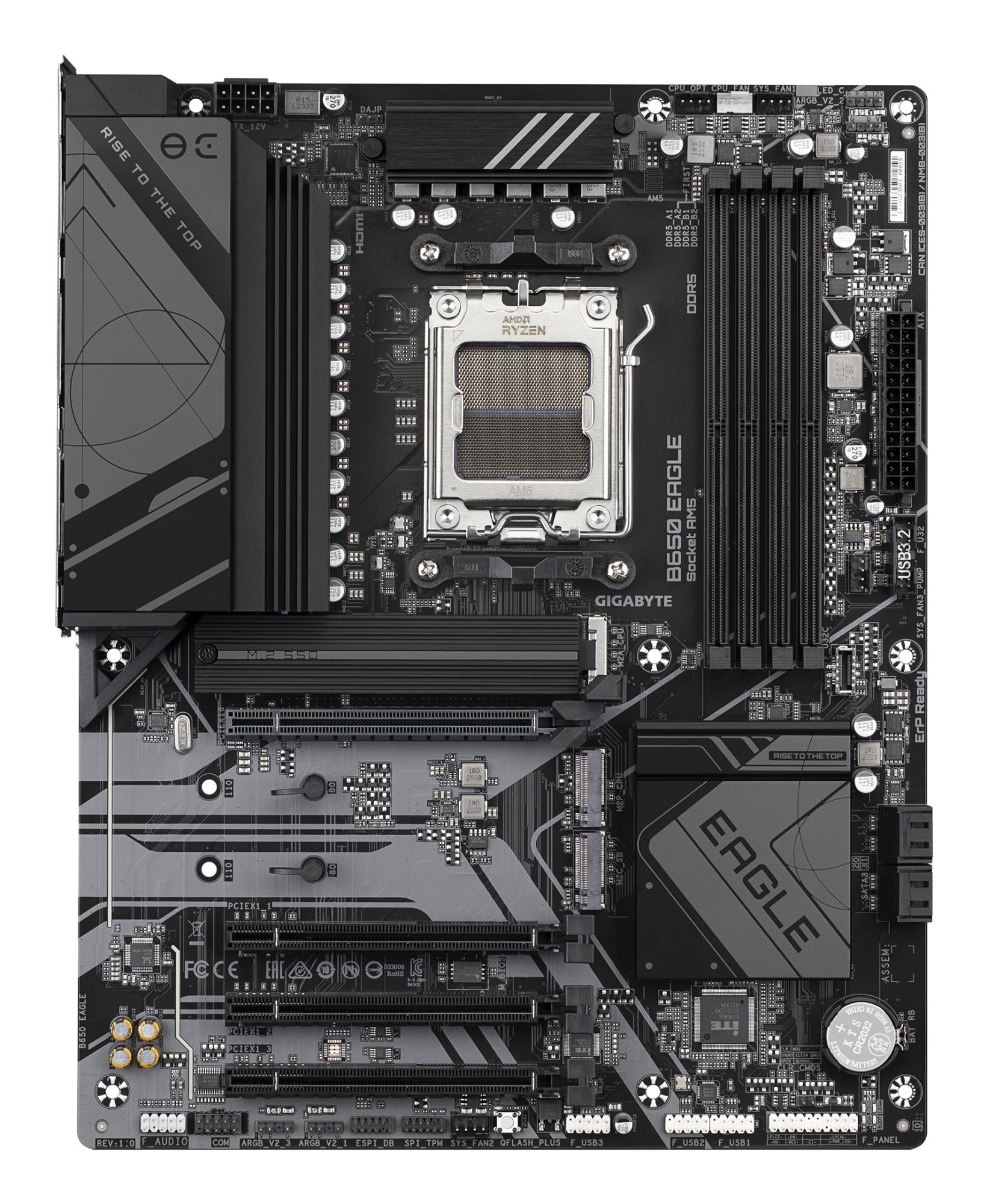

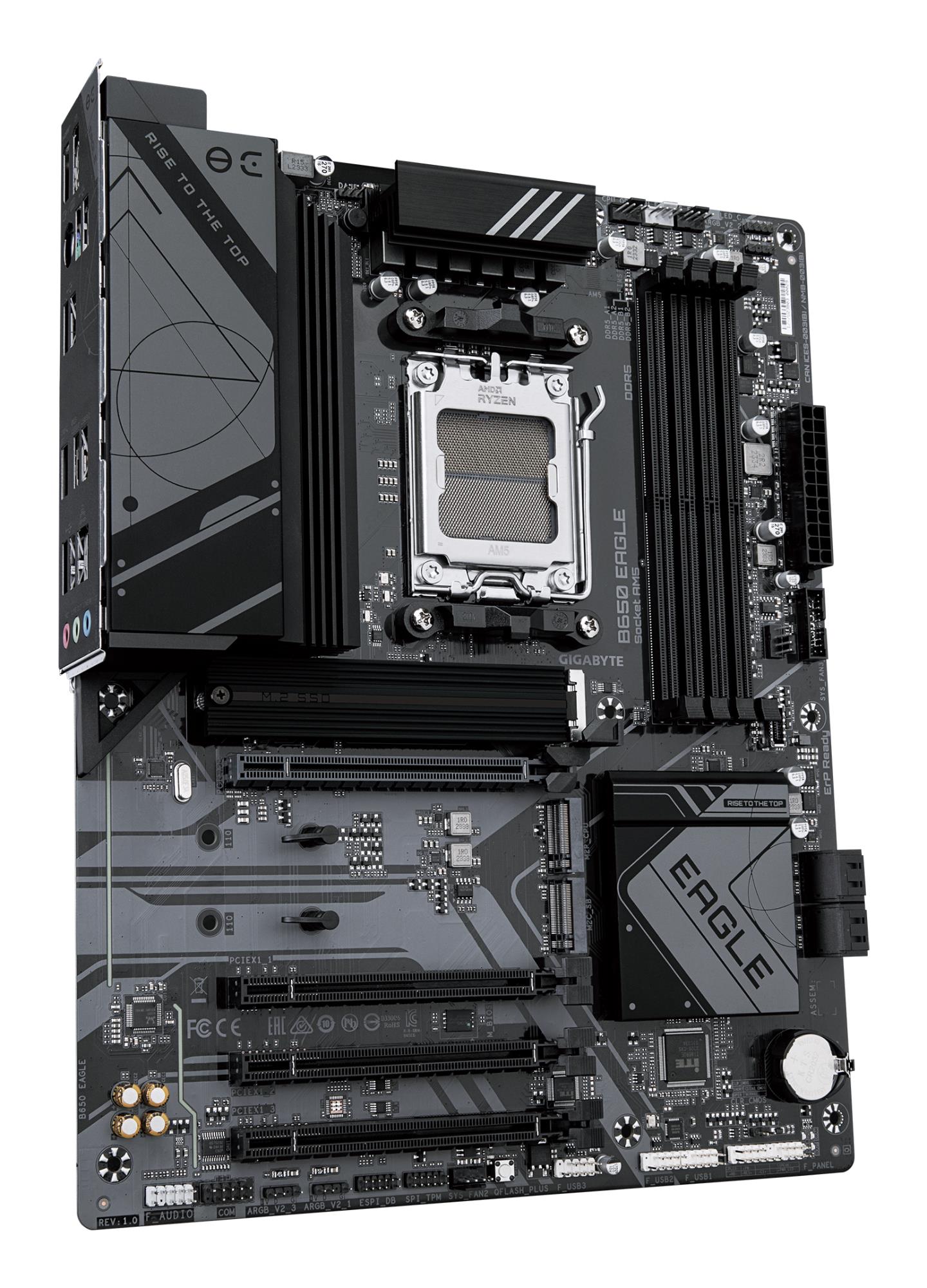

Mainboard|GIGABYTE|AMD B650|SAM5|ATX|Memory DDR5|Memory slots 4|B650EAGLE1.2

Summary: GIGABYTE B650 EAGLE Motherboard - AMD Ryzen 9000 Series CPUs, 12+2+2 Phases VRM, up to 7600MHz DDR5 (OC), 1xPCIe 5.0 + 2xPCIe 4.0 M.2, GbE LAN, USB 3.2 Gen 2. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Maximum resolution: 4096 x 2160 pixels. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek RTL8111H

Category Code: MBA

Unit Box Height: 0.27

Unit Box Length: 0.335

Unit Box Width: 0.08

Audio chip: Realtek ALC897

Audio output channels: 7.1 channels

Component for: PC

Motherboard chipset: AMD B650

Motherboard chipset family: AMD

Motherboard form factor: ATX

PC health monitoring: FAN/Temperature/Voltage/Water cooling

Power source type: ATX

Product colour: Brown

Windows operating systems supported: Windows 10 x64/Windows 11 x64

Compatible processor series: AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series

Processor manufacturer: AMD

Processor socket: Socket AM5

Supported processor sockets: Socket AM5

ECC сompatibility: Non-ECC

Maximum internal memory: 256 GB

Maximum internal memory per slot: 64 GB

Memory channels: Dual-channel

Memory slots type: DIMM

Number of memory slots: 4

Supported memory clock speed (max): 7600 MHz

Supported memory clock speeds: 4400/4800/5200/5600/6000/6200/6400/6600/6800/7000/7200/7600 MHz

Supported memory types: DDR5-SDRAM

Unbuffered memory: Yes

Number of HDDs supported: 4

Number of storage drives supported: 7

RAID levels: 0/1/10

RAID support: Yes

Supported storage drive interfaces: M.2,SATA III

Supported storage drive types: HDD & SSD

DirectX version: 12.0

Discrete graphics support: Yes

HDCP: Yes

Maximum resolution: 4096 x 2160 pixels

Parallel processing technology support: Not supported

12V power connector: Yes

ATX Power connector (24-pin): Yes

CPU fan connector: Yes

EPS power connector (8-pin): Yes

Front panel audio connector: Yes

Front panel connector: Yes

Number of chassis fan connectors: 3

Number of CPU fan connectors: 2

Number of RGB LED pin headers: 4

Number of SATA III connectors: 4

Number of water pump connectors: 2

RGB LED pin header: Yes

Serial port headers: 1

TPM connector: Yes

USB 2.0 connectors: 3

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1

USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1

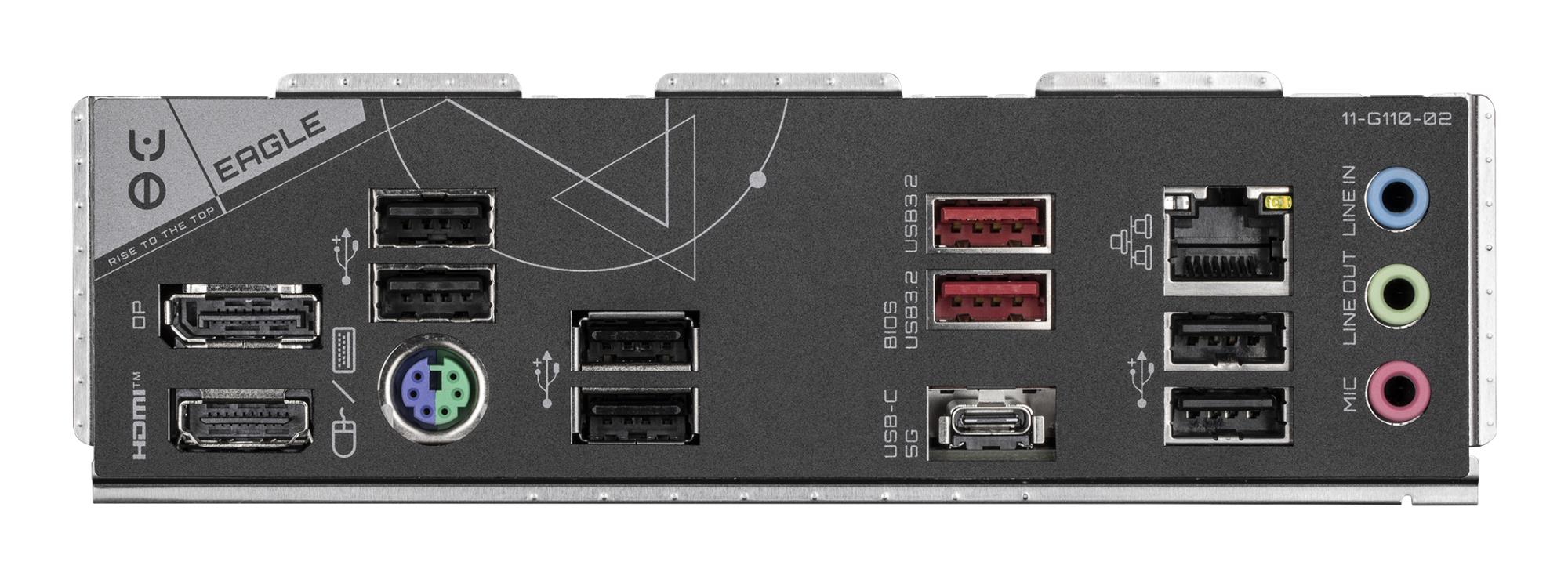

DisplayPort version: 1.4

DisplayPorts quantity: 1

Ethernet LAN (RJ-45) ports: 1

HDMI ports quantity: 1

HDMI version: 2.1

Headphone outputs: 1

Line-in: Yes

Microphone in: Yes

PS/2 ports quantity: 1

USB 2.0 ports quantity: 6

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2

Ethernet interface type: Gigabit Ethernet

Ethernet LAN: Yes

LAN controller: Realtek RTL8111H

Wi-Fi: No

1st M.2 highest PCI Express generation: 5.0

1st M.2 largest key size: 25110

2nd M.2 highest PCI Express generation: 4.0

2nd M.2 largest key size: 22110

3rd M.2 highest PCI Express generation: 4.0

3rd M.2 largest key size: 22110

Number of M.2 (M) slots: 3

PCI Express x16 (Gen 3.x) slots: 3

PCI Express x16 (Gen 4.x) slots: 1

ACPI version: 5.0

BIOS memory size: 256 Mbit

BIOS type: UEFI AMI

Clear CMOS jumper: Yes

Desktop Management Interface (DMI) version: 2.7

System Management BIOS (SMBIOS) version: 2.7

Battery technology: Lithium-Manganese Dioxide (LiMnO2)

Battery type: CR2032

Battery weight: 3 g

Country of origin: China

Lithium weight per battery: 0.07 g

Number of battery cells: 1

Package depth: 270 mm

Package height: 80 mm

Package weight: 1818 g

Package width: 335 mm

Products per shipping (inner) case: 1 pc(s)

Depth: 244 mm

Height: 35 mm

Width: 305 mm

Batteries included: Yes

Bundled software: Norton Internet Security (OEM version) LAN bandwidth management software

Screws included: Yes

Warranty period: 3 year(s)

Model: B650 EAGLE AX (rev. 1.2)

Units per Pallet: 0

Unit Calculated Volume: 0.009838 cubm

Unit Calculated Weight: 1.9 kg
