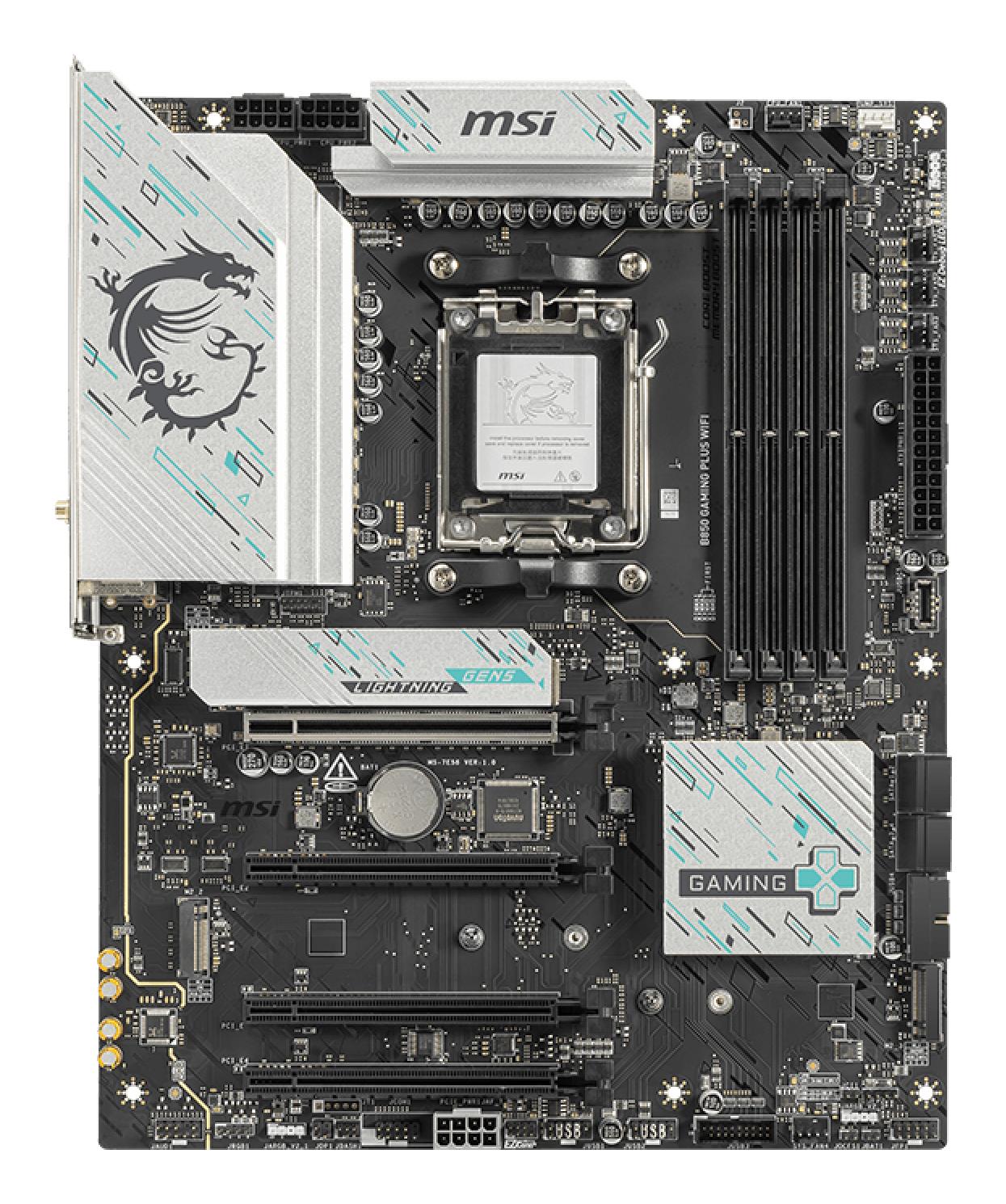

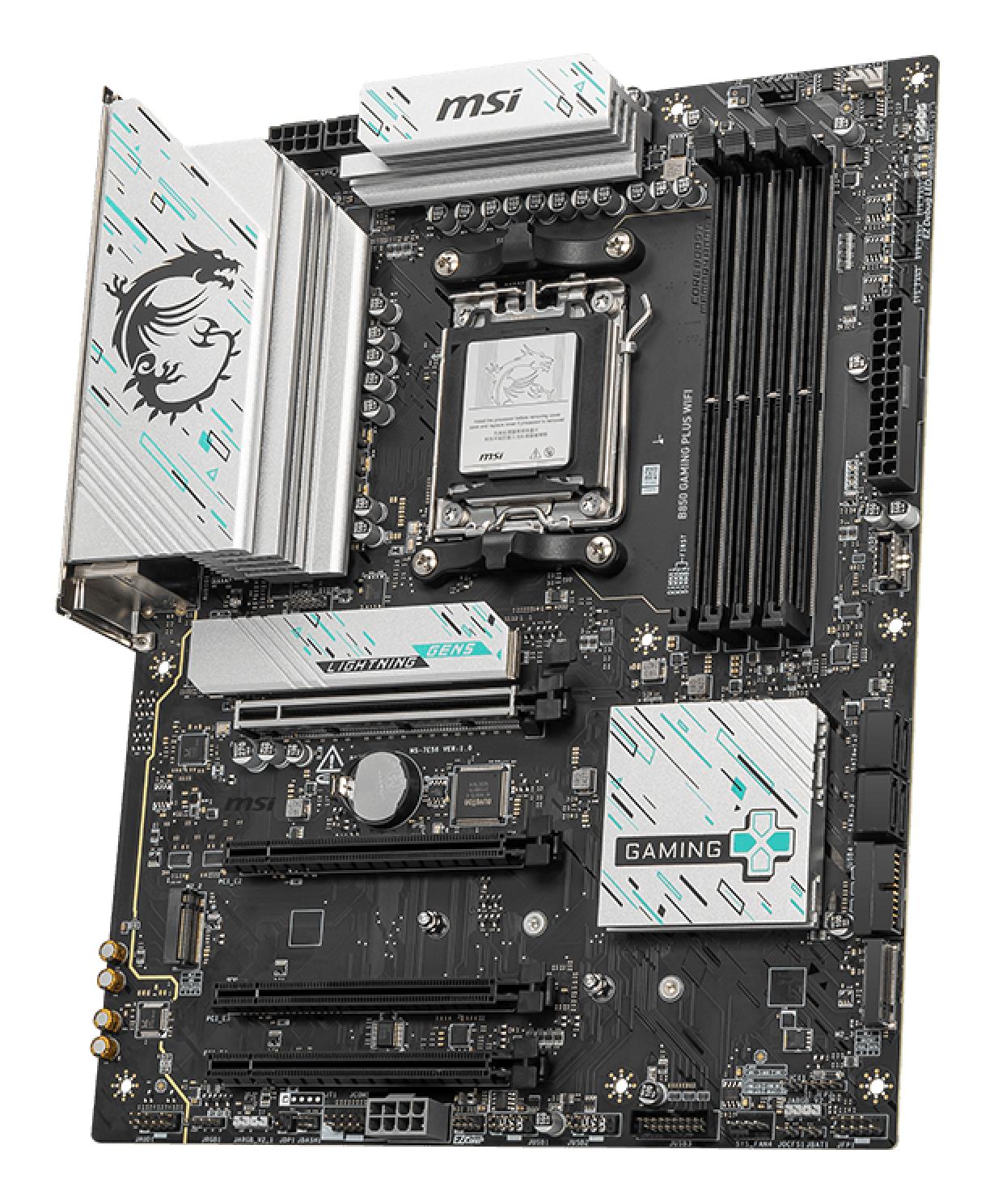

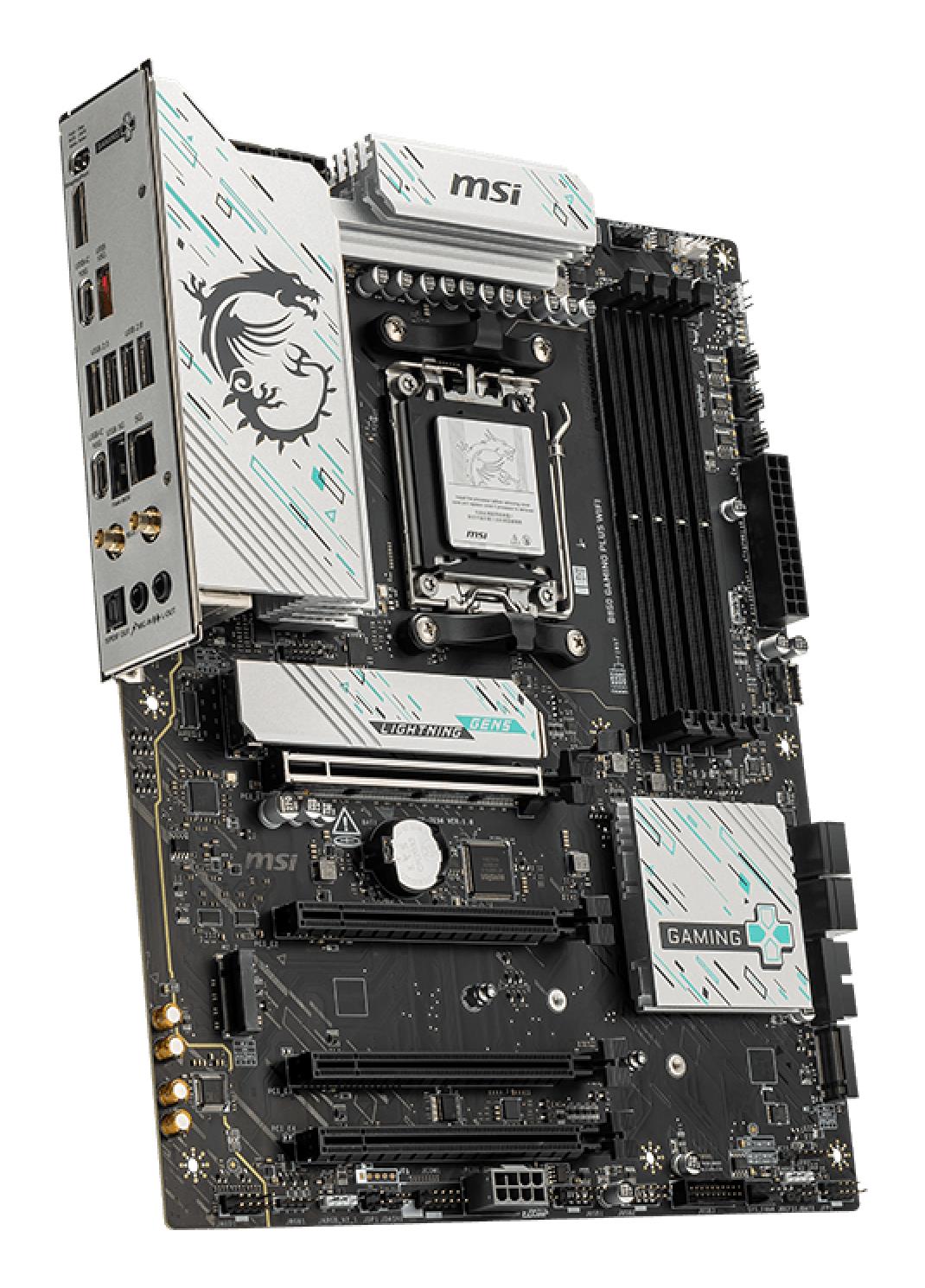

Mainboard|MSI|AMD B850|SAM5|ATX|Memory DDR5|Memory slots 4|4xPCI-Express 16x|3xM.2|1xDisplayPort|1xAudio-In|1xAudio-Out|1xMicrophone|4xUSB 2.0|2xUSB 3.2|2xUSB-C|1xOptical S/PDIF|1xRJ45|B850GAMINGPLUSWIFI
SKU: B850 GAMING PLUS WIFI
€ 214.10
Pieejams : 30 gab.
AMD B850
ATX
Audio 7.1 channels
CPU AMD
Socket Socket AM5
Series AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series
Supported memory types DDR5-SDRAM
4xNumber of memory slots
Memory slots type DIMM
Supported storage drive interfaces M.2,Micro SATA III
4xUSB 2.0 ports quantity
1xUSB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
1xUSB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2xUSB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1xEthernet LAN (RJ-45) ports
1xHDMI ports quantity
Wi-Fi Yes
Bluetooth Yes
-
Category Code: MBA
-
Unit Box Height: 0.07
-
Unit Box Length: 0.34
-
Unit Box Width: 0.27
-
PCI-Express 16x: 4
-
M.2: 3
-

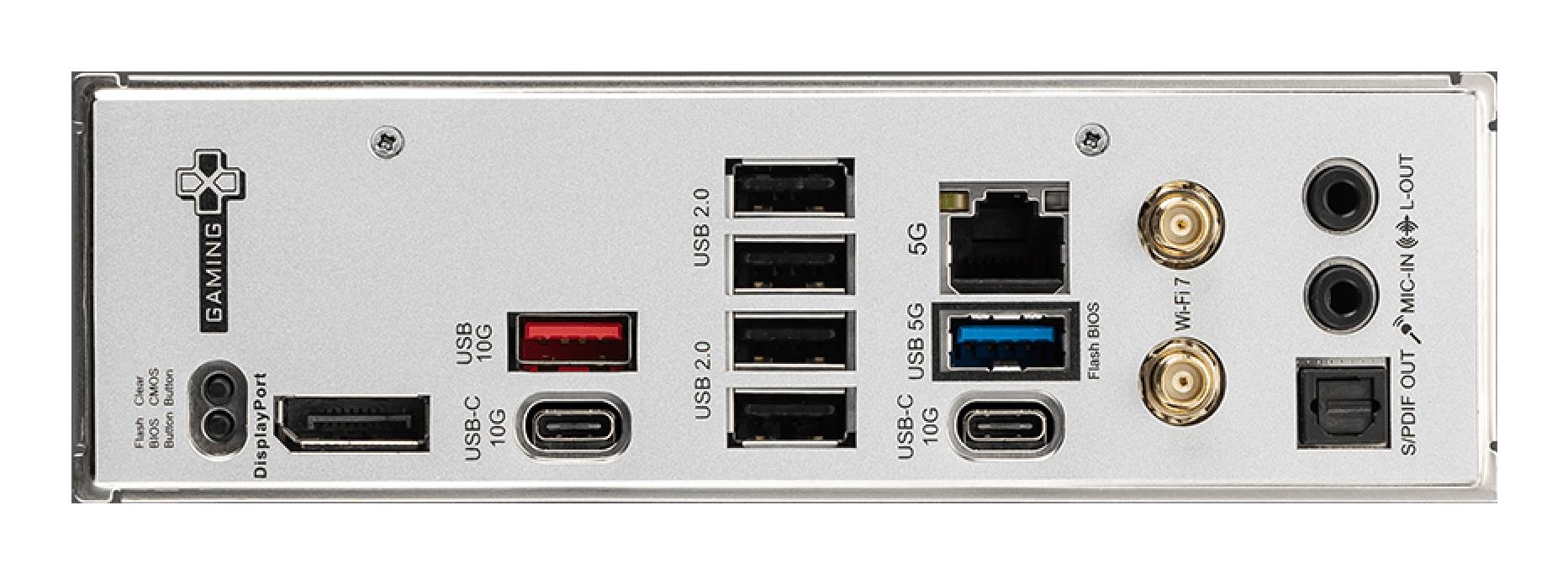

DisplayPort: 1
-
Audio-In: 1
-
Audio-Out: 1
-
Microphone: 1
-
USB 2.0: 4
-
USB 3.2: 2
-
USB-C: 2
-
Optical S/PDIF: 1
-
RJ45: 1
-
SATA: Yes
-
USB-C: Yes
-
USB 2.0: Yes
-
USB 3.2: Yes
-
Bluetooth: Yes
-
WiFi: Yes
-
SATA 3.0: Yes
-
Model: B850 GAMING PLUS WIFI
-
Chipset: AMD B850
-
Socket: SAM5
-
Form Factor: ATX
-
Memory type: DDR5
-
Frequency speed: 4800/4866/4933/5000/5066/5100/5133/5200/5300/5333/5400/5500/5600/5800/6000/6200/6400/6600/6666/6800/7000/7200/7400/7467/7500/7600/7800/7900/7950/8000/8200 MHz
-
Memory slots: 4
-
Integrated video: Depending on CPU
-
Integrated audio: Yes
-
Integrated LAN: 5 Gigabit
-
RAID: SATA 0, 1, 10
-
TPM: Header
-
Unit Calculated Volume: 0.008086 cubm
-
Product Net Weight: 1.5 kg
-
Unit Calculated Weight: 1.9 kg
-
Manufacturer: MSI
