Mainboard|ASUS|AMD A520|SAM4|Micro-ATX|Memory DDR4|Memory slots 2|1xPCI-Express 3.0 1x|1xPCI-Express 3.0 16x|1xM.2|1xHDMI|2xUSB 2.0|4xUSB 3.1|2xPS/2|1xRJ45|3xAudio port|PRIMEA520M-R
SKU: PRIMEA520M-R
€ 58.61
Pieejams : 30 gab.
AMD A520
micro ATX
Audio 7.1 channels
CPU AMD
Socket Socket AM4
Series AMD Ryzen 3000 Series/AMD Ryzen 5000 Series
Supported memory types DDR5-SDRAM
2xNumber of memory slots
Memory slots type DIMM
Supported storage drive interfaces M.2,SATA III

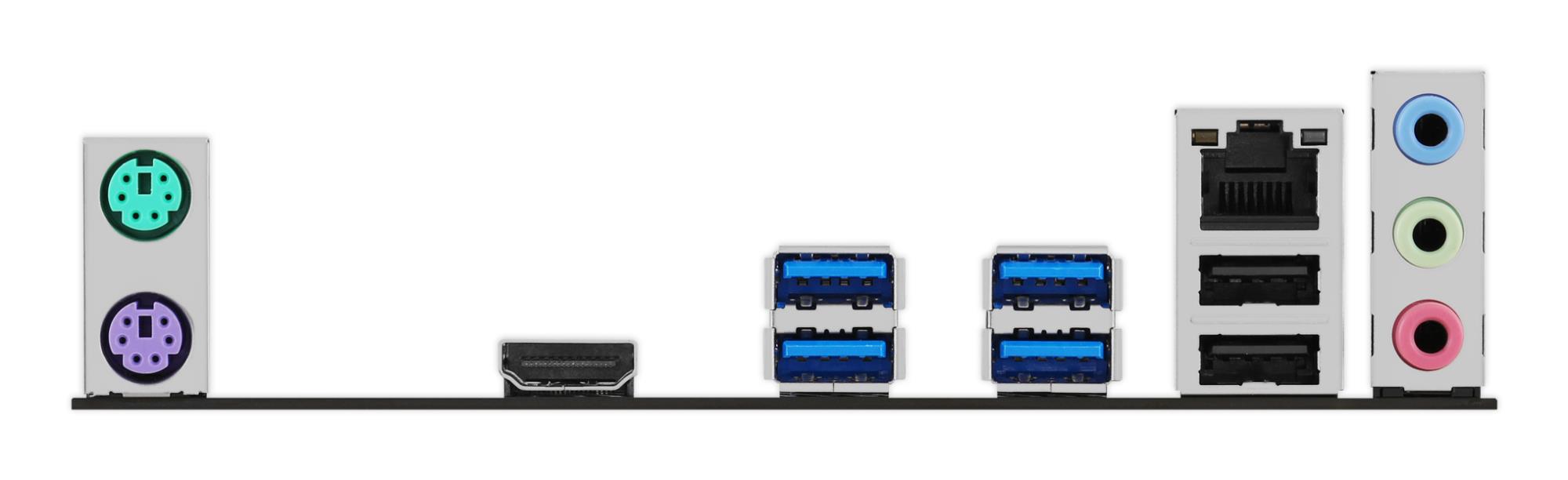

2xUSB 2.0 ports quantity
4xUSB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
1xEthernet LAN (RJ-45) ports
1xHDMI ports quantity
-
Category Code: MBA
-
Unit Box Height: 0.29
-
Unit Box Length: 0.57
-
Unit Box Width: 0.028
-
PCI-Express 3.0 1x: 1
-
PCI-Express 3.0 16x: 1
-
M.2: 1
-
HDMI: 1
-
USB 2.0: 2
-
USB 3.1: 4
-
PS/2: 2
-
RJ45: 1
-
Audio port: 3
-
SATA: Yes
-
USB 2.0: Yes
-
USB 3.1: Yes
-

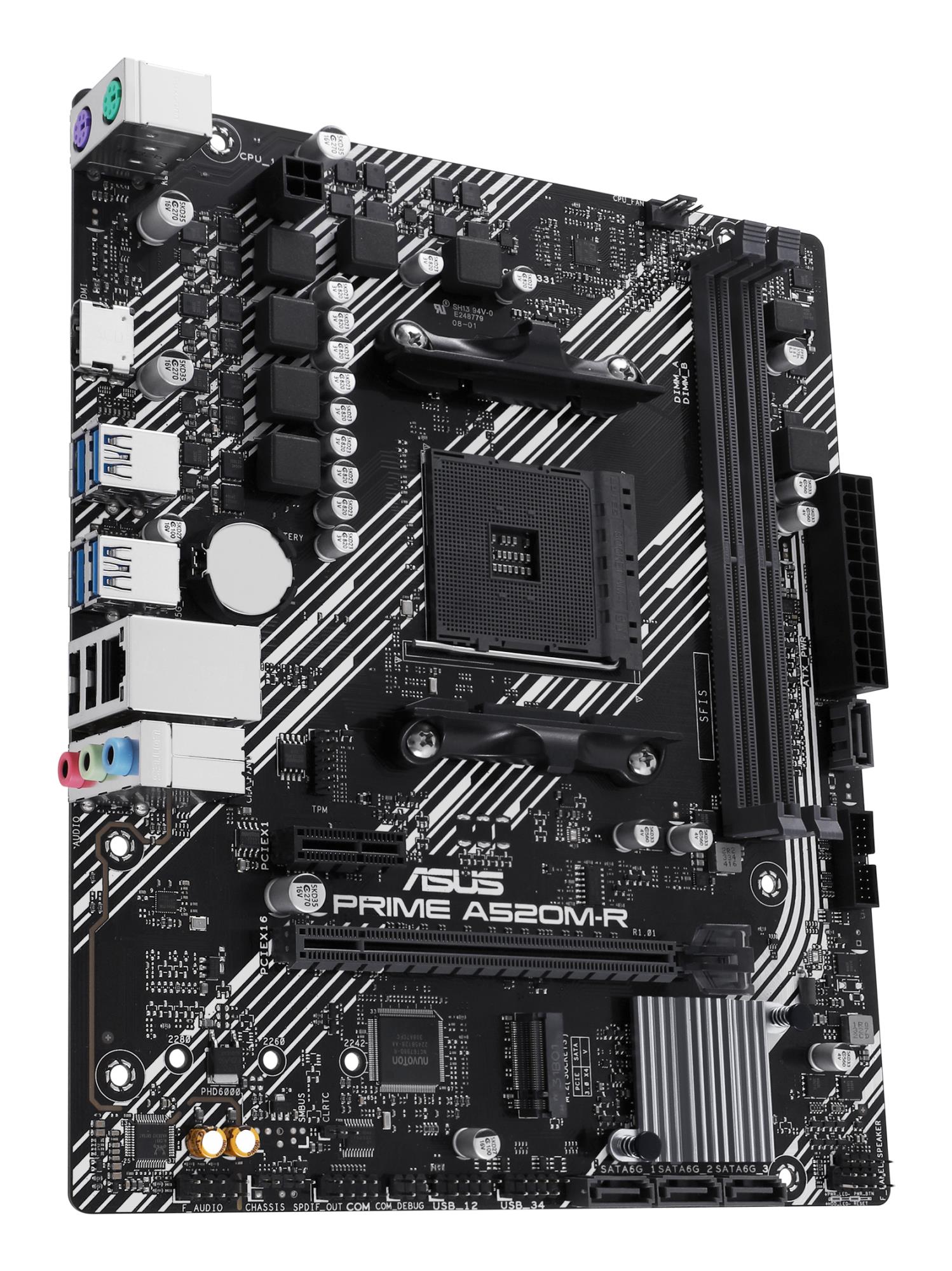

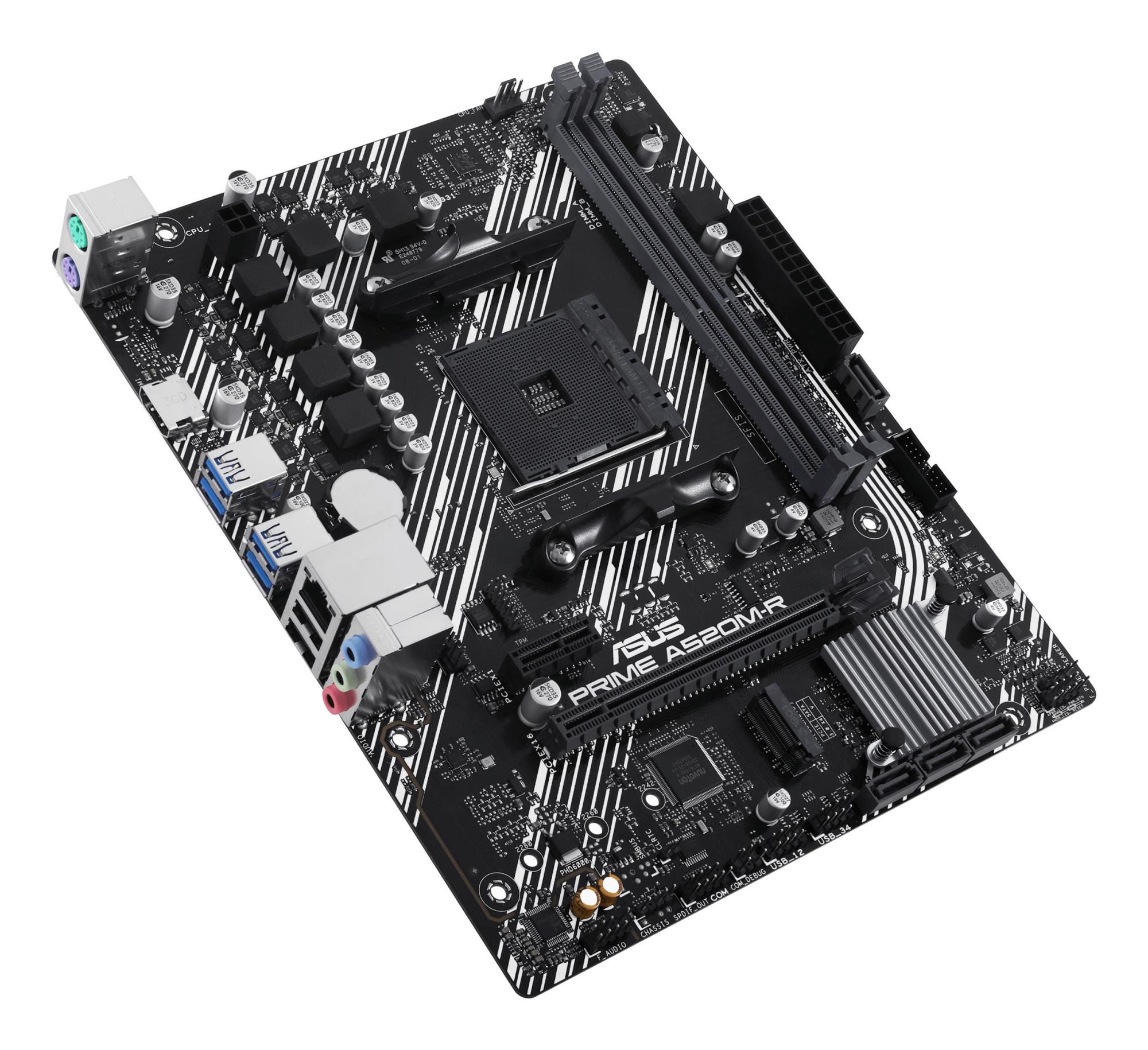

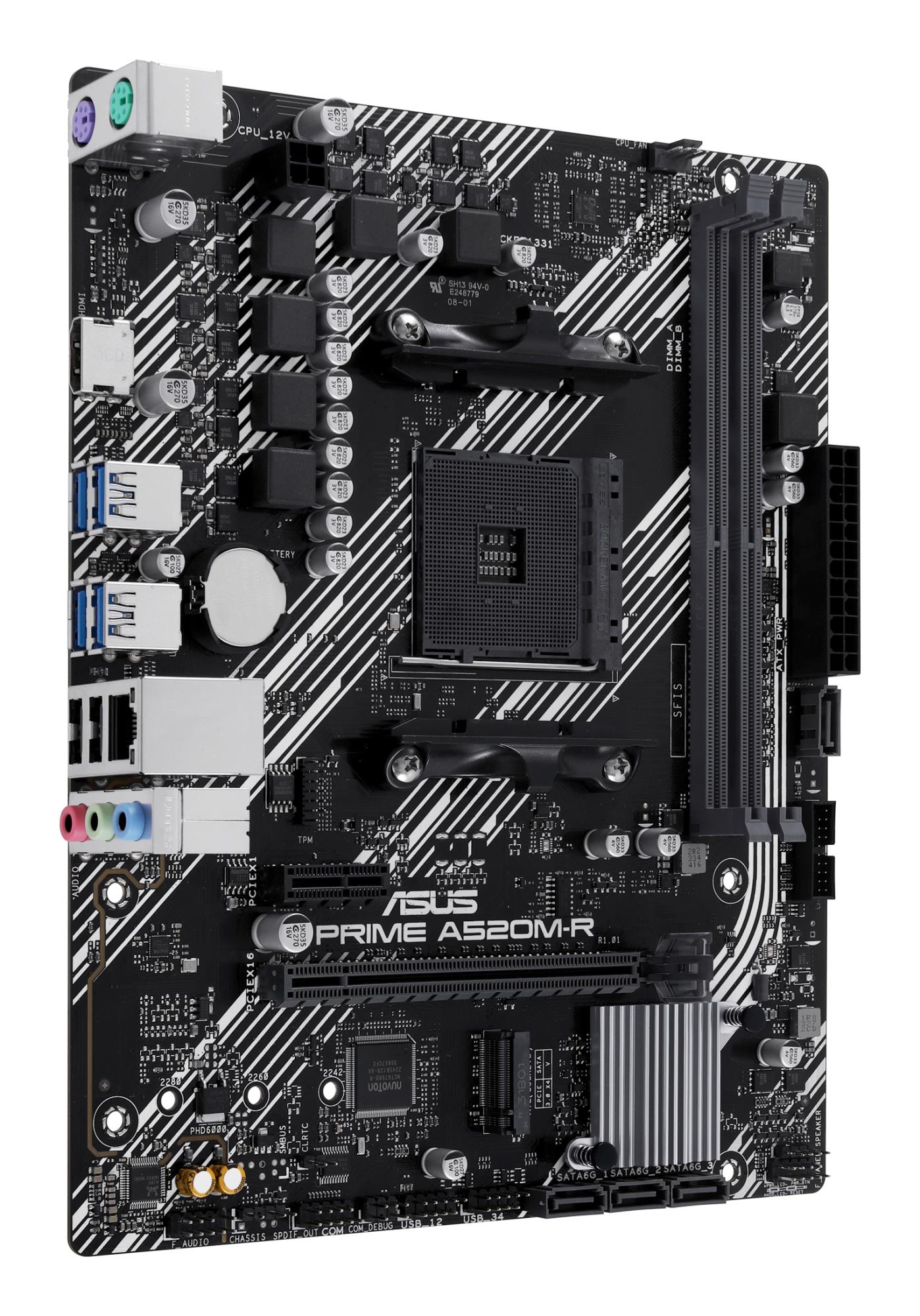

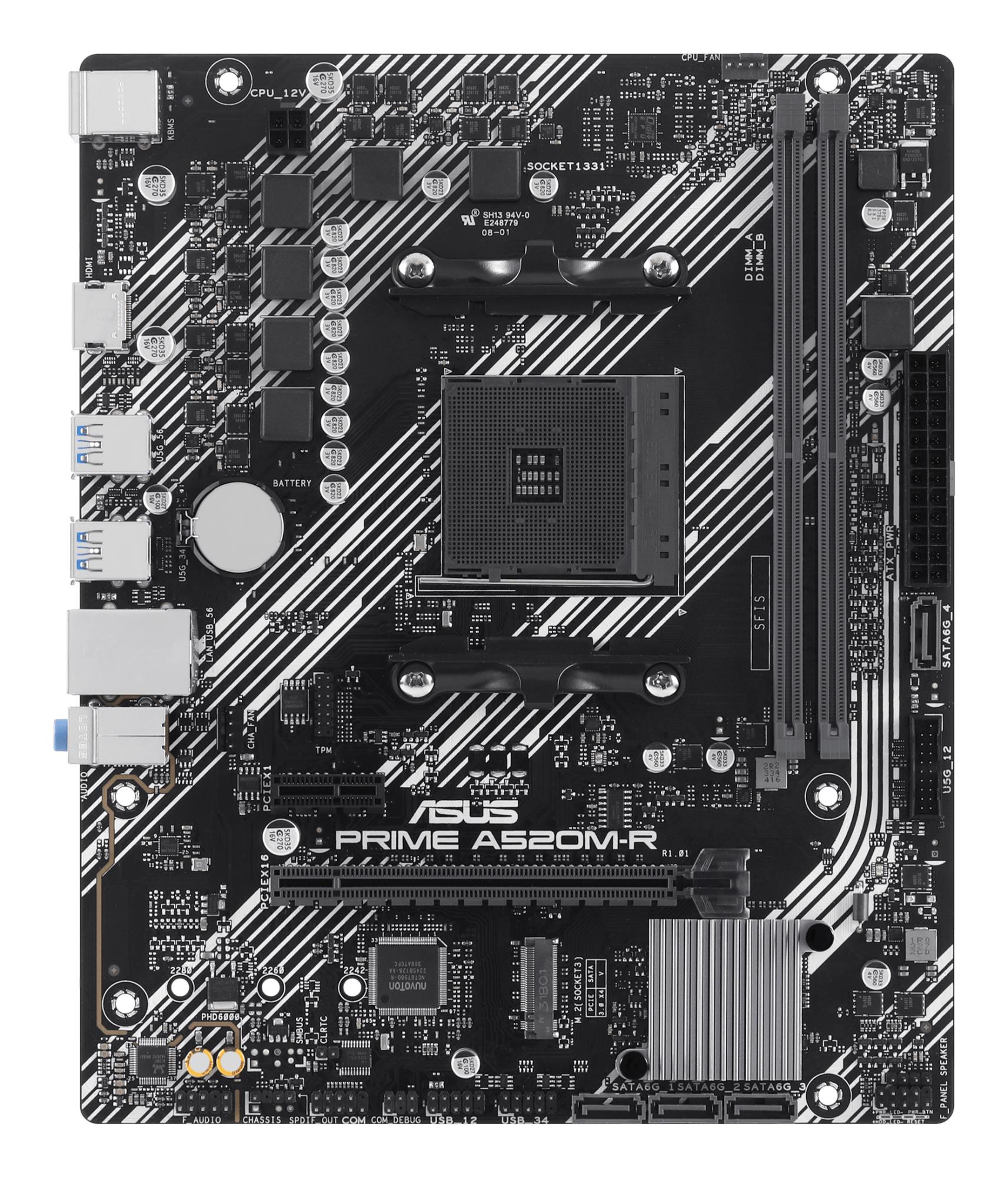

Model: PRIME A520M-R
-
Chipset: AMD A520
-
Socket: SAM4
-
Form Factor: Micro-ATX
-
Memory type: DDR4
-
Frequency speed: 2133/2400/2666/2800/2933/3000/3200/3333/3400/3466/3600/3733/3866/4000/4133/4200/4266/4333/4400/4466/4666/4866/5100 MHz
-
Memory slots: 2
-
Integrated video: Depending on CPU
-
Integrated audio: Yes
-
Integrated LAN: Realtek (Gigabit)
-
RAID: SATA 0, 1, 10; PCIe 0, 1, 10
-
TPM: Header
-

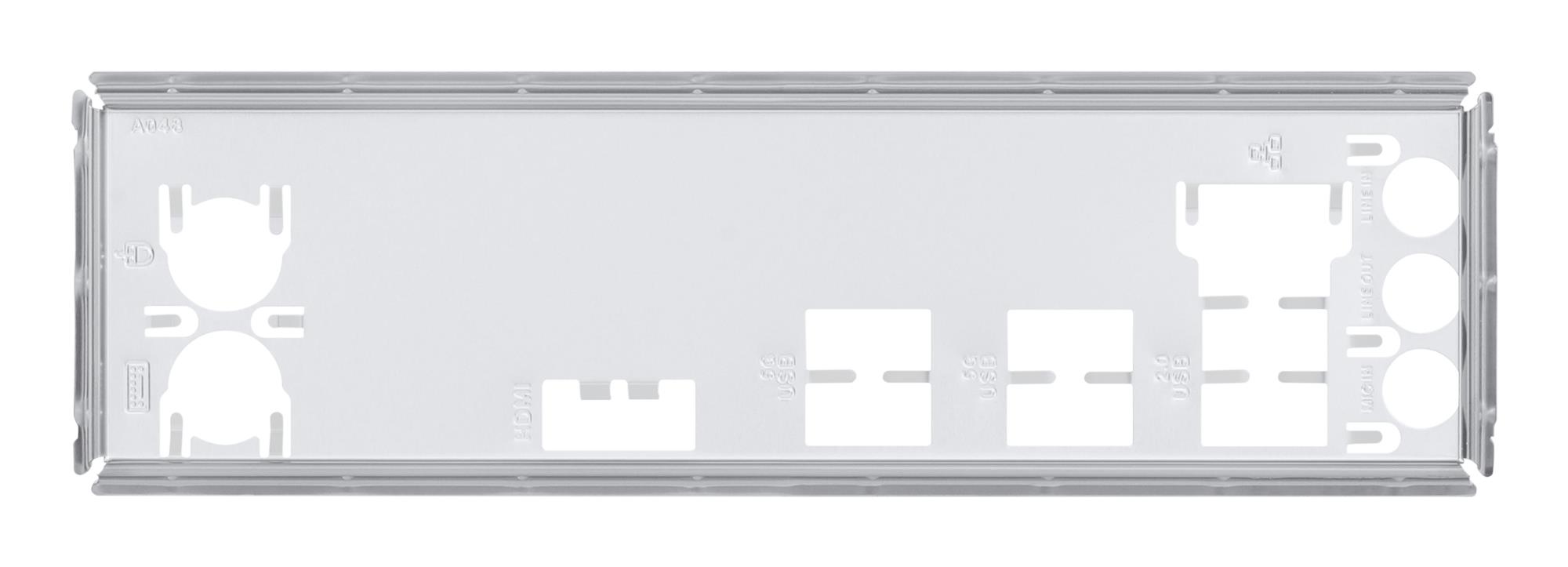

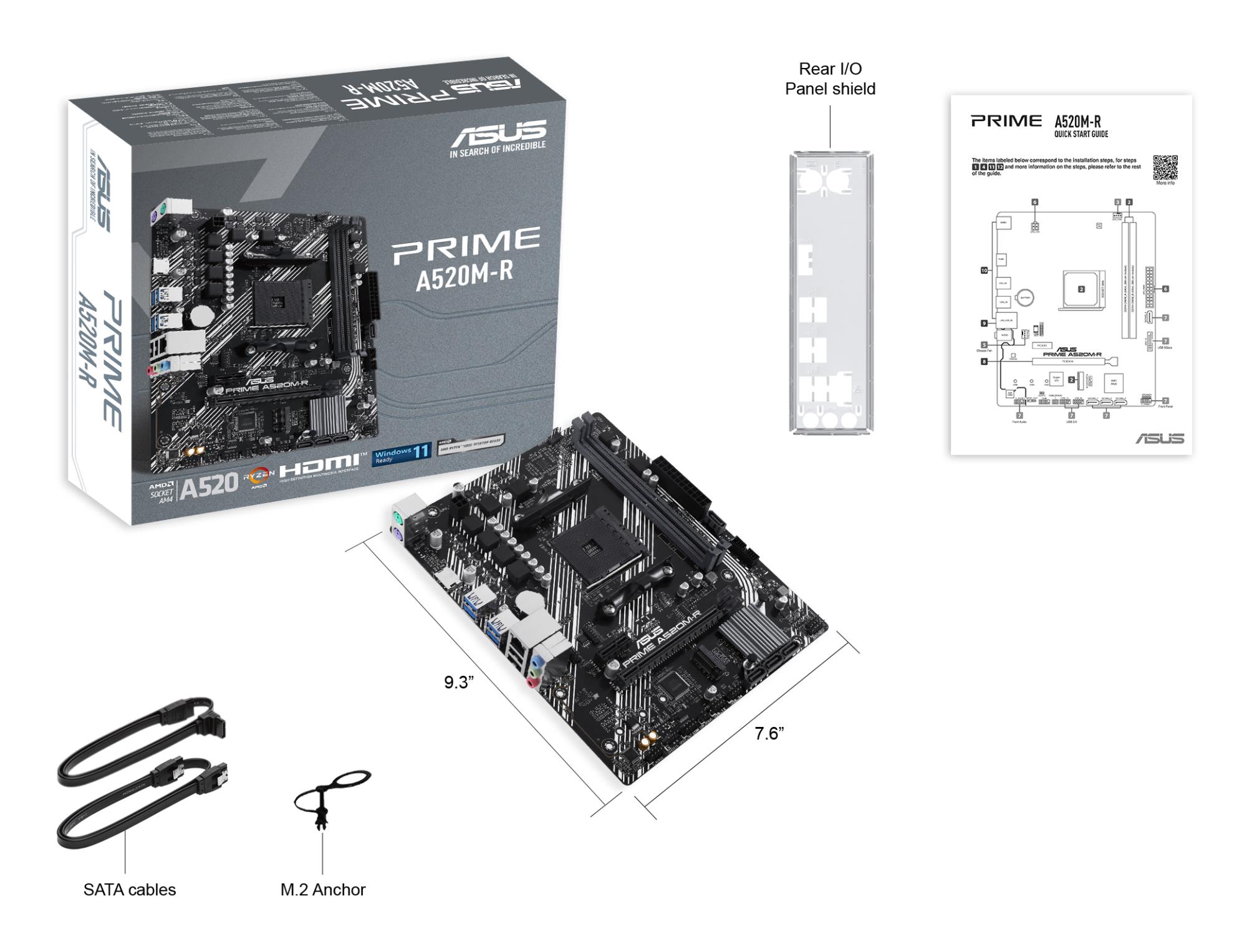

Included Accessories: Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x I/O shield 1 x M.2 anchor Documentation 1 x Quick start guide
-
Unit Calculated Volume: 0.004628 cubm
-
Product Net Weight: 0.5 kg
-
Unit Calculated Weight: 0.876 kg
-
Manufacturer: ASUS
