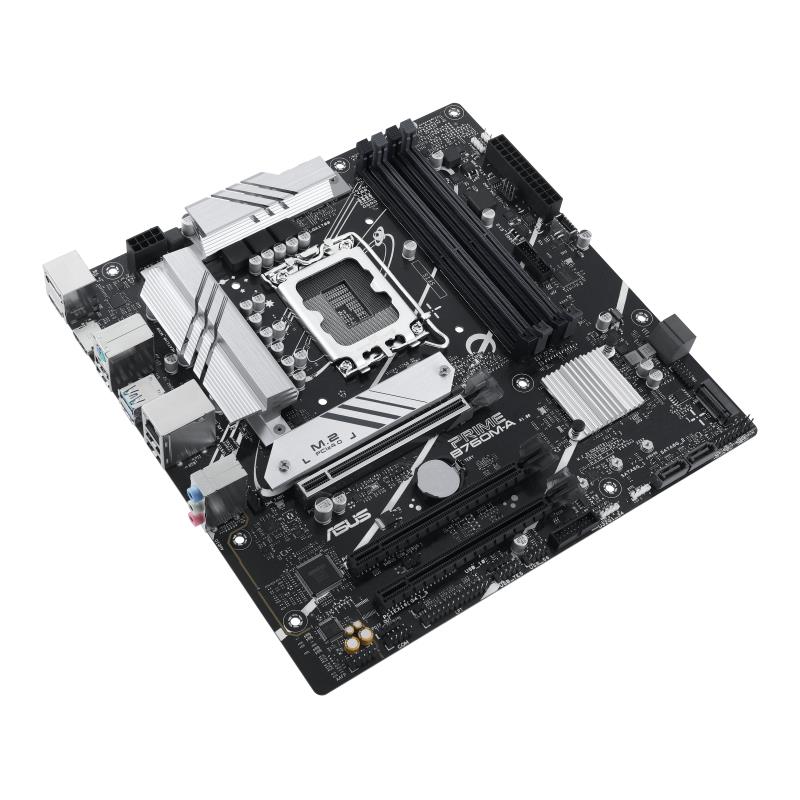

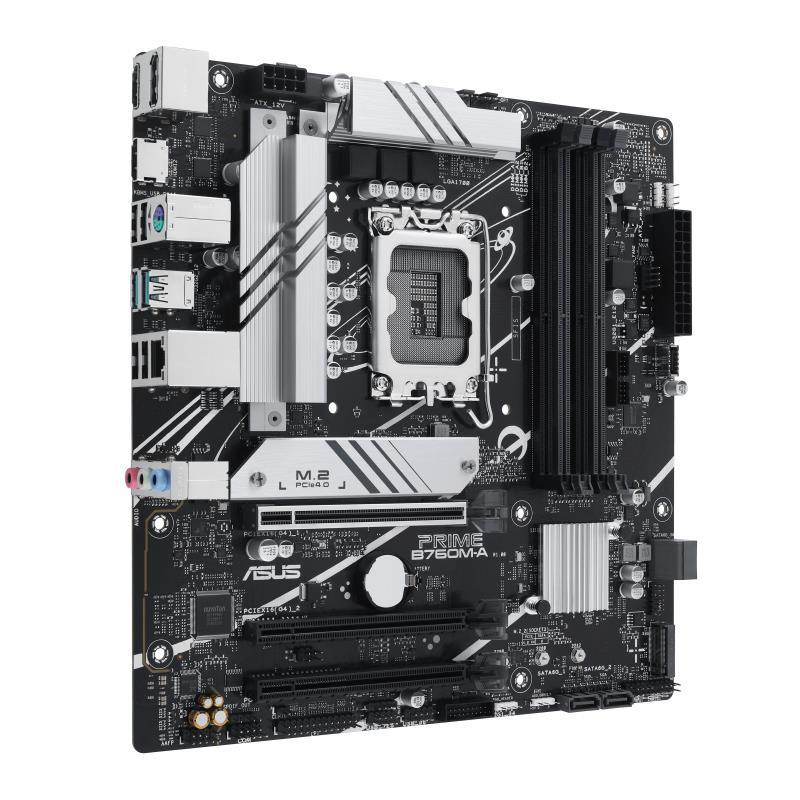

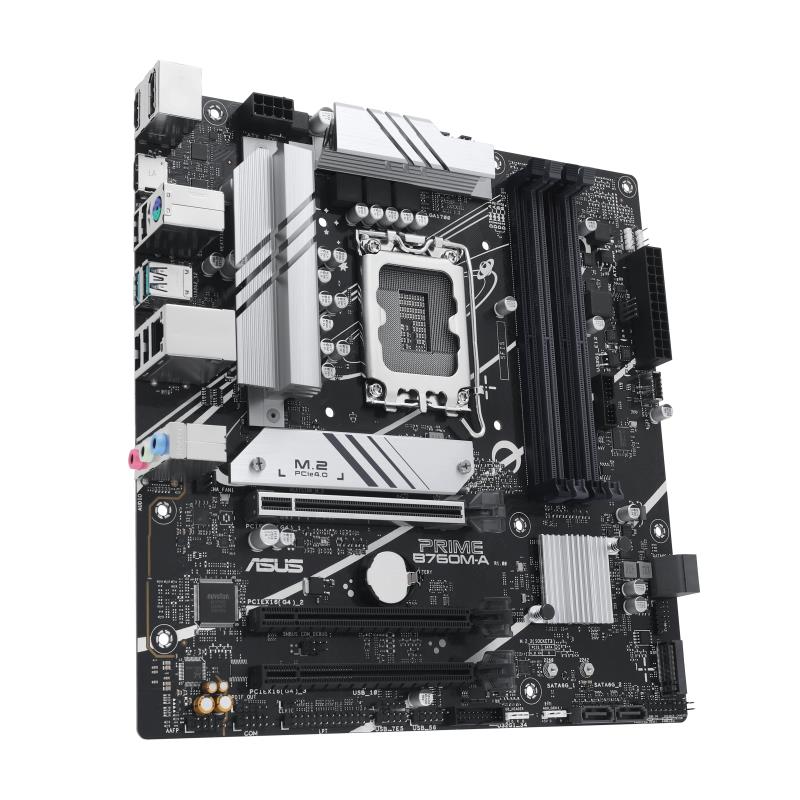

Mainboard|ASUS|Intel B760 Express|LGA1700|Micro-ATX|Memory DDR5|Memory slots 4|2xPCI-Express 4.0 16x|2xM.2|1xHDMI|2xDisplayPort|4xUSB 2.0|2xUSB 3.2|1xPS/2|1xRJ45|3xAudio port|PRIMEB760M-A-CSM

Summary: ASUS PRIME B760M-A-CSM. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™.... Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD. Ethernet interface type: 2.5 Gigabit Ethernet. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel

Category Code: MBI

Unit Box Height: 0.053

Unit Box Length: 0.273

Unit Box Width: 0.264

Compatible processor series: Intel Celeron/Intel Core i3/Intel Core i5/Intel Core i7/Intel Core i9/Intel Pentium Gold

Processor manufacturer: Intel

Processor socket: LGA 1700

Supported processor sockets: LGA 1700

ECC ?ompatibility: non-ECC

Maximum internal memory: 128 GB

Memory channels: Dual-channel

Memory slots type: DIMM

Number of memory slots: 4

Supported memory clock speed (max): 7200 MHz

Supported memory clock speeds: 4800/5000/5200/5400/5600/5800/6000/6200/6400/6600/6800/7000/7200 MHz

Supported memory types: DDR5-SDRAM

Unbuffered memory: Yes

Number of HDDs supported: 4

Number of storage drives supported: 6

Supported storage drive interfaces: M.2,SATA III

Supported storage drive types: HDD & SSD

Parallel processing technology support: Not supported

12V power connector: Yes

ATX Power connector (24-pin): Yes

CPU fan connector: Yes

EPS power connector (8-pin): Yes

Front panel audio connector: Yes

Front panel connector: Yes

Number of chassis fan connectors: 2

Number of COM connectors: 1

Number of SATA III connectors: 4

RGB LED pin header: Yes

S/PDIF out connector: Yes

TPM connector: Yes

USB 2.0 connectors: 3

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 3

DisplayPorts quantity: 1

Ethernet LAN (RJ-45) ports: 1

HDMI ports quantity: 2

Headphone outputs: 1

Line-in: Yes

Microphone in: Yes

PS/2 ports quantity: 1

USB 2.0 ports quantity: 4

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2

WiFi-AP antenna jack: 1

Ethernet interface type: 2.5 Gigabit Ethernet

Ethernet LAN: Yes

Wi-Fi: Yes

Audio output channels: 7.1 channels

Component for: PC

Motherboard chipset: Intel B760

Motherboard chipset family: Intel

Motherboard form factor: Micro ATX

Windows operating systems supported: Windows 10 x64/Windows 11

Number of M.2 (M) slots: 2

PCI Express x16 (Gen 4.x) slots: 3

BIOS memory size: 128 Mbit

BIOS type: UEFI AMI

Clear CMOS button: Yes

Package depth: 263 mm

Package height: 52 mm

Package weight: 1140 g

Package width: 270 mm

Depth: 244 mm

Height: 40 mm

Width: 244 mm

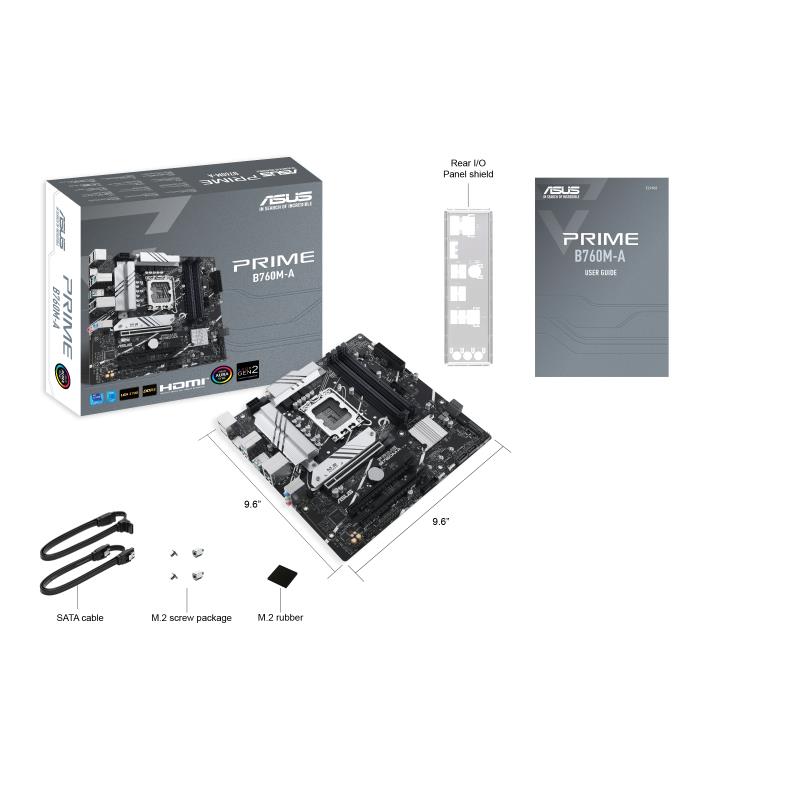

Cables included: SATA

Model: PRIME B760M-A-CSM

Unit Calculated Volume: 0.004548 cubm

Product Net Weight: 0.8 kg

Unit Calculated Weight: 1.18 kg
