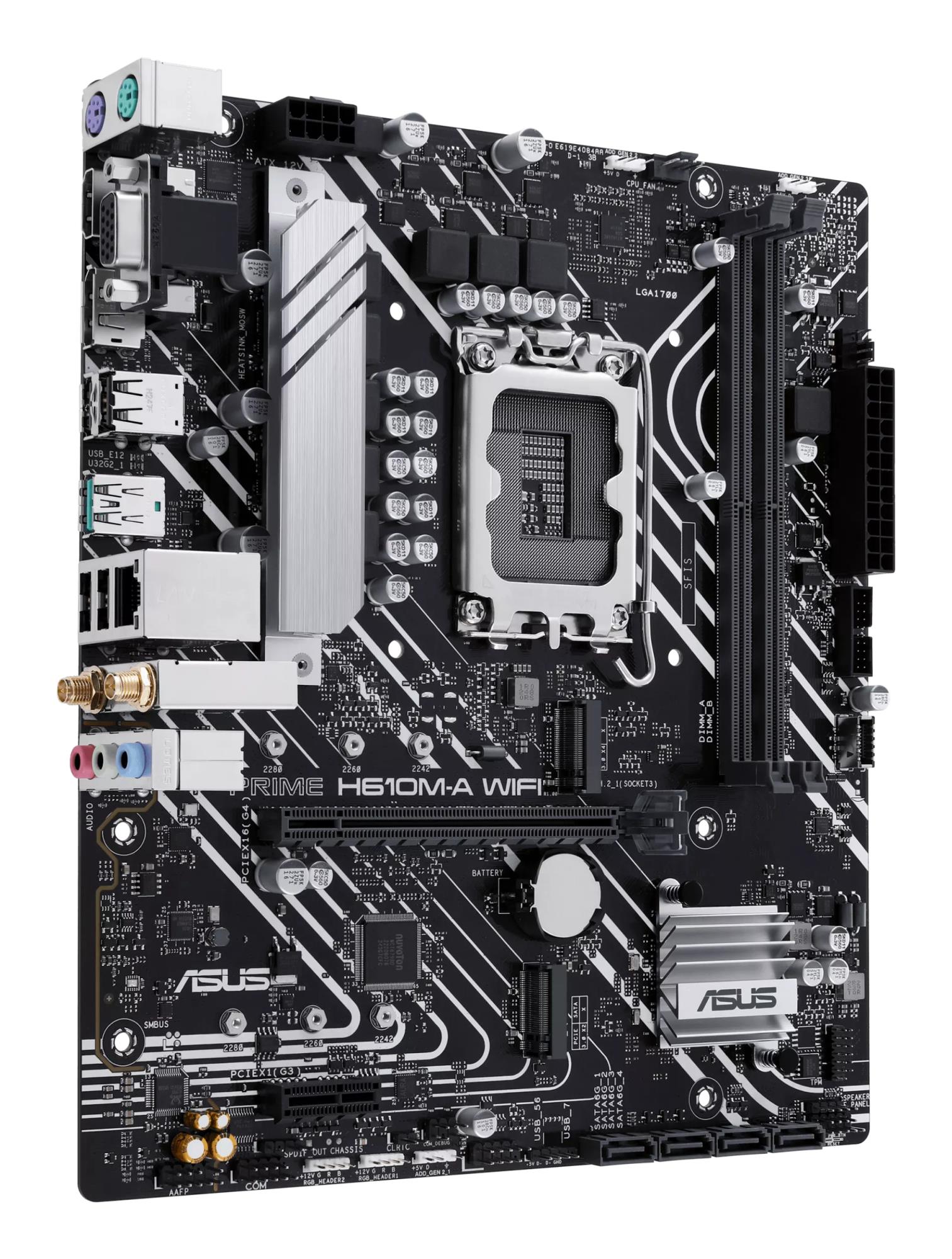

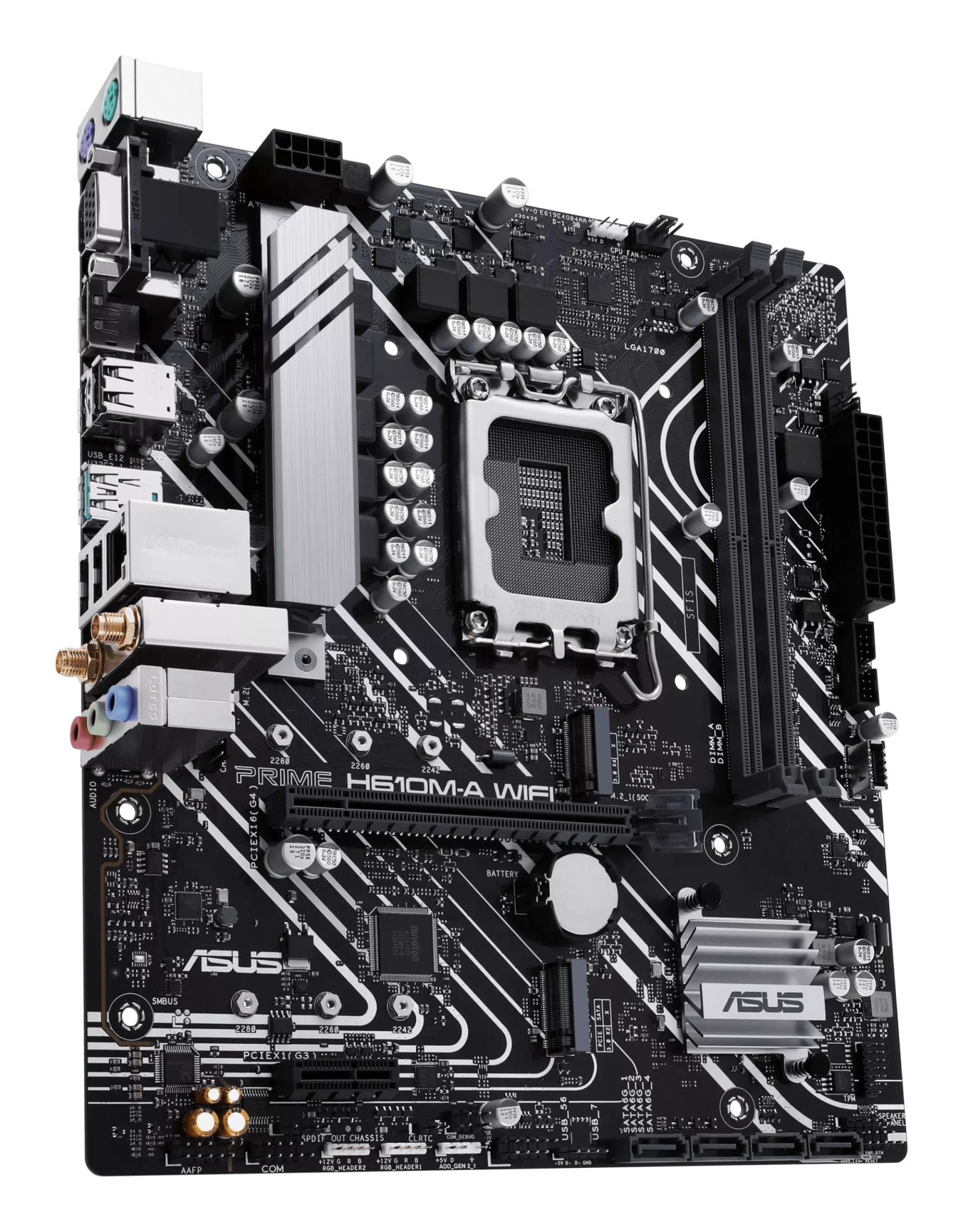

Mainboard|ASUS|Intel H610|LGA 1700|micro ATX|RAM DDR5-SDRAM|2xSlots|Wi-Fi Yes|Bluetooth Yes|2xNumber of M.2 (M) slots|PRIMEH610M-AWIFI

Summary: ASUS PRIME H610M-A WIFI. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™.... Supported memory types: DDR5-SDRAM, Maximum internal memory: 96 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD. Ethernet interface type: Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 5 (802.11ac), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac). Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel

Category Code: MBI

Unit Box Height: 0.05

Unit Box Length: 0.265

Unit Box Width: 0.27

Audio output channels: 7.1 channels

Component for: PC

Motherboard chipset: Intel H610

Motherboard chipset family: Intel

Motherboard form factor: Micro ATX

Windows operating systems supported: Windows 10 x64/Windows 11 x64

Compatible processor series: Intel® Celeron®/Intel® Core™ i3/Intel® Core™ i5/Intel® Core™ i7/Intel® Core™ i9/Intel® Pentium® Gold

Processor manufacturer: Intel

Processor socket: LGA 1700

Supported processor sockets: LGA 1700

ECC сompatibility: Non-ECC

Maximum internal memory: 96 GB

Memory channels: Dual-channel

Memory slots type: DIMM

Number of memory slots: 2

Supported memory clock speed (max): 5600 MHz

Supported memory clock speeds: 4800/5000/5200/5400/5600 MHz

Supported memory types: DDR5-SDRAM

Unbuffered memory: Yes

Number of HDDs supported: 4

Number of storage drives supported: 6

Supported storage drive interfaces: M.2,SATA III

Supported storage drive types: HDD & SSD

Parallel processing technology support: Not supported

12V power connector: Yes

ATX Power connector (24-pin): Yes

Audio connector: Yes

CPU fan connector: Yes

EPS power connector (8-pin): Yes

Front panel audio connector: Yes

Number of chassis fan connectors: 2

Number of COM connectors: 1

Number of SATA III connectors: 4

RGB LED pin header: Yes

S/PDIF out connector: Yes

TPM connector: Yes

USB 2.0 connectors: 2

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2

DisplayPort version: 1.4

DisplayPorts quantity: 1

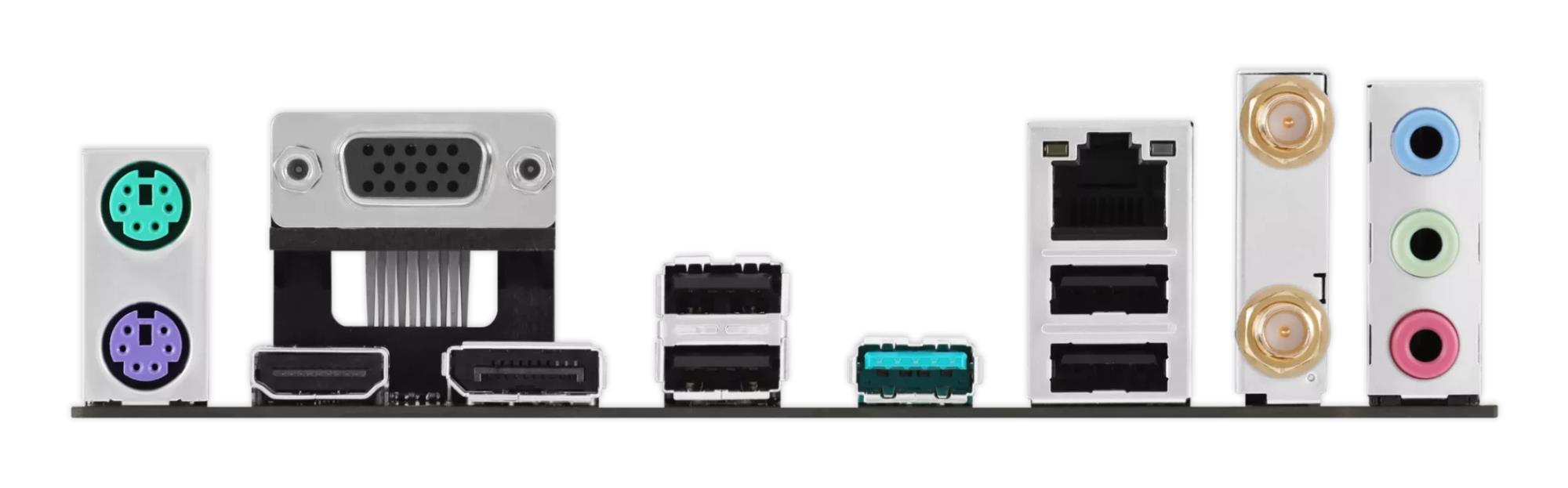

Ethernet LAN (RJ-45) ports: 1

HDMI ports quantity: 1

HDMI version: 2.1

Headphone outputs: 1

Line-in: Yes

Microphone in: Yes

PS/2 ports quantity: 2

USB 2.0 ports quantity: 4

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1

VGA (D-Sub) ports quantity: 1

WiFi-AP antenna jack: 1

Bluetooth: Yes

Bluetooth version: 5.0

Ethernet interface type: Gigabit Ethernet

Ethernet LAN: Yes

Top Wi-Fi standard: Wi-Fi 5 (802.11ac)

Wi-Fi: Yes

Wi-Fi standards: 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)

Number of M.2 (M) slots: 2

PCI Express x1 (Gen 3.x) slots: 1

PCI Express x16 (Gen 4.x) slots: 1

BIOS memory size: 128 Mbit

BIOS type: UEFI AMI

Clear CMOS button: Yes

Package depth: 263 mm

Package height: 51.5 mm

Package weight: 1072 g

Package width: 270 mm

Depth: 216 mm

Width: 244 mm

Cables included: SATA

Units per Pallet: 0

Unit Calculated Volume: 0.00471 cubm

Unit Calculated Weight: 1.09 kg
