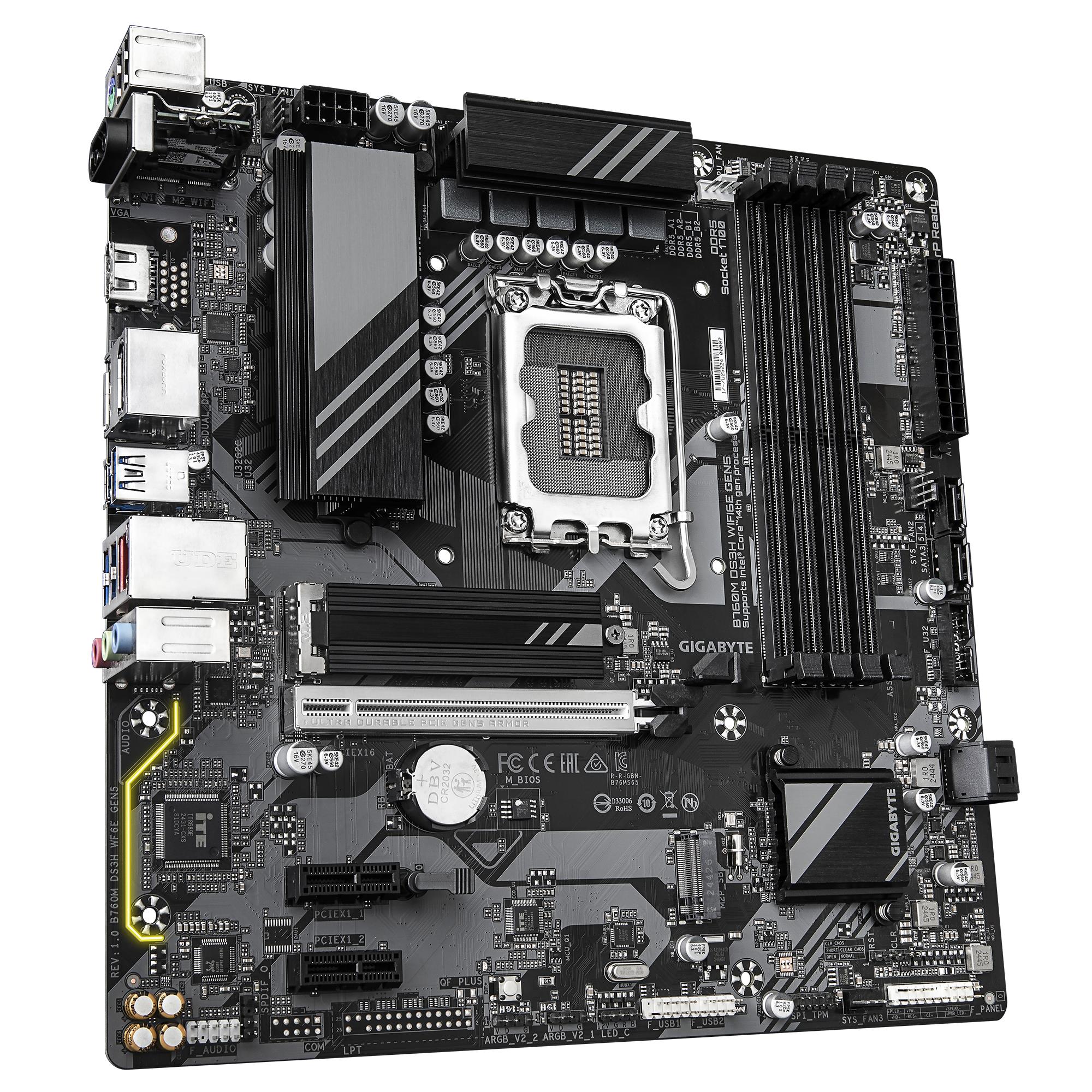

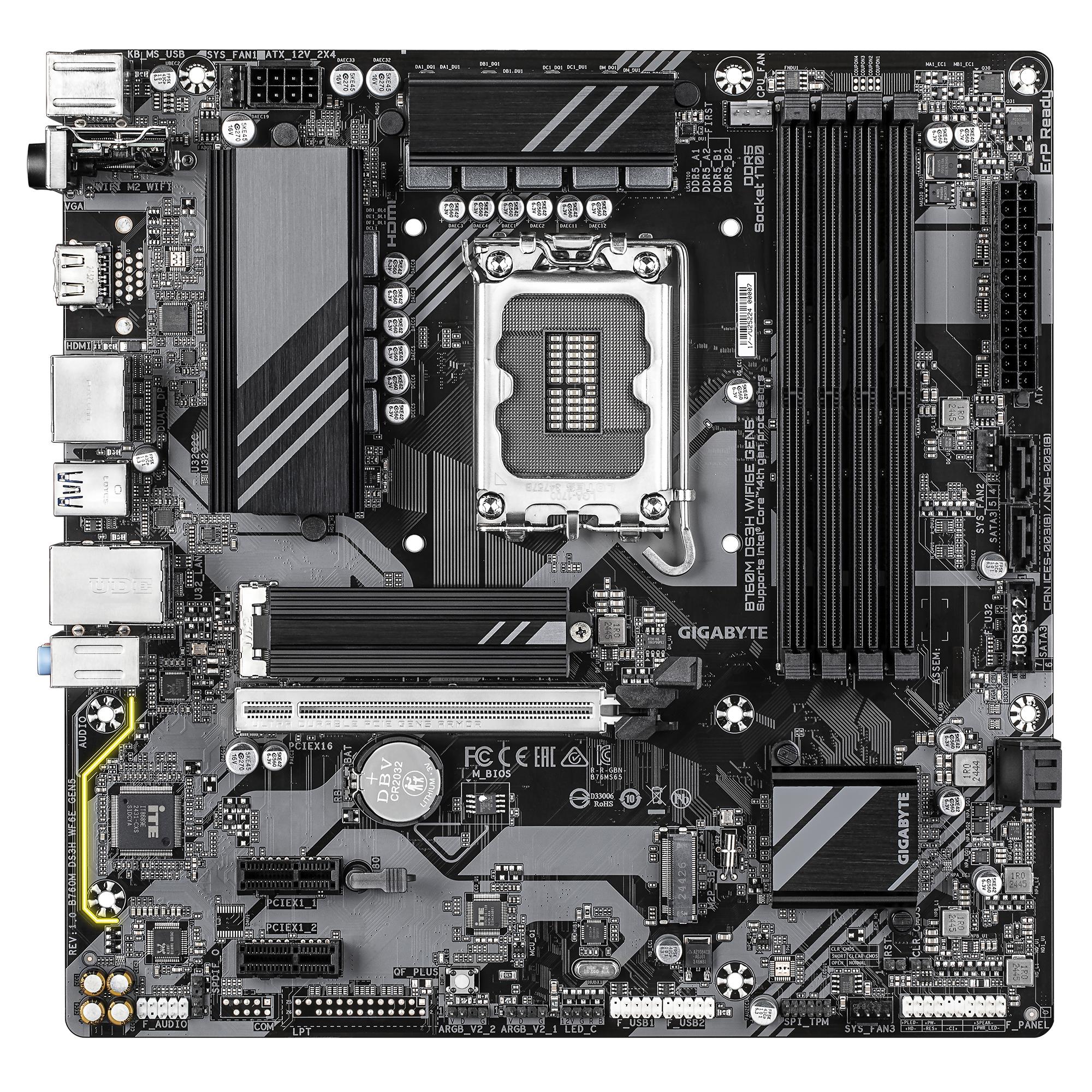

Mainboard|GIGABYTE|Intel B760 Express|LGA1700|Micro-ATX|Memory DDR5|Memory slots 4|B760MDS3HWF6EGEN5
SKU: B760M DS3H WF6E GEN5
€ 143.69
Pieejams : 11 gab.
Intel B760 Express
micro ATX
Audio 7.1 channels
CPU Intel
Socket LGA 1700
Series Intel® Celeron®/Intel Core i3 12th Gen/Intel Core i3 13th Gen/Intel Core i3 14th Gen/Intel Core i5 12th Gen/Intel Core i5 13th Gen/Intel Core i5 14th Gen/Intel Core i7 12th Gen/Intel Core i7 13th Gen/Intel Core i7 14th Gen/Intel Core i9 12th Gen/Intel Core
Supported memory types DDR5-SDRAM
4xNumber of memory slots
Memory slots type DIMM
Supported storage drive interfaces M.2,PCI Express 4.0,SATA III
4096 x 2304 pixels
2xUSB 2.0 ports quantity
3xUSB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
1xUSB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1xEthernet LAN (RJ-45) ports
1xHDMI ports quantity
Wi-Fi Yes
Bluetooth Yes
Antenna included Yes
Weight 1.1 kg
-
Category Code: MBI
-
Unit Box Height: 0.07
-
Unit Box Length: 0.27
-
Unit Box Width: 0.27
-
M.2: 2
-
PCI-Express 3.0 1x: 2
-
PCI-Express 5.0 16x: 1
-
15pin D-sub: 1
-
Audio port: 3
-
DisplayPort: 1
-
HDMI: 1
-
PS/2: 1
-
RJ45: 1
-
USB 2.0: 2
-
USB 3.2: 3
-
USB-C: 1
-
Bluetooth: Yes
-
SATA: Yes
-
WiFi: Yes
-
Model: B760M DS3H WIFI6E GEN5
-
Chipset: Intel B760 Express
-
Socket: LGA1700
-
Form Factor: Micro-ATX
-
Memory type: DDR5
-
Frequency speed: 4400/4800/5200/5600/5800/6000/6200/6400/6600/6800/7000/7200/7400/7600 MHz
-
Memory slots: 4
-
Integrated video: Depending on CPU
-
Integrated LAN: 2.5 Gigabit
-
Integrated audio: Yes
-
RAID: SATA 0, 1, 5, 10
-
TPM: Header
-
Units per Pallet: 0
-
Unit Calculated Volume: 0.005103 cubm
-
Product Net Weight: 0.5 kg
-
Unit Calculated Weight: 1.1 kg
-
Manufacturer: GIGABYTE
