Power Supply|GIGABYTE|GP-P650SS|650 Watts|GP-P650SS

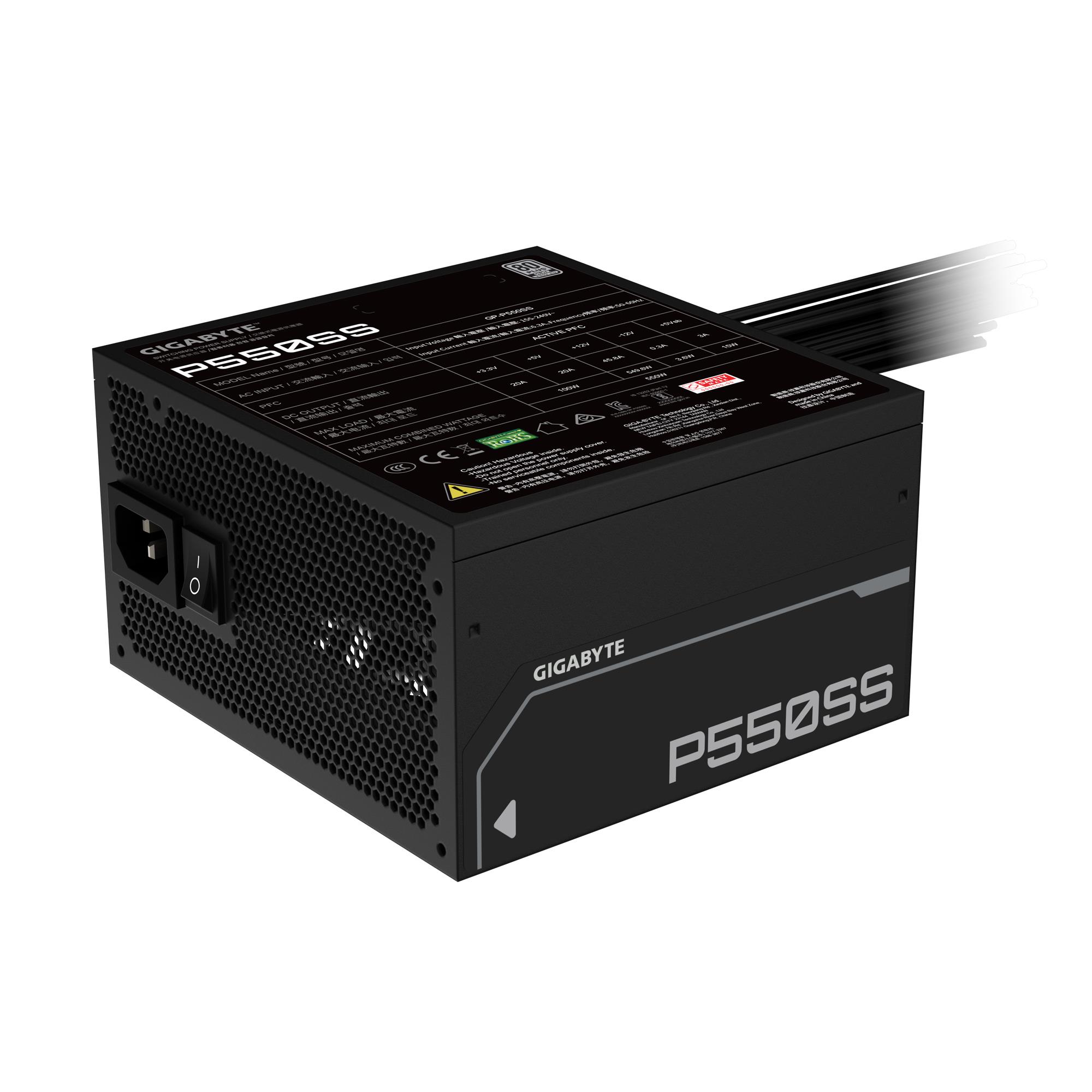

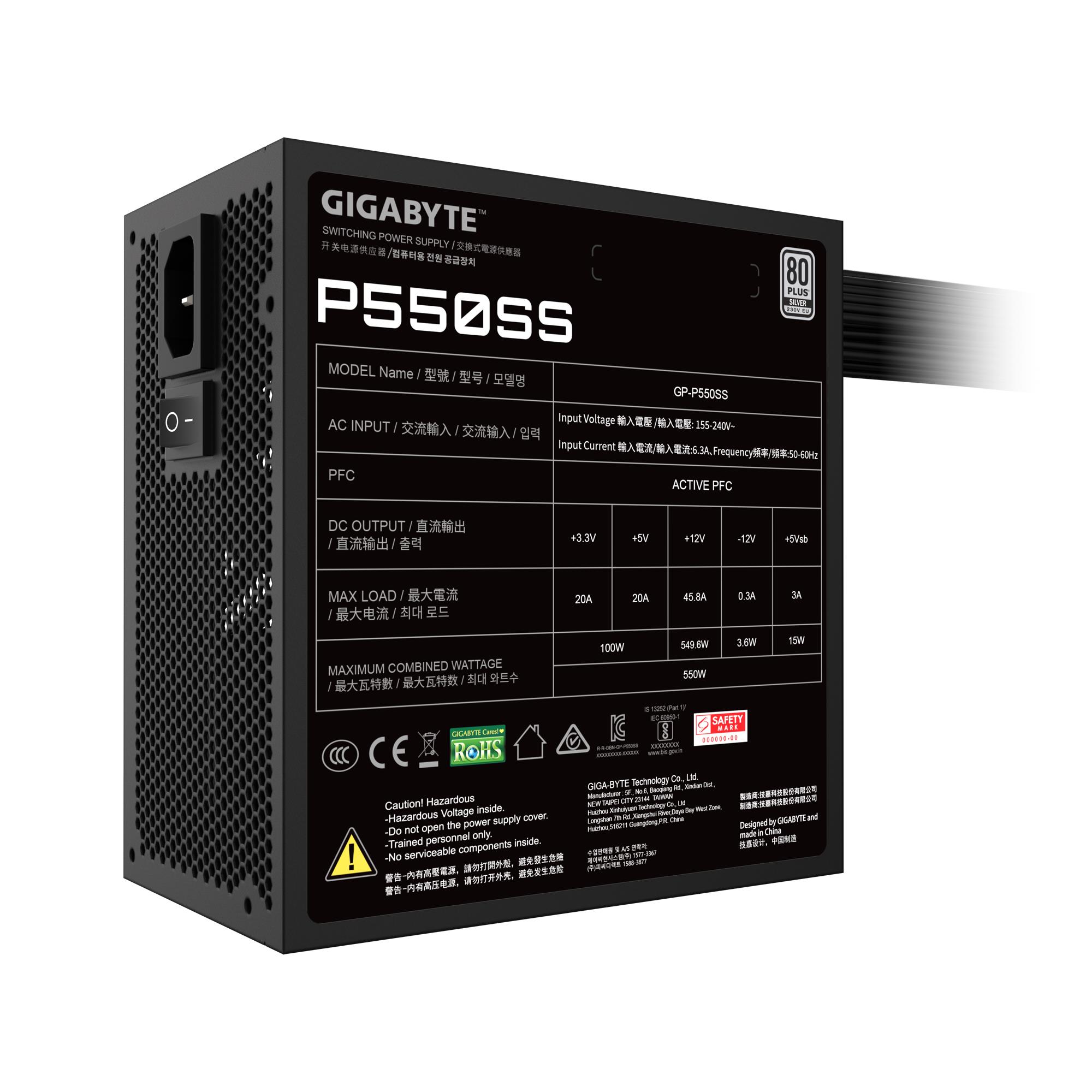

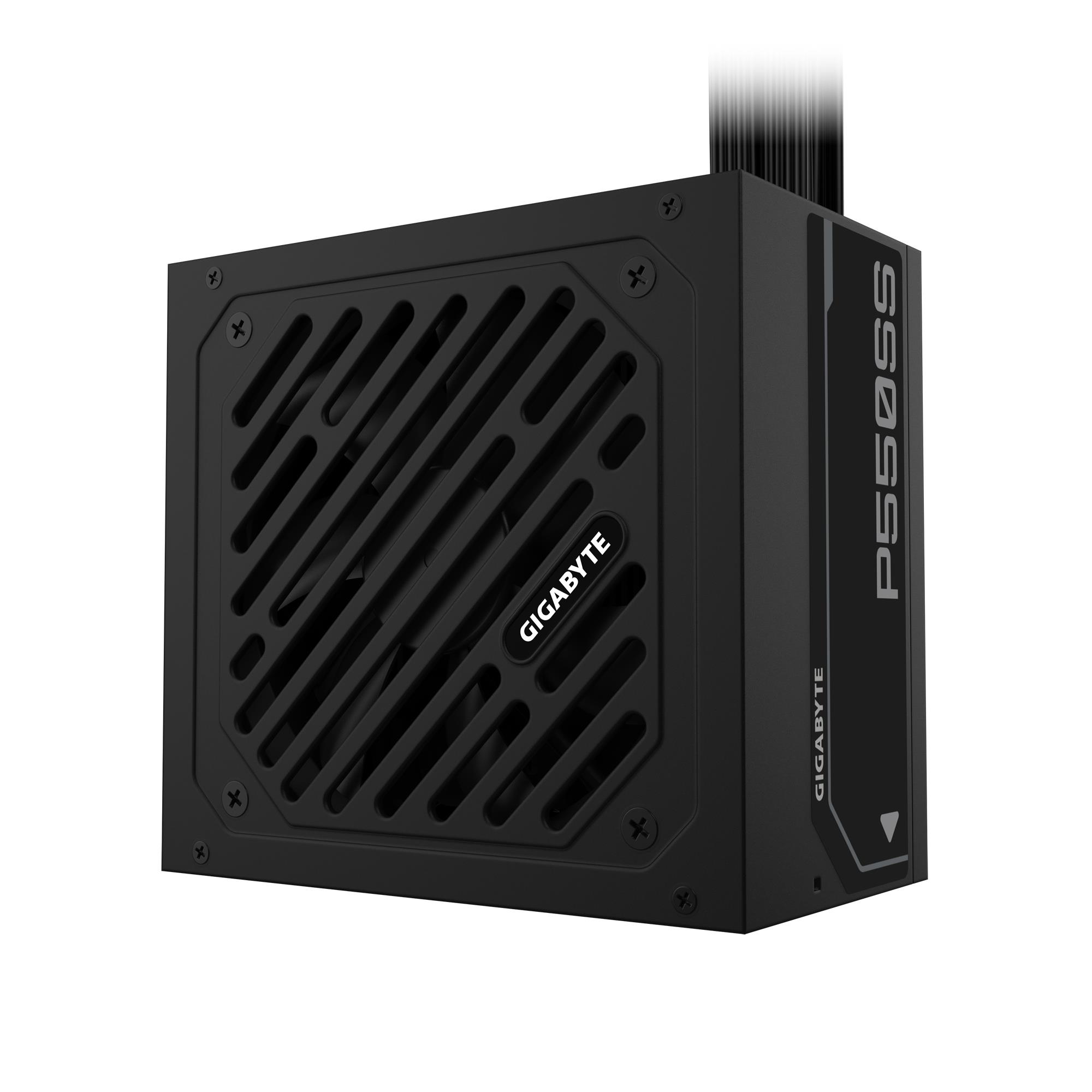

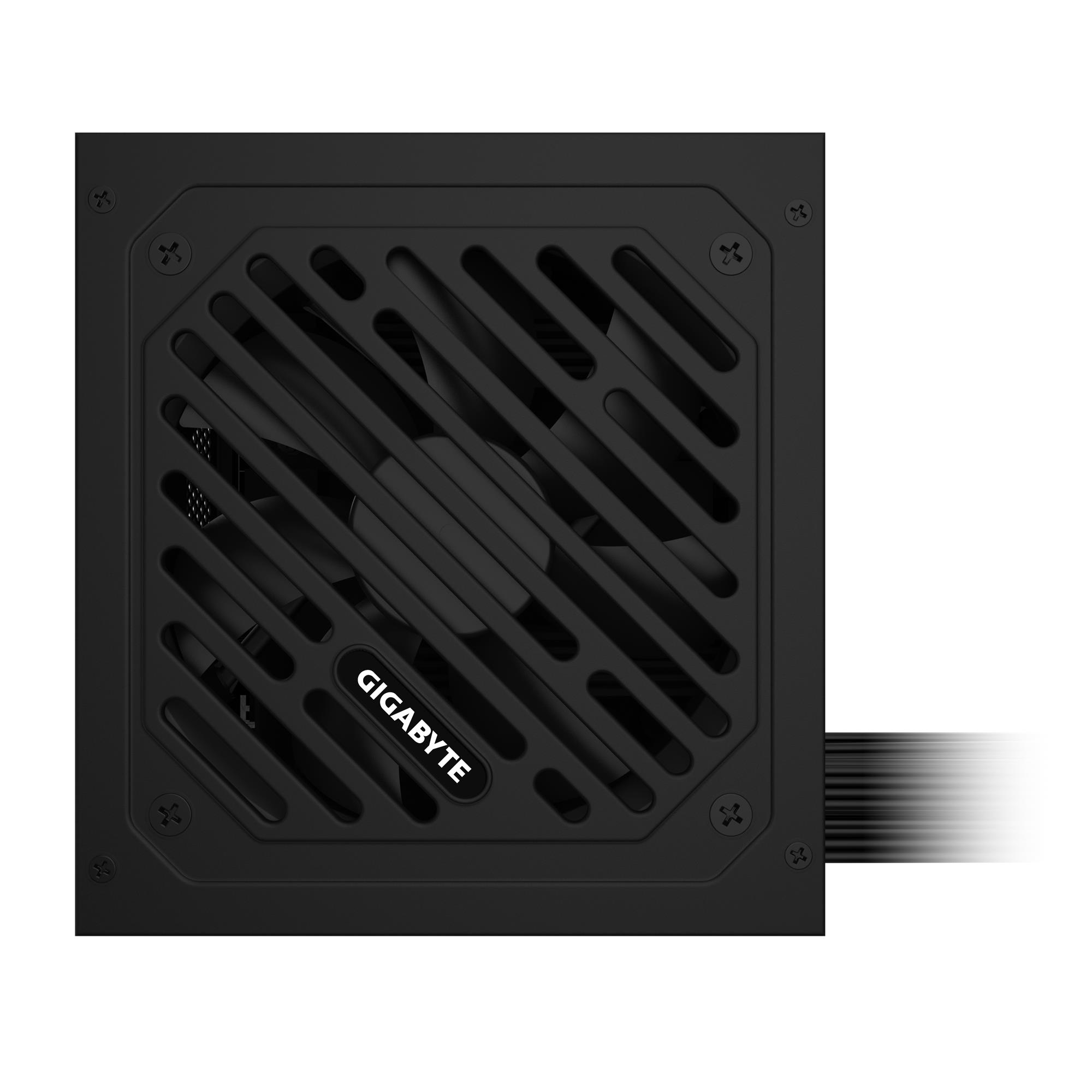

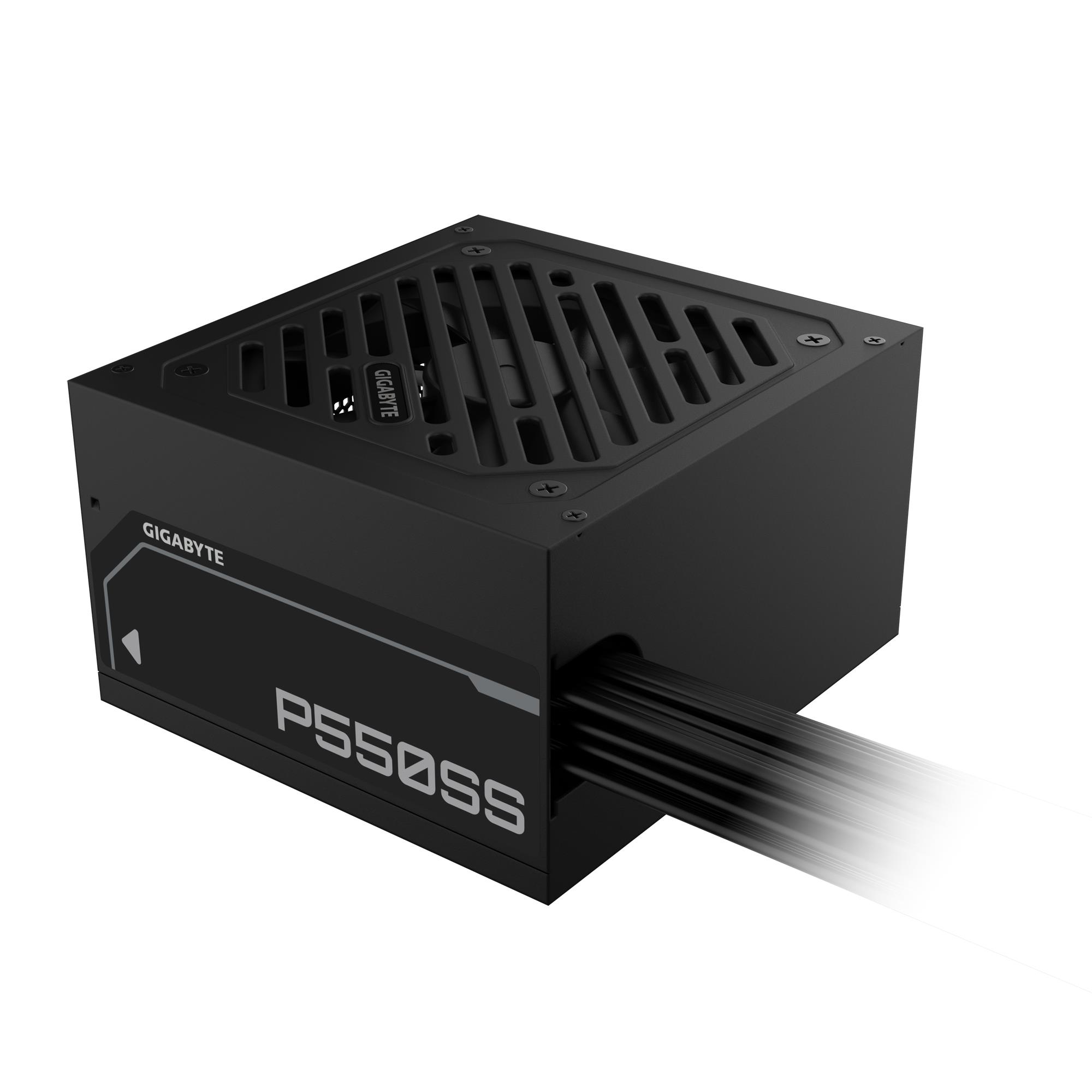

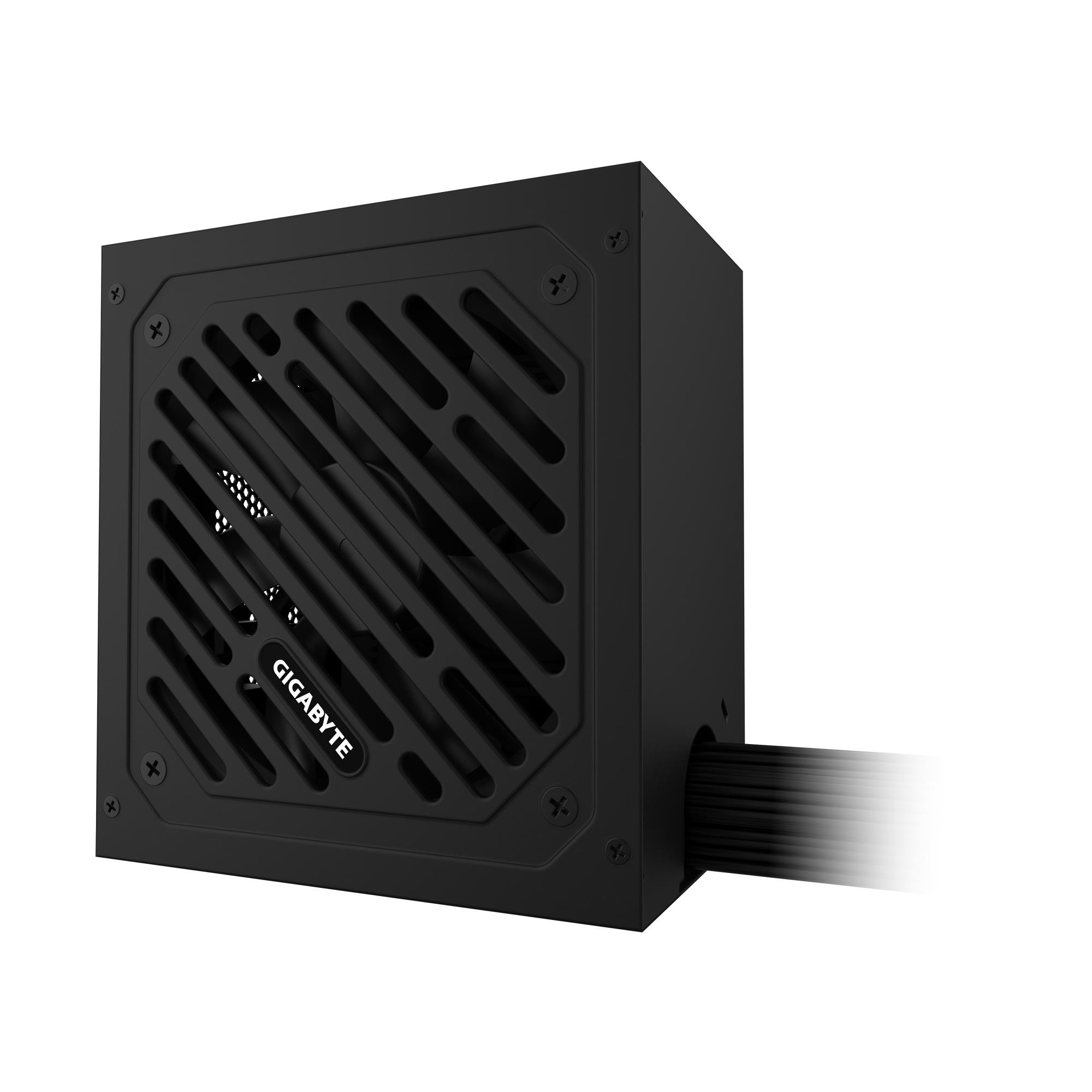

Summary: GIGABYTE P550SS Power Supply - PCIe 5.0, 80 PLUS Silver, 120mm Fan, ATX 3.0 compatible, EU Plug. Total power: 550 W, AC input voltage: 155-240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 60 cm, Cabling type: Fully-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Silver. Product colour: White, Cooling type: Active, Fan diameter: 12 cm. Width: 140 mm, Depth: 150 mm, Height: 86 mm

Category Code: PSU

Unit Box Height: 0.12

Unit Box Length: 0.255

Unit Box Width: 0.21

AC input frequency: 50/60 Hz

AC input voltage: 155-240 V

Combined power (+12V): 549.6 W

Combined power (+3.3V): 100 W

Combined power (+5V): 100 W

Combined power (+5Vsb): 15 W

Combined power (-12V): 3.6 W

Efficiency: 90 %

Hold time: 16 ms

Input current: 6.3 A

Max output current (+12V): 45.8 A

Max output current (+3.3V): 20 A

Max output current (+5V): 20 A

Max output current (+5Vsb): 3 A

Max output current (-12V): 0.3 A

Power Factor Correction (PFC) type: Active

Power Good signal delay range: 100 - 150 ms

Power protection features: Over current/Over power/Over voltage/Overheating/Short circuit/Under voltage

Total power: 550 W

ATX power connector (20+4 pin): Yes

Cabling type: Fully-Modular

CPU power connector (4+4 pin): Yes

Floppy disk drive connector: Yes

Floppy drive power connector: 2

Motherboard power cable length: 600 mm

Motherboard power connector: 20+4 pin ATX

Number of SATA power connectors: 5

PCI Express connector: Yes

PCI Express power connectors (6+2 pin): 2

Peripheral (Molex) power connectors (4-pin): 4

80 PLUS certification: 80 PLUS Silver

ATX version: 3.1

Bearing technology: Ball bearing

Mean time between failures (MTBF): 100000 h

Power supply unit (PSU) form factor: ATX

Purpose: PC

Cooling type: Active

Fan diameter: 120 mm

Fan location: Top

Number of fans: 1 fan(s)

On/off switch: Yes

Product colour: White

Depth: 150 mm

Height: 86 mm

Weight: 2460 g

Width: 140 mm

Package depth: 206 mm

Package height: 117 mm

Package type: Box

Package weight: 2632 g

Package width: 254 mm

Warranty period: 3 year(s)

Model name: GP-P650SS

Unit Calculated Volume: 0.007577 cubm

Unit Calculated Weight: 2.24 kg
