Power Supply|BE QUIET|ATX|PC|100 - 240 V|850 W|BP019EU
SKU: BP019EU
€ 234.98
Pieejams : 15 gab.
850 W
100 - 240 V
Efficiency 93.8 %
80 PLUS certification 80 PLUS Titanium
PC
ATX
Noise level 16 dB
Fan diameter 135 mm
Weight 2.2 kg
-

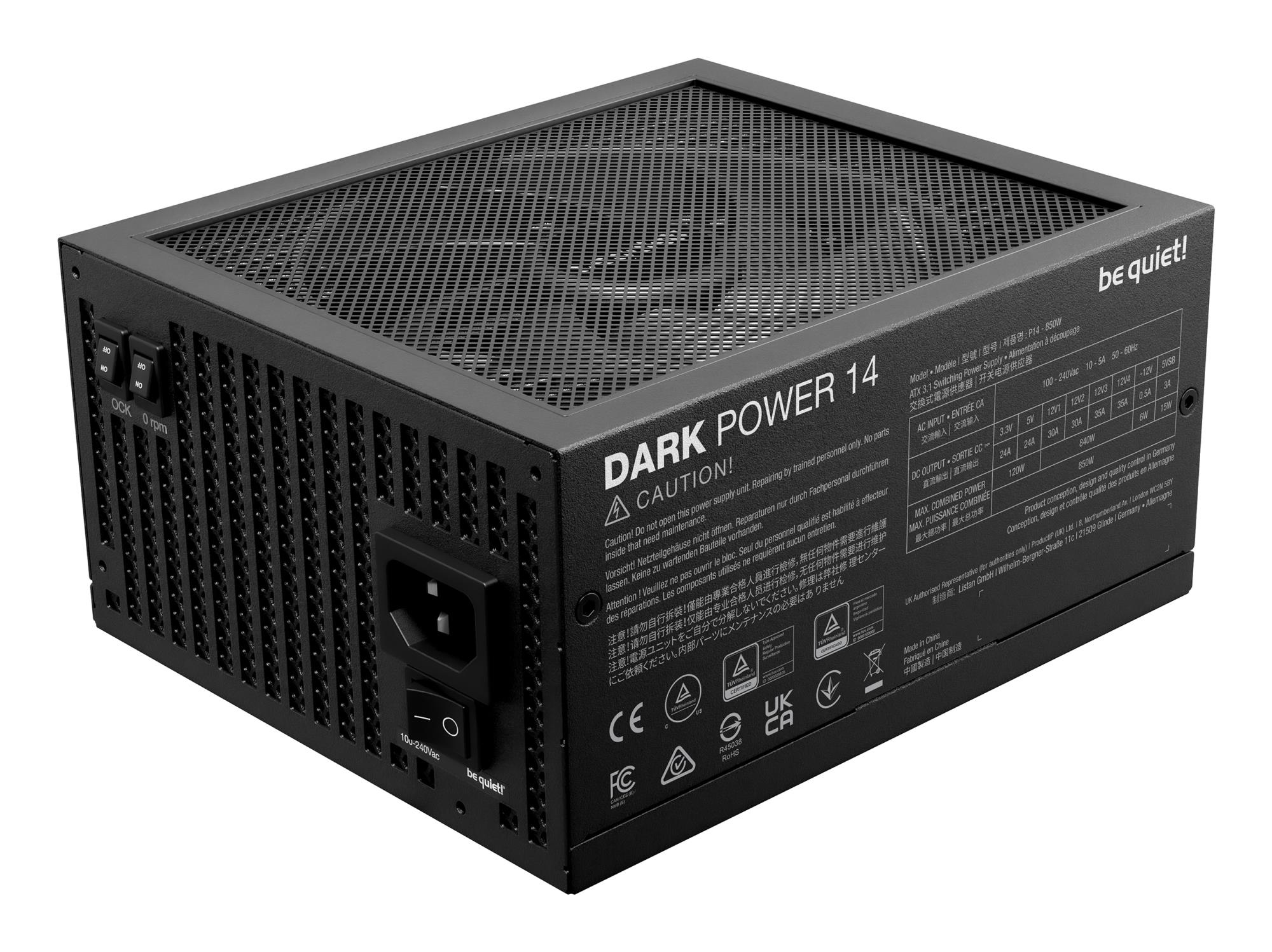

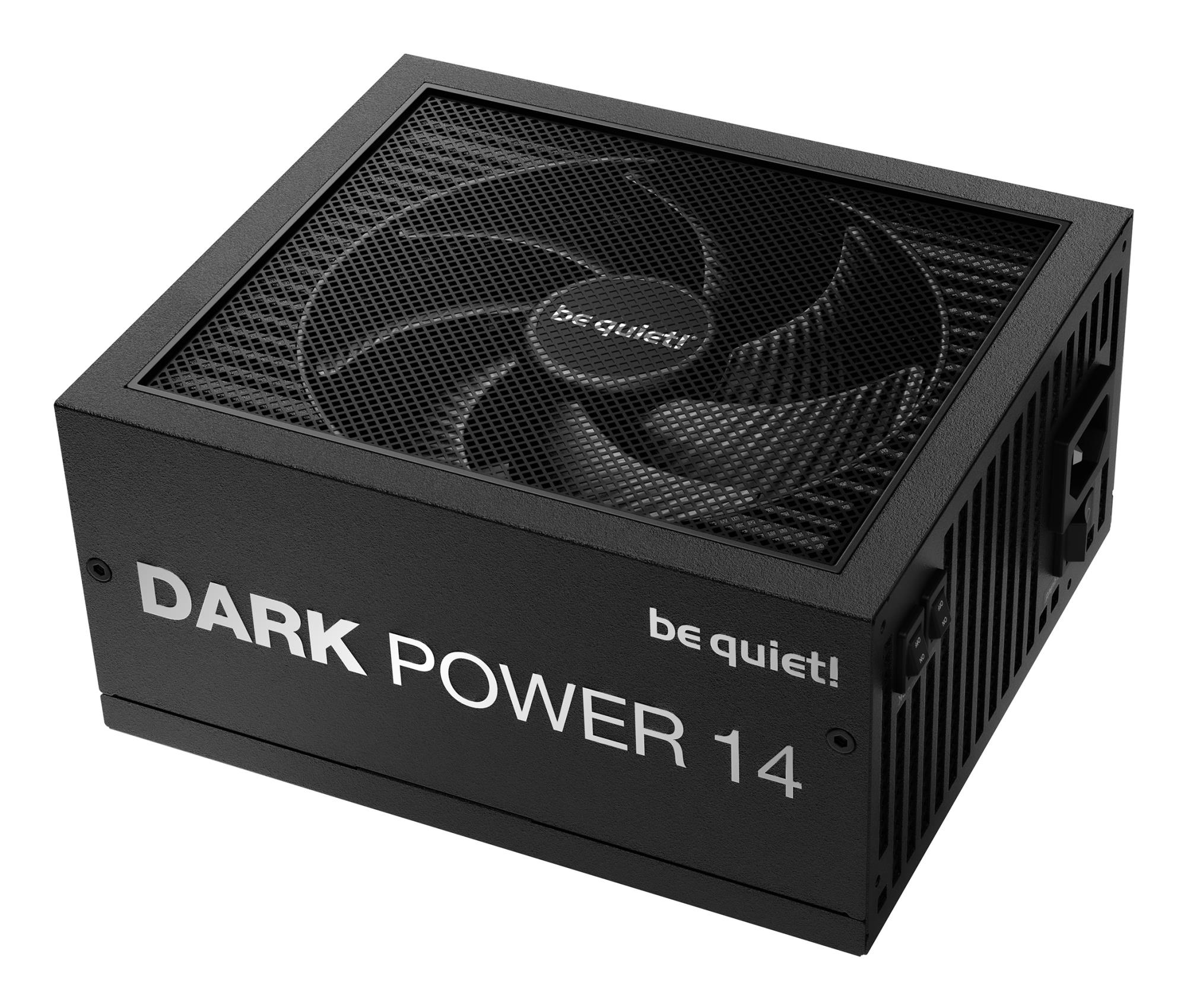

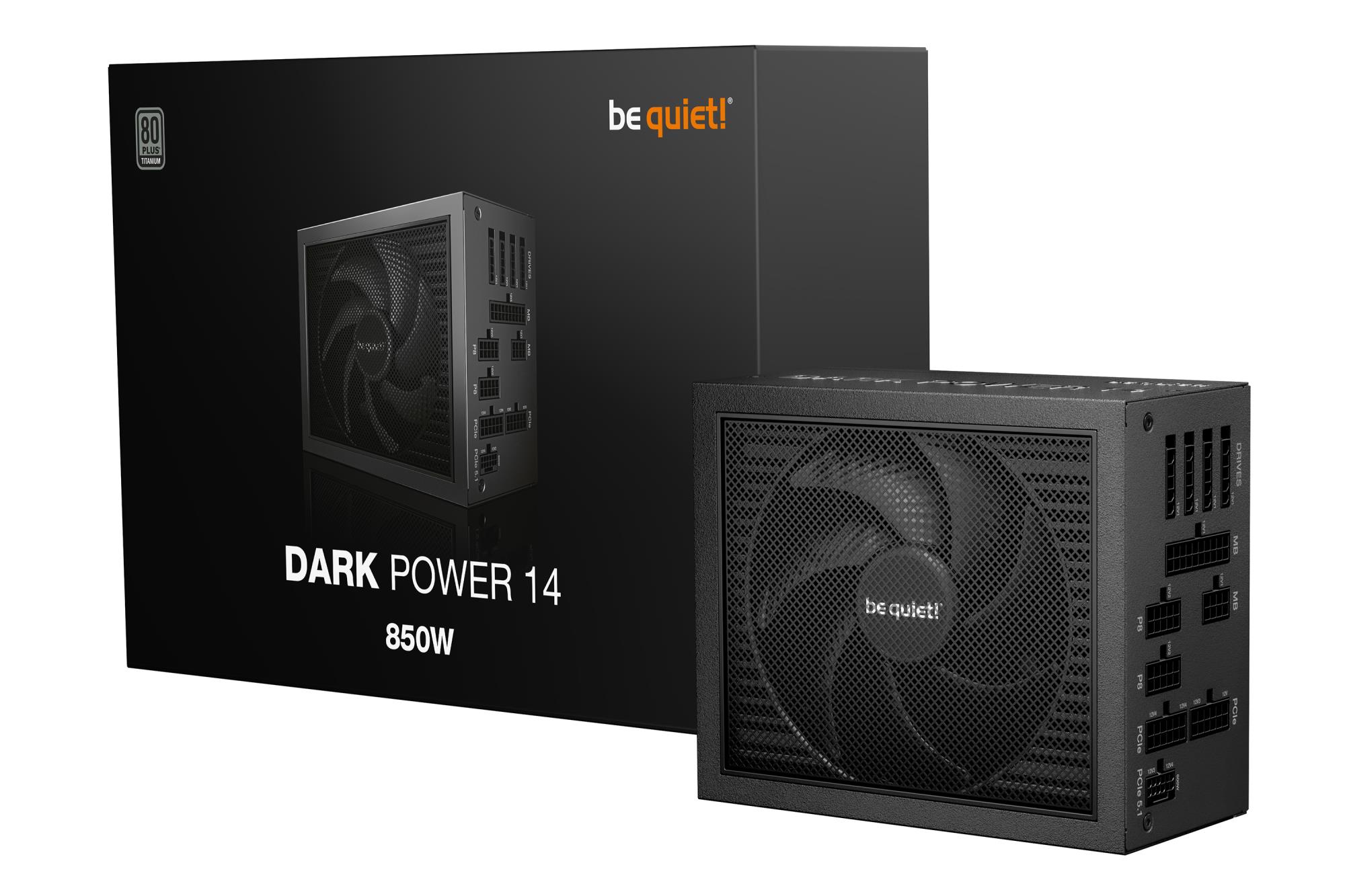

Summary: be quiet! Dark Power 14 850 W - 80 Plus Titanium. Total power: 850 W, AC input voltage: 100 - 240 V, Peak power: 950 W. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 60 cm, SATA power cable length: 600,750,900,1050 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Titanium. Product colour: Black, Cooling type: Active, Fan diameter: 13.5 cm. Compliance certificates: CB, Federal Communications Commission (FCC), RoHS, TÜV mark, UKCA, WEEE, cTUVus
-
Category Code: PSU
-
Unit Box Height: 0.232
-
Unit Box Length: 0.356
-
Unit Box Width: 0.127
-
AC input frequency: 50/60 Hz
-
AC input voltage: 100 - 240 V
-
Combined power (+12V): 850 W
-
Combined power (+3.3V): 120 W
-
Combined power (+5V): 120 W
-
Efficiency: 93.8 %
-
Hold time: 20.7 ms
-
Max output current (+12V1): 30 A
-
Max output current (+12V2): 30 A
-
Max output current (+12V3): 35 A
-
Max output current (+12V4): 35 A
-
Max output current (+3.3V): 24 A
-
Max output current (+5V): 24 A
-
Max output current (+5Vsb): 3 A
-
Max output current (-12V): 0.5 A
-
Maximum input current (@110V): 10 A
-
Maximum input current (@220V): 5 A
-
Number of +12V rail(s): 4
-
Peak power: 950 W
-
Power factor: 0.98
-
Power protection features: Over current/Over voltage/Overheating/Overload/Short circuit/Surge & inrush protection (SIP)/Under voltage
-
Total power: 850 W
-
ATX power connector (20+4 pin): Yes
-

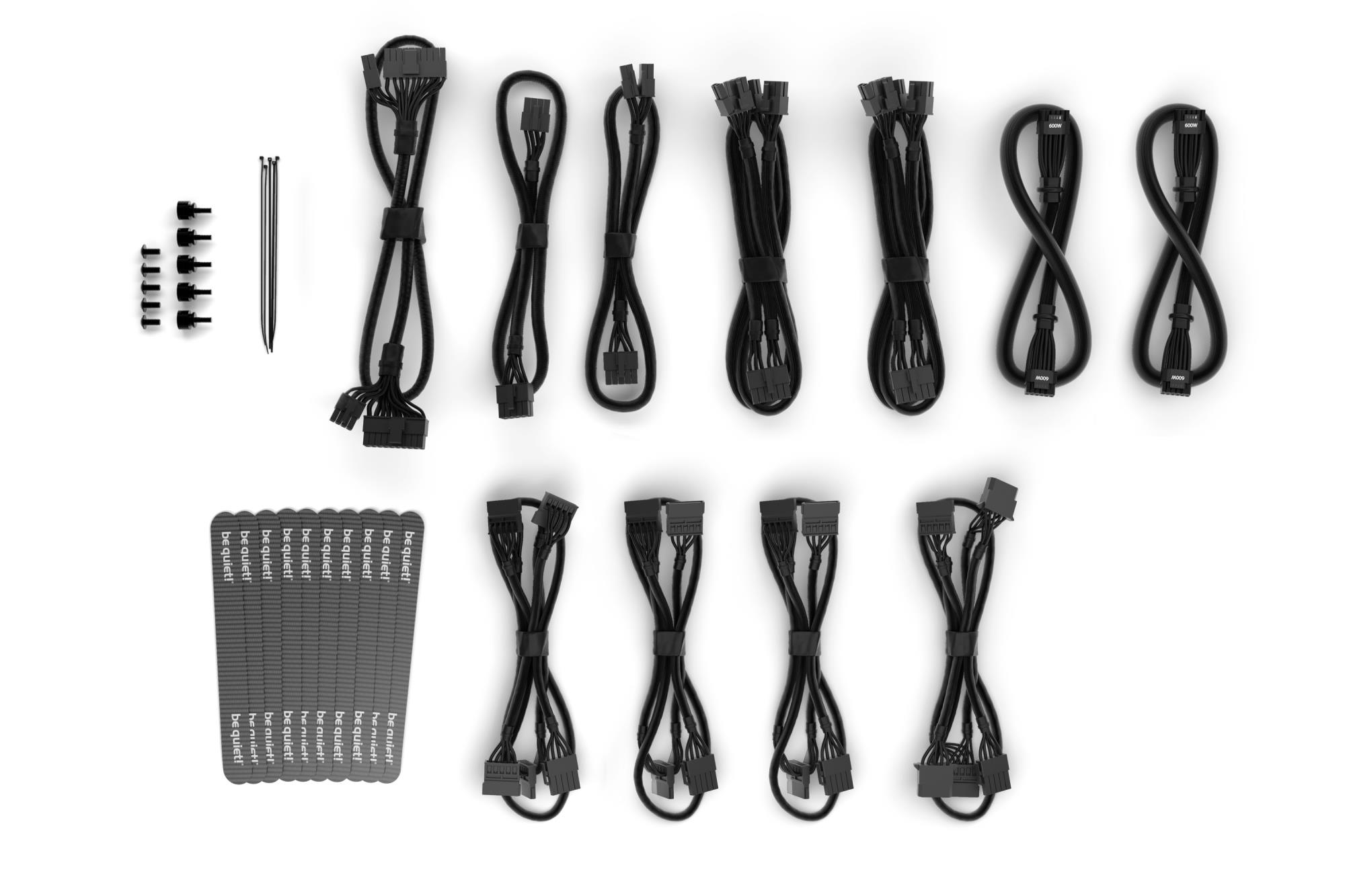

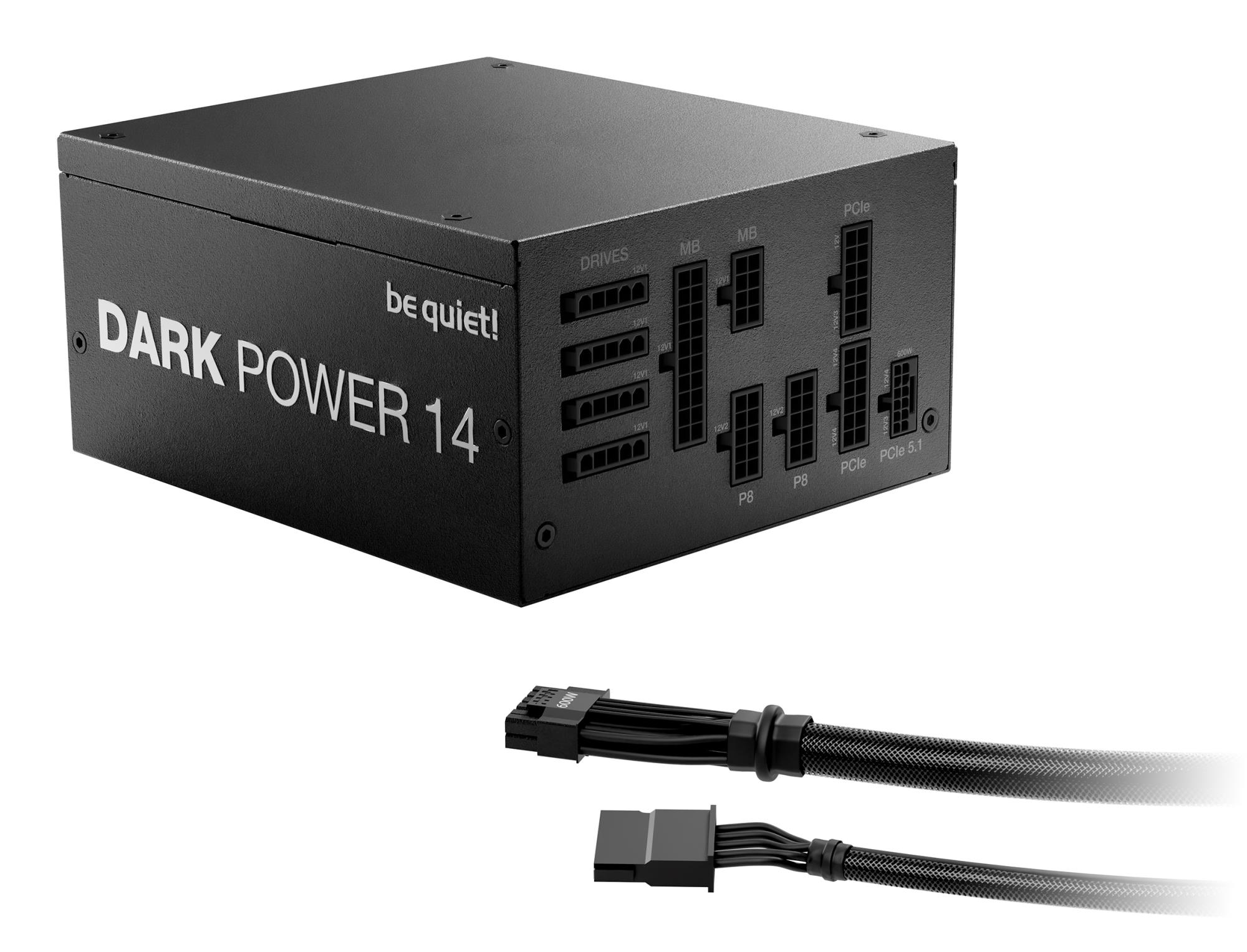

Cabling type: Fully-Modular
-

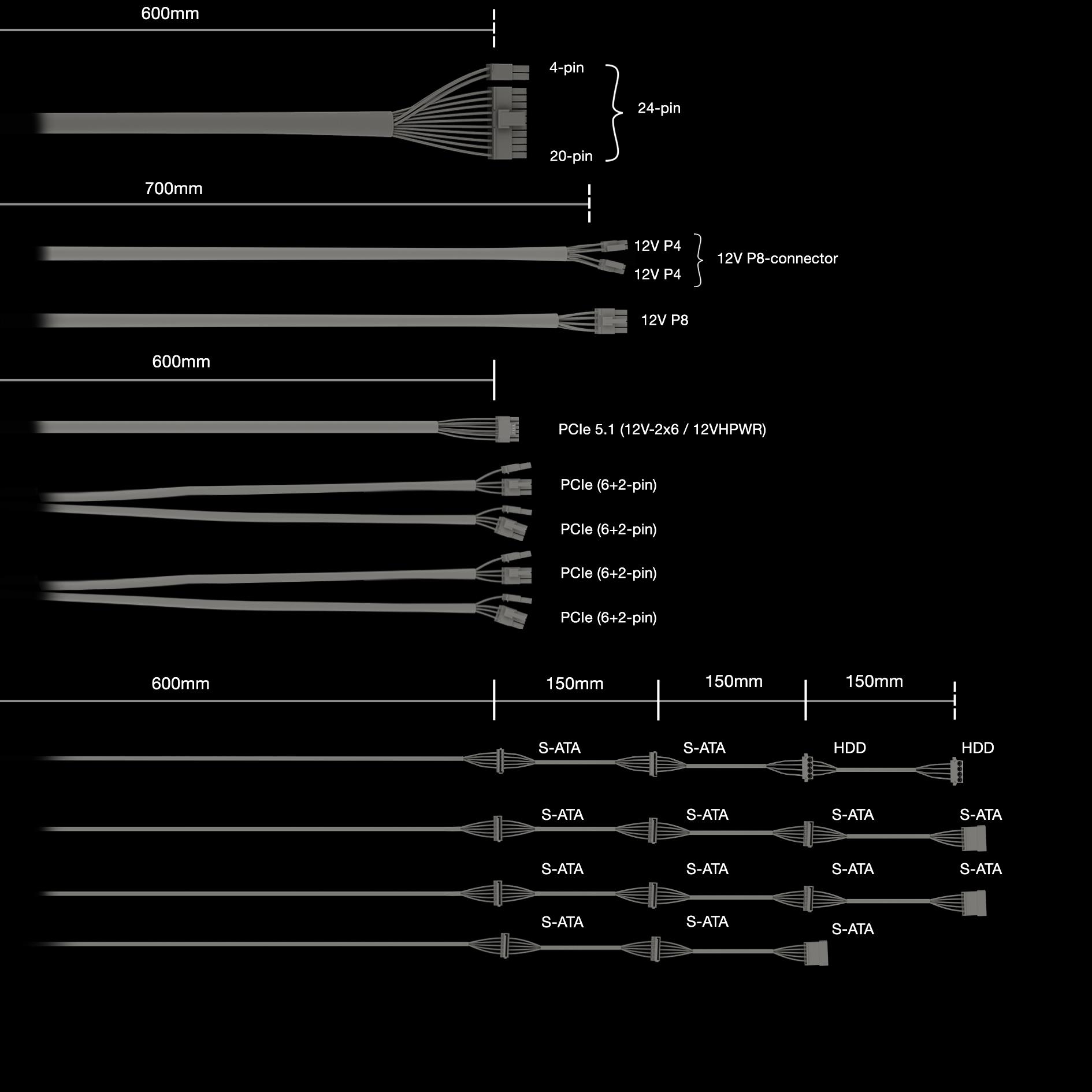

CPU power cable length: 700 mm
-
CPU power connector (4+4 pin): Yes
-
EPS power connector (4+4 pin): Yes
-
EPS power connector (8-pin): Yes
-
Motherboard power cable length: 600 mm
-
Motherboard power connector: 20+4 pin ATX
-
Number of SATA power cables: 4
-
Number of SATA power connectors: 13
-
PCI Express connector: Yes
-
PCI Express power cable length: 600 mm
-
PCI Express power connectors (12-pin): 1
-
PCI Express power connectors (6+2 pin): 4
-
Peripheral (Molex) power cable length: 1050/900 mm
-
Peripheral (Molex) power connectors (4-pin): 2
-
SATA power cable length: 1050/600/750/900 mm
-
80 PLUS certification: 80 PLUS Titanium
-
ATX version: 3.1
-
Bearing technology: FDB
-
EPS version: 2.92
-
Mean time between failures (MTBF): 100000 h
-

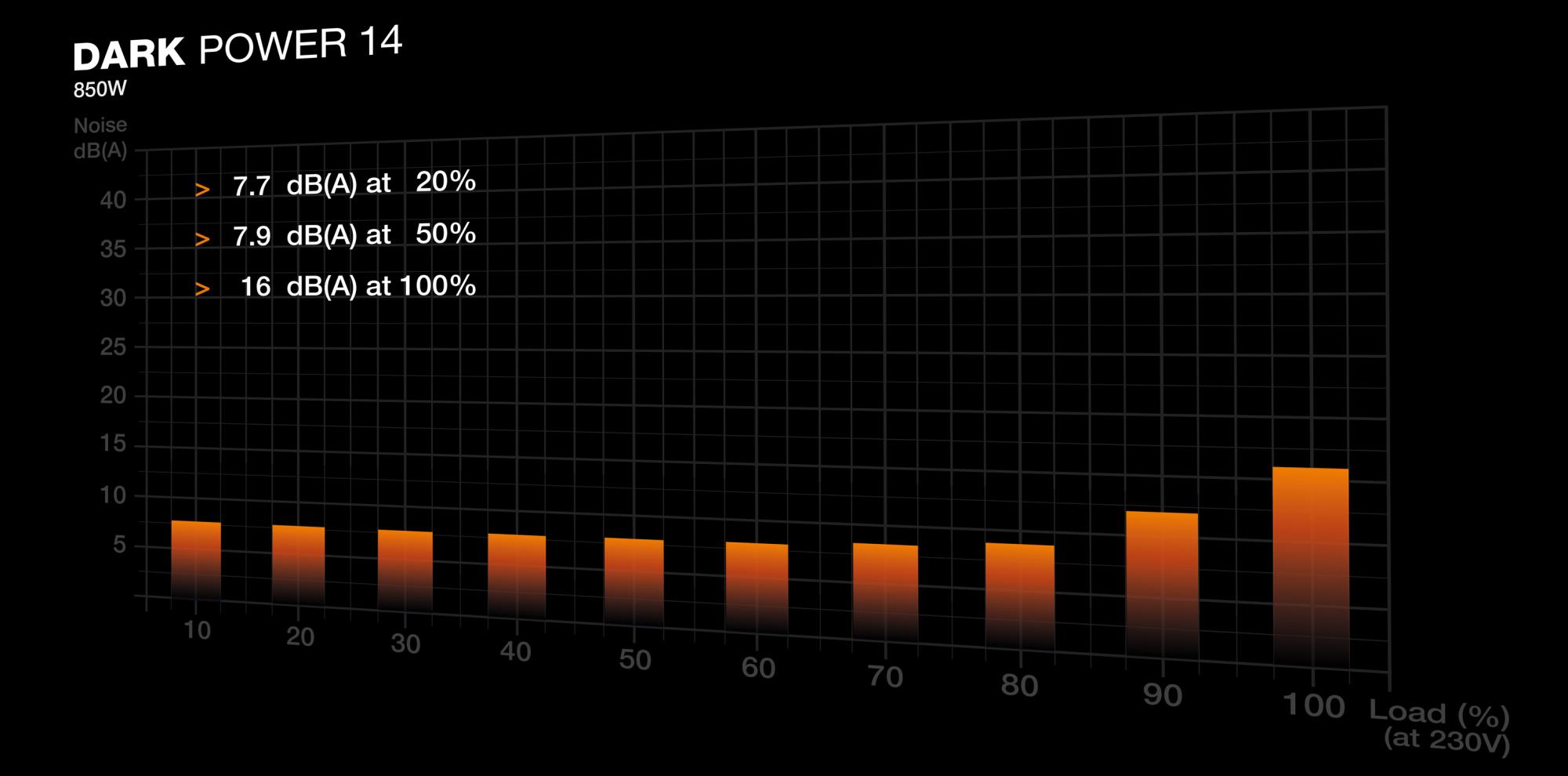

Noise level: 16 dB
-
Power supply unit (PSU) form factor: ATX
-
Purpose: PC
-
Cooling type: Active
-
Fan diameter: 135 mm
-
Fan speed: 0 - 2100 rpm
-
Number of fans: 1 fan(s)
-

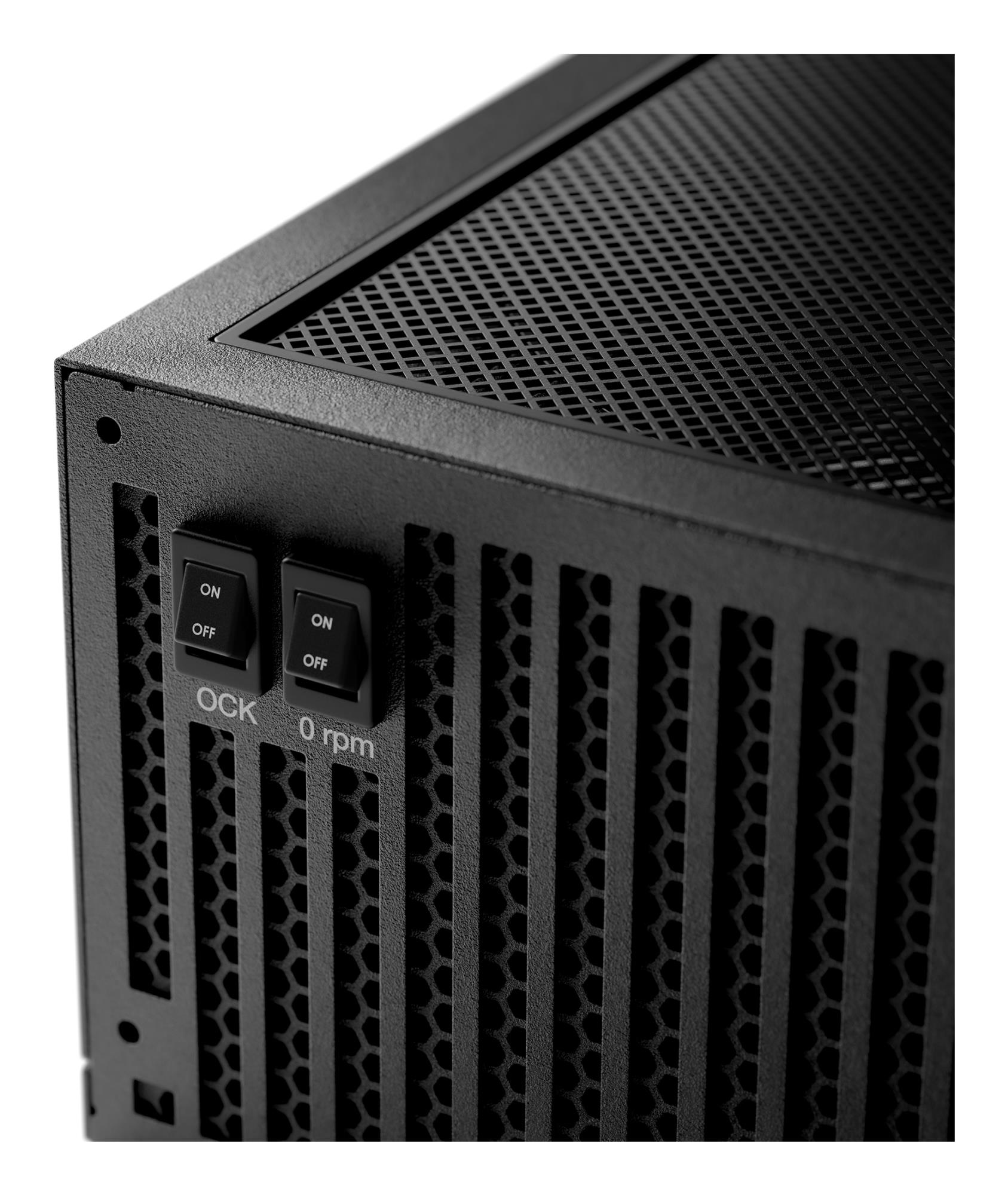

On/off fan switch: Yes
-
On/off switch: Yes
-
Product colour: Black
-
Operating temperature (T-T): 0 - 40 °C
-
Compliance certificates: CB/cTUVus/Federal Communications Commission (FCC)/RoHS/TÜV mark/UKCA/WEEE
-
Depth: 175 mm
-
Height: 86 mm
-
Weight: 2200 g
-
Width: 150 mm
-
Manual: Yes
-
Manual languages: English/French/German/Italian/Japanese/Polish/Russian/Simplified Chinese/Spanish/Thai/Ukrainian
-
Package depth: 126 mm
-
Package height: 355 mm
-
Package weight: 3500 g
-
Package width: 230 mm
-
Sustainability certificates: ENERGY STAR/ErP/Triman
-
Products per shipping (inner) case: 4 pc(s)
-
Shipping (inner) case height: 260 mm
-
Shipping (inner) case length: 528 mm
-
Shipping (inner) case net weight: 19340 g
-
Shipping (inner) case width: 368 mm
-
Cable ties included: Yes
-
Screws included: Yes
-
Units per Pallet: 0
-
Unit Calculated Volume: 0.01328 cubm
-
Unit Calculated Weight: 4.81 kg
-
Manufacturer: BE QUIET
