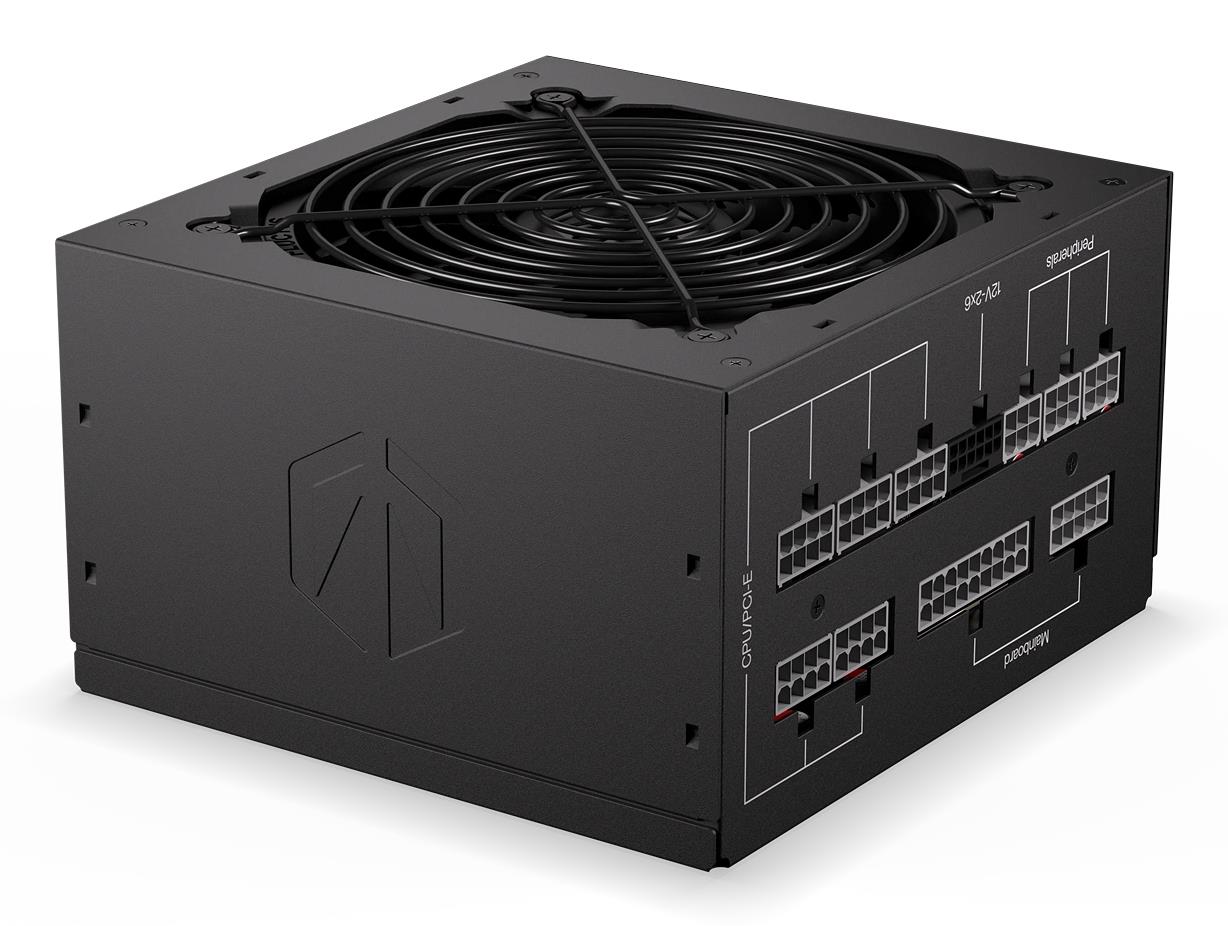

Power Supply|ENDORFY|ATX|PC|100 - 240 V|750 W|EY7A013
SKU: EY7A013
€ 115.22
Pieejams : 50 gab.
750 W
100 - 240 V
80 PLUS certification 80 PLUS Gold
PC
ATX
Fan diameter 120 mm
-
Summary: ENDORFY Supremo FM6 750 W. Total power: 750 W, AC input voltage: 100 - 240 V, Input current: 13 - 65 A. Motherboard power connector: 24-pin ATX, Motherboard power cable length: 60 cm, SATA power cable length: 560 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Compliance certificates: CE, Federal Communications Commission (FCC), RoHS, UKCA, WEEE
-
Category Code: PSU
-
Unit Box Height: 0.095
-
Unit Box Length: 0.27
-
Unit Box Width: 0.22
-

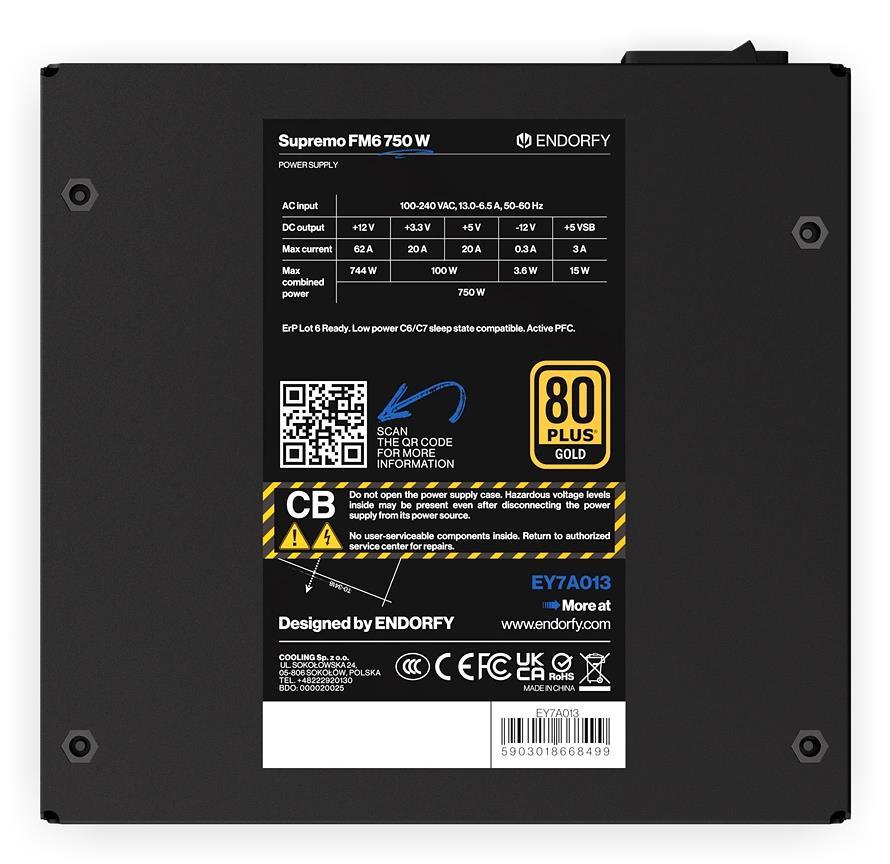

AC input voltage: 100 - 240 V
-
Combined power (+12V): 744 W
-
Combined power (+3.3V): 100 W
-
Combined power (+5V): 20 W
-
Combined power (+5Vsb): 15 W
-
Combined power (-12V): 3.6 W
-
Input current: 13 - 65 A
-
Max output current (+12V): 62 A
-
Max output current (+3.3V): 20 A
-
Max output current (+5V): 20 A
-
Max output current (+5Vsb): 3 A
-
Max output current (-12V): 0.3 A
-
Power Factor Correction (PFC) type: Active
-
Power protection features: Over current/Over power/Over voltage/Overheating/Short circuit/Surge & inrush protection (SIP)/Under voltage
-
Total power: 750 W
-

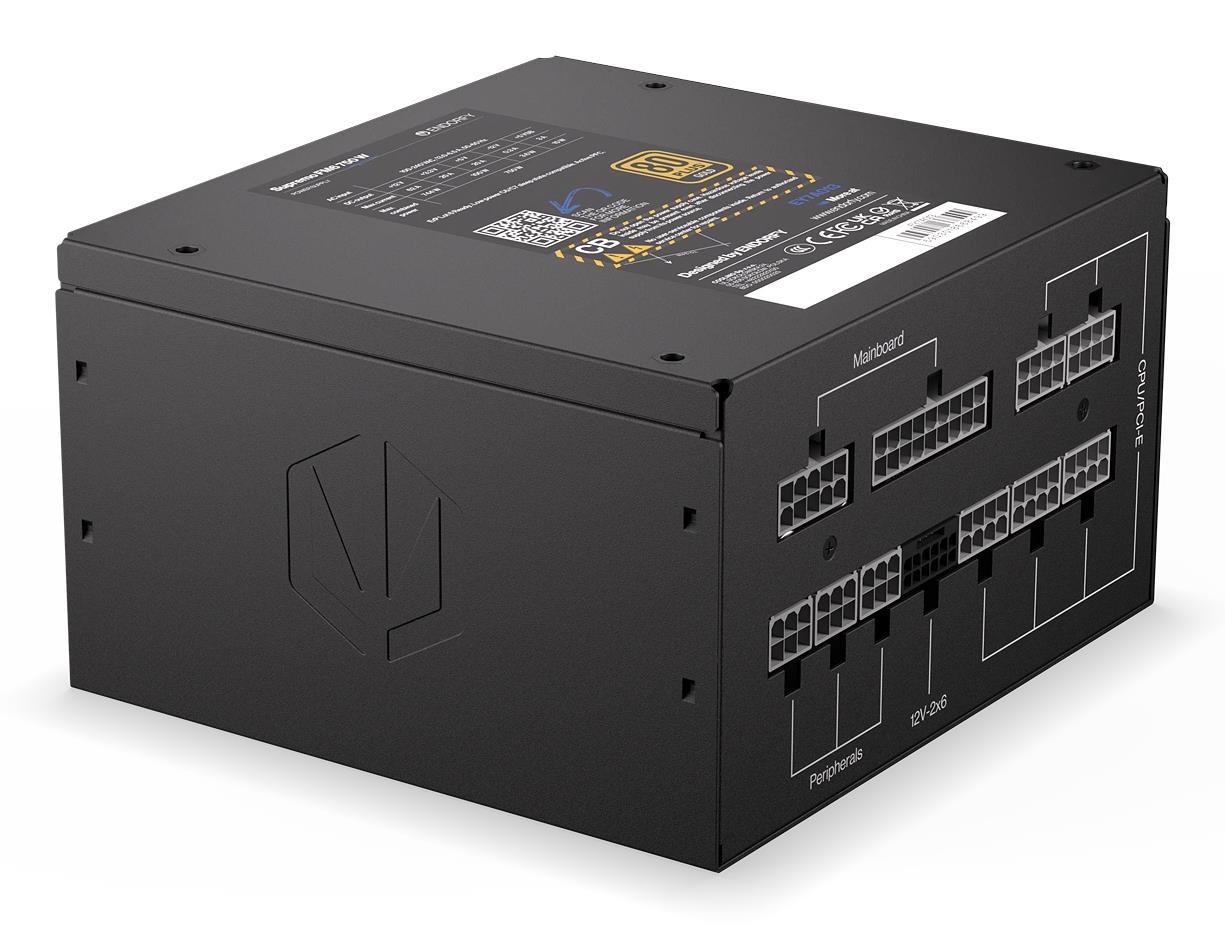

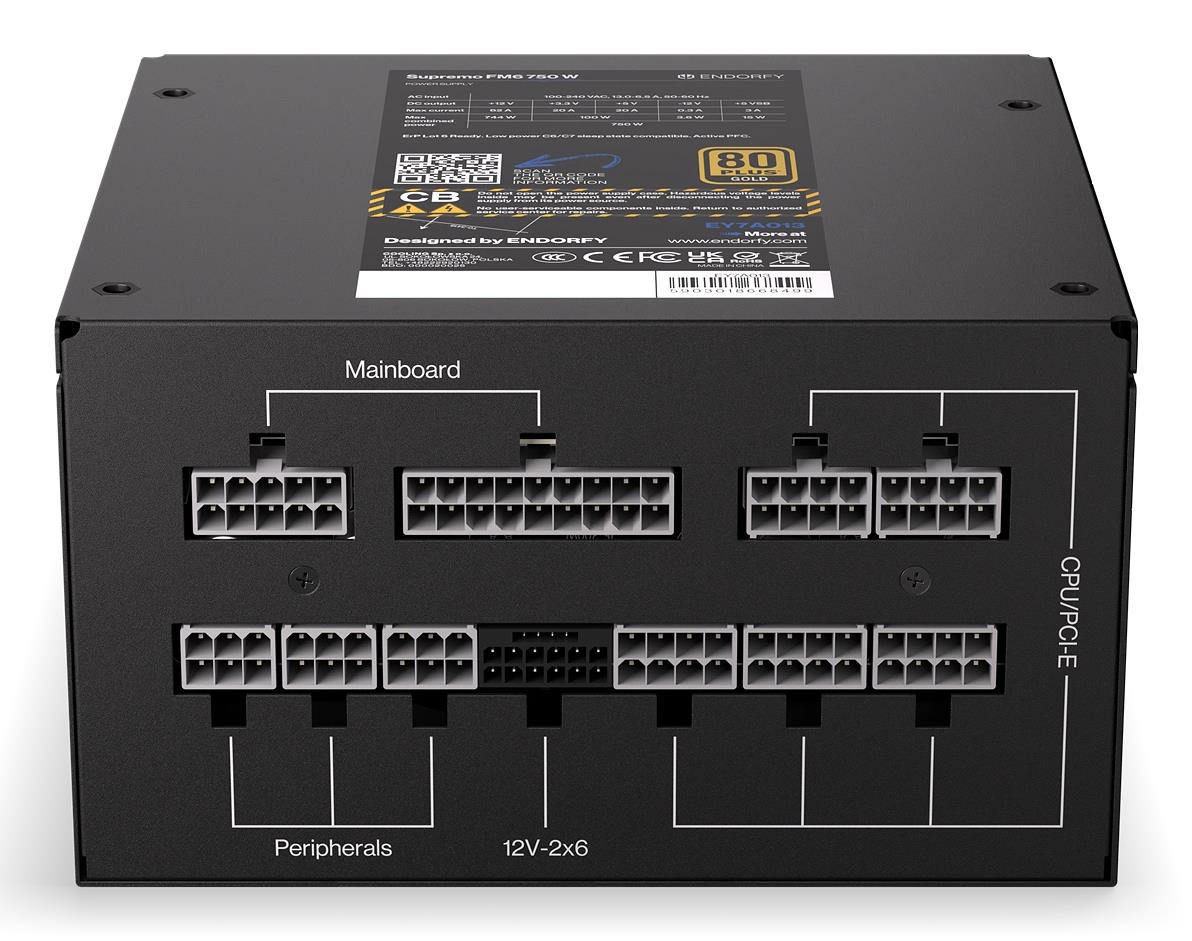

Cabling type: Fully-Modular
-
EPS power connector (4+4 pin): Yes
-
Motherboard power cable length: 600 mm
-
Motherboard power connector: 24-pin ATX
-
Number of EPS connectors: 2
-
Number of SATA power cables: 2
-
PCI Express power connectors (6+2 pin): 3
-
Peripheral (Molex) power cable length: 560 mm
-
Peripheral (Molex) power connectors (4-pin): 1
-
SATA power cable length: 560 mm
-
80 PLUS certification: 80 PLUS Gold
-
ATX version: 3.1
-
Mean time between failures (MTBF): 100000 h
-
Power supply unit (PSU) form factor: ATX
-
Purpose: PC
-
Cooling type: Active
-

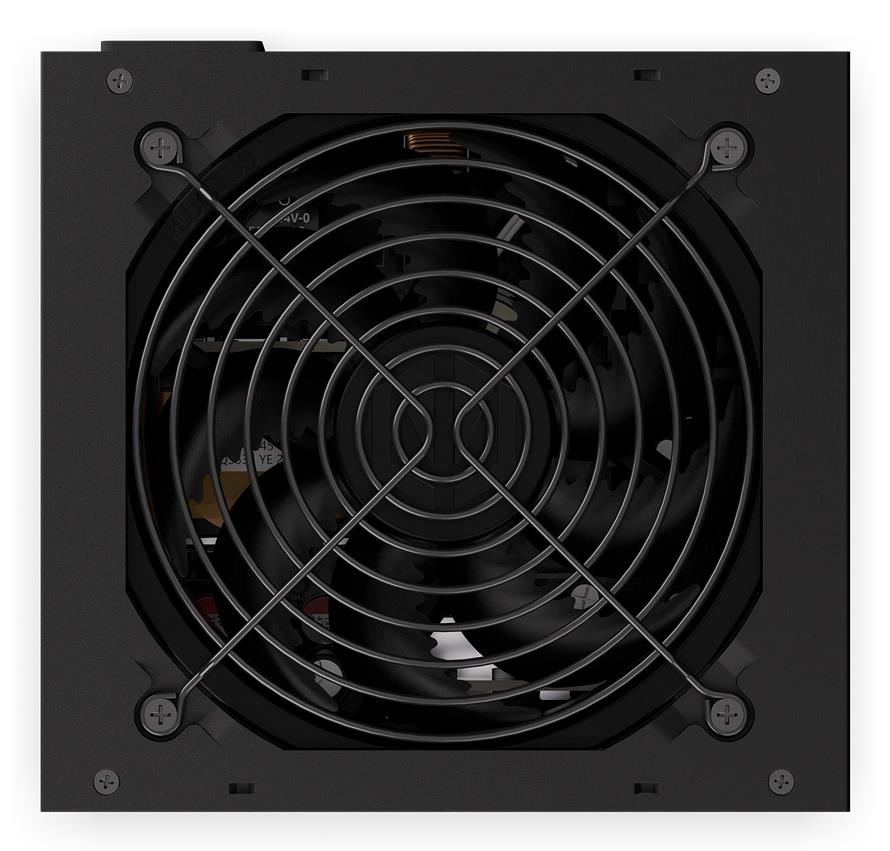

Fan diameter: 120 mm
-
Illumination: No
-
Number of fans: 1 fan(s)
-

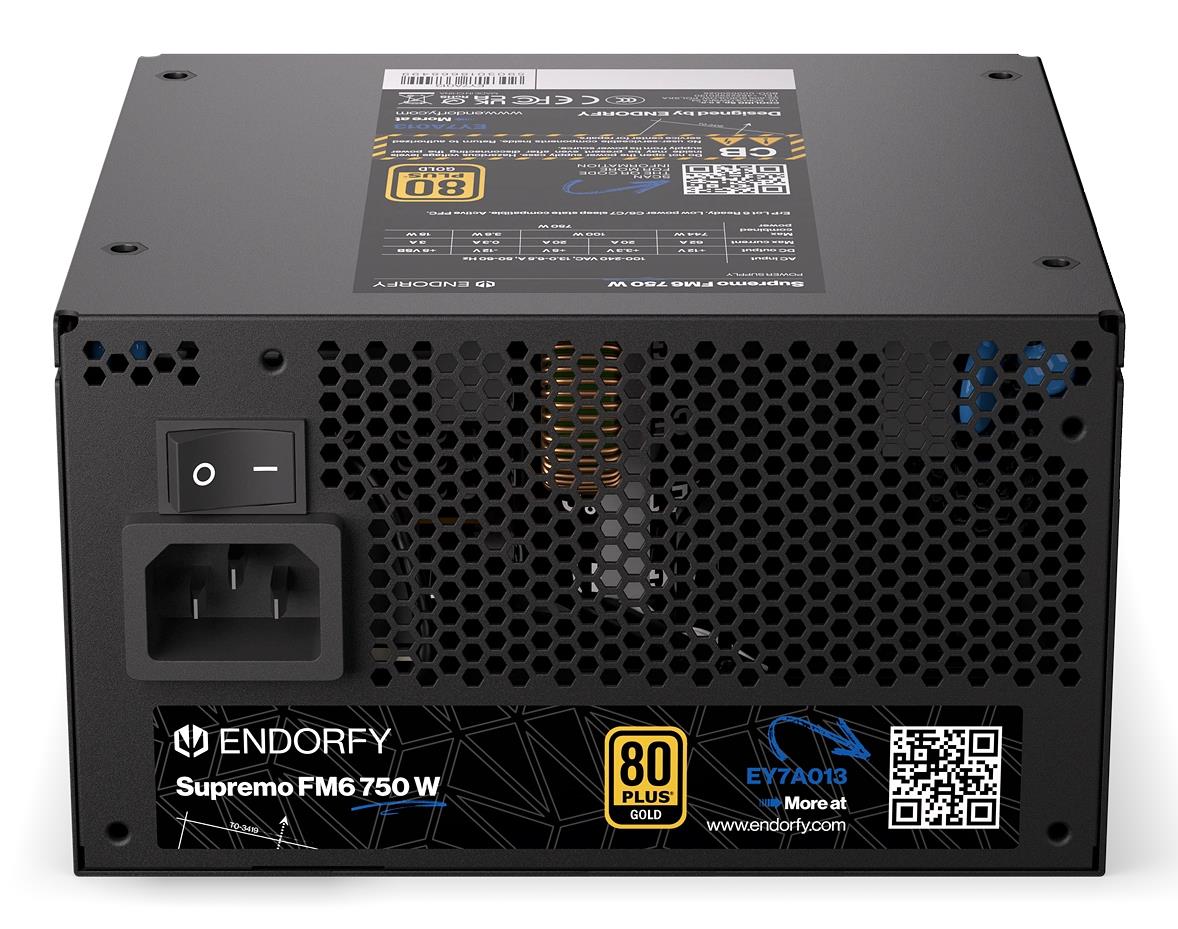

On/off switch: Yes
-
Product colour: Black
-
Compliance certificates: CE/Federal Communications Commission (FCC)/RoHS/UKCA/WEEE
-
Depth: 150 mm
-
Height: 87 mm
-
Width: 140 mm
-
Manual: Yes
-
Doesn't contain: Cadmium/Lead/Mercury
-
Country of origin: China
-
Units per Pallet: 0
-
Unit Calculated Volume: 0.006815 cubm
-
Unit Calculated Weight: 2.8 kg
