Power Supply|GIGABYTE|UD750GM PG5 V2|ATX 3.1|750 Watts|Efficiency 80 PLUS GOLD|PFC Active|MTBF 100000 hours|GP-UD750GMPG5V2

Summary: GIGABYTE UD750GM PG5 V2 Power Supply Unit- PCIe Gen 5.1, 80 PLUS Gold, Fully Modular Design, 120mm Fan, ATX 3.1 compatible, EU Plug. Total power: 750 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 61 cm, SATA power cable length: 150,600 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Width: 150 mm, Depth: 140 mm, Height: 86 mm

Category Code: PSU

Unit Box Height: 0.215

Unit Box Length: 0.255

Unit Box Width: 0.115

AC input frequency: 50/60 Hz

AC input voltage: 100 - 240 V

Combined power (+12V): 750 W

Combined power (+3.3V): 105 W

Combined power (+5V): 105 W

Combined power (+5Vsb): 15 W

Combined power (-12V): 3.6 W

Efficiency: 90 %

Hold time: 16 ms

Input current: 12 - 6.5 A

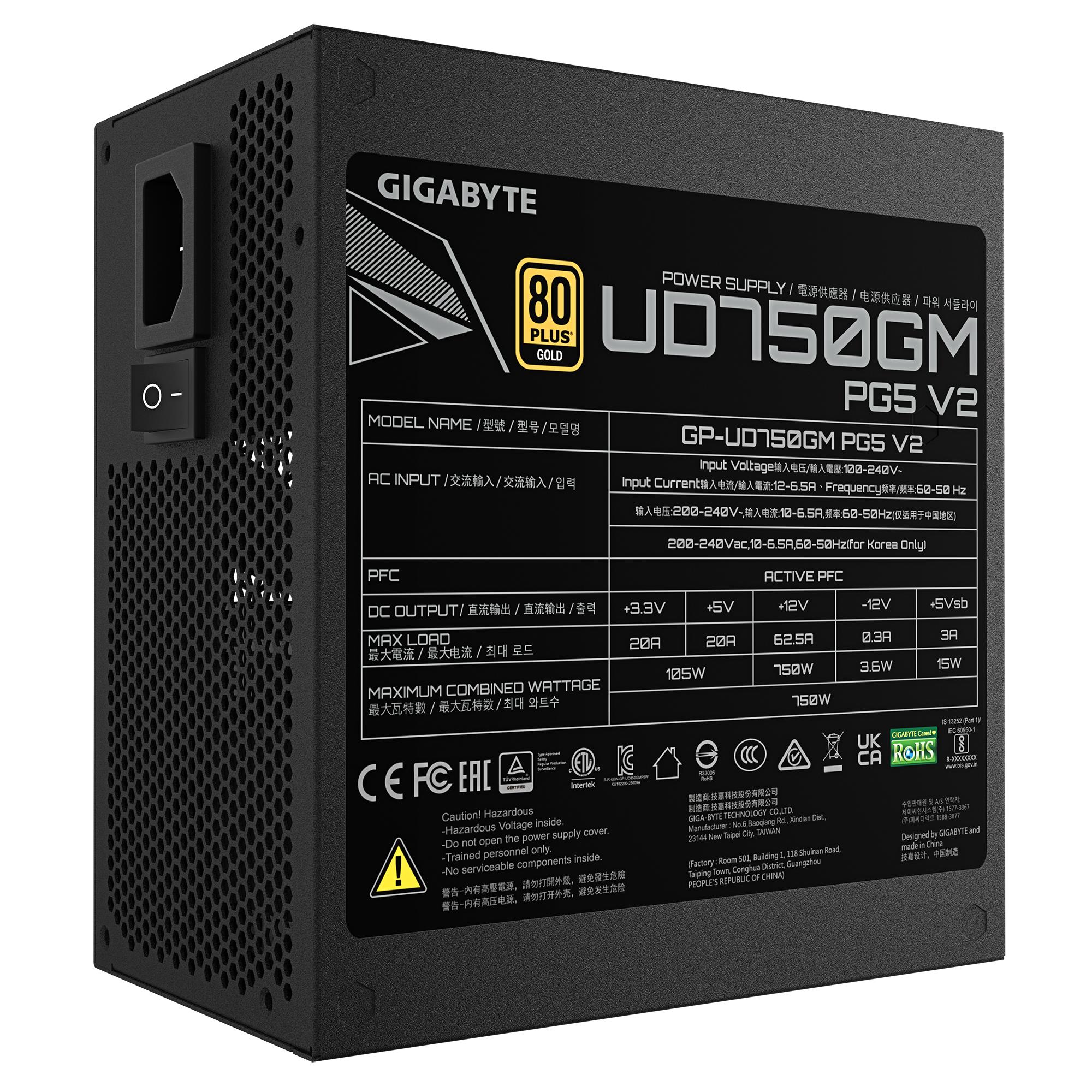

Max output current (+12V): 62.5 A

Max output current (+3.3V): 20 A

Max output current (+5V): 20 A

Max output current (+5Vsb): 3 A

Max output current (-12V): 0.3 A

Power factor: 0.9

Power Factor Correction (PFC) type: Active

Power protection features: Over current/Over power/Over voltage/Overheating/Short circuit/Under voltage

Total power: 750 W

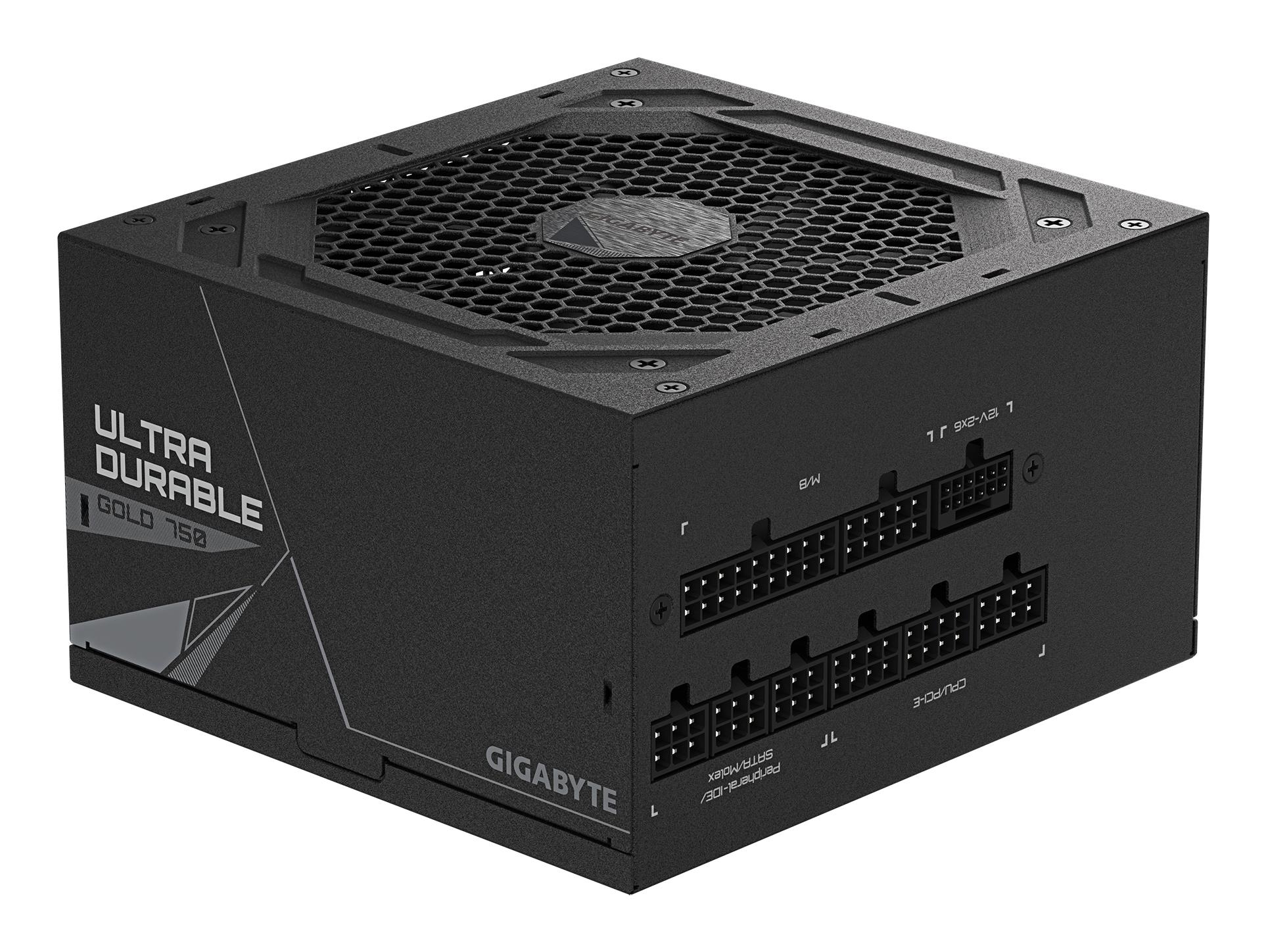

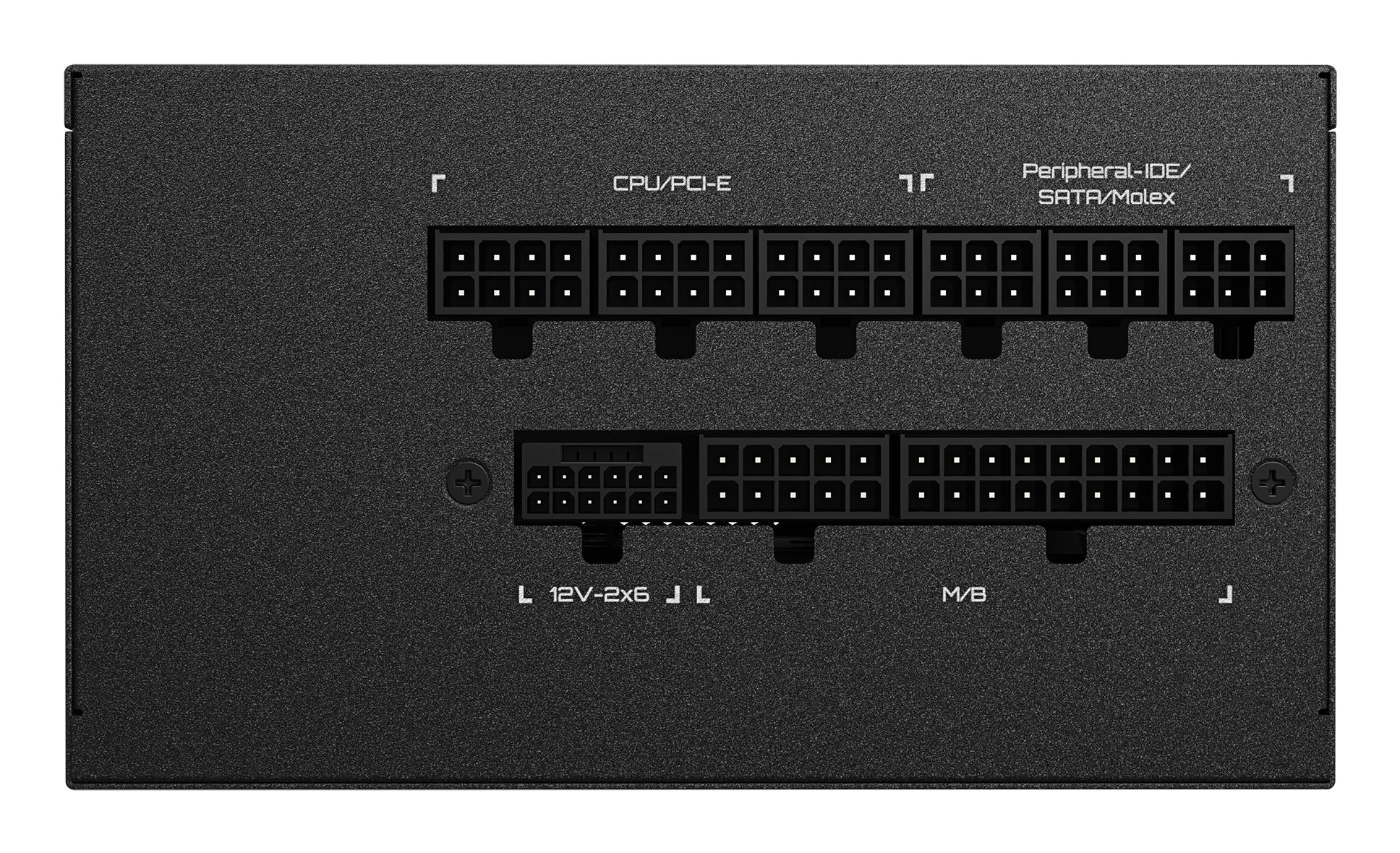

Cabling type: Fully-Modular

CPU power cable length: 650 mm

CPU power connector (4+4 pin): Y

Floppy drive power connector: 1

Motherboard power cable length: 610 mm

Motherboard power connector: 20+4 pin ATX

Number of EPS connectors: 2

Number of SATA power connectors: 8

PCI Express connector: Y

PCI Express power cable length: 600 mm

PCI Express power connectors (12+4 pin): 1

PCI Express power connectors (12+4 pin) cable length: 700 mm

PCI Express power connectors (6+2 pin): 4

Peripheral (Molex) power cable length: 150/500 mm

Peripheral (Molex) power connectors (4-pin): 3

SATA power cable length: 150/600 mm

80 PLUS certification: 80 PLUS Gold

ATX version: 3.1

Bearing technology: HYB

Mean time between failures (MTBF): 100000 h

Power supply unit (PSU) form factor: ATX

Purpose: PC

Cooling type: Active

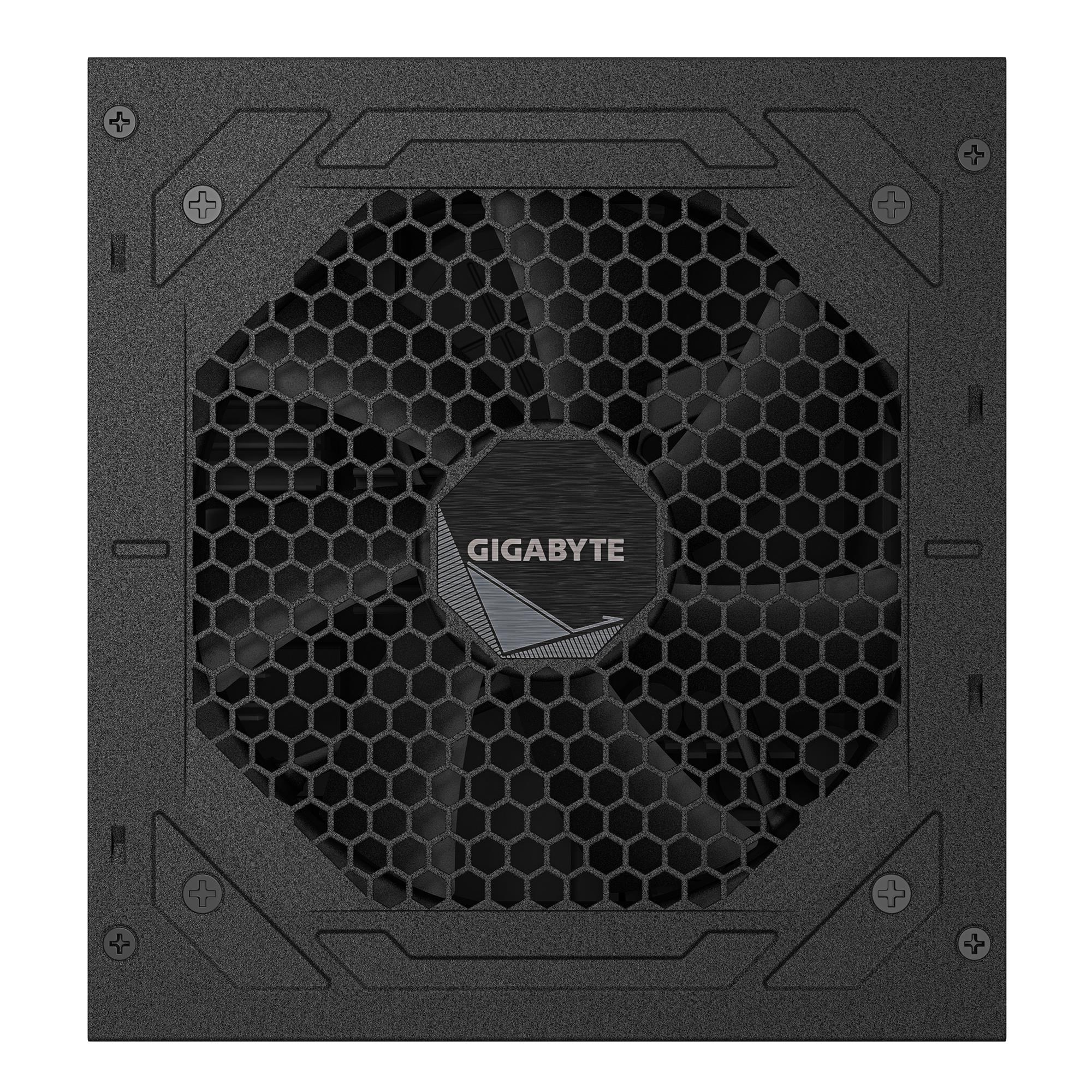

Fan diameter: 120 mm

Number of fans: 1 fan(s)

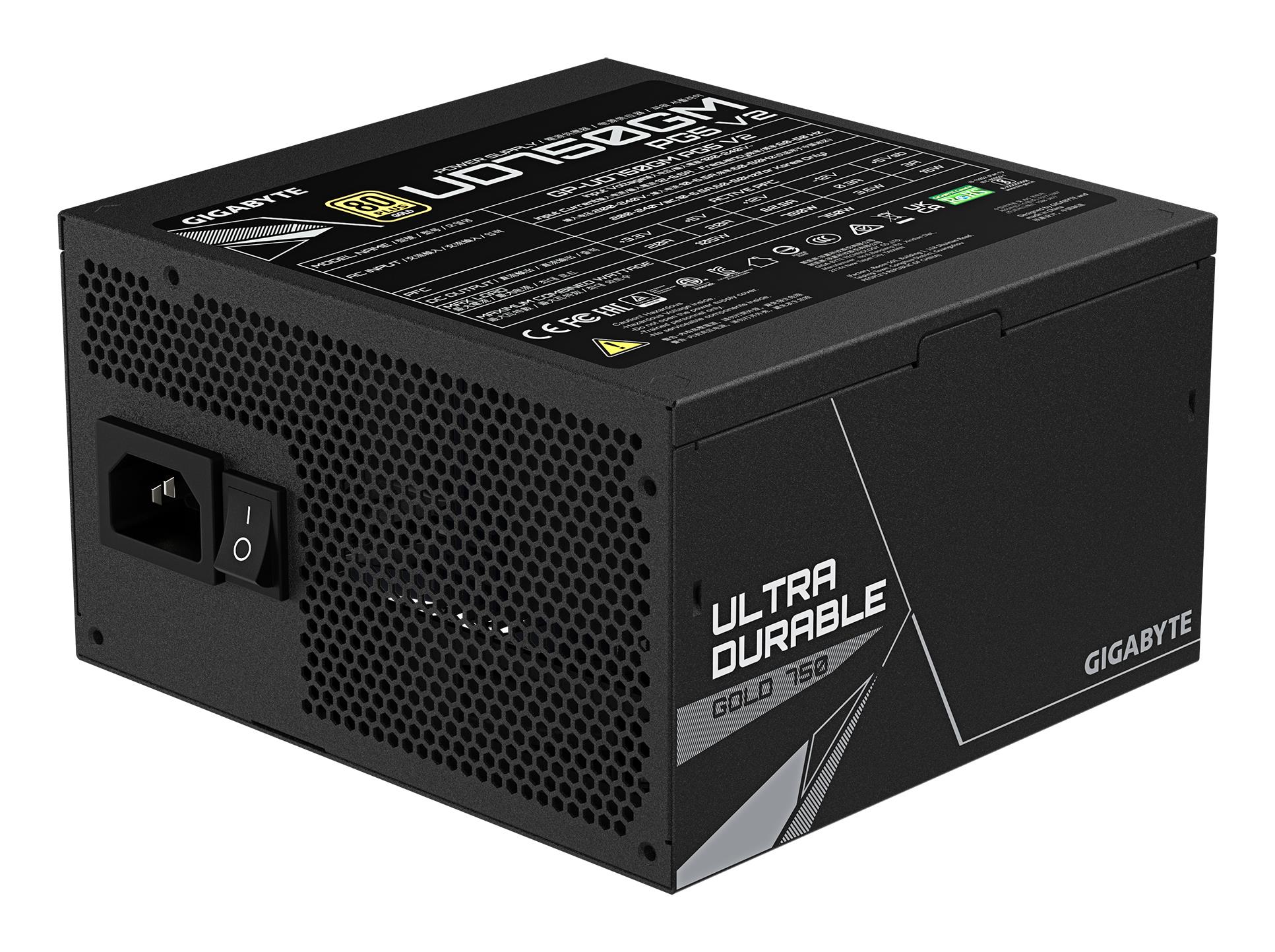

On/off switch: Y

Product colour: Black

Depth: 140 mm

Height: 86 mm

Weight: 2340 g

Width: 150 mm

Package depth: 269 mm

Package height: 211 mm

Package type: Box

Package weight: 2500 g

Package width: 618 mm

Warranty period: 5 year(s)

Model name: UD750GM PG5 V2

Units per Pallet: 0

Unit Calculated Volume: 0.007812 cubm

Unit Calculated Weight: 2.5 kg

Manufacturer: GIGABYTE
