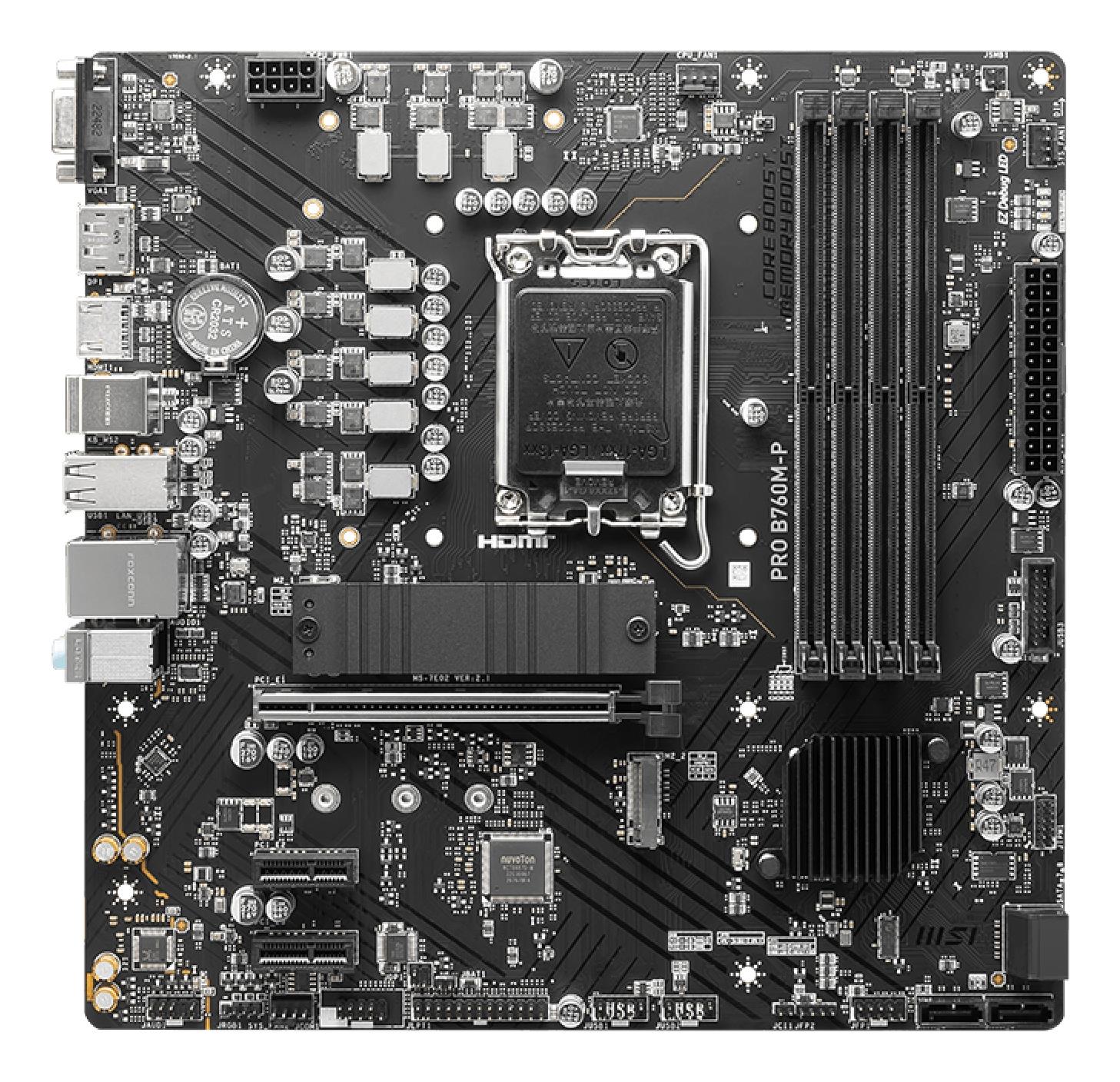

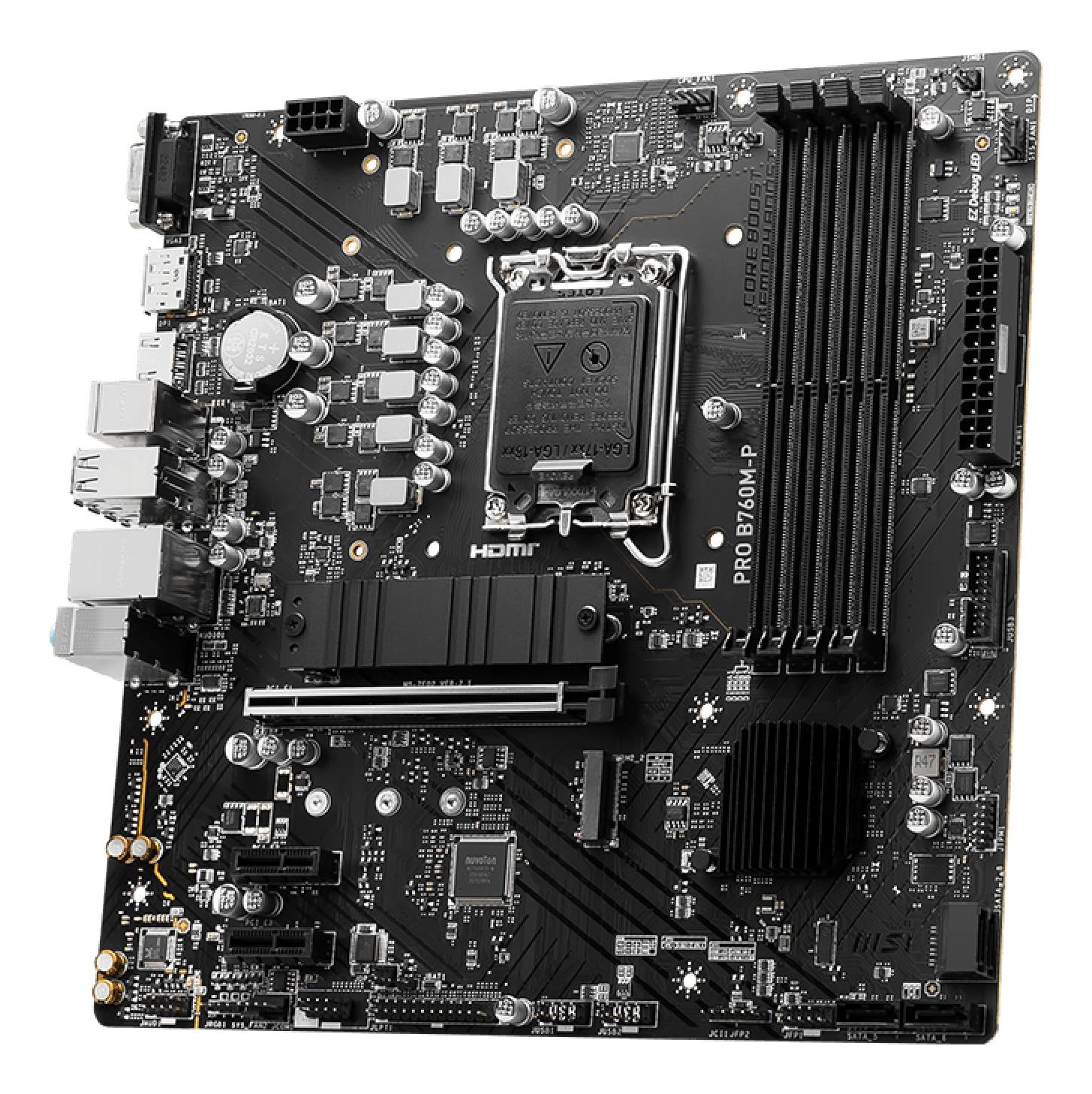

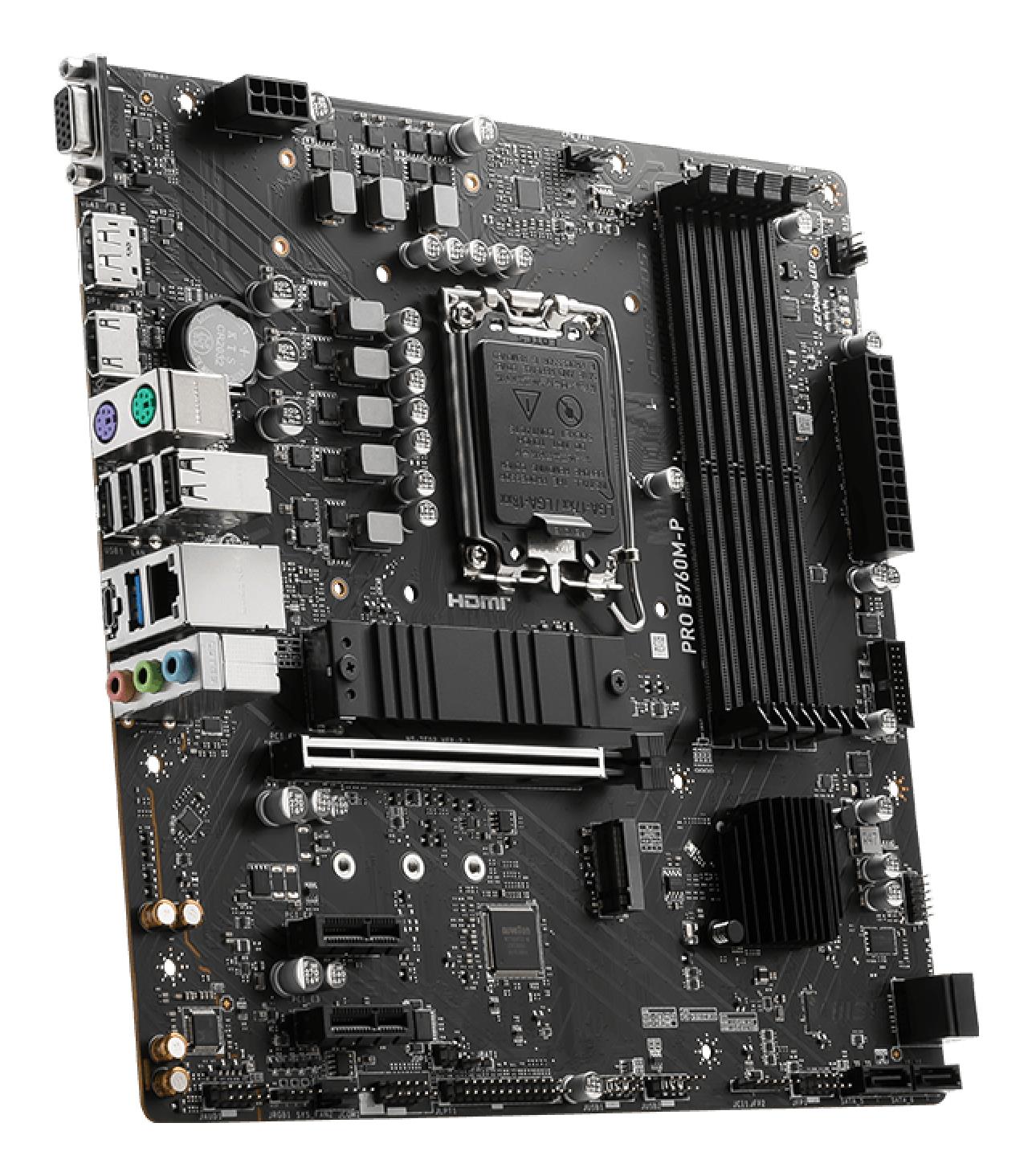

Mainboard|MSI|Intel B760 Express|LGA1700|Micro-ATX|Memory DDR5|Memory slots 4|2xPCI-Express 1x|1xPCI-Express 16x|2xM.2|1x15pin D-sub|1xHDMI|1xDisplayPort|4xUSB 2.0|1xUSB 3.2|1xUSB-C|2xPS/2|1xRJ45|3xAudio port|PROB760M-P
SKU: PROB760M-P
€ 114.63
Pieejams : 100 gab.
Intel B760
micro ATX
Audio 7.1 channels
CPU Intel
Socket LGA 1700
Series Intel® Celeron®/Intel® Pentium® Gold
Supported memory types DDR5-SDRAM
4xNumber of memory slots
Supported storage drive interfaces SATA III

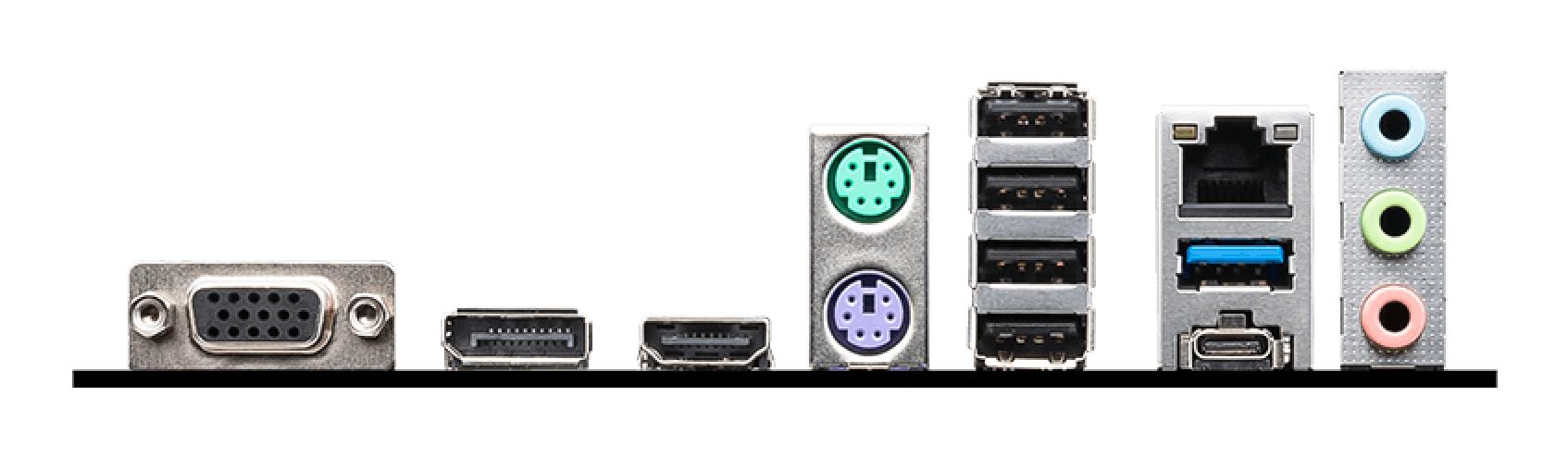

4xUSB 2.0 ports quantity
1xUSB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
1xUSB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1xEthernet LAN (RJ-45) ports
1xVGA (D-Sub) ports quantity
1xHDMI ports quantity
-
Category Code: MBI
-
Unit Box Height: 0.056
-
Unit Box Length: 0.3
-
Unit Box Width: 0.275
-
M.2: 2
-
PCI-Express 16x: 1
-
PCI-Express 1x: 2
-
15pin D-sub: 1
-
Audio port: 3
-
DisplayPort: 1
-
HDMI: 1
-
PS/2: 2
-
RJ45: 1
-
USB 2.0: 4
-
USB 3.2: 1
-
USB-C: 1
-
SATA: Yes
-
USB 2.0: Yes
-
USB 3.2: Yes
-
Model: PRO B760M-P
-
Chipset: Intel B760 Express
-
Socket: LGA1700
-
Form Factor: Micro-ATX
-
Memory type: DDR5
-
Frequency speed: 4800/5000/5200/5400/5600/5800/6000/6200/6400/6600/6800 MHz
-
Memory slots: 4
-
Integrated video: Depending on CPU
-
Integrated LAN: Realtek RTL8111H (Gigabit)
-
Integrated audio: Realtek ALC897
-
RAID: SATA 0, 1, 5, 10
-
TPM: Header
-
Unit Calculated Volume: 0.00462 cubm
-
Product Net Weight: 0.72 kg
-
Unit Calculated Weight: 0.9 kg
-
Manufacturer: MSI
