Mainboard|MSI|AMD B850|Socket AM5|ATX|RAM DDR5-SDRAM|4xSlots|Wi-Fi Yes|Bluetooth Yes|3xNumber of M.2 (M) slots|MAGB850TOMAHAWKWIFI

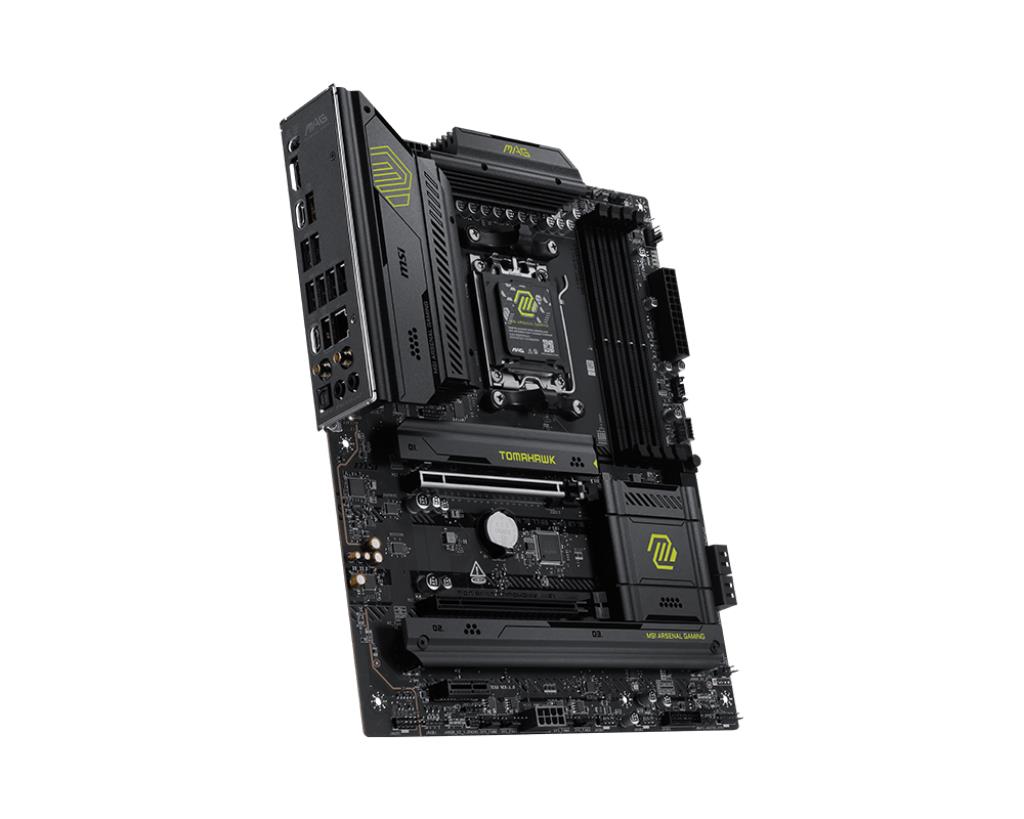

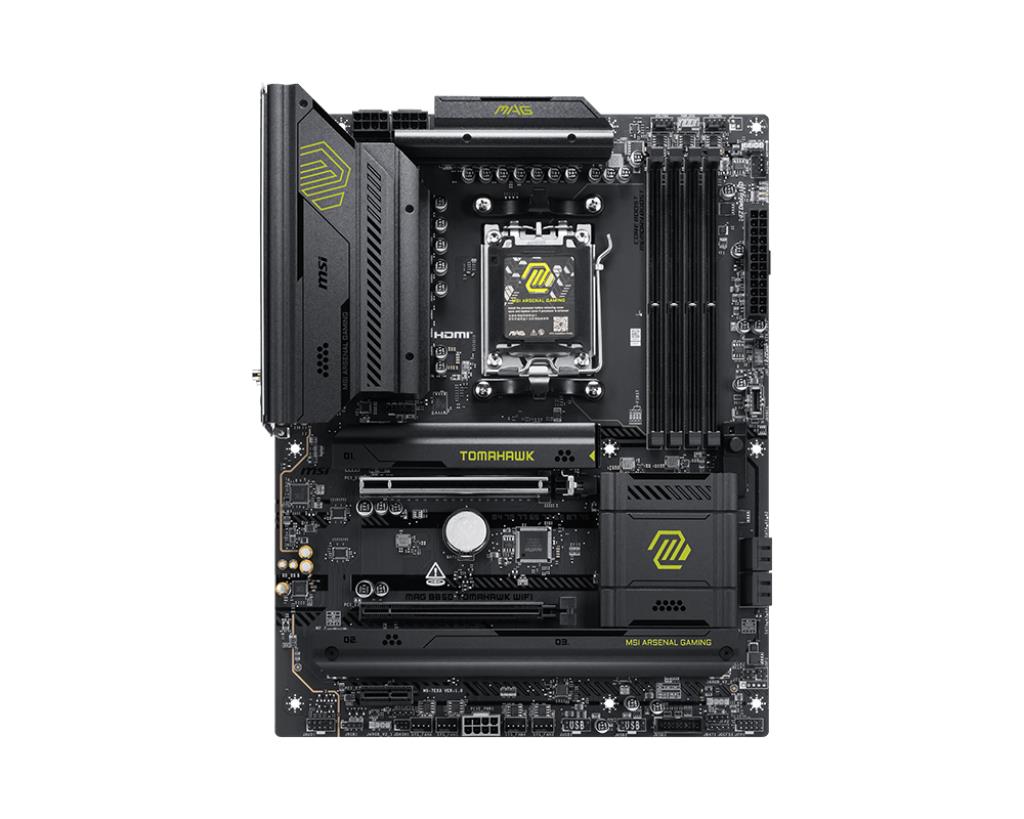

Summary: MSI MAG B850 TOMAHAWK WIFI. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, Micro SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Ethernet interface type: 5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E.... Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: AMD

Category Code: MBA

Unit Box Height: 0.075

Unit Box Length: 0.35

Unit Box Width: 0.27

Audio chip: Realtek ALC4080

Audio output channels: 7.1 channels

Component for: PC

Motherboard chipset: AMD B850

Motherboard chipset family: AMD

Motherboard form factor: ATX

Product colour: Black

Windows operating systems supported: Windows 11 x64

Compatible processor series: AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series

Processor manufacturer: AMD

Processor socket: Socket AM5

Supported processor sockets: Socket AM5

ECC сompatibility: Non-ECC

Maximum internal memory: 256 GB

Memory channels: Dual-channel

Memory slots type: DIMM

Number of memory slots: 4

Supported memory clock speed (max): 8200 MHz

Supported memory clock speeds: 4800/5600/8200 MHz

Supported memory types: DDR5-SDRAM

Number of HDDs supported: 4

Number of storage drives supported: 7

RAID levels: 0/1/10

RAID support: Yes

Supported storage drive interfaces: M.2,Micro SATA III

Supported storage drive types: HDD & SSD

On-board graphics card: No

CPU fan connector: Yes

Number of CPU fan connectors: 6

Number of RGB LED pin headers: 3

Number of SATA III connectors: 4

Number of water pump connectors: 1

RGB LED pin header: Yes

Total number of SATA connectors: 4

USB 2.0 connectors: 4

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2

USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1

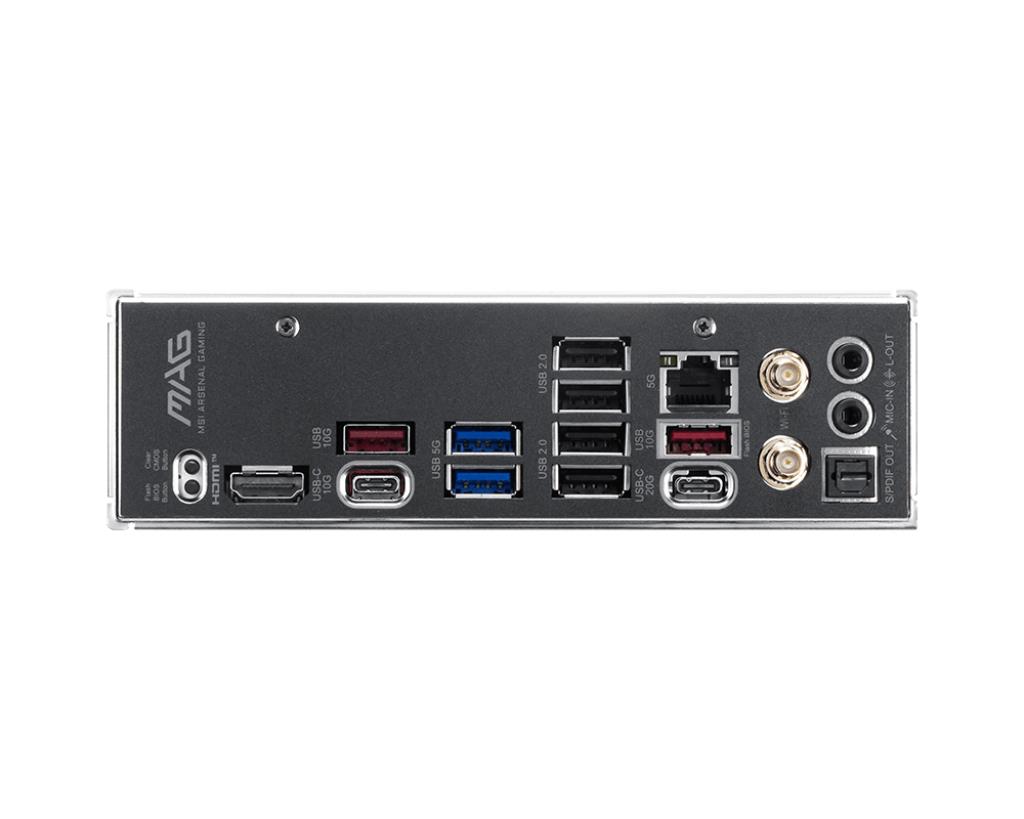

Ethernet LAN (RJ-45) ports: 1

HDMI ports quantity: 1

HDMI version: 2.1

USB 2.0 ports quantity: 4

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1

USB 3.2 Gen 2x2 Type-C ports quantity: 1

Bluetooth: Yes

Bluetooth version: 5.4

Ethernet interface type: 5 Gigabit Ethernet

Ethernet LAN: Yes

Top Wi-Fi standard: Wi-Fi 7 (802.11be)

Wi-Fi: Yes

Wi-Fi standards: 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)/Wi-Fi 7 (802.11be)

1st M.2 highest PCI Express generation: 5.0

1st M.2 largest key size: 2280

2nd M.2 highest PCI Express generation: 4.0

2nd M.2 largest key size: 22110

3rd M.2 highest PCI Express generation: 4.0

3rd M.2 largest key size: 2280

Number of M.2 (M) slots: 3

PCI Express x16 (Gen 3.x) slots: 1

PCI Express x16 (Gen 4.x) slots: 1

PCI Express x16 (Gen 5.x) slots: 1

ACPI version: 6.5

BIOS memory size: 512 Mbit

BIOS type: UEFI

System Management BIOS (SMBIOS) version: 3.7

Depth: 304.8 mm

Width: 243.84 mm

Units per Pallet: 0

Unit Calculated Volume: 0.008155 cubm

Unit Calculated Weight: 2.13 kg
