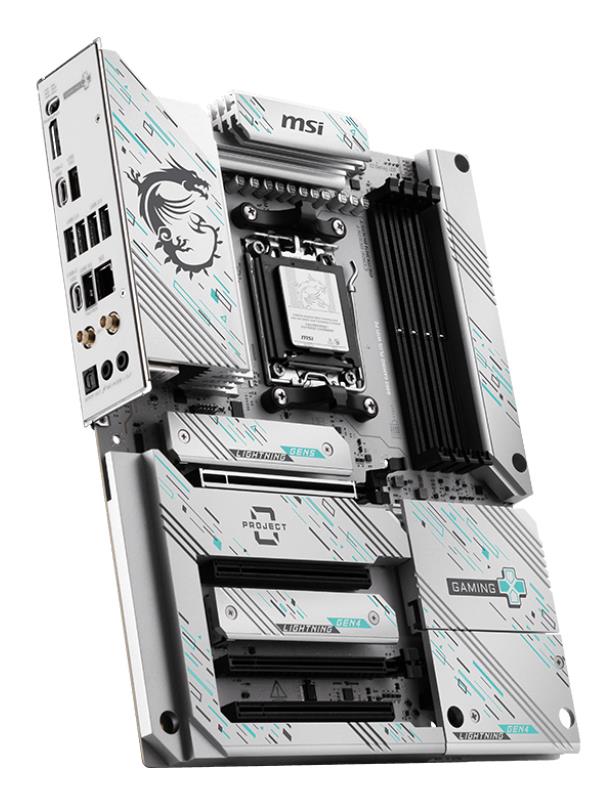

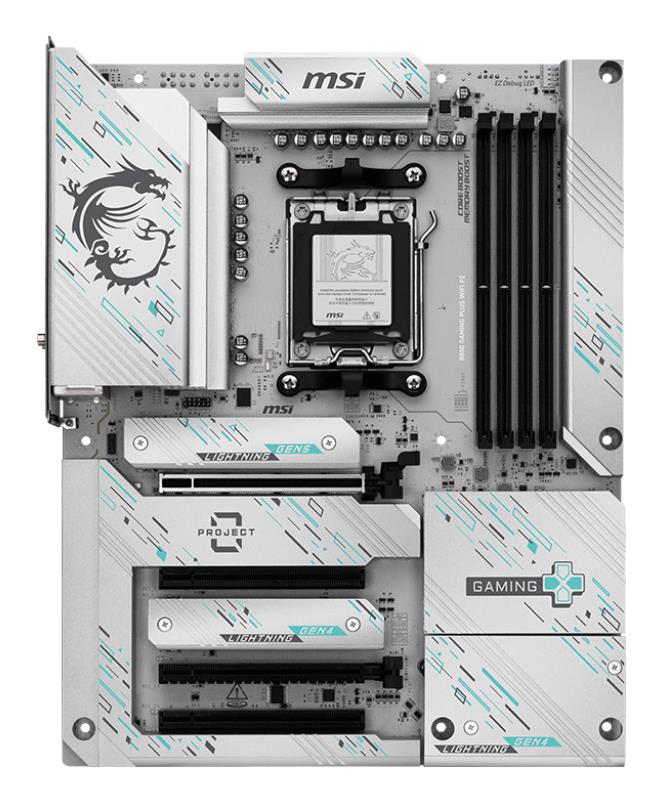

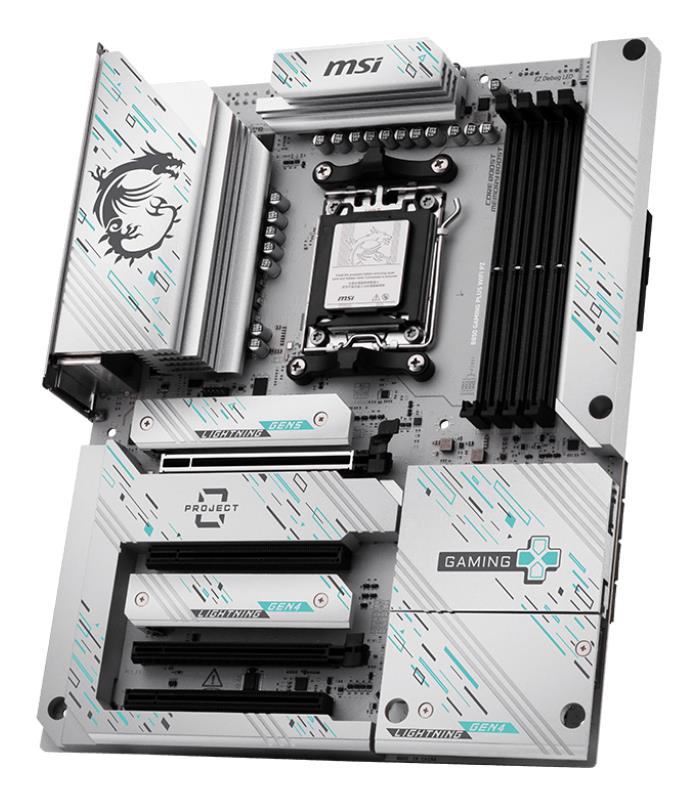

Mainboard|MSI|AMD B850|SAM5|ATX|Memory DDR5|Memory slots 4|B850GAMINGPLUSWIFIPZ
SKU: B850 GAMING PLUS WIFI PZ
€ 247.32
Pieejams : 5 gab.
AMD B850
ATX
Audio 7.1 channels
CPU AMD
Socket Socket AM5
Series AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series
Supported memory types DDR5-SDRAM
4xNumber of memory slots
Memory slots type DIMM
Supported storage drive interfaces M.2,Micro SATA III
4xUSB 2.0 ports quantity
1xUSB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
1xUSB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2xUSB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1xEthernet LAN (RJ-45) ports
1xHDMI ports quantity
Wi-Fi Yes
Bluetooth Yes
-
Category Code: MBA
-
Unit Box Height: 0.08
-
Unit Box Length: 0.285
-
Unit Box Width: 0.35
-
M.2: 3
-
PCI-Express 3.0 1x: 2
-
PCI-Express 4.0 1x: 1
-
PCI-Express 5.0 16x: 1
-

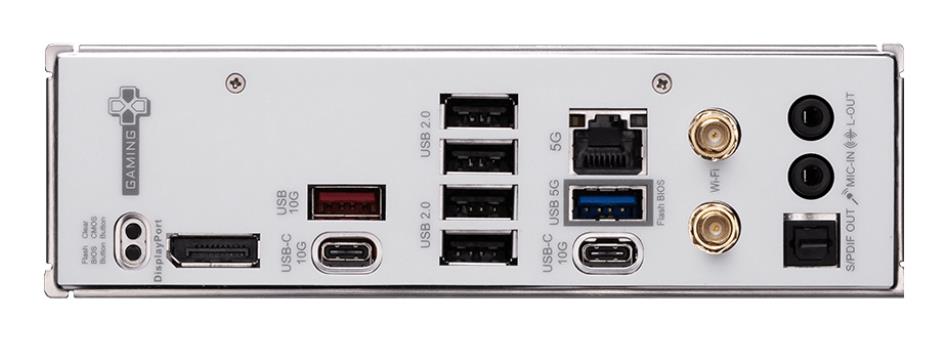

Audio port: 2
-
DisplayPort: 1
-
Optical S/PDIF: 1
-
RJ45: 1
-
USB 2.0: 4
-
USB 3.2: 2
-
USB-C: 2
-
Bluetooth: Yes
-
SATA: Yes
-
USB-C: Yes
-
WiFi: Yes
-
Model: B850 GAMING PLUS WIFI PZ
-
Chipset: AMD B850
-
Socket: SAM5
-
Form Factor: ATX
-
Memory type: DDR5
-
Frequency speed: 4800/5600/8200 MHz
-
Memory slots: 4
-
Integrated video: Depending on CPU
-
Integrated audio: Realtek ALC897
-
Integrated LAN: 5 Gigabit
-
RAID: SATA 0, 1, 10; NVMe 0, 1, 5
-
TPM: Header
-
Units per Pallet: 0
-
Unit Calculated Volume: 0.009405 cubm
-
Product Net Weight: 0.5 kg
-
Unit Calculated Weight: 2.32 kg
-
Manufacturer: MSI
