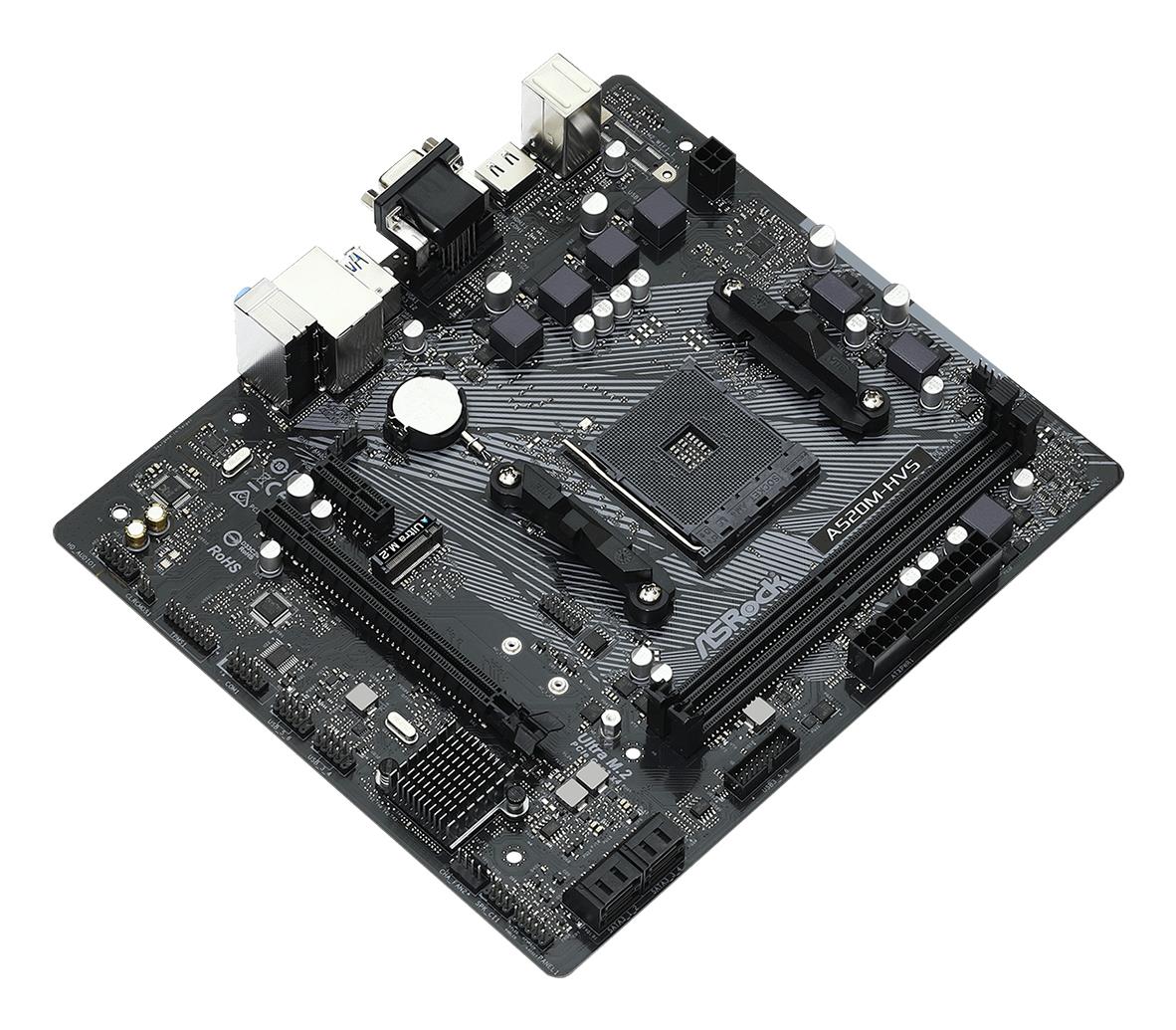

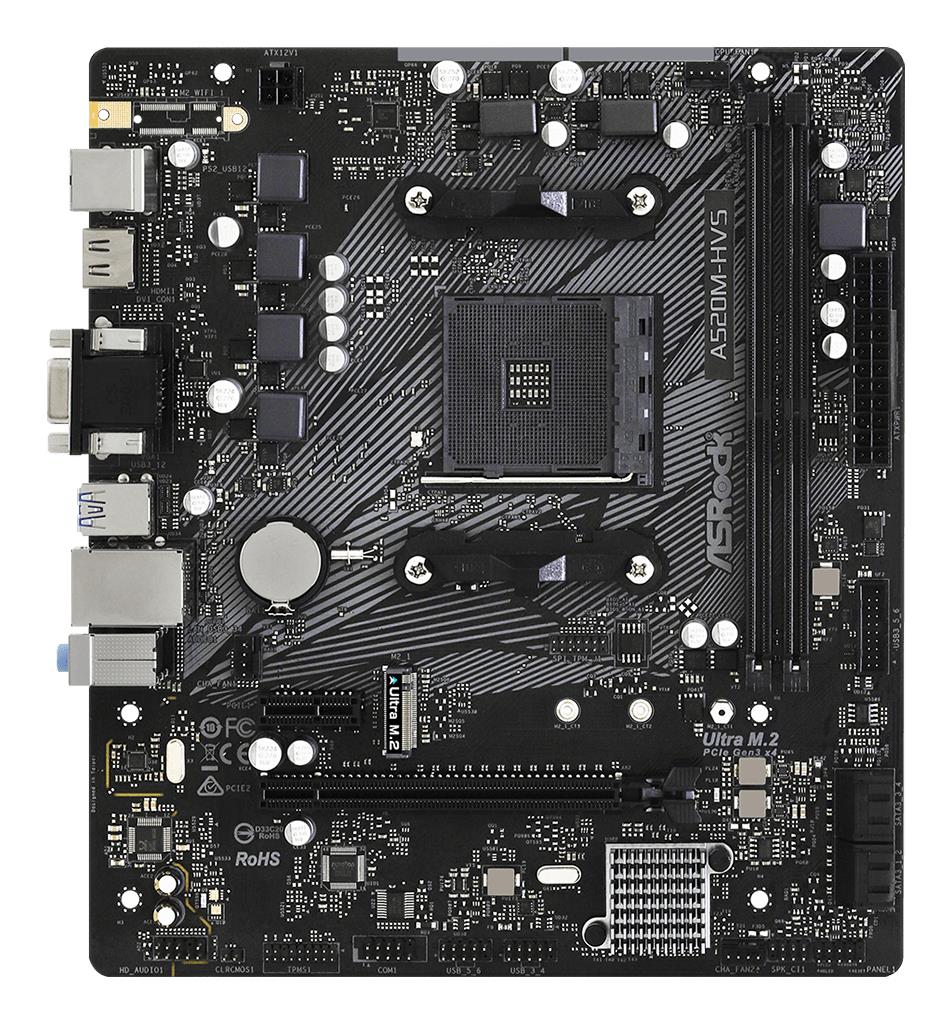

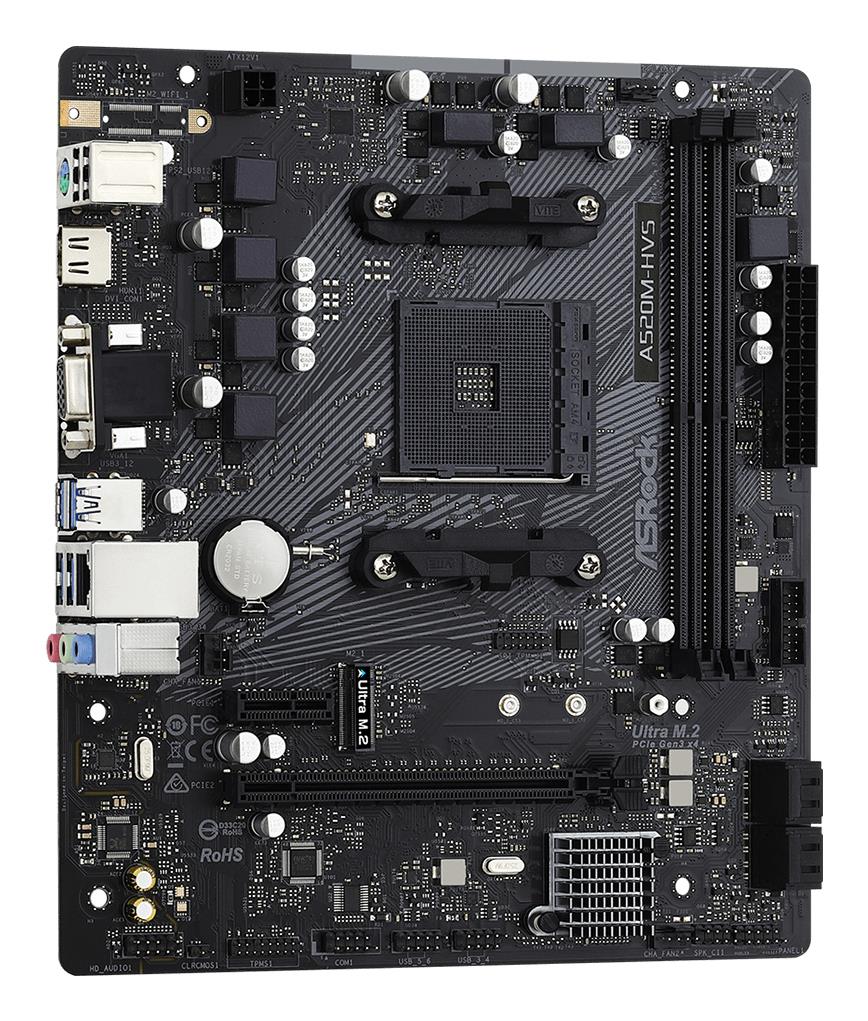

Mainboard|ASROCK|AMD A520|SAM4|Micro-ATX|Memory DDR4|Memory slots 2|1xPCI-Express 3.0 1x|1xPCI-Express 3.0 16x|1xM.2|1x15pin D-sub|1xHDMI|2xAudio-In|1xAudio-Out|2xUSB 2.0|4xUSB 3.2|1xPS/2|1xRJ45|A520M-HVS
SKU: A520M-HVS
€ 55.41
Pieejams : 100 gab.
AMD A520
micro ATX
Audio 7.1 channels
CPU AMD
Socket Socket AM4
Series AMD Ryzen 3000 Series
Supported memory types DDR4-SDRAM
2xNumber of memory slots
Memory slots type DIMM
Supported storage drive interfaces M.2,SATA III
Graphics card Radeon Vega
2xUSB 2.0 ports quantity
4xUSB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
1xEthernet LAN (RJ-45) ports
1xVGA (D-Sub) ports quantity
1xHDMI ports quantity
-
Category Code: MBA
-
Unit Box Height: 0.51
-
Unit Box Length: 0.61
-
Unit Box Width: 0.0145
-
PCI-Express 3.0 1x: 1
-
PCI-Express 3.0 16x: 1
-
M.2: 1
-
15pin D-sub: 1
-
HDMI: 1
-
Audio-In: 2
-
Audio-Out: 1
-
USB 2.0: 2
-
USB 3.2: 4
-
PS/2: 1
-
RJ45: 1
-
SATA: Yes
-
Chipset: AMD A520
-
Socket: SAM4
-
Form Factor: Micro-ATX
-
Memory type: DDR4
-
Frequency speed: 2133/2400/2666/2933/3200/3466/3600/3733/3800/3866/4000/4133/4200/4266/4333/4400/4466/4533/4600/4666/4733 MHz
-
Memory slots: 2
-
Integrated video: Depending on CPU
-
Integrated audio: Realtek ALC887
-
Integrated LAN: Realtek (Gigabit)
-
RAID: SATA 0, 1, 10
-
TPM: Header
-
Unit Calculated Volume: 0.00465 cubm
-
Product Net Weight: 0.6 kg
-
Unit Calculated Weight: 0.85 kg
-
Manufacturer: ASROCK
