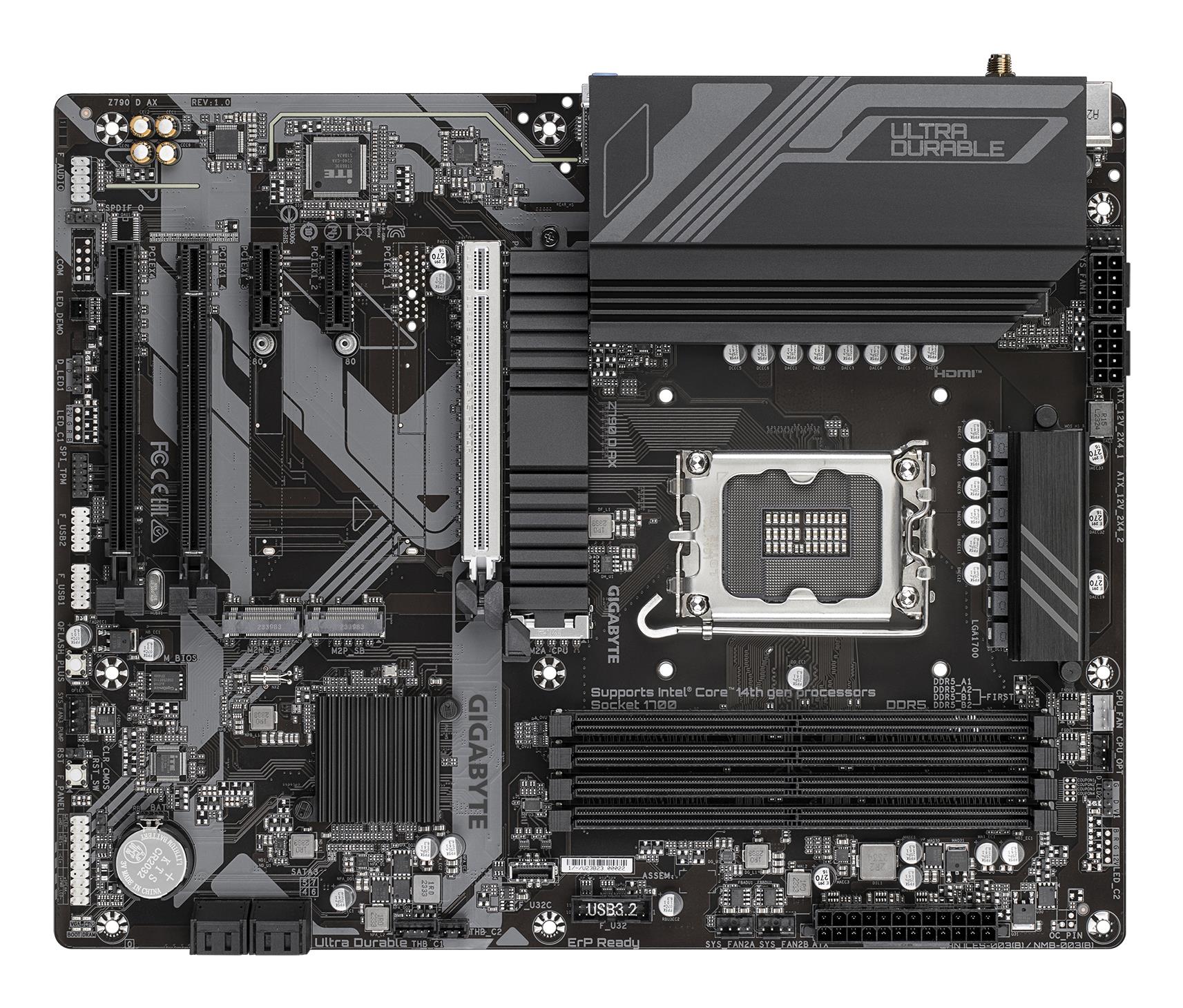

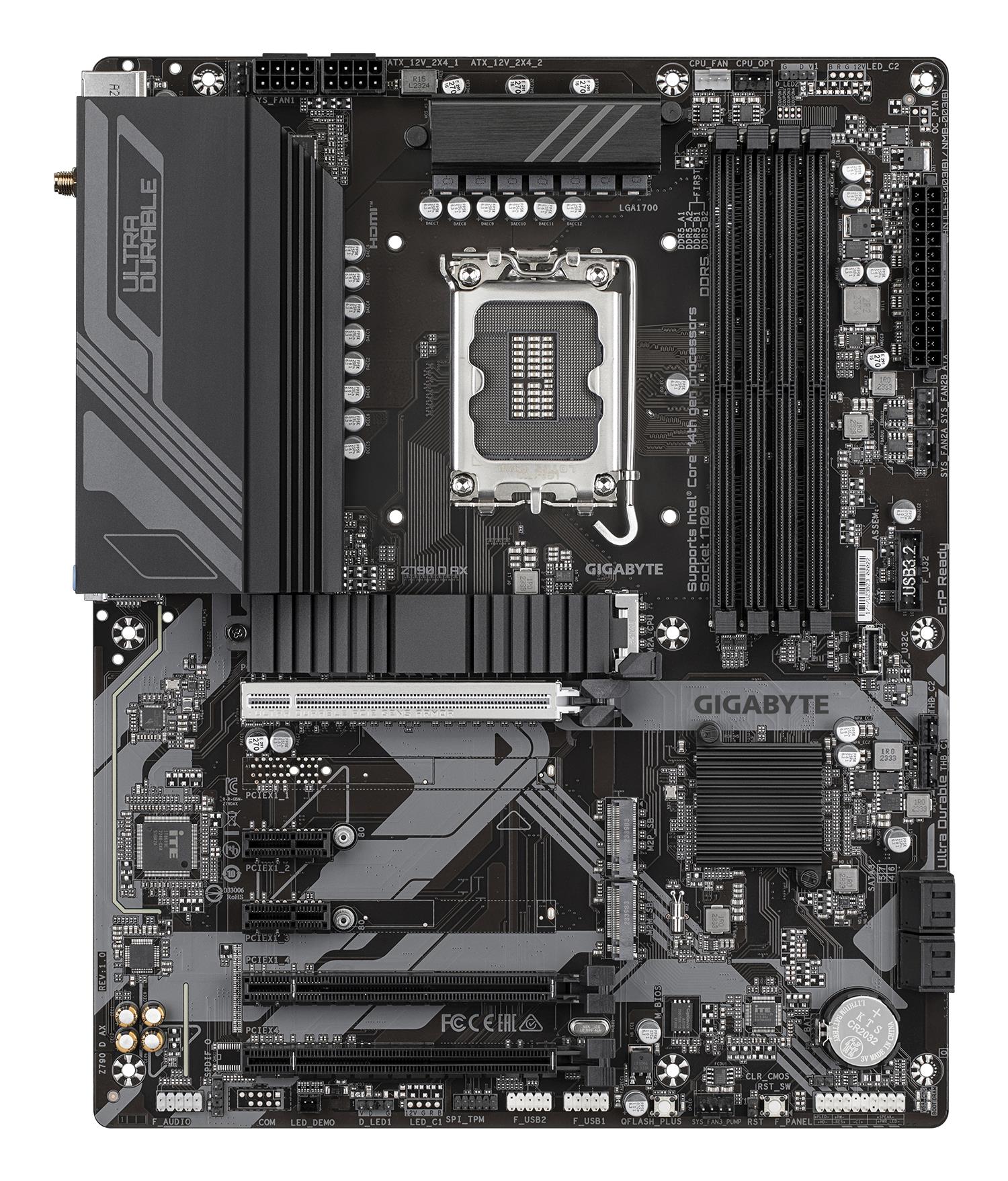

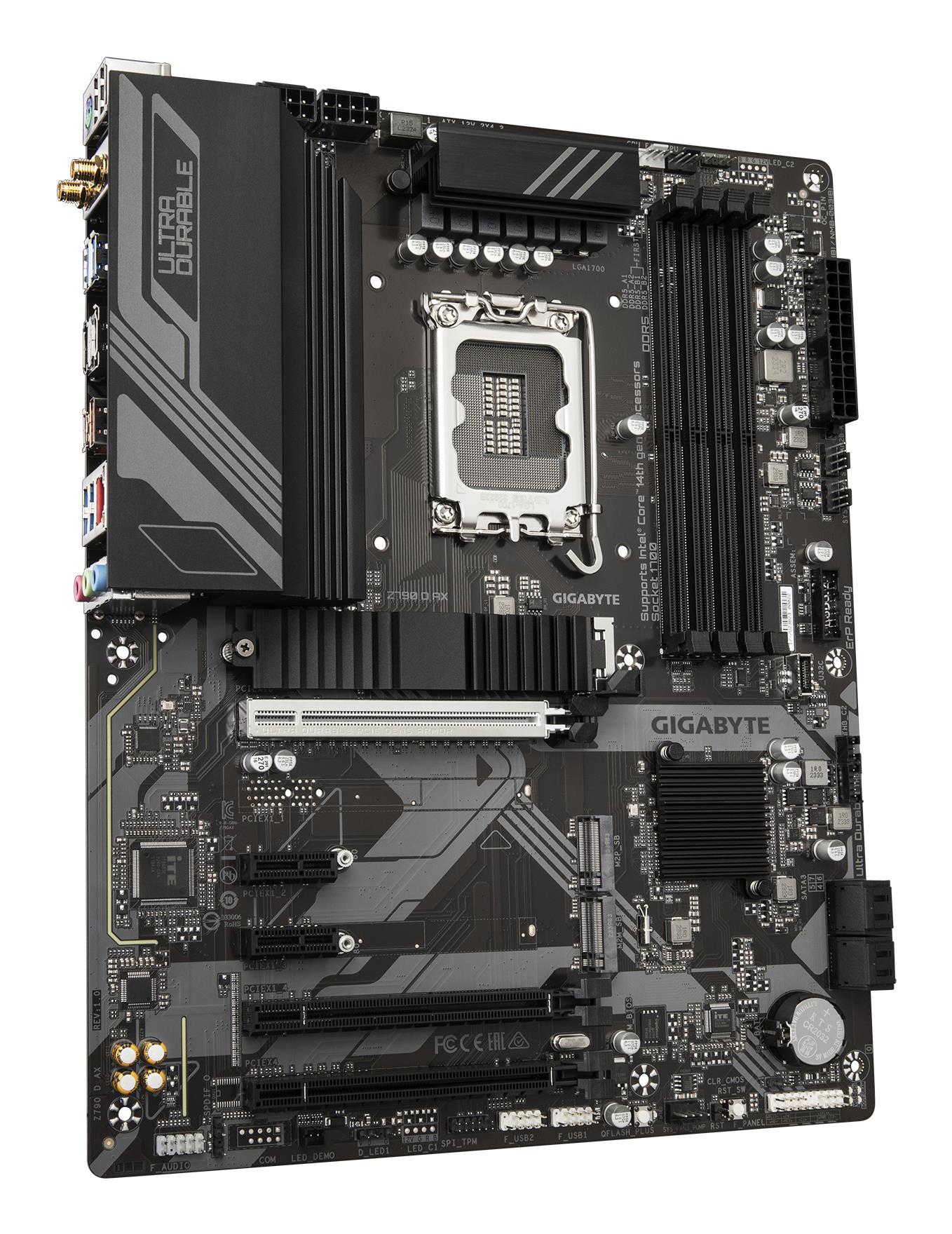

Mainboard|GIGABYTE|Intel Z790|LGA1700|ATX|Memory DDR5|Memory slots 4|Z790DAX1.1
SKU: Z790 D AX 1.1
€ 183.06
Pieejams : 6 gab.
Intel Z790 Express
ATX
Audio 7.1 channels
CPU Intel
Socket LGA 1700
Series Intel® Celeron®/Intel® Core™ i3/Intel® Core™ i5/Intel® Core™ i7/Intel® Core™ i9/Intel® Pentium® Gold
Supported memory types DDR5-SDRAM
4xNumber of memory slots
Memory slots type DIMM
Supported storage drive interfaces M.2,SATA III
4096 x 2304 pixels
Discrete graphics support Yes
2xUSB 2.0 ports quantity
4xUSB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
1xUSB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
1xEthernet LAN (RJ-45) ports
1xHDMI ports quantity
Wi-Fi Yes
Bluetooth Yes
Antenna included Yes
-
Category Code: MBI
-
Unit Box Height: 0.08
-
Unit Box Length: 0.33
-
Unit Box Width: 0.27
-
M.2: 3
-
PCI-Express 3.0 16x: 1
-
PCI-Express 3.0 1x: 2
-
PCI-Express 4.0 16x: 1
-
PCI-Express 5.0 16x: 1
-

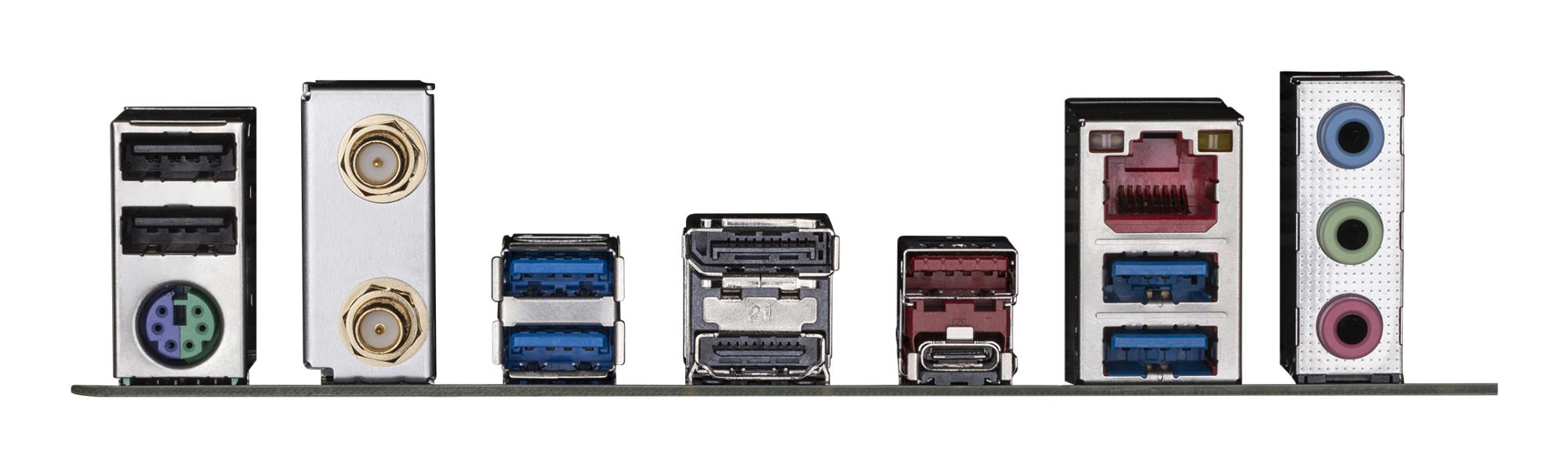

Audio port: 3
-
DisplayPort: 1
-
HDMI: 1
-
PS/2: 1
-
RJ45: 1
-
USB 2.0: 2
-
USB 3.2: 5
-
USB-C: 1
-
Bluetooth: Yes
-
USB 2.0: Yes
-
USB 3.2: Yes
-
USB-C: Yes
-
WiFi: Yes
-
Model: Z790 D AX (rev. 1.0)
-
Chipset: Intel Z790
-
Socket: LGA1700
-
Form Factor: ATX
-
Memory type: DDR5
-
Frequency speed: 4400/4800/5200/5400/5600/5800/6000/6200/6400/6600/6800/7000/7200/7400/7600 MHz
-
Memory slots: 4
-
Integrated video: Depending on CPU
-
Integrated LAN: 2.5 Gigabit
-
RAID: SATA 0, 1, 5, 10; NVMe 0, 1, 5, 10
-
TPM: Header
-
Unit Calculated Volume: 0.0099253 cubm
-
Product Net Weight: 1.4 kg
-
Unit Calculated Weight: 1.85625 kg
-
Manufacturer: GIGABYTE
