Mainboard|GIGABYTE|Intel H610|LGA1700|Micro-ATX|Memory DDR5|Memory slots 2|1xPCI-Express 3.0 1x|1xPCI-Express 4.0 16x|1xM.2|1xHDMI|1xDisplayPort|4xUSB 2.0|2xUSB 3.2|1xPS/2|1xRJ45|3xAudio port|H610MKV2

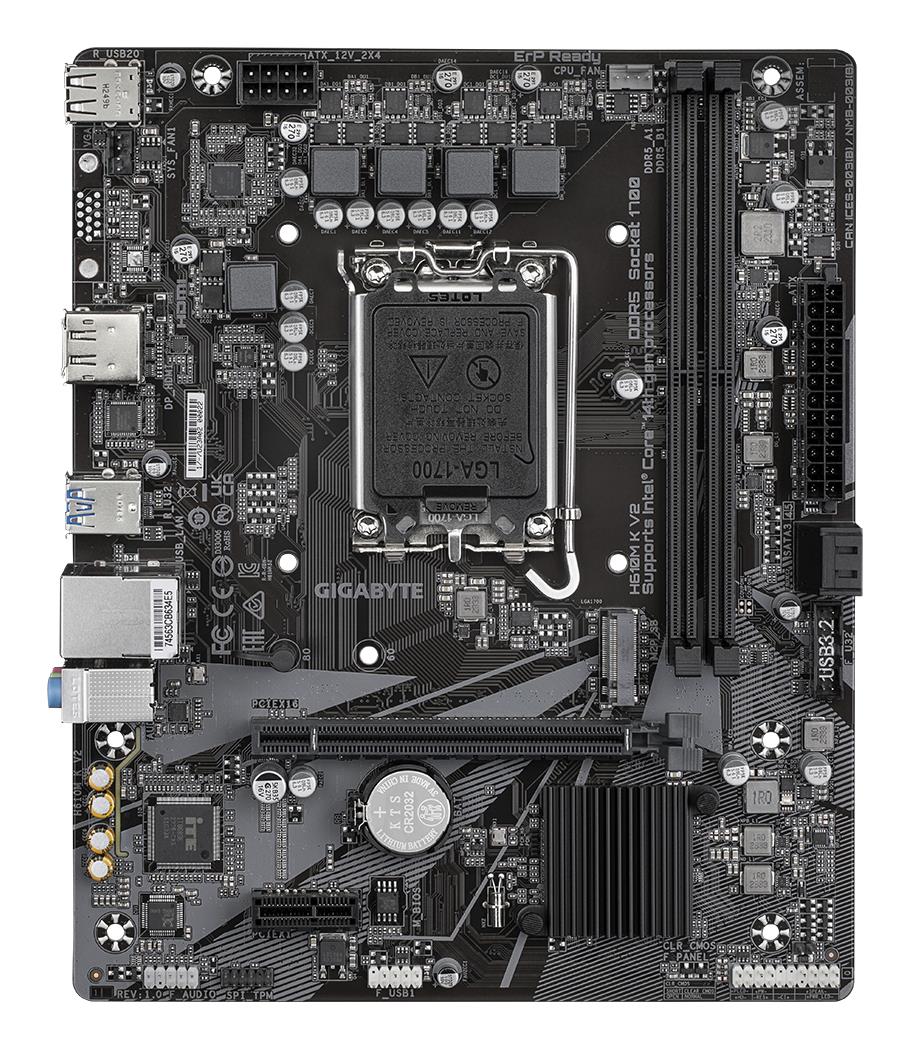

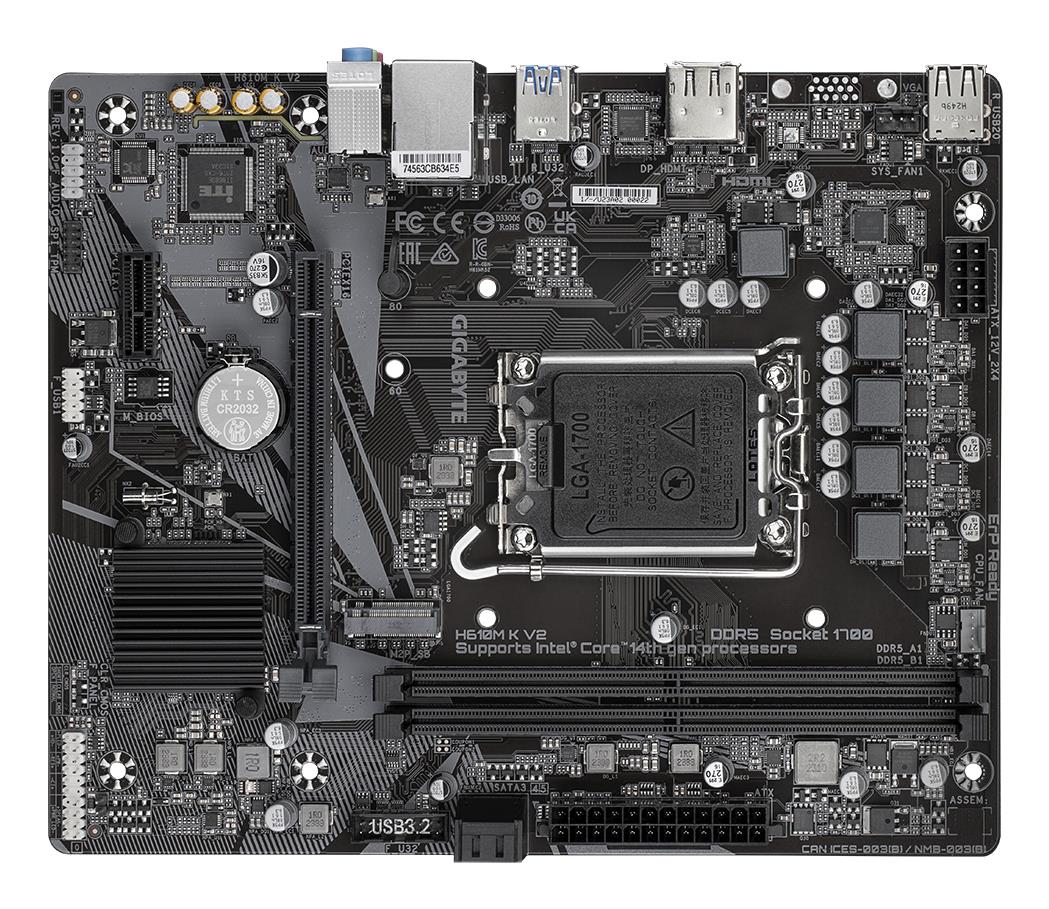

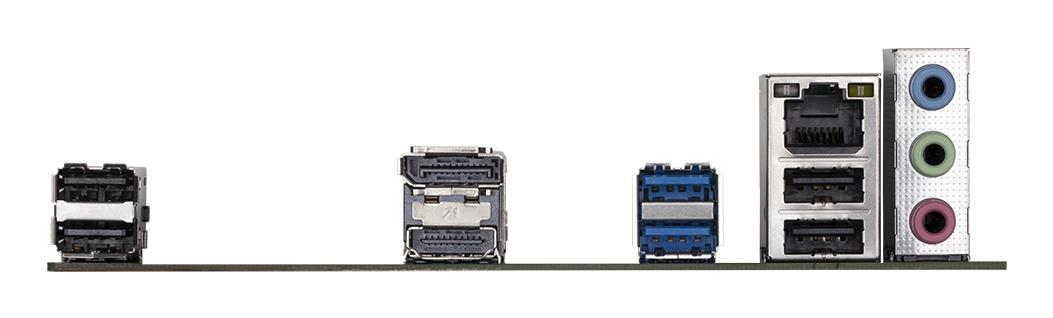

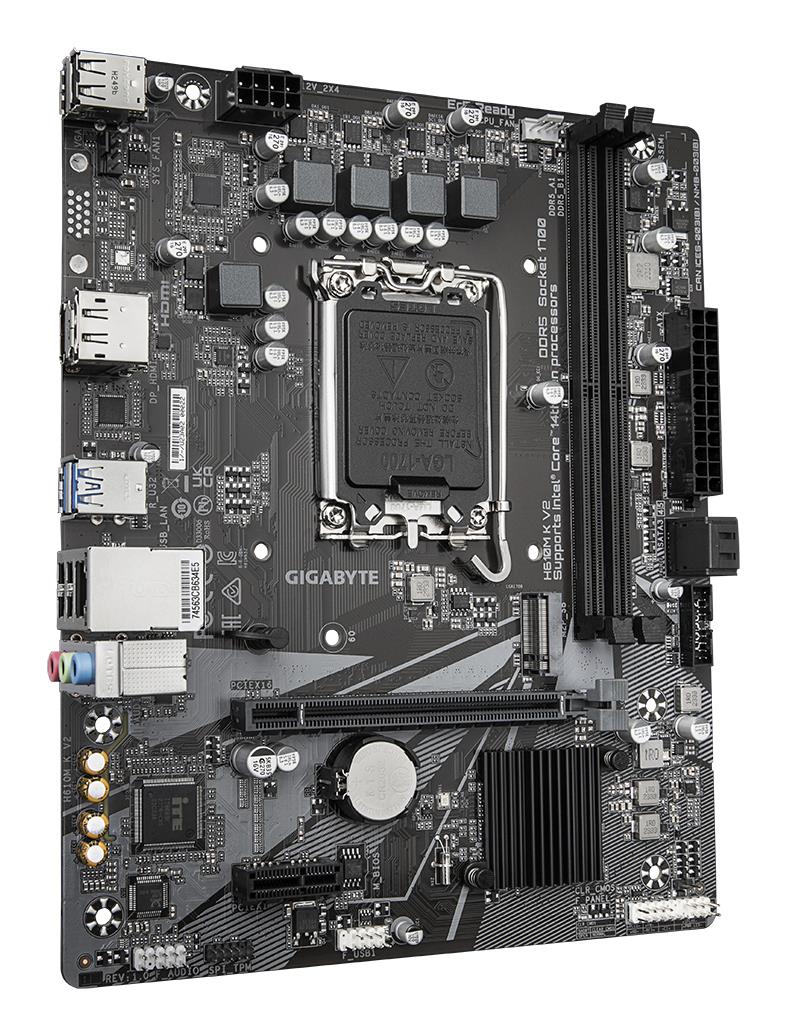

Summary: GIGABYTE H610M K V2 Motherboard - Intel Core 14th CPUs, up to 5600MHz DDR5, 1xPCIe 3.0 M.2, 1GbE LAN, USB 3.2 Gen 1. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i3 14th Gen, Intel.... Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 3.0, SATA III, Supported storage drive types: HDD & SSD. Maximum resolution: 4096 x 2160 pixels. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek RTL8111H

Category Code: MBI

Unit Box Height: 0.053

Unit Box Length: 0.268

Unit Box Width: 0.236

Compatible processor series: Intel Celeron/Intel Core/Intel Core i3 12th Gen/Intel Core i3 13th Gen/Intel Core i3 14th Gen/Intel Core i5 12th Gen/Intel Core i5 13th Gen/Intel Core i5 14th Gen/Intel Core i7 12th Gen/Intel Core i7 13th Gen/Intel Core i7 14th Gen/Intel Core i9 12th Gen

Processor manufacturer: Intel

Processor socket: LGA 1700

Supported processor sockets: LGA 1700

ECC сompatibility: ECC & Non-ECC

Maximum internal memory: 128 GB

Maximum internal memory per slot: 64 GB

Memory channels: Dual-channel

Memory slots type: DIMM

Number of memory slots: 2

Supported memory clock speed (max): 5600 MHz

Supported memory clock speeds: 4400/4800/5200/5600 MHz

Supported memory types: DDR5-SDRAM

Unbuffered memory: Yes

Number of HDDs supported: 2

Number of storage drives supported: 3

Supported storage drive interfaces: M.2,PCI Express 3.0,SATA III

Supported storage drive types: HDD & SSD

DirectX version: 12.0

HDCP: Yes

Maximum resolution: 4096 x 2160 pixels

Parallel processing technology support: Not supported

ATX Power connector (24-pin): Yes

CPU fan connector: Yes

EPS power connector (8-pin): Yes

Front panel audio connector: Yes

Front panel connector: Yes

Number of CPU fan connectors: 1

Number of EPS power connectors (8-pin): 1

Number of SATA III connectors: 2

TPM connector: Yes

USB 2.0 connectors: 1

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1

DisplayPort version: 1.2

DisplayPorts quantity: 1

Ethernet LAN (RJ-45) ports: 1

HDMI ports quantity: 1

HDMI version: 2.1

Headphone outputs: 1

Line-in: Yes

Microphone in: Yes

USB 2.0 ports quantity: 4

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2

Ethernet interface type: Gigabit Ethernet

Ethernet LAN: Yes

LAN controller: Realtek RTL8111H

Wi-Fi: No

Audio chip: Realtek ALC897

Audio output channels: 7.1 channels

Component for: PC

Cooling type: Passive

Motherboard chipset: Intel H610

Motherboard chipset family: Intel

Motherboard form factor: Micro ATX

PC health monitoring: FAN/Temperature/Voltage/Water cooling

Power source type: ATX

Product colour: Dark brown

Windows operating systems supported: Windows 10 x64/Windows 11 x64

1st M.2 highest PCI Express generation: 3.0

1st M.2 largest key size: 2280

Number of M.2 (M) slots: 1

PCI Express x1 (Gen 3.x) slots: 1

PCI Express x16 (Gen 4.x) slots: 1

ACPI version: 5.0

BIOS memory size: 128 Mbit

BIOS type: UEFI AMI

Clear CMOS jumper: Yes

Desktop Management Interface (DMI) version: 2.7

System Management BIOS (SMBIOS) version: 2.7

Battery technology: Lithium-Manganese Dioxide (LiMnO2)

Battery type: CR2032

Battery weight: 3 g

Lithium weight per battery: 0.07 g

Number of battery cells: 1

Package depth: 235 mm

Package height: 52 mm

Package weight: 723 g

Package width: 265 mm

Products per shipping (inner) case: 1 pc(s)

Depth: 185 mm

Height: 35 mm

Width: 226 mm

Batteries included: Yes

Screws included: Yes

Warranty period: 3 year(s)

Weight: 650 g

Model: H610M K V2 DDR5

Unit Calculated Volume: 0.004194 cubm

Product Net Weight: 0.68 kg

Unit Calculated Weight: 0.715 kg
