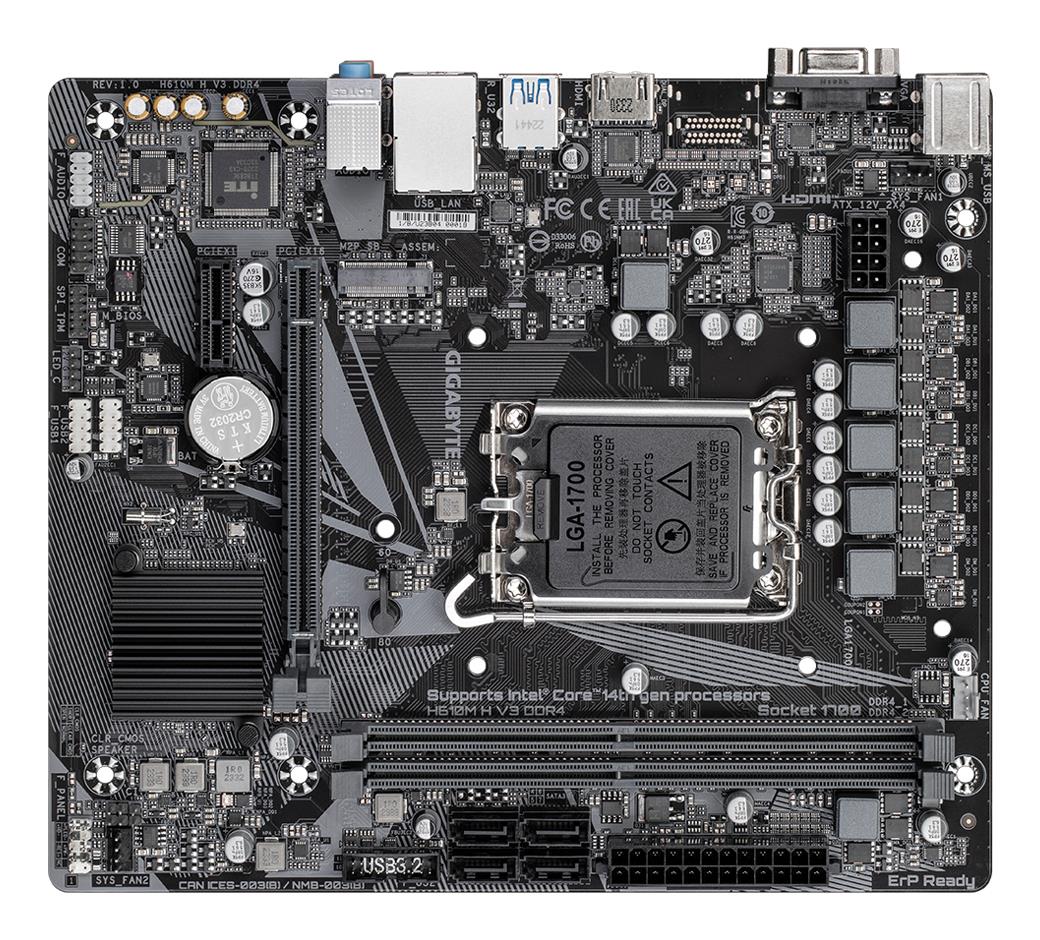

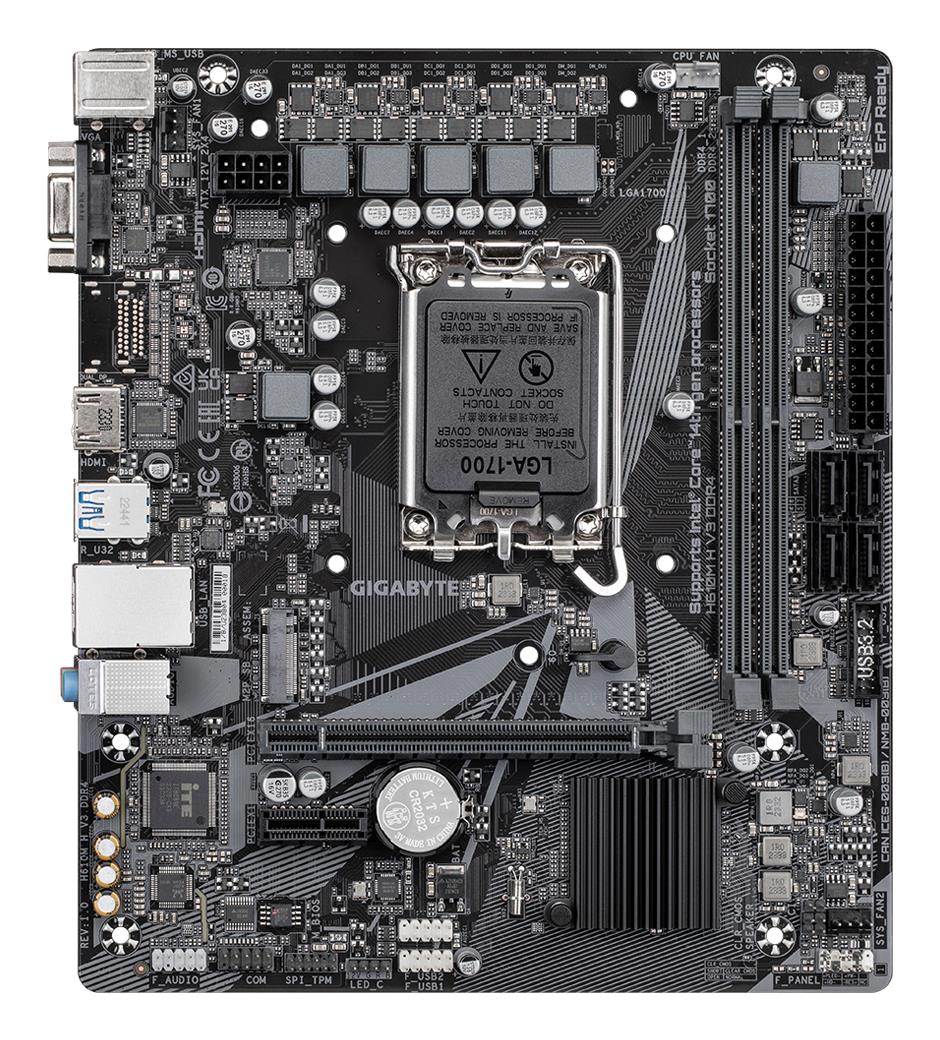

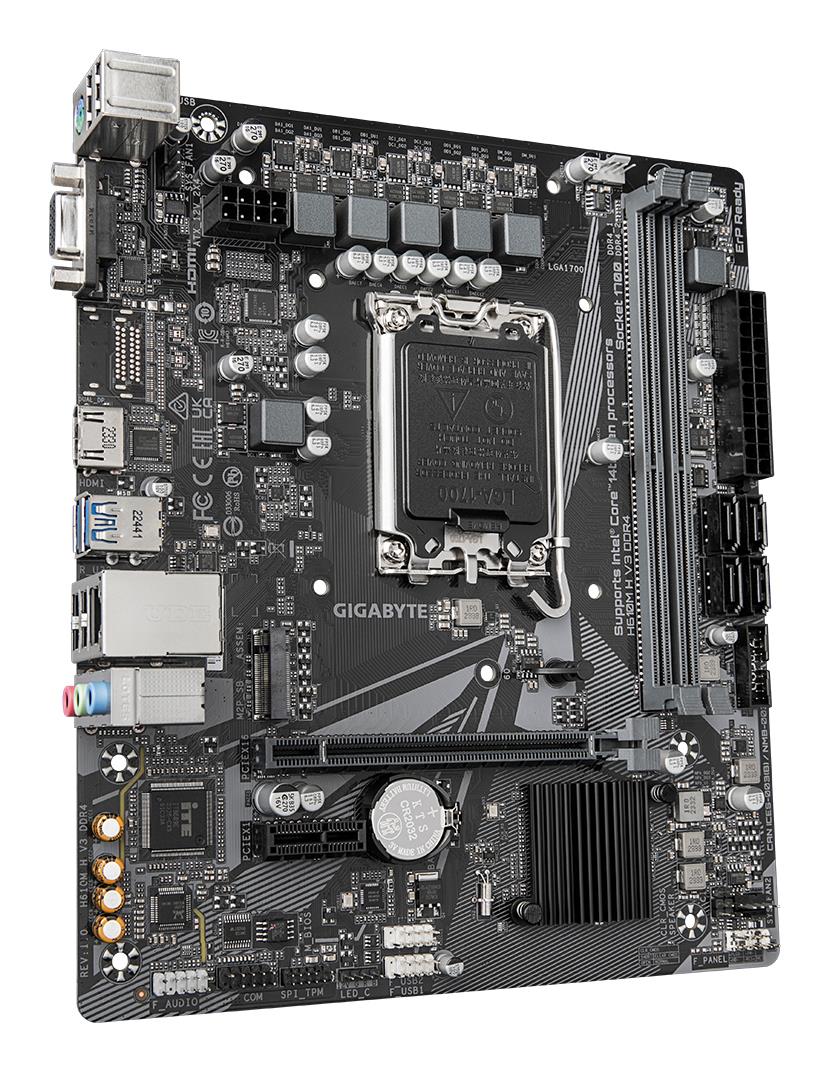

Mainboard|GIGABYTE|Intel H610|LGA1700|Micro-ATX|Memory DDR4|Memory slots 2|1xPCI-Express 3.0 1x|1xPCI-Express 4.0 16x|1xM.2|1x15pin D-sub|1xHDMI|4xUSB 2.0|2xUSB 3.2|1xPS/2|1xRJ45|3xAudio port|H610MHV3DDR4
SKU: H610M H V3 DDR4
€ 68.46
Pieejams : 1 gab.
Intel H610 Express
micro ATX
Audio 7.1 channels
CPU Intel
Socket LGA 1700
Series Intel® Celeron®/Intel® Core™ i3/Intel® Core™ i5/Intel® Core™ i7/Intel® Core™ i9/Intel® Pentium® Gold
Supported memory types DDR4-SDRAM
2xNumber of memory slots
Memory slots type DIMM
Supported storage drive interfaces M.2,SATA III
Graphics card HD Graphics
4096 x 2304 pixels

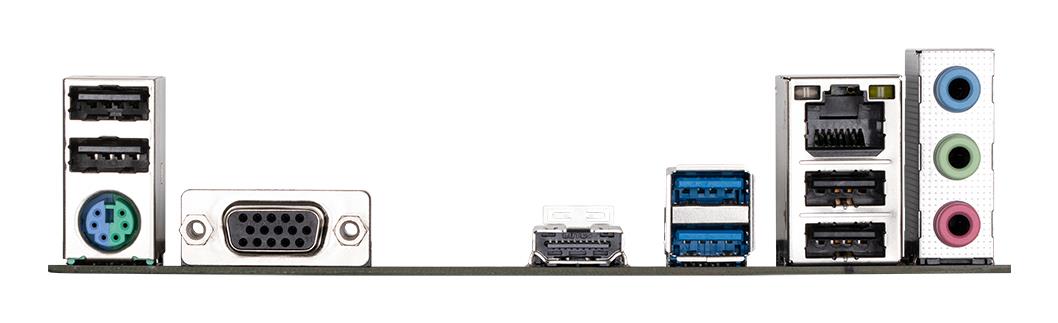

4xUSB 2.0 ports quantity
2xUSB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
1xEthernet LAN (RJ-45) ports
1xVGA (D-Sub) ports quantity
1xHDMI ports quantity
1xDVI-D ports quantity
-
Category Code: MBI
-
Unit Box Height: 0.055
-
Unit Box Length: 0.265
-
Unit Box Width: 0.235
-
M.2: 1
-
PCI-Express 3.0 1x: 1
-
PCI-Express 4.0 16x: 1
-
15pin D-sub: 1
-
Audio port: 3
-
HDMI: 1
-
PS/2: 1
-
RJ45: 1
-
USB 2.0: 4
-
USB 3.2: 2
-
SATA: Yes
-
Serial: Yes
-
USB 2.0: Yes
-
USB 3.2: Yes
-
Model: H610M H V3 DDR4
-
Chipset: Intel H610
-
Socket: LGA1700
-
Form Factor: Micro-ATX
-
Memory type: DDR4
-
Frequency speed: 2133/2400/2666/2933/3000/3200 MHz
-
Memory slots: 2
-
Integrated video: Depending on CPU
-
Integrated LAN: Gigabit
-
Integrated audio: Yes
-
TPM: Header
-
Unit Calculated Volume: 0.004113 cubm
-
Product Net Weight: 0.68 kg
-
Unit Calculated Weight: 0.753 kg
-
Manufacturer: GIGABYTE
