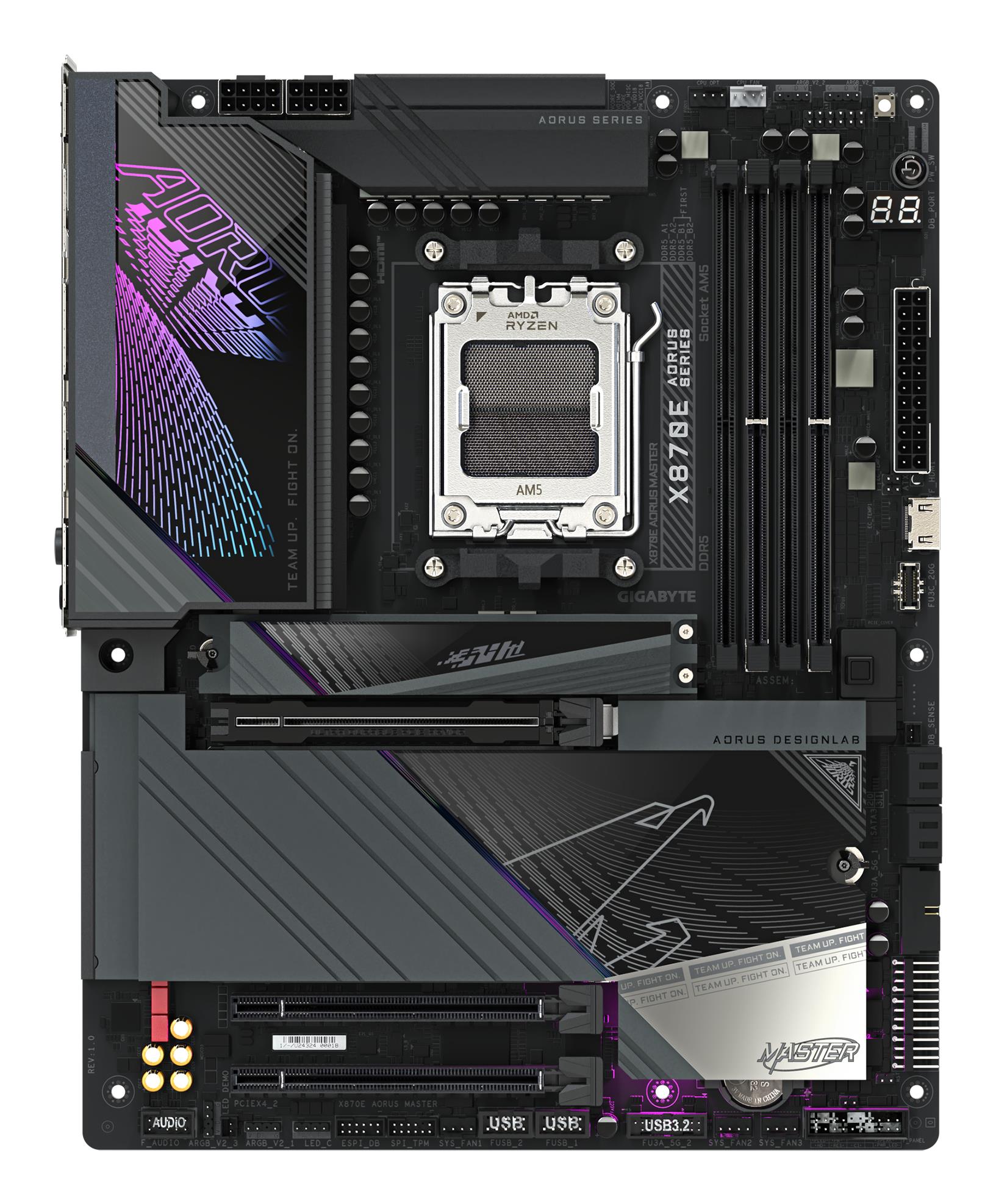

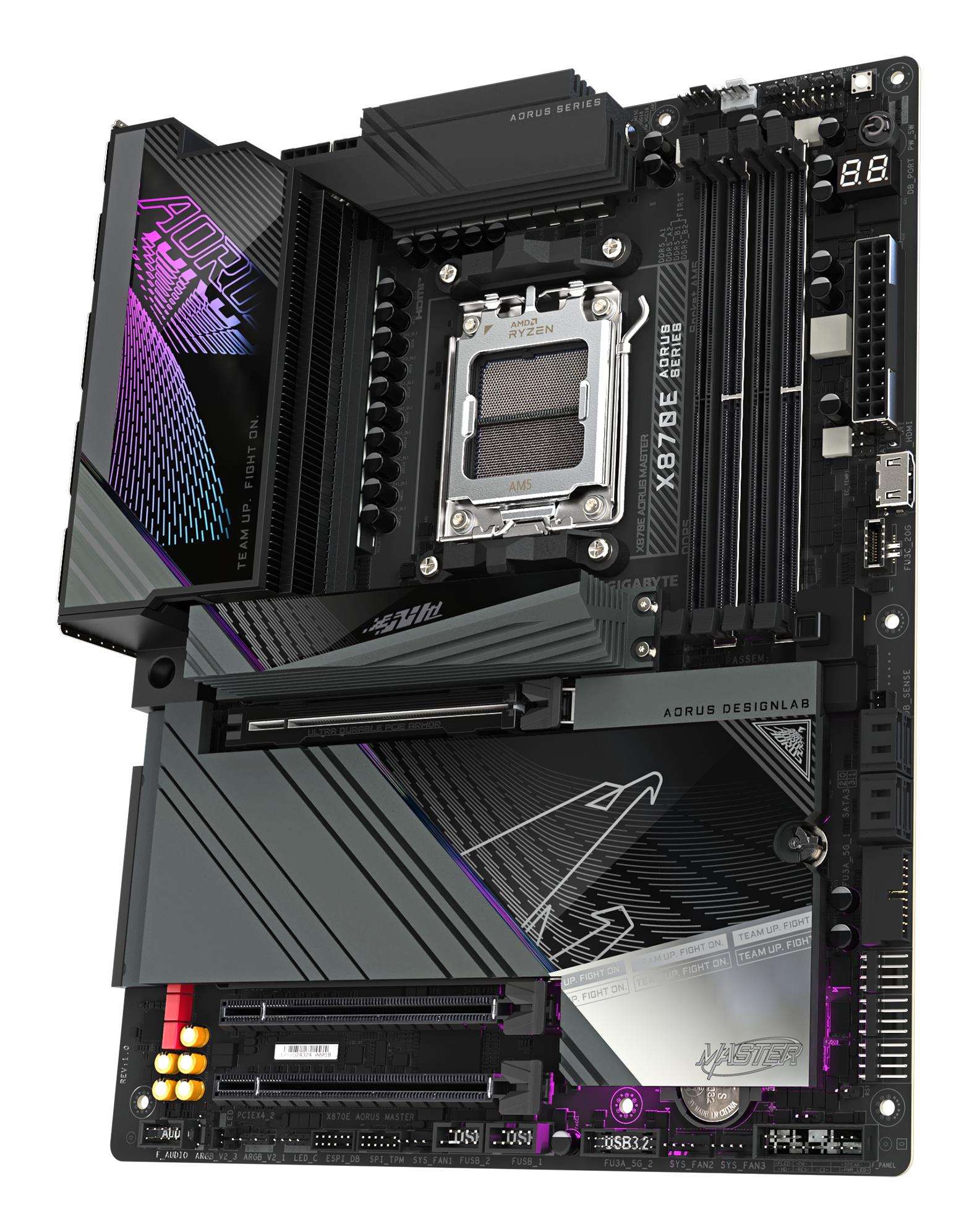

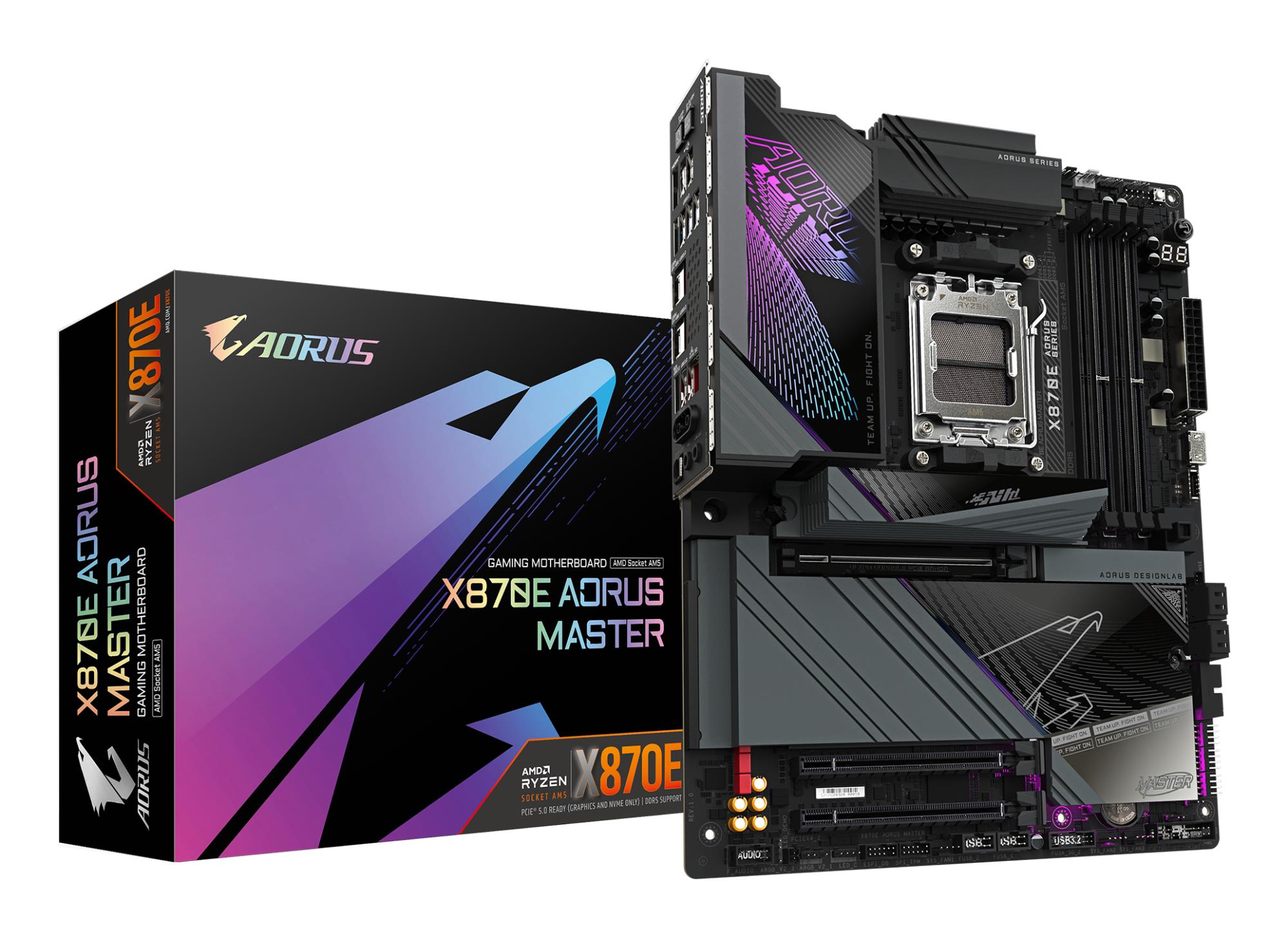

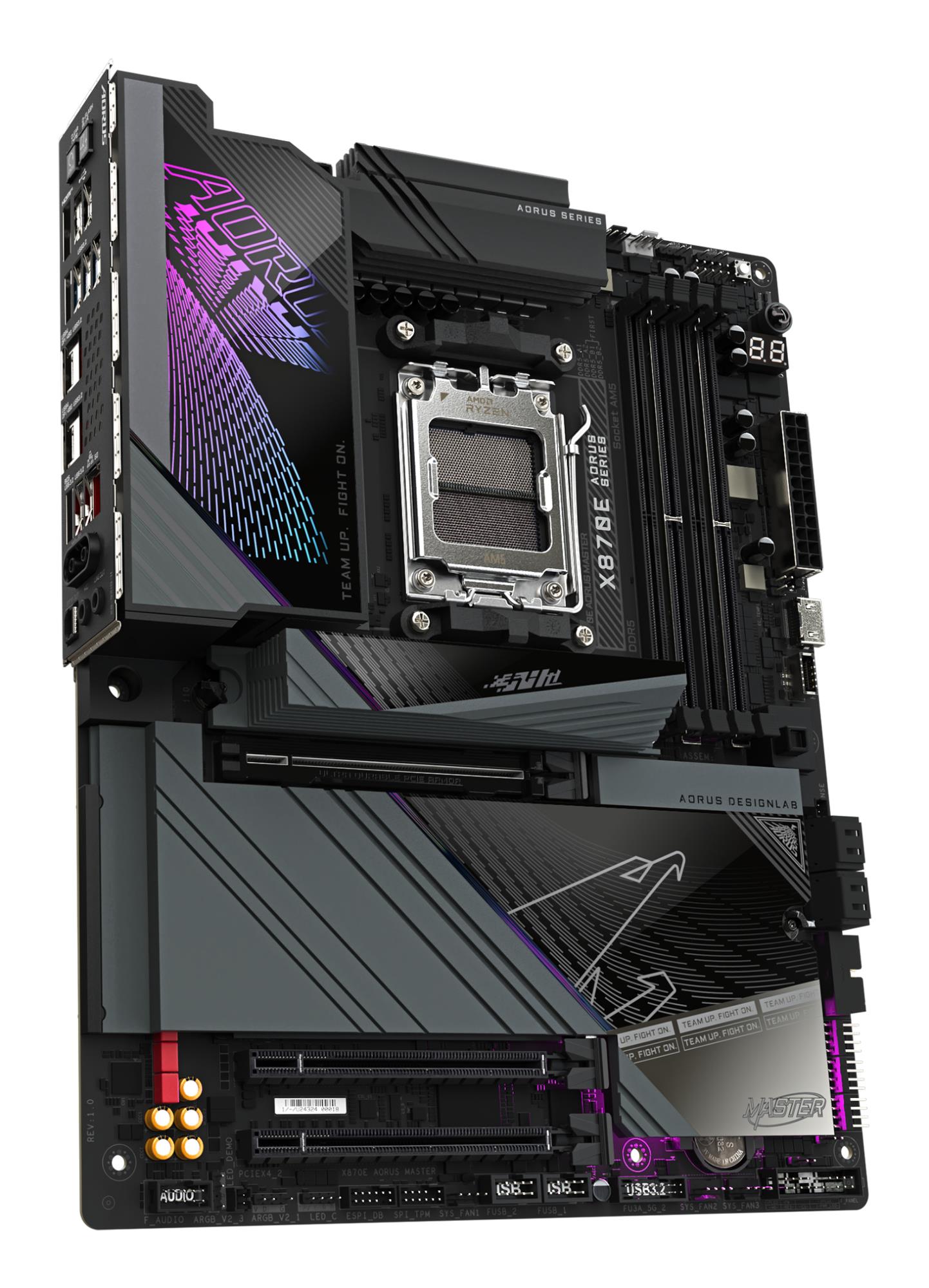

Mainboard|GIGABYTE|AMD X870E|SAM5|ATX|Memory DDR5|Memory slots 4|1xPCI-Express 3.0 4x|1xPCI-Express 4.0 4x |1xPCI-Express 5.0 16x|4xM.2|1xHDMI|2xUSB 2.0|8xUSB 3.2|2xUSB-C|1xOptical S/PDIF|1xRJ45|2xAudio port|X870EAORUSMASTER

Summary: GIGABYTE X870E AORUS MASTER Motherboard - Supports AMD Ryzen 9000 CPUs, 16+2+2 Phases Digital VRM, up to 8600MHz DDR5 (OC), 3xPCIe 5.0 + 1xPCIe 4.0, Wi-Fi 7, 5GbE LAN, USB 4. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Ethernet interface type: 5 Gigabit Ethernet, LAN controller: Realtek RTL8126, Top Wi-Fi standard: Wi-Fi 7 (802.11be). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: AMD

Category Code: MBA

Unit Box Height: 0.08

Unit Box Length: 0.35

Unit Box Width: 0.295

Audio chip: Realtek ALC1220

Audio output channels: 7.1 channels

Component for: PC

Motherboard chipset: AMD X870

Motherboard chipset family: AMD

Motherboard form factor: ATX

PC health monitoring: FAN/Temperature/Voltage

Product colour: Black

Windows operating systems supported: Windows 11 x64

Compatible processor series: AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series

Maximum internal memory supported by processor: 256 GB

Processor manufacturer: AMD

Processor socket: Socket AM5

Supported processor sockets: Socket AM5

ECC сompatibility: ECC & Non-ECC

Maximum internal memory: 256 GB

Maximum internal memory per slot: 64 GB

Memory channels: Dual-channel

Memory slots type: DIMM

Number of memory slots: 4

Supported memory clock speed (max): 8600 MHz

Supported memory clock speeds: 4400/4800/5200/5600/6000/6200/6400/6600/6666/6800/7000/7200/7600/7800/8200/8400/8600 MHz

Supported memory module capacities: 12GB/1GB/24GB/2GB/32GB/4GB/8GB

Supported memory types: DDR5-SDRAM

Unbuffered memory: Yes

Number of HDDs supported: 4

Number of storage drives supported: 8

RAID levels: 0/1/10

RAID support: Yes

Supported storage drive interfaces: M.2,SATA III

Supported storage drive types: HDD & SSD

DirectX version: 12.0

On-board graphics card: No

Parallel processing technology support: Not supported

ATX Power connector (24-pin): Yes

CPU fan connector: Yes

EPS power connector (8-pin): Yes

Front panel audio connector: Yes

Front panel connector: Yes

Number of chassis fan connectors: 6

Number of CPU fan connectors: 2

Number of EPS power connectors (8-pin): 2

Number of RGB LED pin headers: 5

Number of SATA III connectors: 4

Number of water pump connectors: 2

RGB LED pin header: Yes

TPM connector: Yes

USB 2.0 connectors: 2

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2

USB 3.2 Gen 2x2 connectors: 1

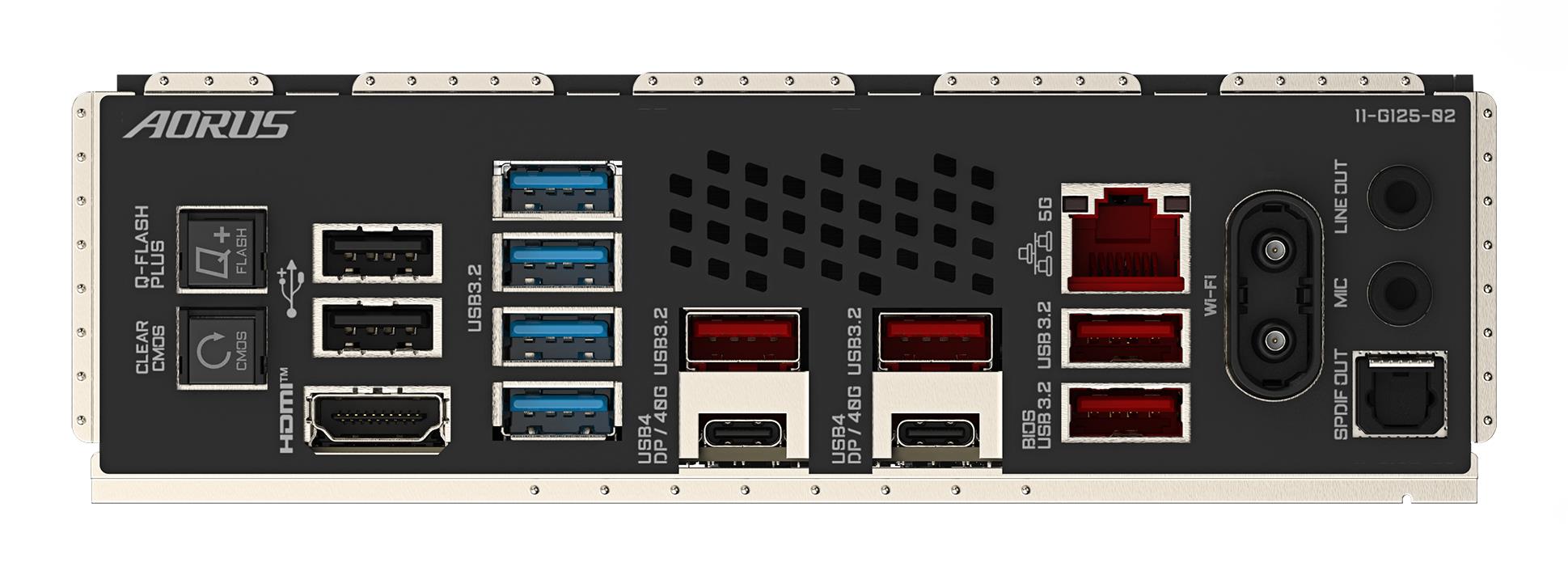

DisplayPort version: 1.4

Ethernet LAN (RJ-45) ports: 1

HDMI ports quantity: 1

HDMI version: 2.1

Headphone outputs: 1

Line-in: Yes

S/PDIF out port: Yes

USB 2.0 ports quantity: 2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 4

USB4 Gen 2x2 ports quantity: 2

WiFi-AP antenna jack: 2

Bluetooth: Yes

Bluetooth version: 5.3

Ethernet interface type: 5 Gigabit Ethernet

Ethernet LAN: Yes

LAN controller: Realtek RTL8126

Top Wi-Fi standard: Wi-Fi 7 (802.11be)

Wi-Fi: Yes

Wi-Fi standards: Wi-Fi 7 (802.11be)

WLAN controller model: Qualcomm QCNCM865

1st M.2 highest PCI Express generation: 5.0

1st M.2 largest key size: 25110

2nd M.2 highest PCI Express generation: 5.0

2nd M.2 largest key size: 22110

3rd M.2 highest PCI Express generation: 5.0

3rd M.2 largest key size: 22110

4th M.2 highest PCI Express generation: 4.0

4th M.2 largest key size: 22110

Number of M.2 (M) slots: 4

PCI Express x16 (Gen 3.x) slots: 1

PCI Express x16 (Gen 4.x) slots: 1

PCI Express x16 (Gen 5.x) slots: 1

PCI Express x4 slots: 2

ACPI version: 5.0

BIOS memory size: 256 Mbit

BIOS type: UEFI AMI

Clear CMOS button: Yes

Clear CMOS jumper: Yes

Desktop Management Interface (DMI) version: 2.7

System Management BIOS (SMBIOS) version: 2.7

Battery technology: Lithium-Manganese Dioxide (LiMnO2)

Battery type: CR2032

Battery weight: 3 g

Country of origin: China

Lithium weight per battery: 0.07 g

Number of battery cells: 1

Package depth: 294 mm

Package height: 80 mm

Package weight: 2970 g

Package width: 345 mm

Products per shipping (inner) case: 1 pc(s)

Depth: 244 mm

Height: 35 mm

Width: 305 mm

Antenna included: Yes

Batteries included: Yes

Screws included: Yes

Warranty period: 3 year(s)

Weight: 2540 g

Model: X870E AORUS MASTER

Unit Calculated Volume: 0.01203 cubm

Unit Calculated Weight: 3 kg
