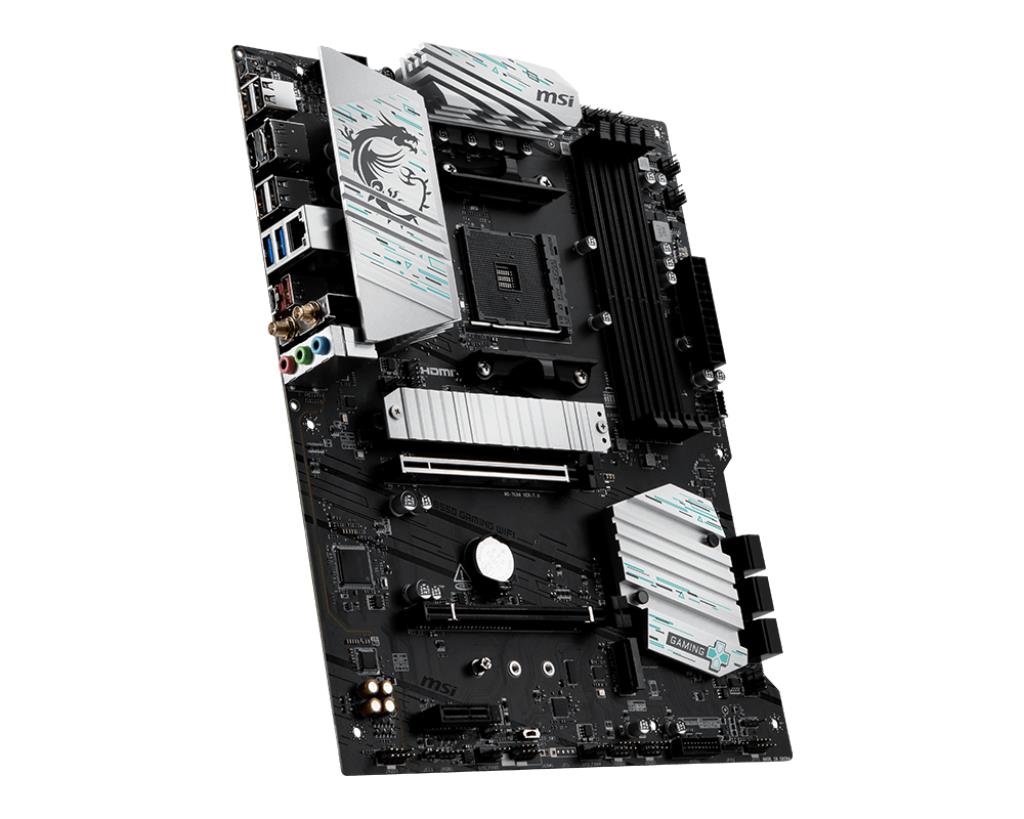

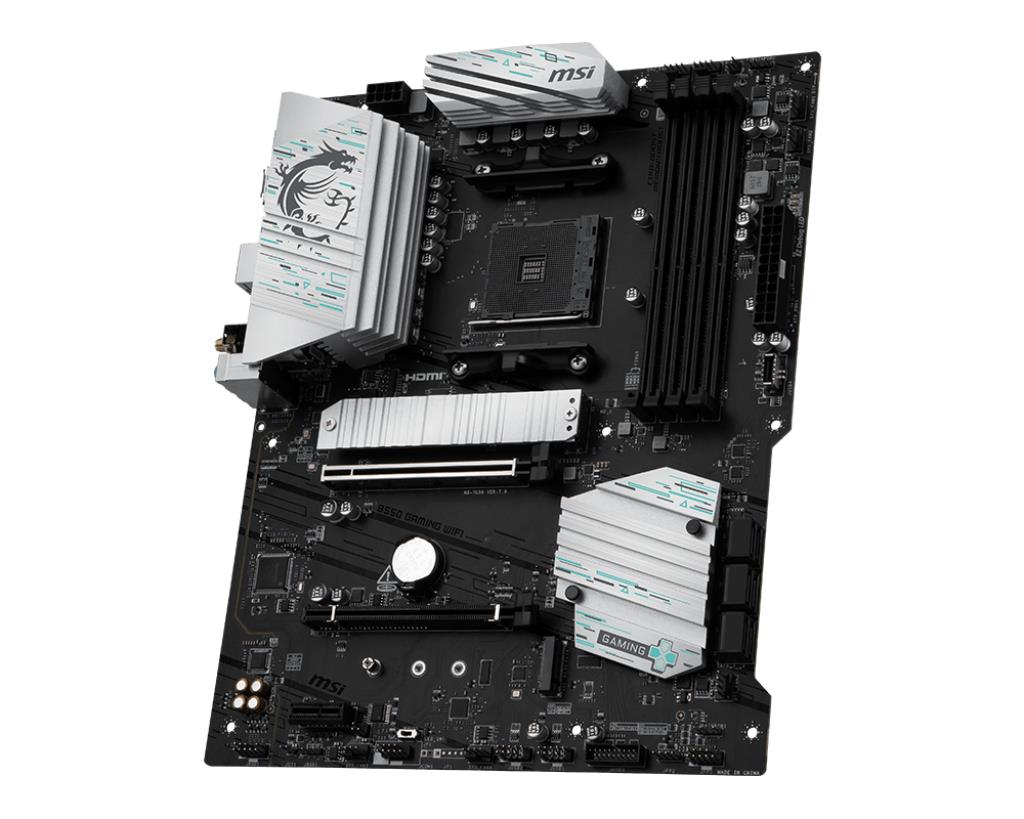

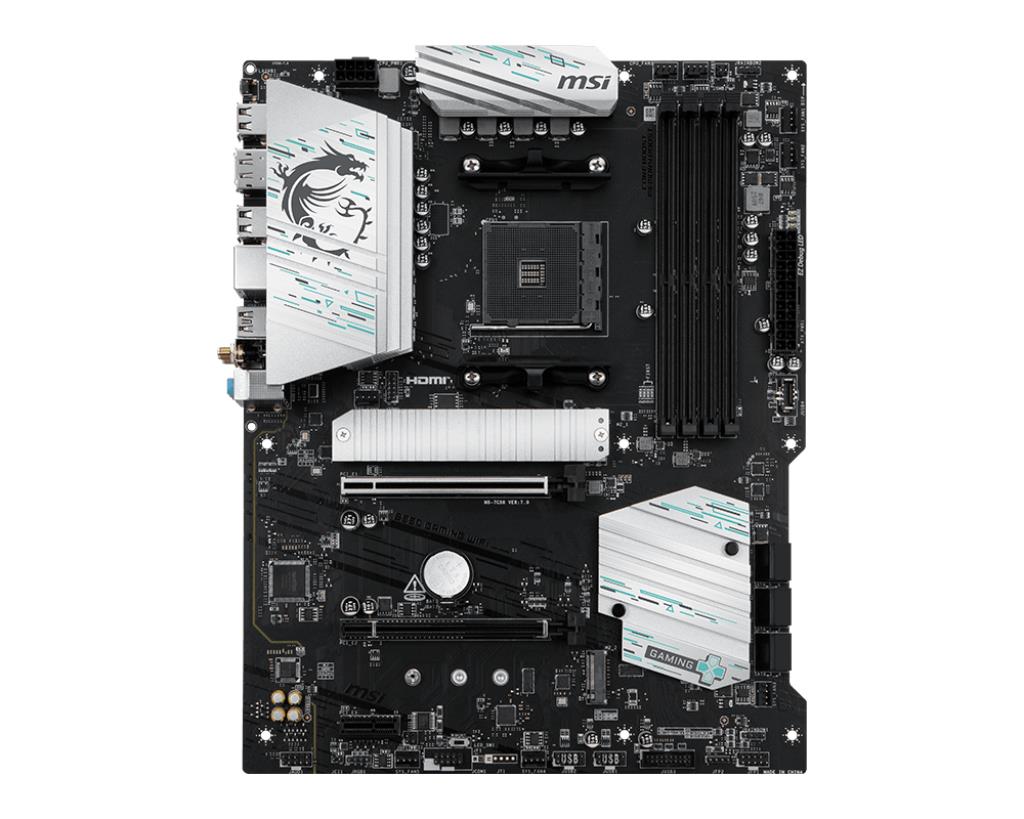

Mainboard|MSI|AMD B550|Socket AM4|ATX|RAM DDR4-SDRAM|4xSlots|Wi-Fi Yes|Bluetooth Yes|2xNumber of M.2 (M) slots|B550GAMINGWIFI

Summary: MSI B550 GAMING WIFI. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: AMD Ryzen 3000 Series. Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: SATA III, Supported storage drive types: HDD & SSD. Maximum resolution: 4096 x 2160 pixels. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek 8111H, Top Wi-Fi standard: Wi-Fi 5 (802.11ac)

Category Code: MBA

Unit Box Height: 0.085

Unit Box Length: 0.34

Unit Box Width: 0.27

Audio chip: Realtek ALC897

Audio output channels: 7.1 channels

Component for: PC

Motherboard chipset: AMD B550

Motherboard chipset family: AMD

Motherboard form factor: ATX

PC health monitoring: CPU/Fan/Temperature

Compatible processor series: AMD Ryzen 3000 Series

Maximum number of SMP processors: 1

Processor manufacturer: AMD

Processor socket: Socket AM4

ECC сompatibility: ECC & Non-ECC

Maximum internal memory: 128 GB

Memory channels: Dual-channel

Memory slots type: DIMM

Number of memory slots: 4

Supported memory clock speed (max): 2667 MHz

Supported memory clock speeds: 2667/2800/2933/3000/3066/3200/3466/3600/3733/3866/4000/4133/4266/4400/4533/4600/4733/4800/4866 MHz

Supported memory types: DDR4-SDRAM

Unbuffered memory: Yes

Supported storage drive interfaces: SATA III

Supported storage drive types: HDD & SSD

Maximum resolution: 4096 x 2160 pixels

Parallel processing technology support: Not supported

12V power connector: Yes

ATX Power connector (24-pin): Yes

Chassis intrusion connector: Yes

CPU fan connector: Yes

Front panel audio connector: Yes

Front panel connector: Yes

Number of chassis fan connectors: 6

Number of SATA III connectors: 6

RGB LED pin header: Yes

Total number of SATA connectors: 6

TPM connector: Yes

USB 2.0 connectors: 4

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2

USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1

Digital audio optical out: 1

DisplayPorts quantity: 1

Ethernet LAN (RJ-45) ports: 1

HDMI ports quantity: 1

PS/2 ports quantity: 1

S/PDIF out port: Yes

USB 2.0 ports quantity: 4

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1

WiFi-AP antenna jack: 2

Bluetooth: Yes

Bluetooth version: 5.0

Ethernet interface type: Gigabit Ethernet

Ethernet LAN: Yes

LAN controller: Realtek 8111H

Top Wi-Fi standard: Wi-Fi 5 (802.11ac)

Wi-Fi: Yes

Wi-Fi standards: Wi-Fi 5 (802.11ac)

1st M.2 highest PCI Express generation: 4.0

1st M.2 largest key size: 22110

2nd M.2 highest PCI Express generation: 3.0

2nd M.2 largest key size: 2280

Number of M.2 (M) slots: 2

PCI Express x1 (Gen 3.x) slots: 2

PCI Express x16 (Gen 3.x) slots: 1

PCI Express x16 (Gen 4.x) slots: 1

ACPI version: 6.0

BIOS memory size: 256 Mbit

BIOS type: UEFI AMI

Clear CMOS jumper: Yes

System Management BIOS (SMBIOS) version: 2.8

Harmonized System (HS) code: 84733020

Depth: 243.84 mm

Width: 304 mm

Cables included: SATA

Drivers included: Yes

Units per Pallet: 0

Unit Calculated Volume: 0.007803 cubm

Unit Calculated Weight: 1.64 kg
