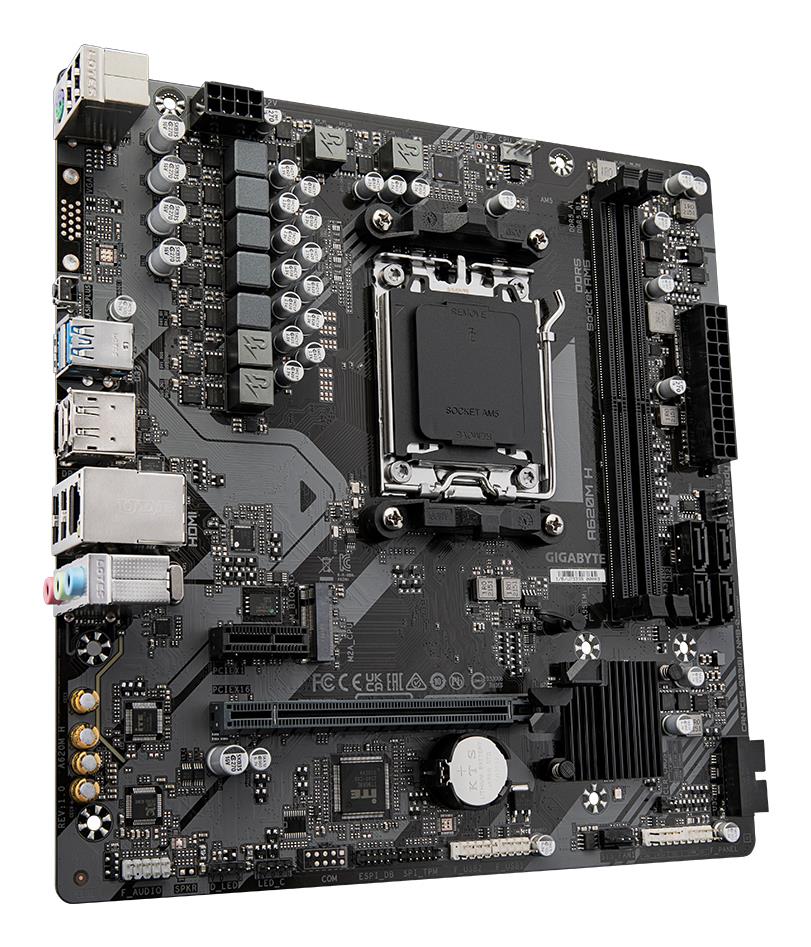

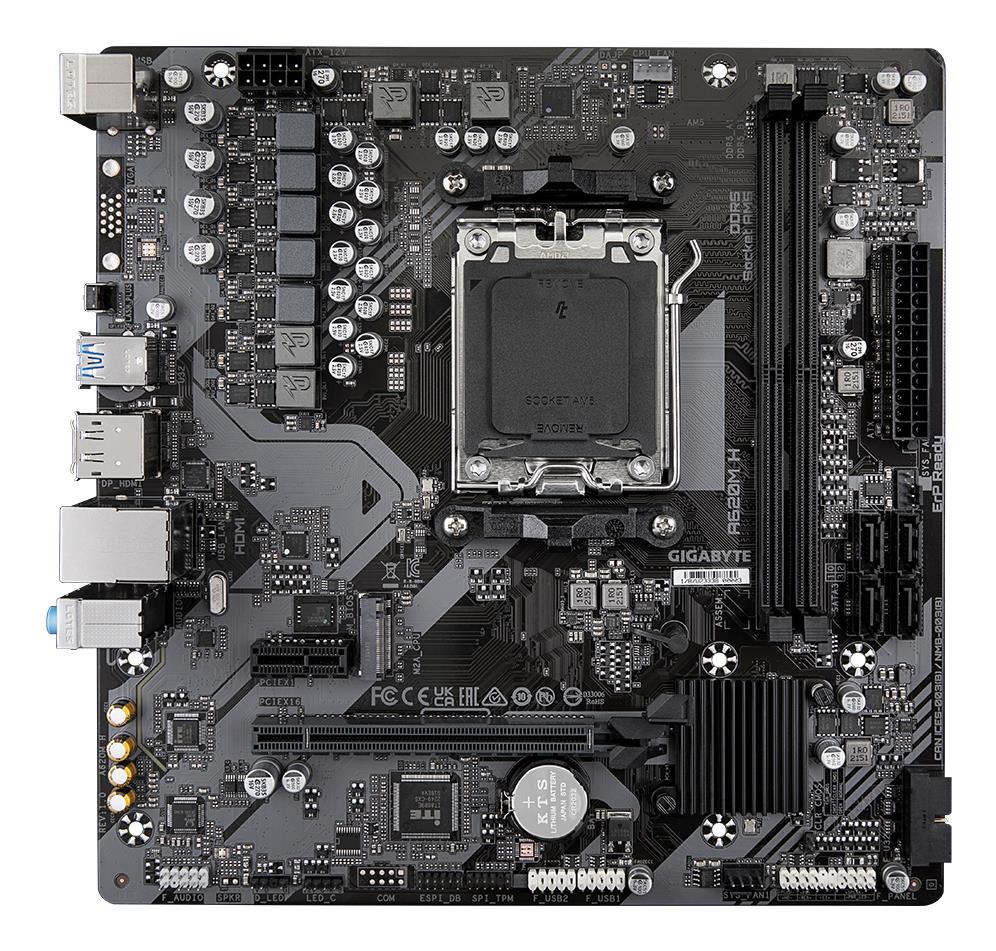

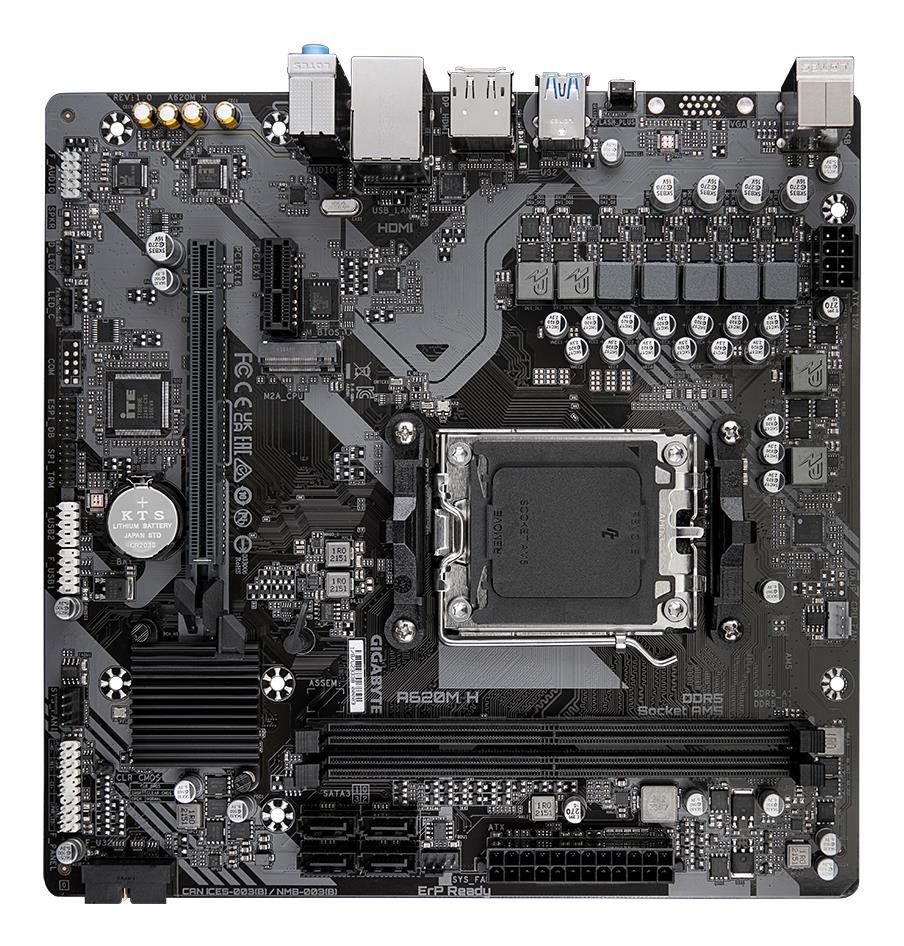

Mainboard|GIGABYTE|AMD A620|Socket AM5|micro ATX|RAM DDR5-SDRAM|2xSlots|1xPCI Express x1 slots|1xPCI Express x16 slots|1xNumber of M.2 (M) slots|A620MH2.0

Summary: GIGABYTE A620M H Motherboard - Supports AMD Ryzen 8000 CPUs, 5+2+2 Phases Digital VRM, up to 7200MHz DDR5 (OC), 1xPCIe 4.0 M.2, GbE LAN, USB 3.2 Gen 1. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 96 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Maximum resolution: 4096 x 2160 pixels. USB connector type: USB Type-A, USB Type-C

Category Code: MBA

Audio output channels: 7.1 channels

Component for: PC

Motherboard chipset: AMD A620

Motherboard chipset family: AMD

Motherboard form factor: Micro ATX

PC health monitoring: FAN/Temperature/Voltage/Water cooling

Product colour: Brown

Windows operating systems supported: Windows 10 x64/Windows 11 x64

Compatible processor series: AMD Ryzen 7000 Series

Maximum internal memory supported by processor: 96 GB

Processor manufacturer: AMD

Processor socket: Socket AM5

Supported processor sockets: Socket AM5

ECC сompatibility: Non-ECC

Maximum internal memory: 96 GB

Memory channels: Dual-channel

Memory slots type: DIMM

Number of memory slots: 2

Supported memory clock speed (max): 7200 MHz

Supported memory clock speeds: 4400/4800/5200/5600/6000/6200/6400/6800/7200 MHz

Supported memory module capacities: 12GB/16GB/1GB/2GB/32GB/48GB/4GB/8GB

Supported memory types: DDR5-SDRAM

Unbuffered memory: Yes

Number of HDDs supported: 4

Number of storage drives supported: 5

RAID levels: 0/1/10

RAID support: Yes

Supported storage drive interfaces: M.2,SATA III

Supported storage drive types: HDD & SSD

DirectX version: 12.0

HDCP: Yes

Maximum resolution: 4096 x 2160 pixels

Parallel processing technology support: Not supported

12V power connector: Yes

ATX Power connector (24-pin): Yes

CPU fan connector: Yes

EPS power connector (8-pin): Yes

Front panel audio connector: Yes

Front panel connector: Yes

Number of SATA III connectors: 4

RGB LED pin header: Yes

Total number of SATA connectors: 4

TPM connector: Yes

USB 2.0 connectors: 2

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1

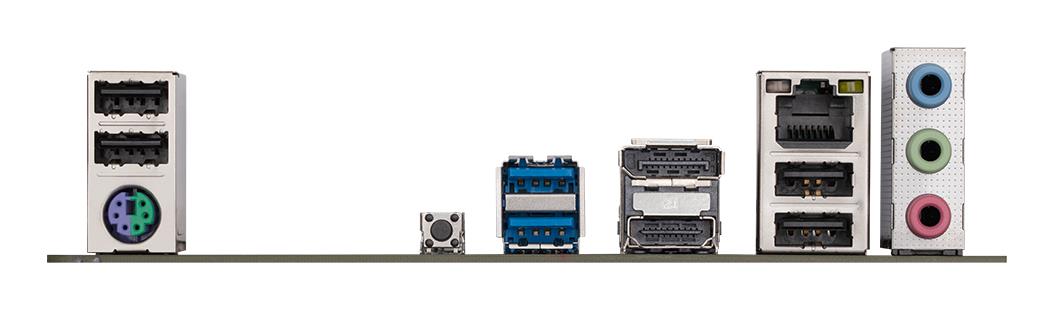

DisplayPort version: 1.4

DisplayPorts quantity: 1

Ethernet LAN (RJ-45) ports: 1

HDMI ports quantity: 1

HDMI version: 2.1

Headphone outputs: 3

Microphone in: Yes

PS/2 ports quantity: 1

USB 2.0 ports quantity: 4

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2

USB connector type: USB Type-A/USB Type-C

Ethernet interface type: Gigabit Ethernet

Ethernet LAN: Yes

Wi-Fi: No

Number of M.2 (M) slots: 1

PCI Express x1 slots: 1

PCI Express x16 slots: 1

ACPI version: 5.0

BIOS memory size: 256 Mbit

BIOS type: UEFI AMI

Clear CMOS jumper: Yes

Desktop Management Interface (DMI) version: 2.7

System Management BIOS (SMBIOS) version: 2.7

Battery technology: Lithium-Manganese Dioxide (LiMnO2)

Battery type: CR2032

Battery weight: 3 g

Country of origin: China

Lithium weight per battery: 0.07 g

Number of battery cells: 1

Package depth: 265 mm

Package height: 54 mm

Package weight: 897 g

Package width: 265 mm

Products per shipping (inner) case: 1 pc(s)

Depth: 225 mm

Height: 35 mm

Width: 230 mm

Batteries included: Yes

Bundled software: Norton Internet Security LAN bandwidth management software

Cables included: SATA

Warranty period: 3 year(s)

Unit Calculated Volume: 0.00379 cubm

Unit Calculated Weight: 0.897 kg
