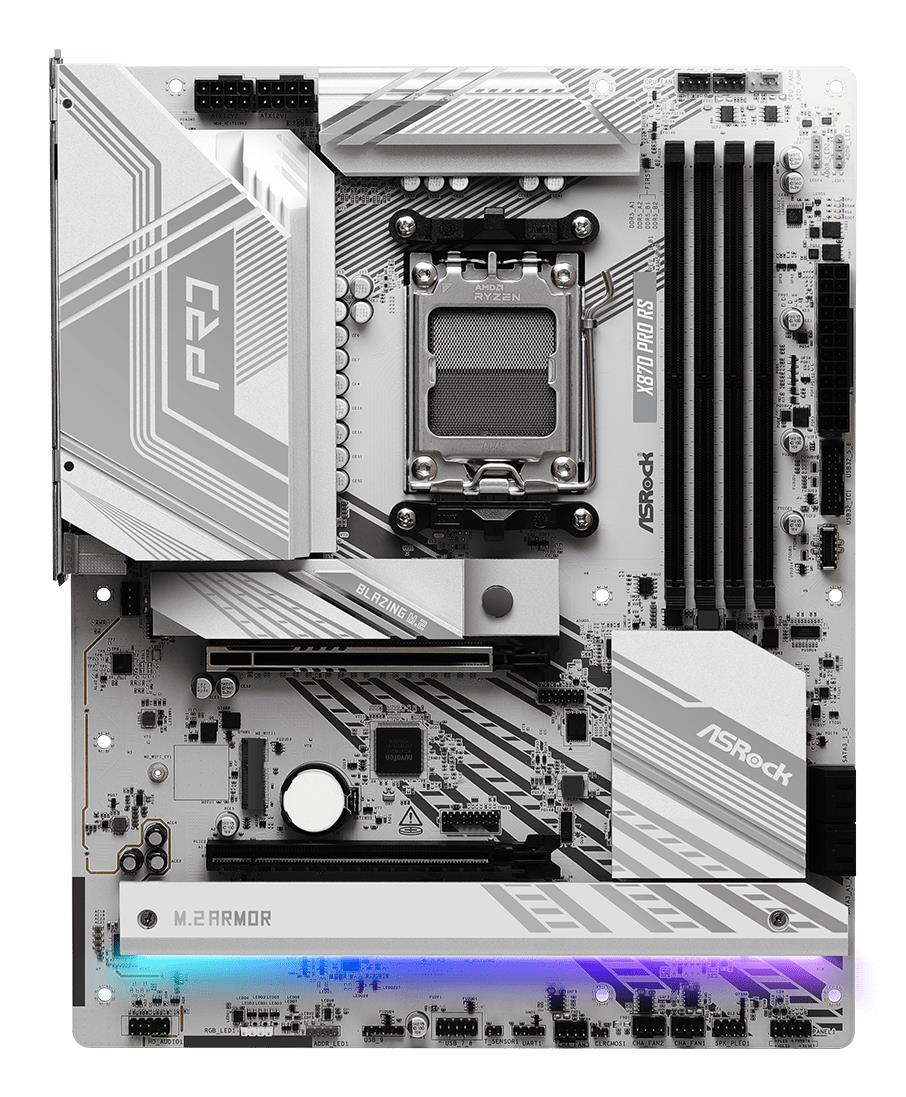

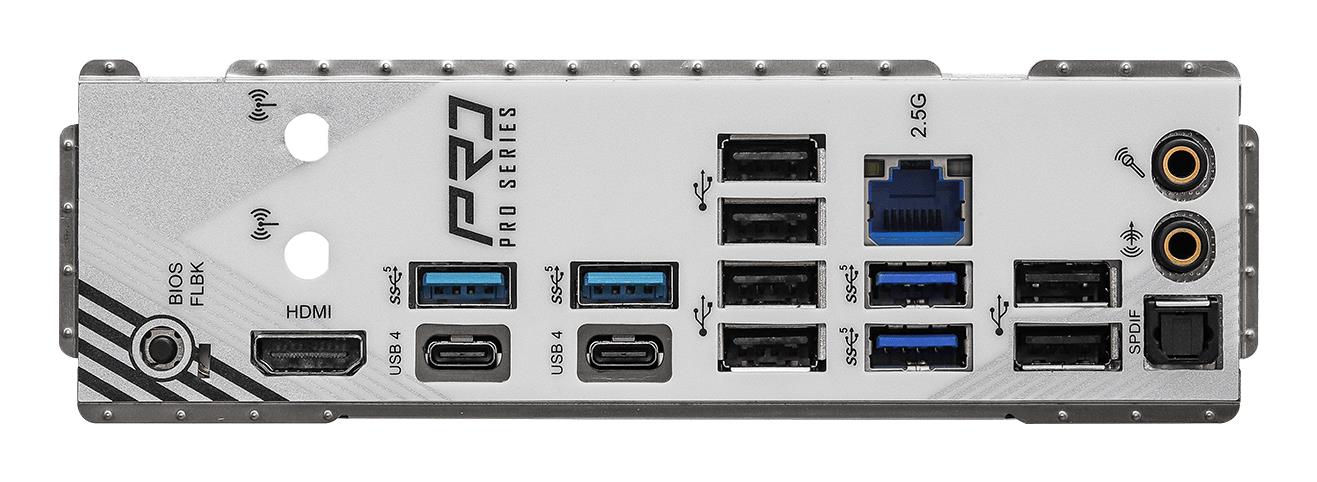

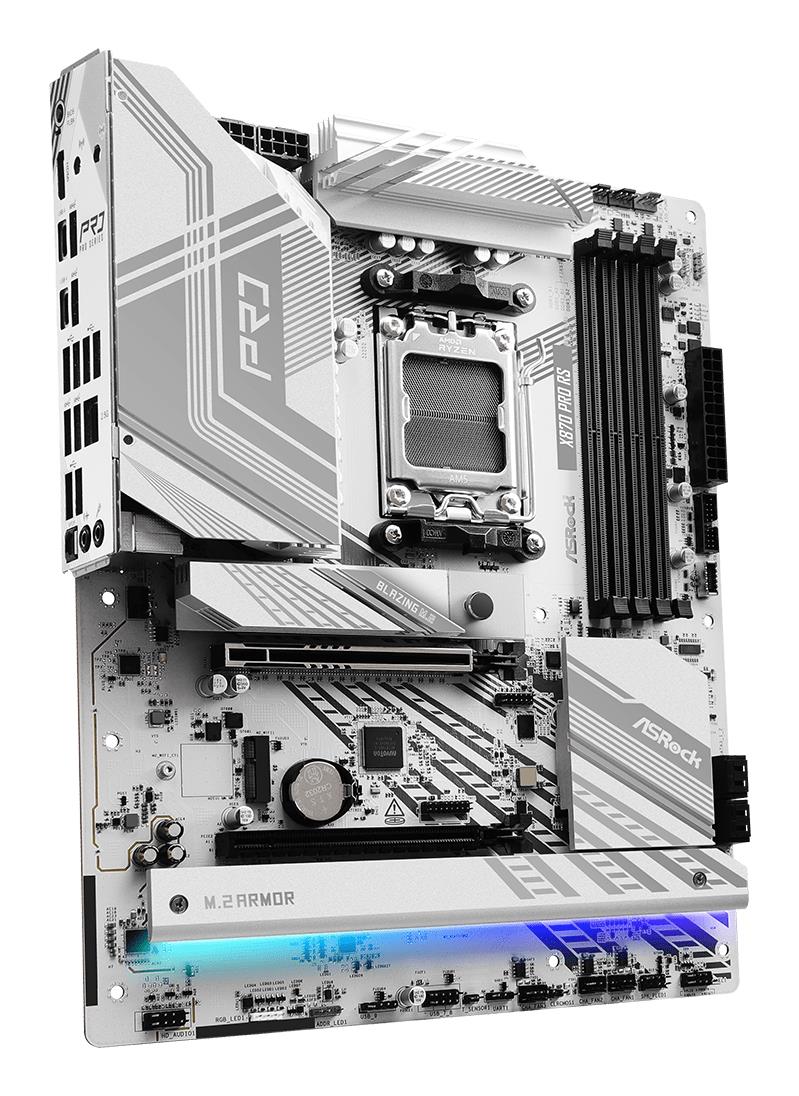

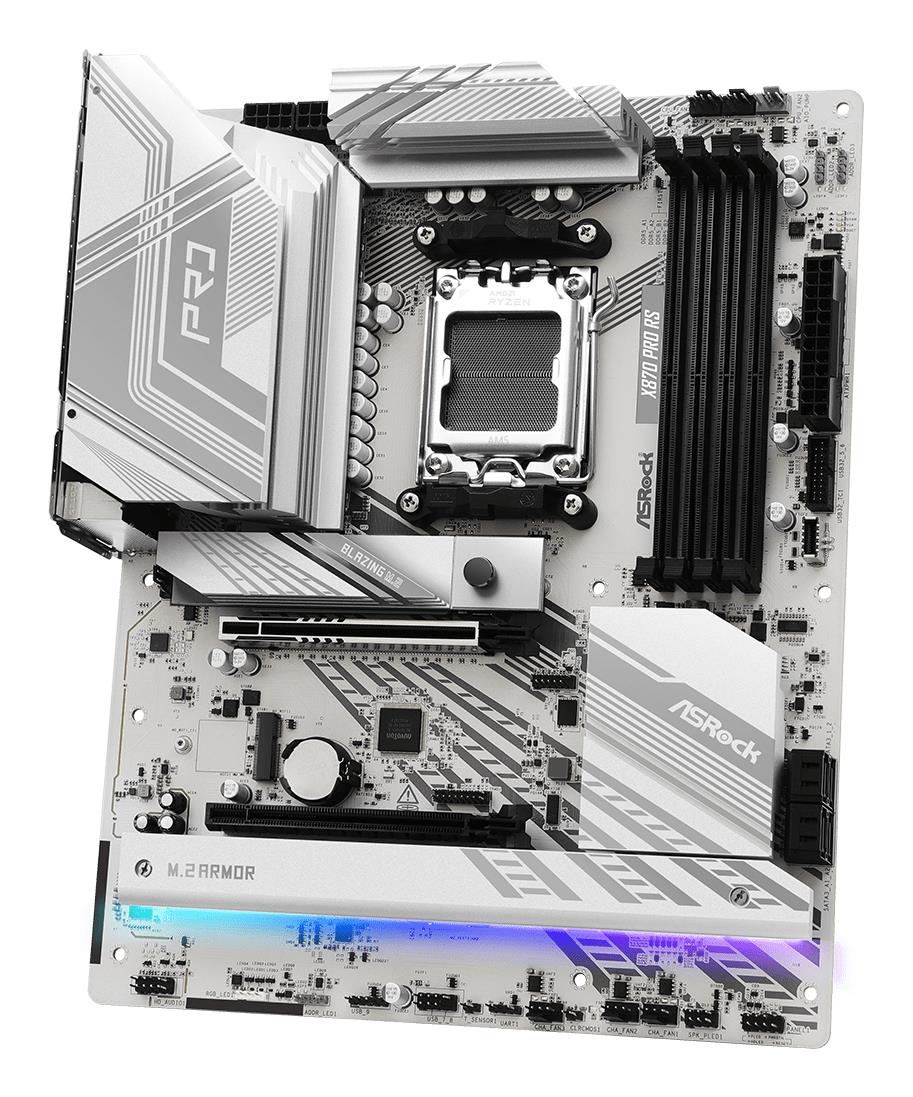

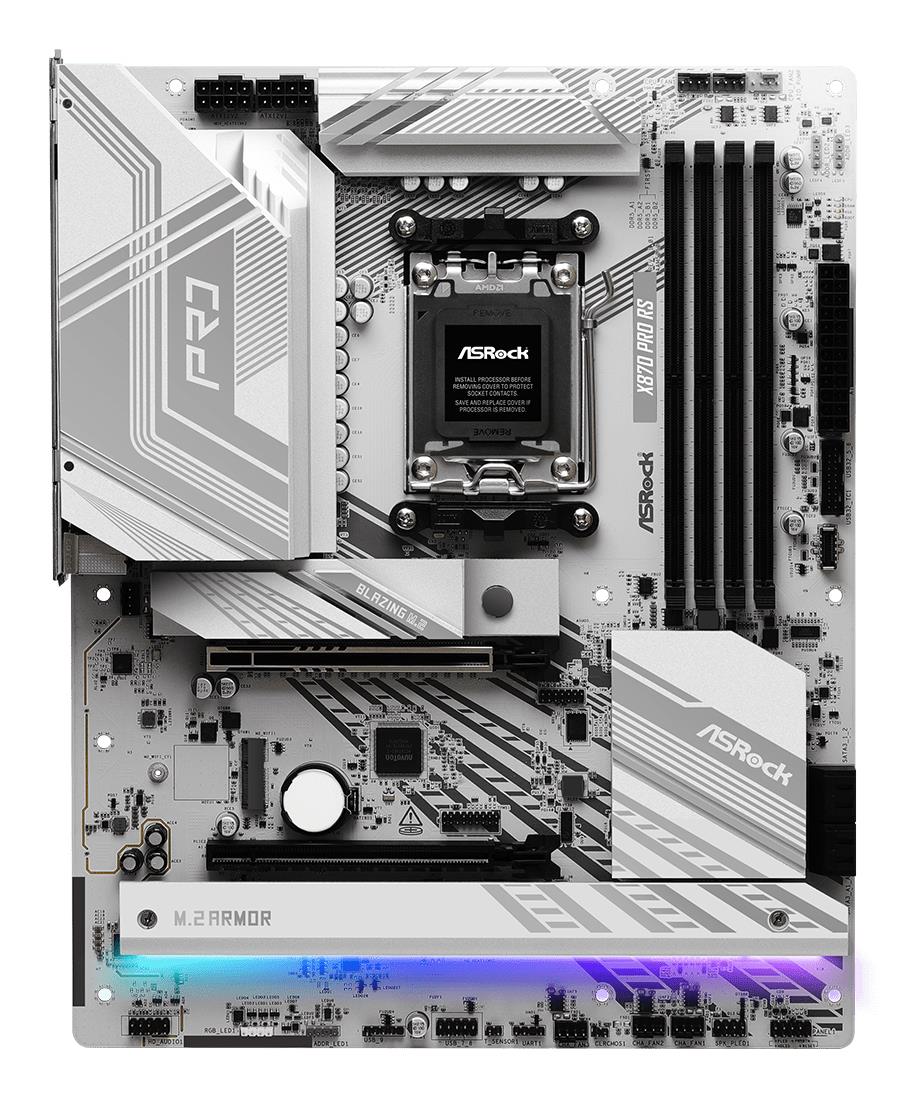

Mainboard|ASROCK|AMD X870|SAM5|ATX|Memory DDR5|Memory slots 4|1xPCI-Express 4.0 16x|1xPCI-Express 5.0 16x|4xM.2|1xHDMI|6xUSB 2.0|4xUSB 3.2|2xUSB-C|1xOptical S/PDIF|1xRJ45|2xAudio port|X870PRORS
SKU: X870 PRO RS
€ 217.81
Pieejams : 1 gab.
AMD X870
ATX
Audio 7.1 channels
CPU AMD
Socket Socket AM5
Series AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series
Supported memory types DDR5-SDRAM
4xNumber of memory slots
Memory slots type DIMM
Supported storage drive interfaces PCI Express 3.0,PCI Express 4.0,PCI Express 5.0,SATA III
7680 x 4320 pixels
6xUSB 2.0 ports quantity
4xUSB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
1xEthernet LAN (RJ-45) ports
1xHDMI ports quantity
-
Category Code: MBA
-
Unit Box Height: 0.075
-
Unit Box Length: 0.35
-
Unit Box Width: 0.28
-
PCI-Express 4.0 16x: 1
-
PCI-Express 5.0 16x: 1
-
M.2: 4
-
HDMI: 1
-
USB 2.0: 6
-
USB 3.2: 4
-
USB-C: 2
-
Optical S/PDIF: 1
-
RJ45: 1
-
Audio port: 2
-
USB-C: Yes
-
USB 2.0: Yes
-
USB 3.2: Yes
-
SATA 3.0: Yes
-
Model: X870 PRO RS
-
Chipset: AMD X870
-
Socket: SAM5
-
Form Factor: ATX
-
Memory type: DDR5
-
Frequency speed: 8000 MHz
-
Memory slots: 4
-
Integrated video: Depending on CPU
-
Integrated audio: Realtek ALC1220
-
Integrated LAN: 2.5 Gigabit
-
RAID: SATA 0, 1; NVMe 0, 1, 10
-
Unit Calculated Volume: 0.00904 cubm
-
Product Net Weight: 1 kg
-
Unit Calculated Weight: 2.24 kg
-
Manufacturer: ASROCK
