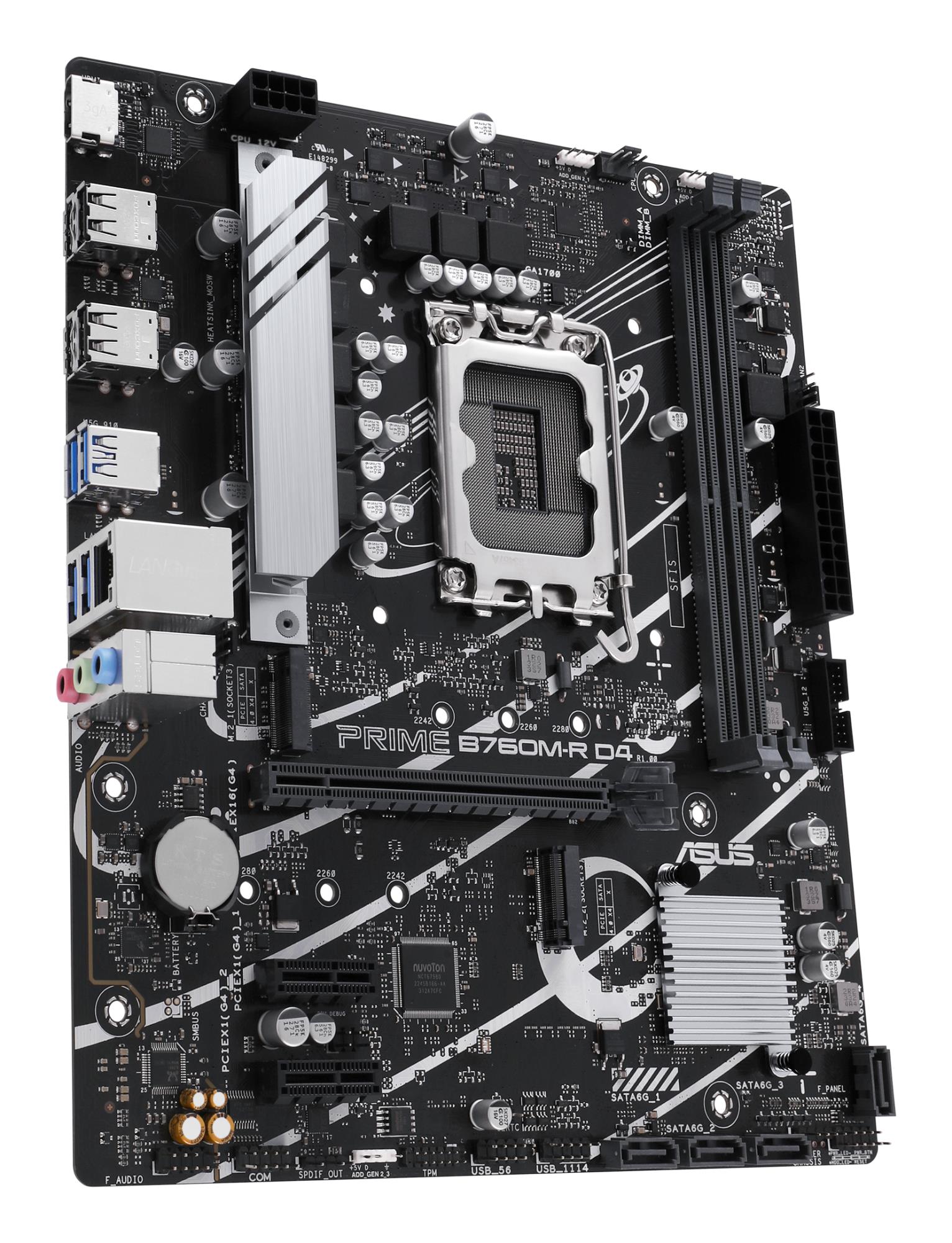

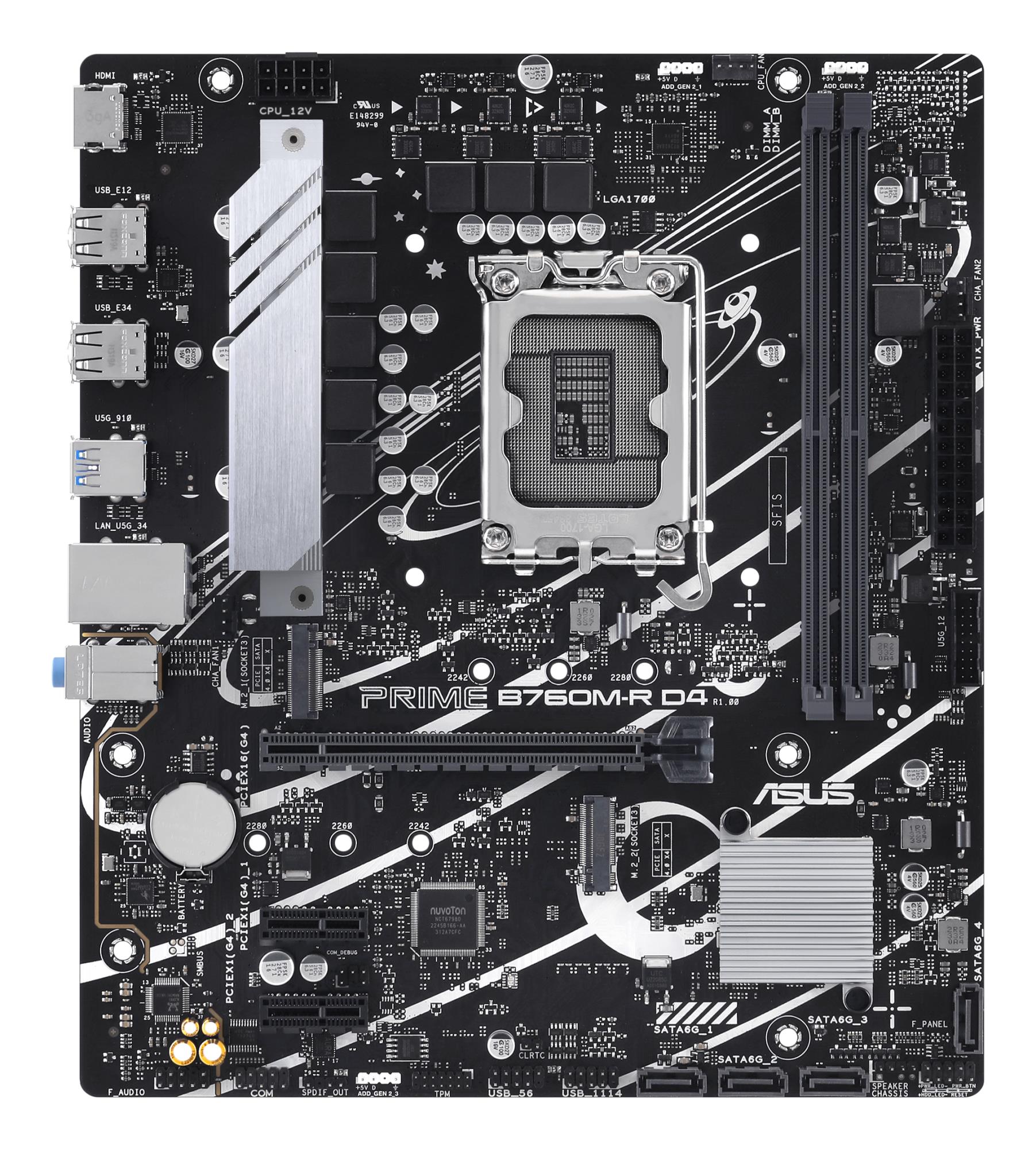

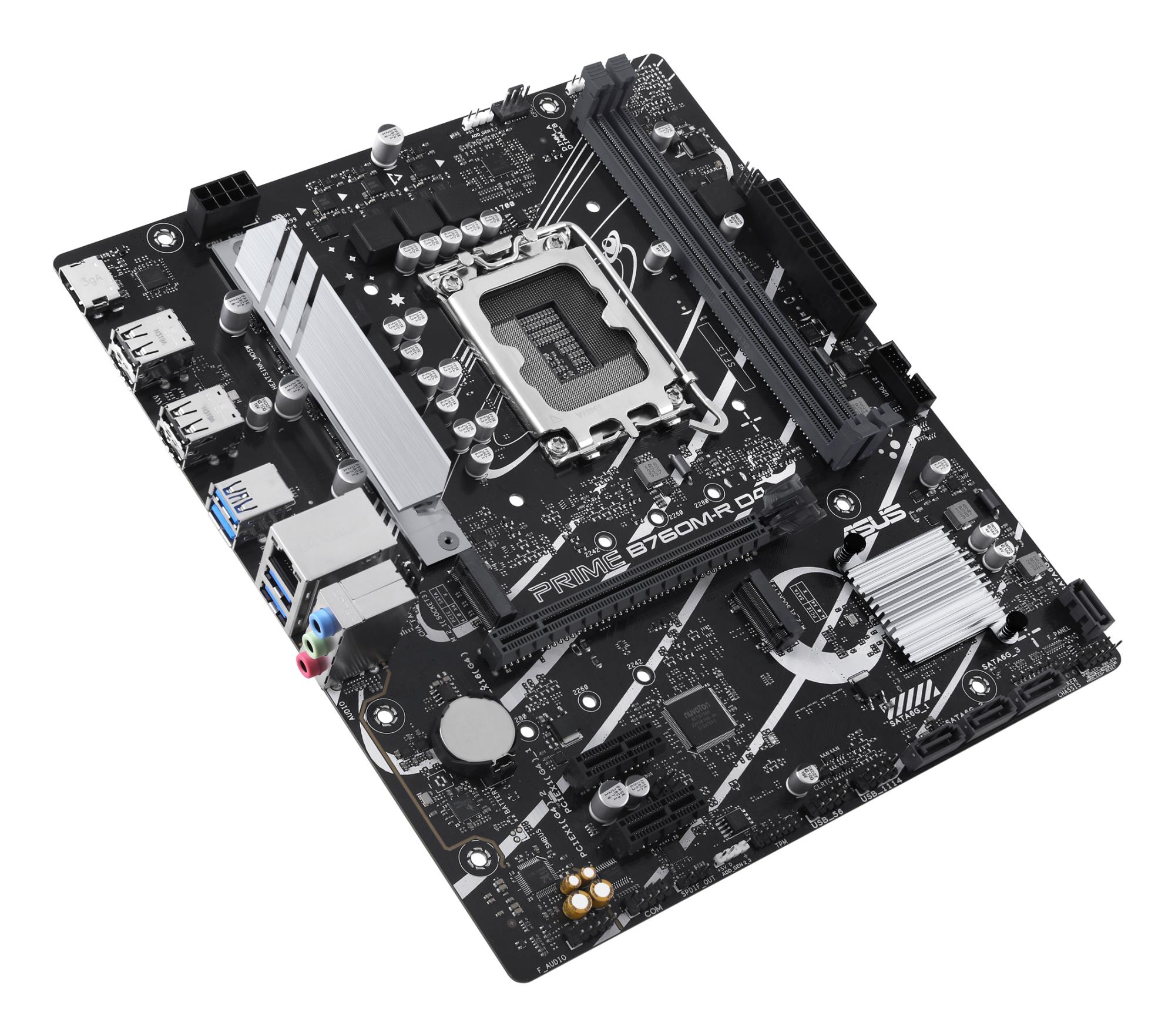

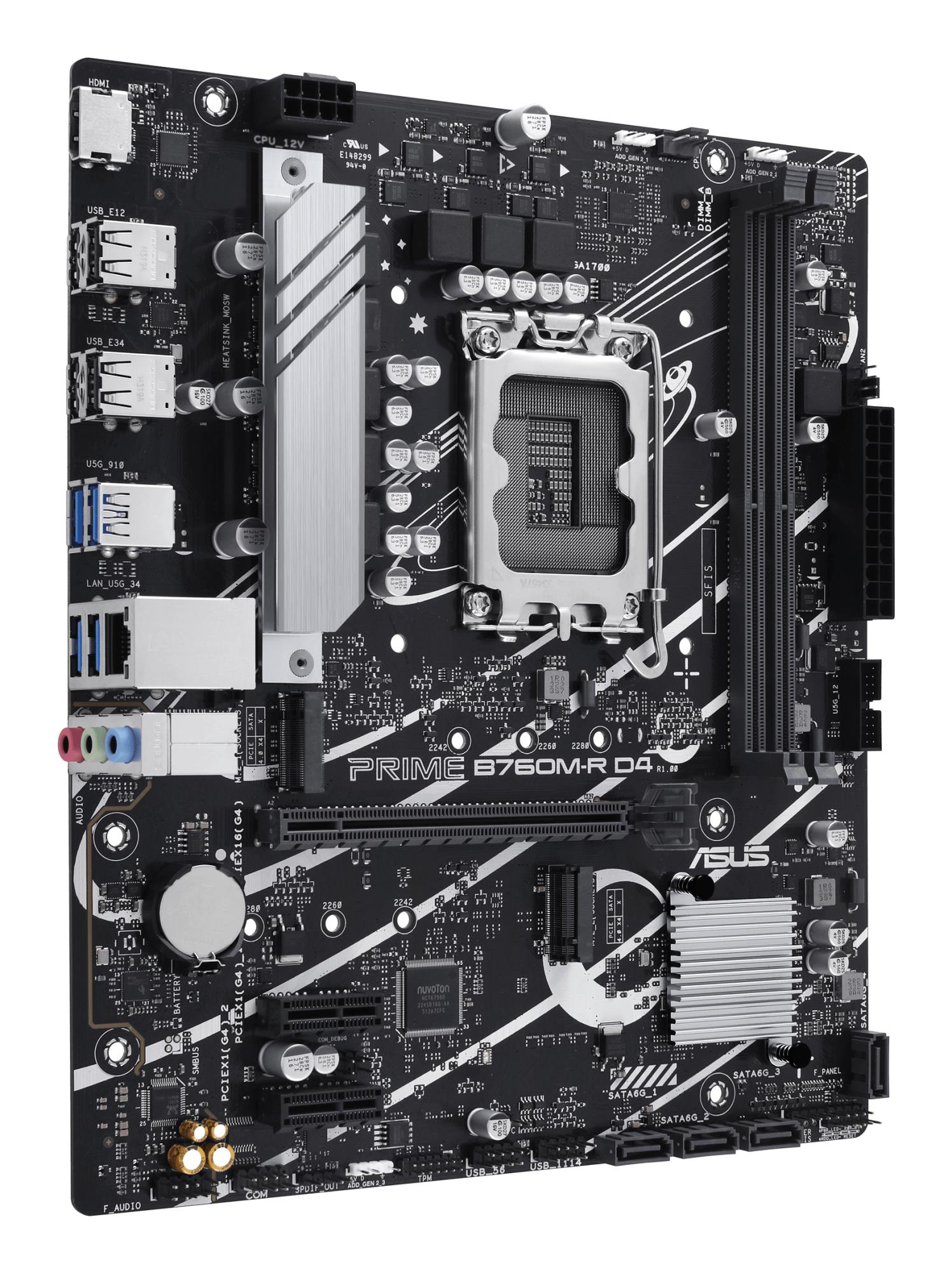

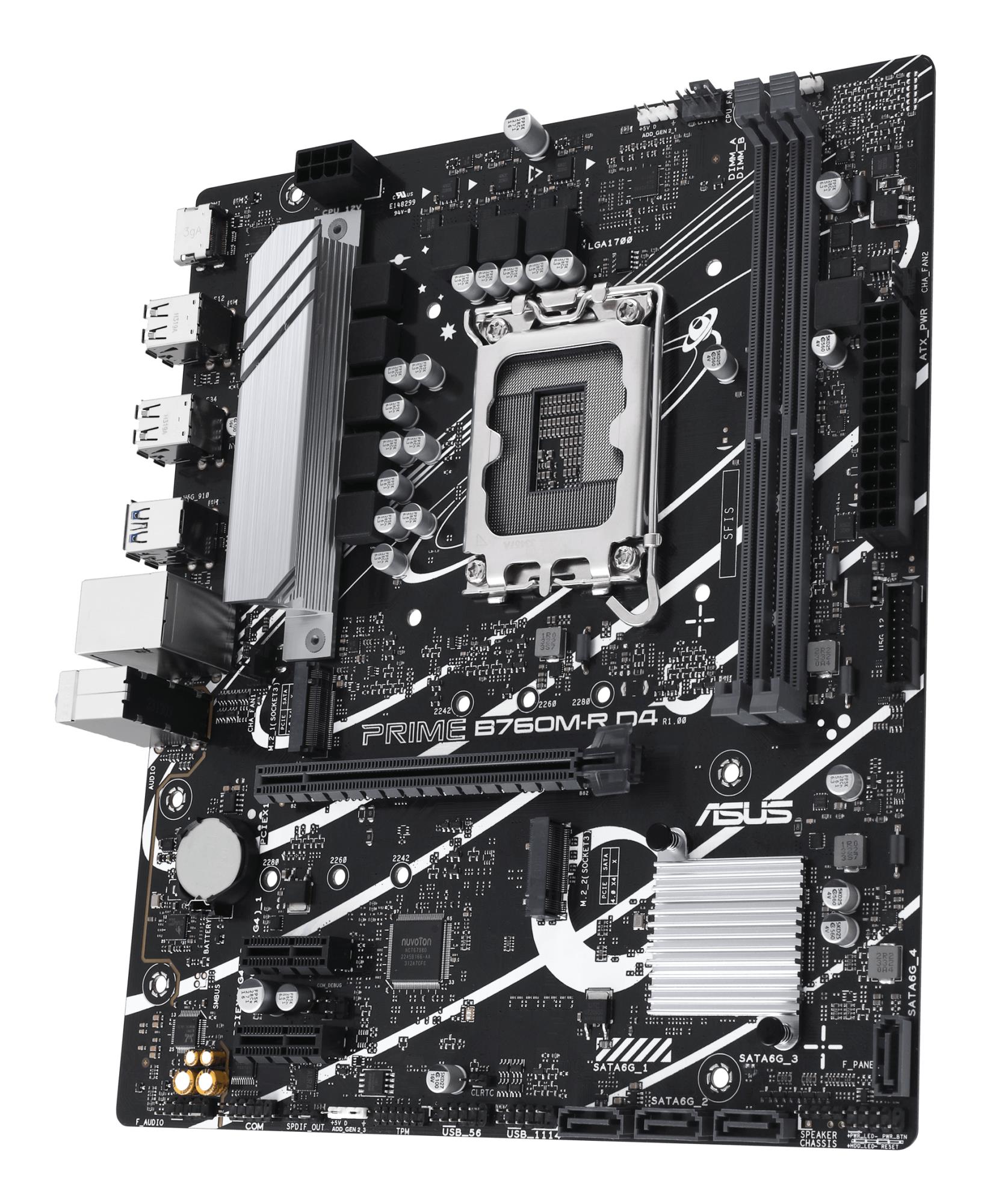

Mainboard|ASUS|Intel B760 Express|LGA1700|Micro-ATX|Memory DDR4|Memory slots 2|2xPCI-Express 4.0 1x|1xPCI-Express 4.0 16x|2xM.2|1x15pin D-sub|1xHDMI|4xUSB 2.0|4xUSB 3.2|1xOptical S/PDIF|3xAudio port|PRIMEB760M-RD4
SKU: PRIMEB760M-RD4
€ 106.01
Pieejams : 9 gab.
Intel B760
micro ATX
Audio 7.1 channels
CPU Intel
Socket LGA 1700
Series Intel Core i3 12th Gen/Intel Core i3 13th Gen/Intel Core i5 12th Gen/Intel Core i5 13th Gen/Intel Core i7 12th Gen/Intel Core i7 13th Gen/Intel Core i9 12th Gen/Intel Core i9 13th Gen/Intel Core i9 14th Gen
Supported memory types DDR4-SDRAM
2xNumber of memory slots
Memory slots type DIMM
Supported storage drive interfaces M.2,SATA III
4xUSB 2.0 ports quantity
4xUSB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
1xEthernet LAN (RJ-45) ports
1xHDMI ports quantity
-
Category Code: MBI
-
Unit Box Height: 0.055
-
Unit Box Length: 0.265
-
Unit Box Width: 0.28
-
M.2: 2
-
PCI-Express 4.0 16x: 1
-
PCI-Express 4.0 1x: 2
-
15pin D-sub: 1
-
Audio port: 3
-
HDMI: 1
-
Optical S/PDIF: 1
-
USB 2.0: 4
-
USB 3.2: 4
-
SATA: Yes
-
Model: PRIME B760M-R D4
-
Chipset: Intel B760 Express
-
Socket: LGA1700
-
Form Factor: Micro-ATX
-
Memory type: DDR4
-
Frequency speed: 2400/2666/2800/2933/3000/3200/3333/3400/3466/3600/3733/4000/4266/4400/4600/4800/5000/5066/5333 MHz
-
Memory slots: 2
-
Integrated video: Depending on CPU
-
Integrated LAN: 2.5 Gigabit
-
RAID: SATA 0, 1, 5, 10
-
TPM: Header
-
Unit Calculated Volume: 0.003869 cubm
-
Product Net Weight: 0.8 kg
-
Unit Calculated Weight: 0.98 kg
-
Manufacturer: ASUS
