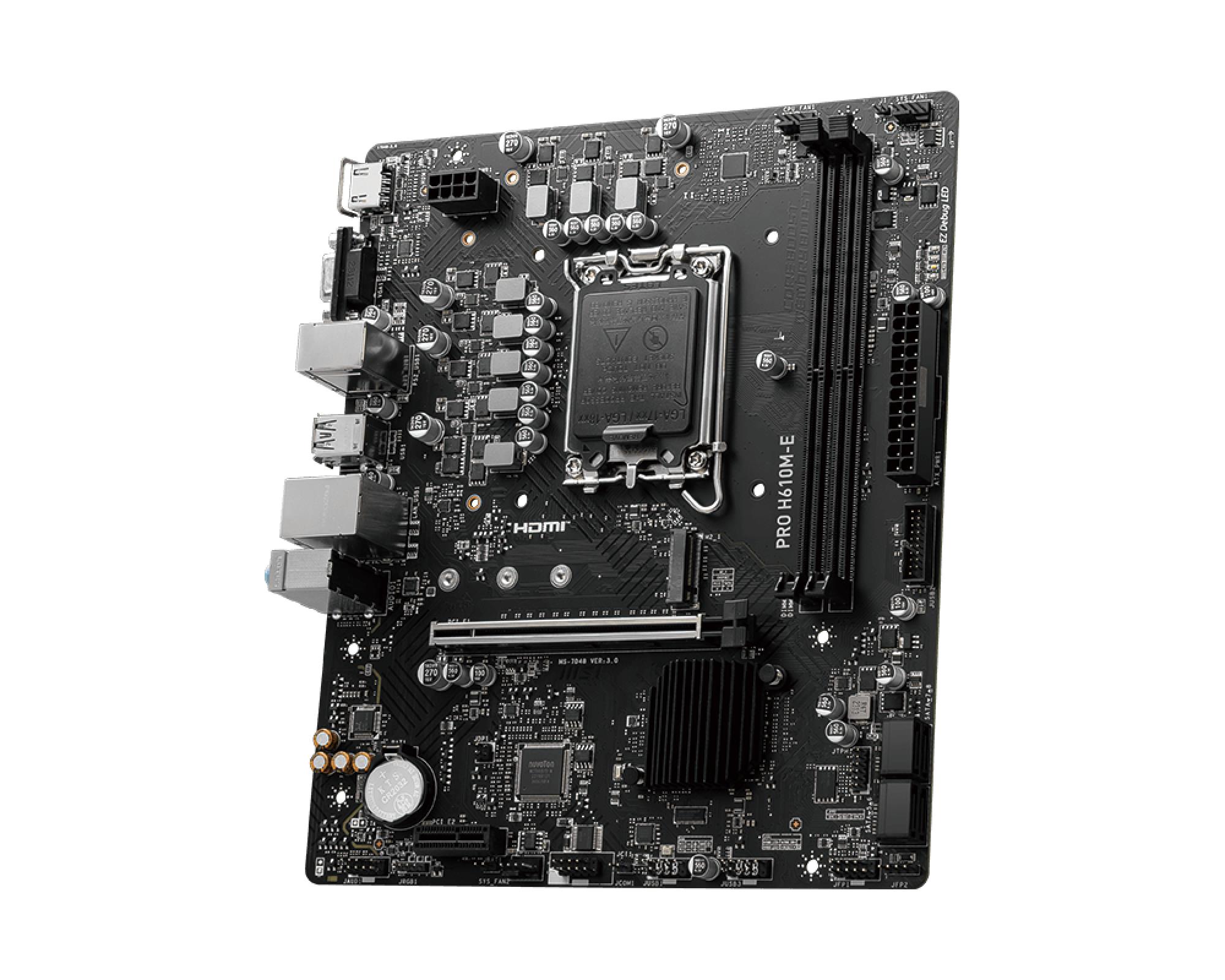

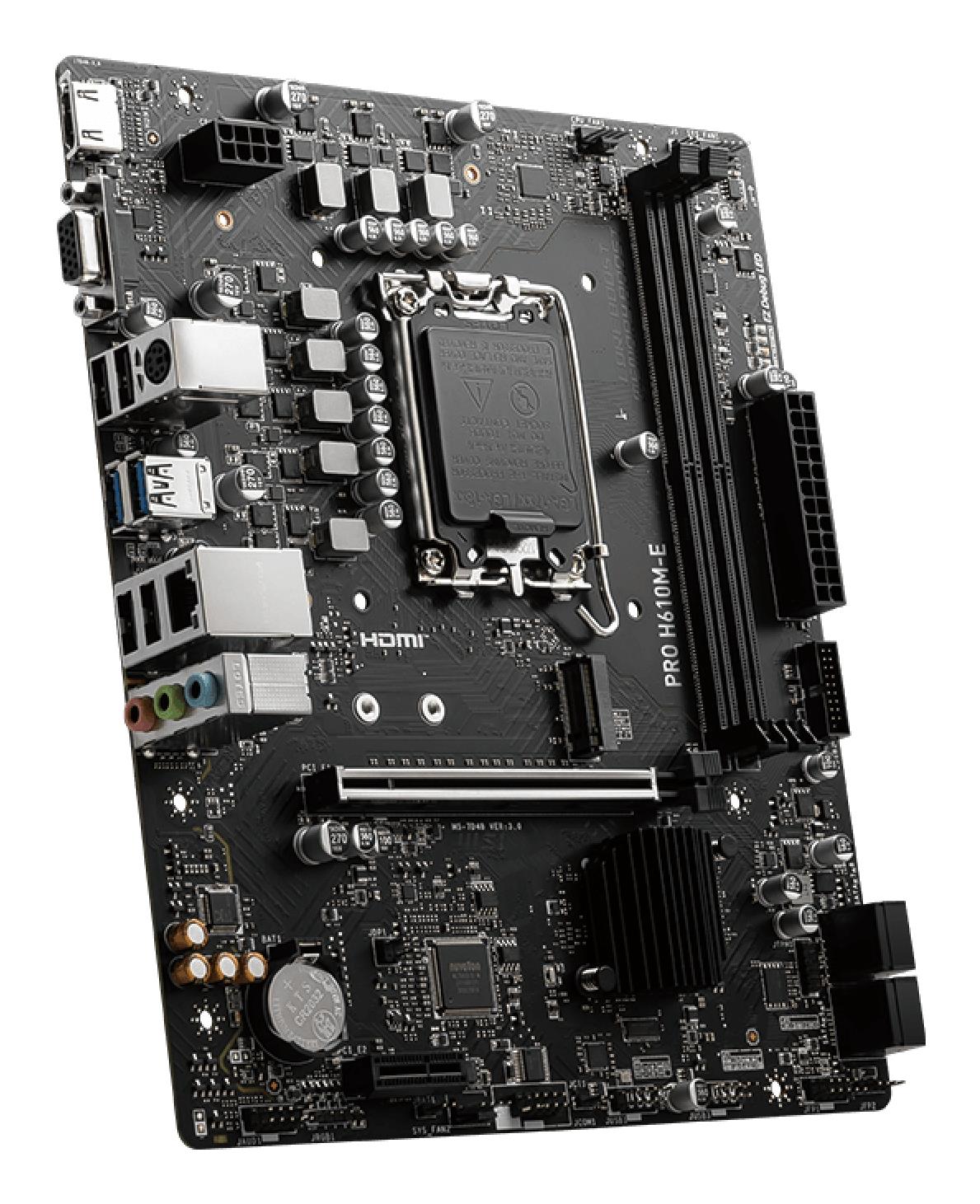

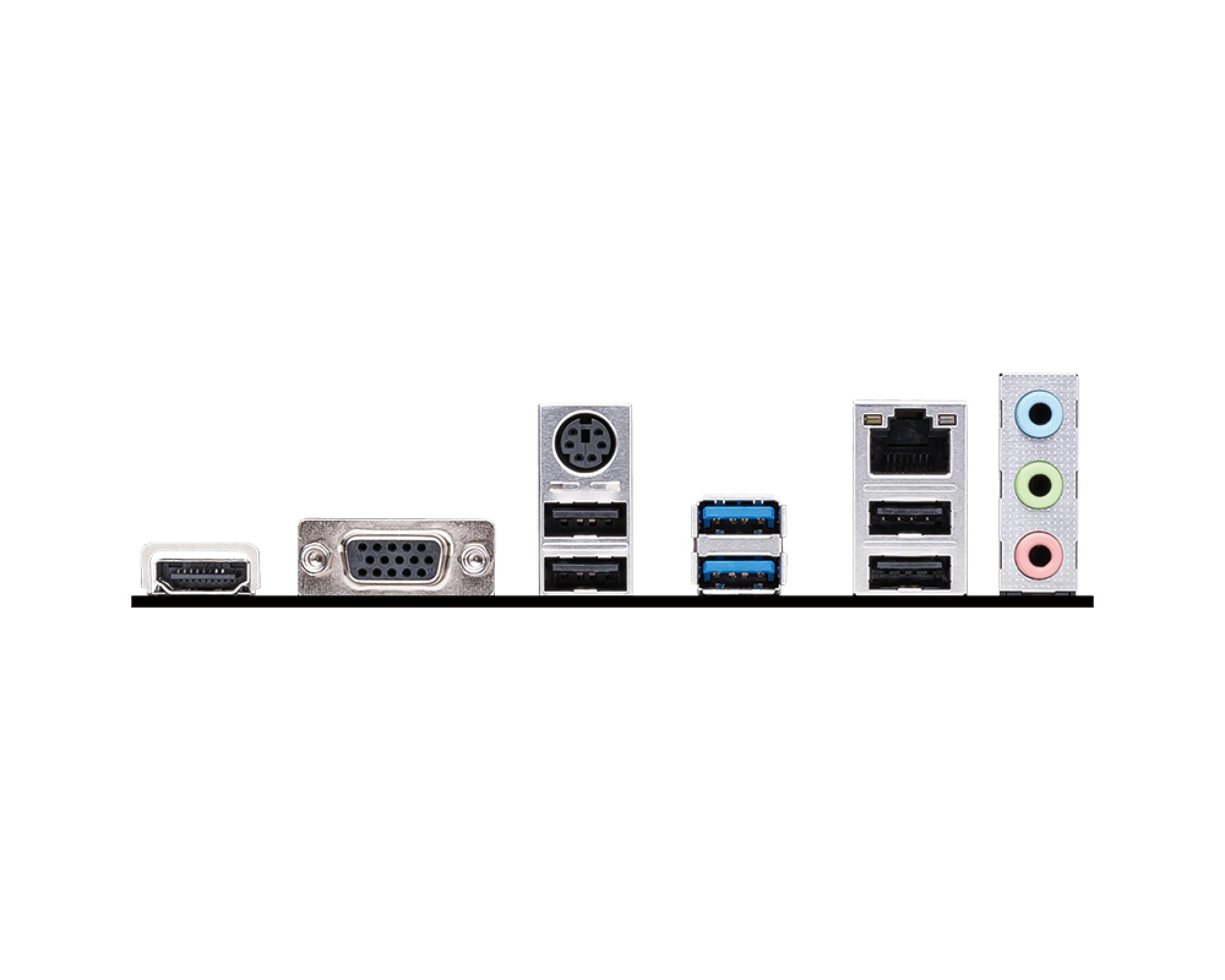

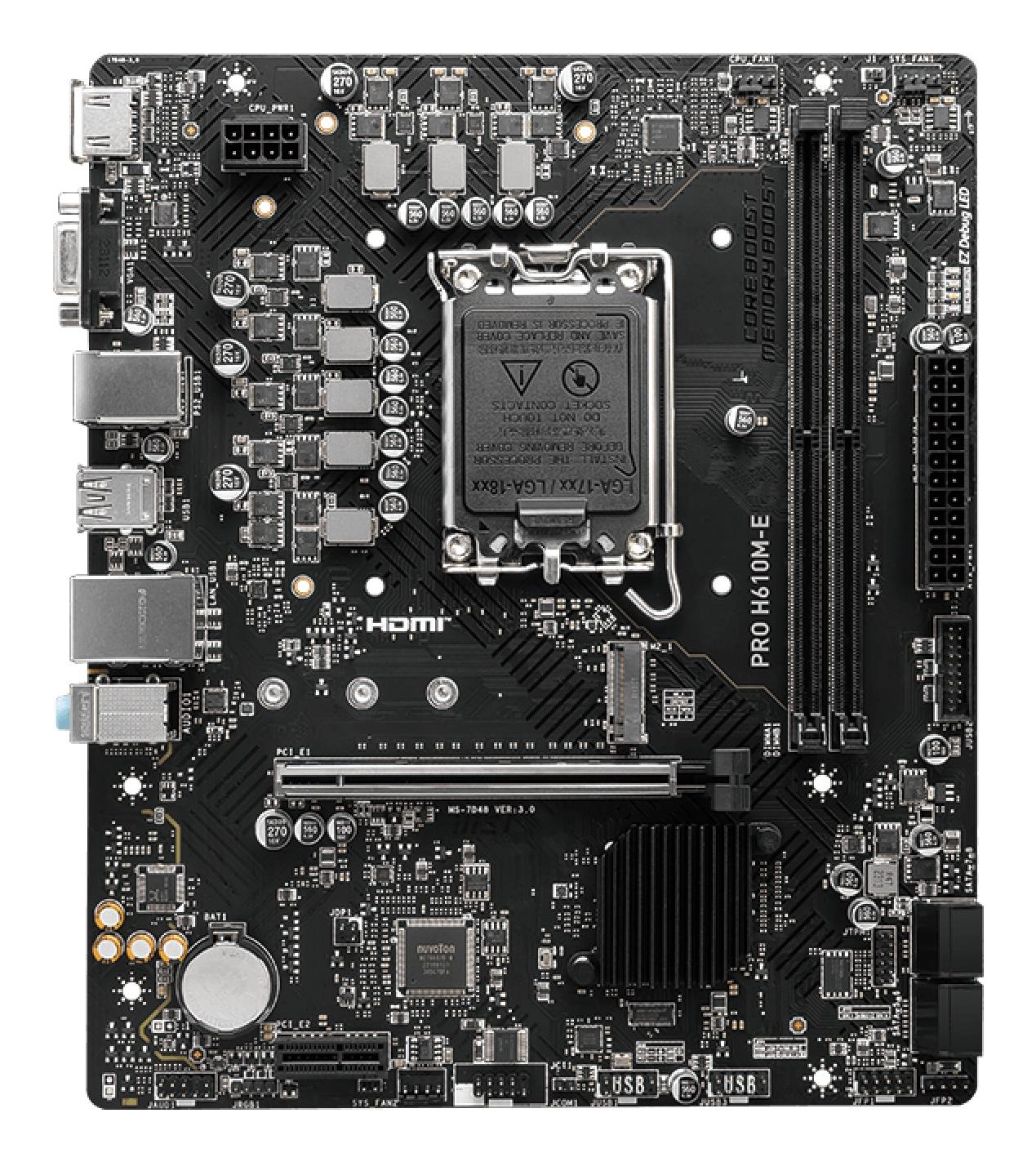

Mainboard|MSI|Intel H610|LGA1700|Micro-ATX|Memory DDR5|Memory slots 2|1xPCI-Express 1x|1xPCI-Express 16x|1xM.2|1x15pin D-sub|1xHDMI|4xUSB 2.0|2xUSB 3.2|1xPS/2|1xRJ45|3xAudio port|PROH610M-E

Summary: MSI PRO H610M-E. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel Pentium G. Supported memory types: DDR5-SDRAM, Maximum internal memory: 96 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel

Category Code: MBI

Unit Box Height: 0.057

Unit Box Length: 0.26

Unit Box Width: 0.26

Audio output channels: 7.1 channels

Component for: PC

Cooling type: Active

Motherboard chipset: Intel H610

Motherboard chipset family: Intel

Motherboard form factor: Micro ATX

Power source type: ATX

Windows operating systems supported: Windows 10/Windows 11

Compatible processor series: Intel Pentium G/Intel® Celeron®/Intel® Core™ i3/Intel® Core™ i5/Intel® Core™ i7/Intel® Core™ i9

Processor manufacturer: Intel

Processor socket: LGA 1700

Supported processor sockets: LGA 1700

ECC сompatibility: Non-ECC

Maximum internal memory: 96 GB

Memory channels: Dual-channel

Memory slots type: DIMM

Number of memory slots: 4

Supported memory clock speeds: 5600 MHz

Supported memory module capacities: 16GB/32GB/4GB/8GB

Supported memory types: DDR5-SDRAM

RAID levels: 0/1/10/5

RAID support: Yes

Supported storage drive interfaces: M.2,SATA III

Supported storage drive types: HDD & SSD

ATX Power connector (24-pin): Yes

Audio connector: Yes

CPU fan connector: Yes

EPS power connector (8-pin): Yes

Front panel audio connector: Yes

Number of chassis fan connectors: 2

Number of COM connectors: 2

Number of SATA III connectors: 4

Thunderbolt headers: 2

USB 2.0 connectors: 4

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2

Ethernet LAN (RJ-45) ports: 1

HDMI ports quantity: 1

HDMI version: 1.4

Headphone outputs: 2

Microphone in: Yes

PS/2 ports quantity: 1

USB 2.0 ports quantity: 4

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2

VGA (D-Sub) ports quantity: 1

Ethernet interface type: 2.5 Gigabit Ethernet

Ethernet LAN: Yes

Wi-Fi: No

PCI Express x1 (Gen 3.x) slots: 2

PCI Express x16 (Gen 4.x) slots: 1

ACPI version: 6.4

BIOS memory size: 256 Mbit

BIOS type: UEFI AMI

Depth: 236.16 mm

Width: 200 mm

Cables included: SATA

Drivers included: Yes

Model: PRO H610M-E

Unit Calculated Volume: 0.004739 cubm

Unit Calculated Weight: 0.8 kg
