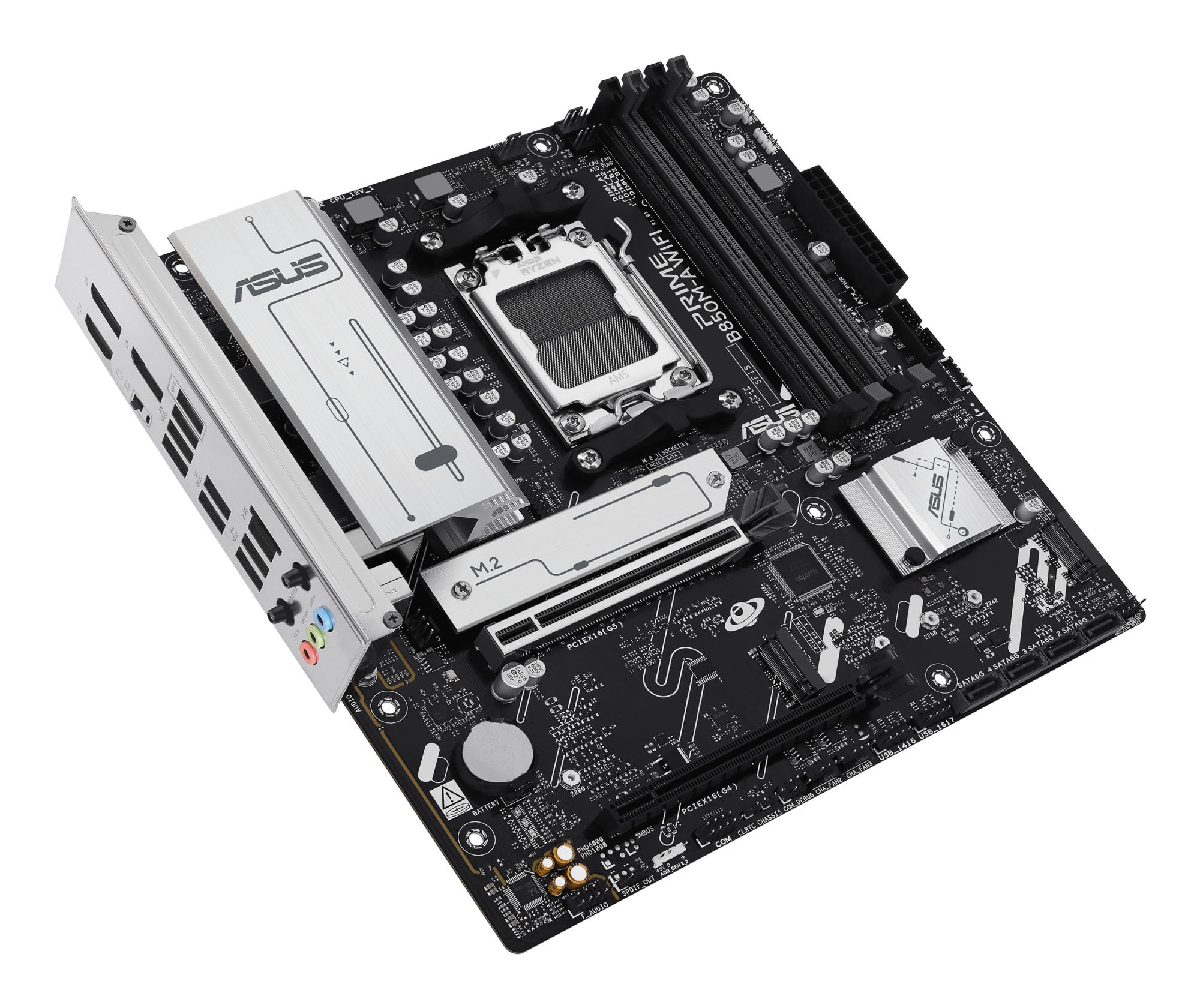

Mainboard|ASUS|AMD B850|SAM5|Micro-ATX|Memory DDR5|Memory slots 4|1xPCI-Express 4.0 16x|1xPCI-Express 5.0 16x|3xM.2|1xHDMI|2xDisplayPort|4xUSB 2.0|4xUSB 3.2|1xRJ45|3xAudio port|PRIMEB850M-AWIFI
SKU: PRIME B850M-A WIFI
€ 210.26
Pieejams : 14 gab.
AMD B850
micro ATX
Audio 7.1 channels
CPU AMD
Socket Socket AM5
Series AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series
Supported memory types DDR5-SDRAM
4xNumber of memory slots
Memory slots type DIMM
Supported storage drive interfaces M.2,SATA III
4xUSB 2.0 ports quantity
2xUSB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2xUSB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
1xEthernet LAN (RJ-45) ports
1xHDMI ports quantity
Wi-Fi Yes
Bluetooth Yes
Antenna included Yes
Weight 930 g
-
Long Description: ASUS PRIME B850M-A WIFI. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 6E (802.11ax). Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: AMD
-
USB 2.0 ports quantity: 4
-
USB 2.0 connectors: 2
-
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
-
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
-
Number of SATA III connectors: 4
-
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
-
Ethernet LAN (RJ-45) ports: 1
-
Motherboard chipset: AMD B850
-
Processor manufacturer: AMD
-
Model: PRIME B850M-A WIFI
-
HDMI ports quantity: 1
-
Processor socket: Socket AM5
-
Compatible processor series: AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series
-
DisplayPorts quantity: 2
-
Supported storage drive types: HDD & SSD
-
Supported storage drive interfaces: M.2,SATA III
-
Number of HDDs supported: 4
-
Number of storage drives supported: 7
-
Supported memory types: DDR5-SDRAM
-
Number of memory slots: 4
-
Ethernet LAN: Yes
-
RAID support: Yes
-
BIOS type: UEFI AMI
-
Ethernet interface type: 2.5 Gigabit Ethernet/Fast Ethernet/Gigabit Ethernet
-
S/PDIF out connector: Yes
-
RAID levels: 0/1/10/5
-
Memory slots type: DIMM
-
Product colour: Multicolour
-
Front panel audio connector: Yes
-
Wi-Fi: Yes
-
Memory channels: Dual-channel
-
Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
-
BIOS memory size: 256 Mbit
-
Line-in: Yes
-
Bluetooth: Yes
-
ECC сompatibility: ECC & Non-ECC
-
Bluetooth version: 5.3
-
PCI Express x16 (Gen 4.x) slots: 1
-
ATX Power connector (24-pin): Yes
-
CPU fan connector: Yes
-
Number of CPU fan connectors: 1
-
Number of chassis fan connectors: 3
-
Supported memory clock speed (max): 8000 MHz
-
Chassis intrusion connector: Yes
-
Maximum internal memory: 256 GB
-
EPS power connector (8-pin): Yes
-
Parallel processing technology support: Not supported
-
Unbuffered memory: Yes
-
Component for: PC
-
Motherboard form factor: Micro ATX
-
Audio output channels: 7.1 channels
-
Width: 244 mm
-
Motherboard chipset family: AMD
-
Depth: 244 mm
-
Height: 50 mm
-
WiFi-AP antenna jack: 2
-
Weight: 930 g
-
Antenna included: Yes
-
12V power connector: Yes
-
Number of COM connectors: 1
-
TPM connector: Yes
-
Package width: 275 mm
-
Package depth: 275 mm
-
Package height: 67.5 mm
-
Windows operating systems supported: Windows 10 x64/Windows 11
-
Package weight: 1520 g
-
Unit Calculated Volume: 0.006412 cubm
-
Unit Calculated Weight: 1.52 kg
