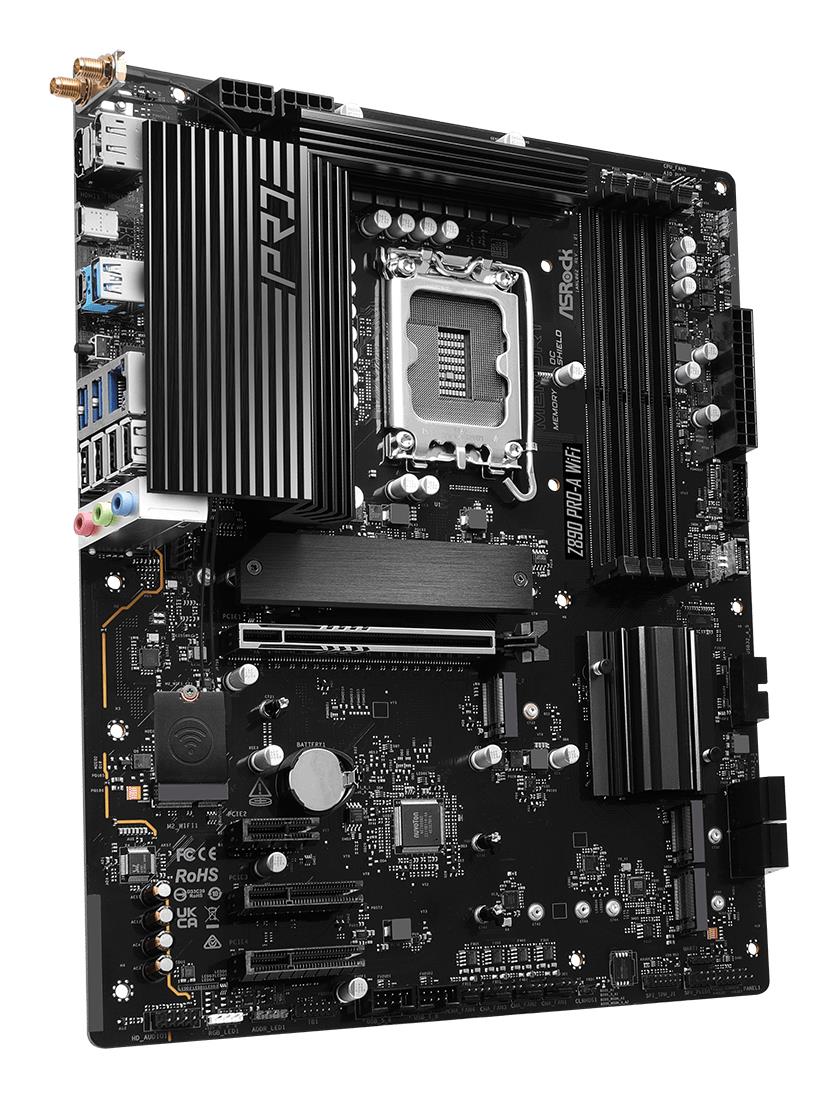

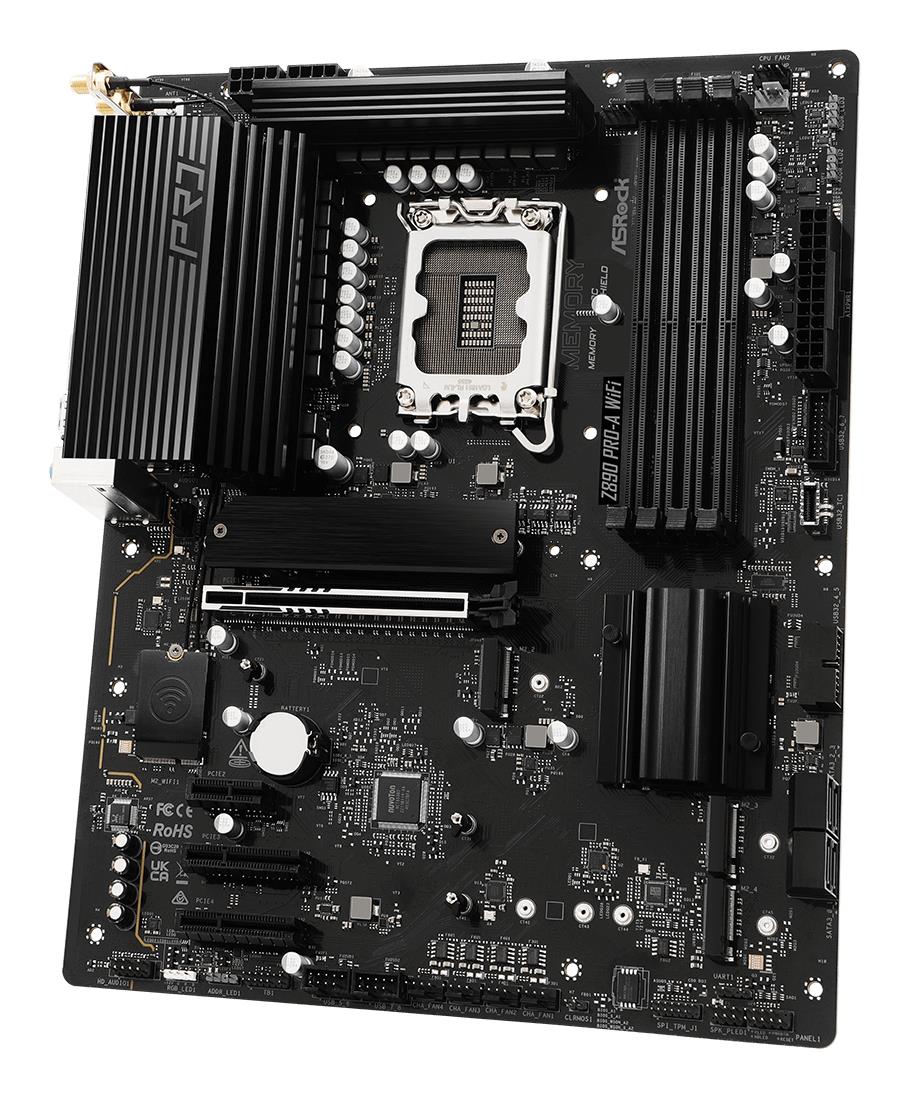

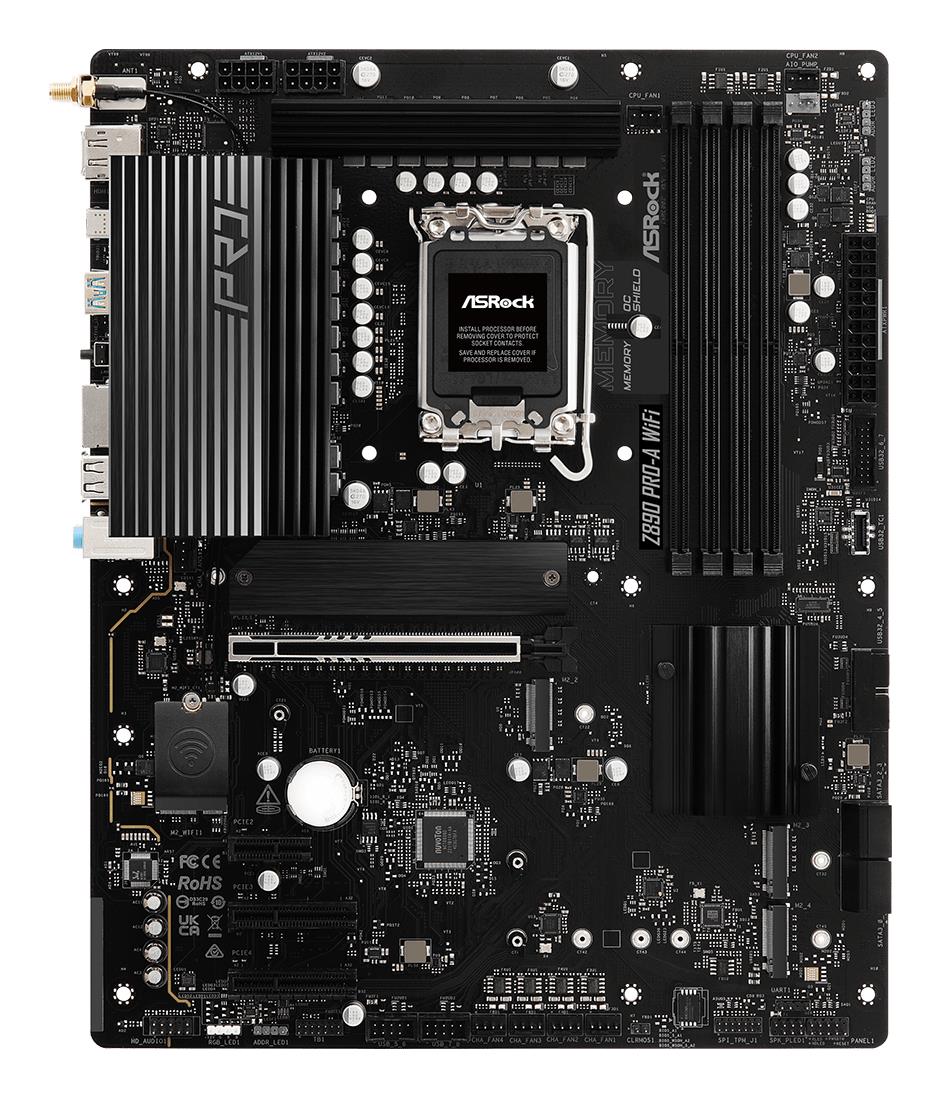

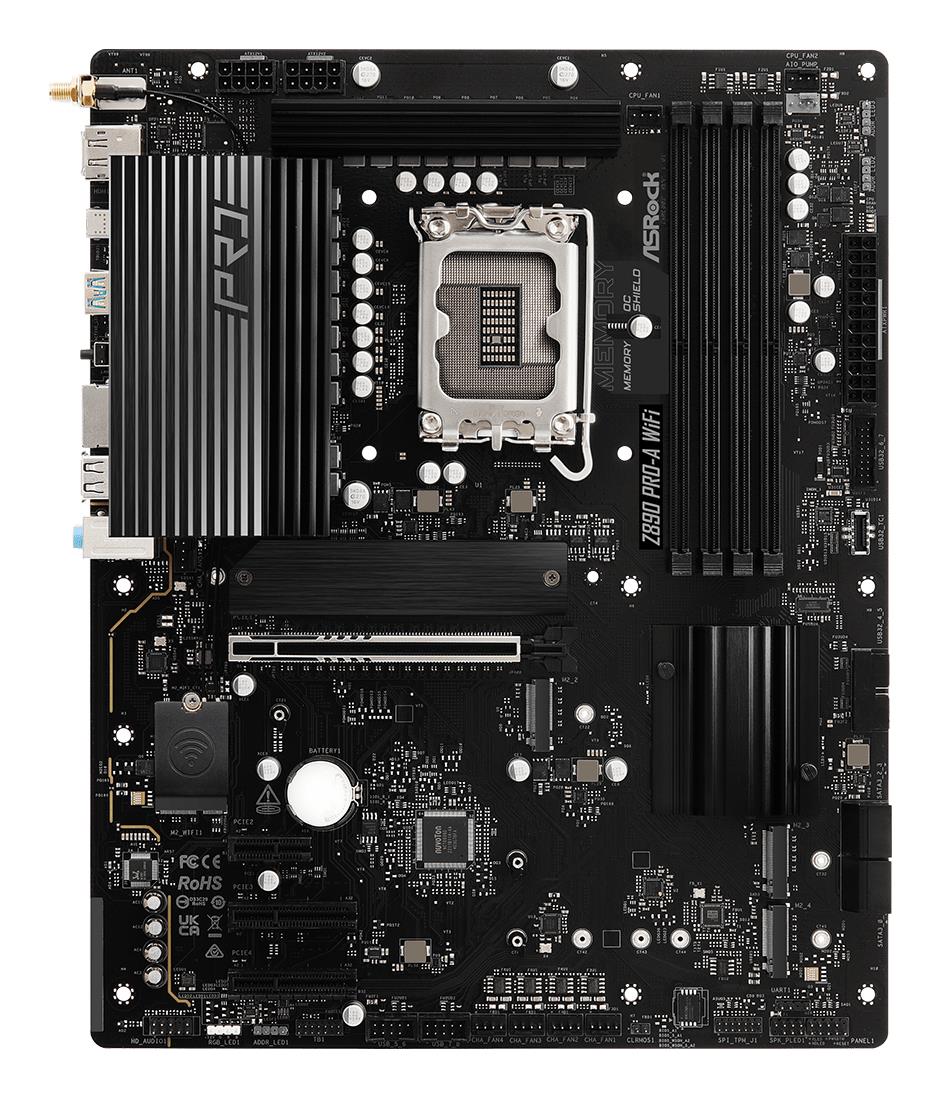

Mainboard|ASROCK|Intel Z890|LGA1851|ATX|Memory DDR5|Memory slots 4|Z890PRO-AWIFI

Summary: Asrock Z890 Pro-A WiFi. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Dragon RTL8125BG, Top Wi-Fi standard: Wi-Fi 6E (802.11ax). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: Intel

Category Code: MBI

Unit Box Height: 0.075

Unit Box Length: 0.35

Unit Box Width: 0.28

Compatible processor series: Intel Core Ultra (Series 2)

Processor manufacturer: Intel

Processor socket: LGA 1851 (Socket V1)

Supported processor sockets: LGA 1851

ECC ?ompatibility: non-ECC

Maximum internal memory: 256 GB

Memory channels: Dual-channel

Memory slots type: DIMM

Number of memory slots: 4

Supported memory clock speed (max): 9066 MHz

Supported memory types: DDR5-SDRAM

Unbuffered memory: Yes

Number of HDDs supported: 4

Number of storage drives supported: 8

RAID levels: 0/1/10/5

RAID support: Yes

Supported storage drive interfaces: M.2,SATA III

Supported storage drive types: HDD & SSD

12V power connector: Yes

ATX Power connector (24-pin): Yes

Audio connector: Yes

CPU fan connector: Yes

Front panel audio connector: Yes

Number of chassis fan connectors: 5

Number of CPU fan connectors: 2

Number of SATA III connectors: 4

RGB LED pin header: Yes

TPM connector: Yes

USB 2.0 connectors: 2

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2

USB 3.2 Gen 2x2 connectors: 1

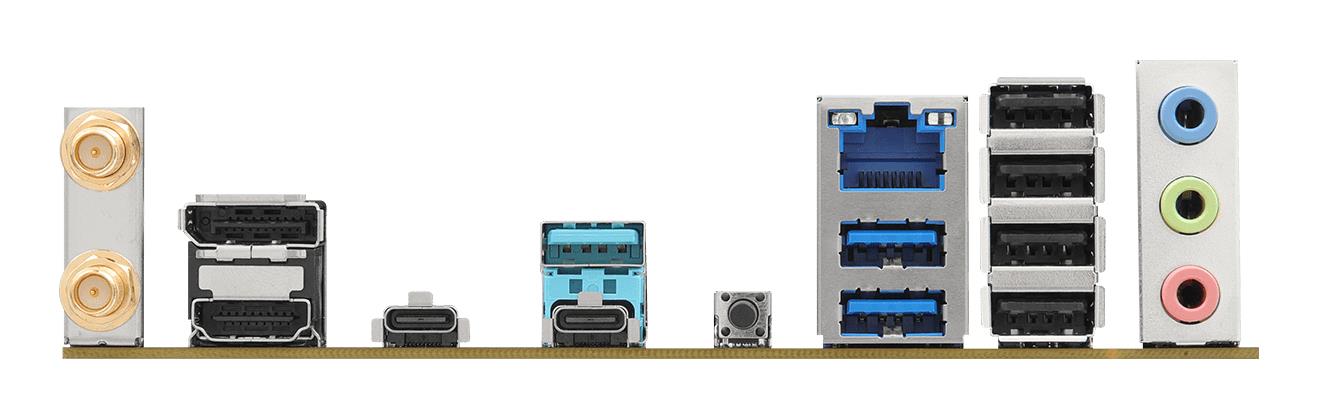

DisplayPort version: 1.4

DisplayPorts quantity: 1

Ethernet LAN (RJ-45) ports: 1

HDMI ports quantity: 1

Headphone outputs: 1

Line-in: Yes

Microphone in: Yes

Thunderbolt ports quantity: 1

USB 2.0 ports quantity: 4

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1

USB 3.2 Gen 2x2 Type-C ports quantity: 1

Bluetooth: Yes

Bluetooth version: 5.3

Ethernet interface type: 2.5 Gigabit Ethernet

Ethernet LAN: Yes

LAN controller: Dragon RTL8125BG

Top Wi-Fi standard: Wi-Fi 6E (802.11ax)

Wi-Fi: Yes

Wi-Fi standards: 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)

Audio chip: Realtek ALC897

Audio output channels: 7.1 channels

Component for: PC

Motherboard chipset: Intel Z890

Motherboard chipset family: Intel

Motherboard form factor: ATX

Windows operating systems supported: Windows 11 x64

PCI Express x1 (Gen 4.x) slots: 1

PCI Express x16 (Gen 5.x) slots: 1

PCI Express x4 (Gen 4.x) slots: 2

BIOS memory size: 256 Mbit

BIOS type: UEFI AMI

Depth: 244 mm

Width: 305 mm

Cables included: SATA

Screws included: Yes

Compliance certificates: CE/Federal Communications Commission (FCC)

Model: Z890 Pro-A WiFi

Units per Pallet: 0

Unit Calculated Volume: 0.00888 cubm

Product Net Weight: 1 kg

Unit Calculated Weight: 1.9 kg
