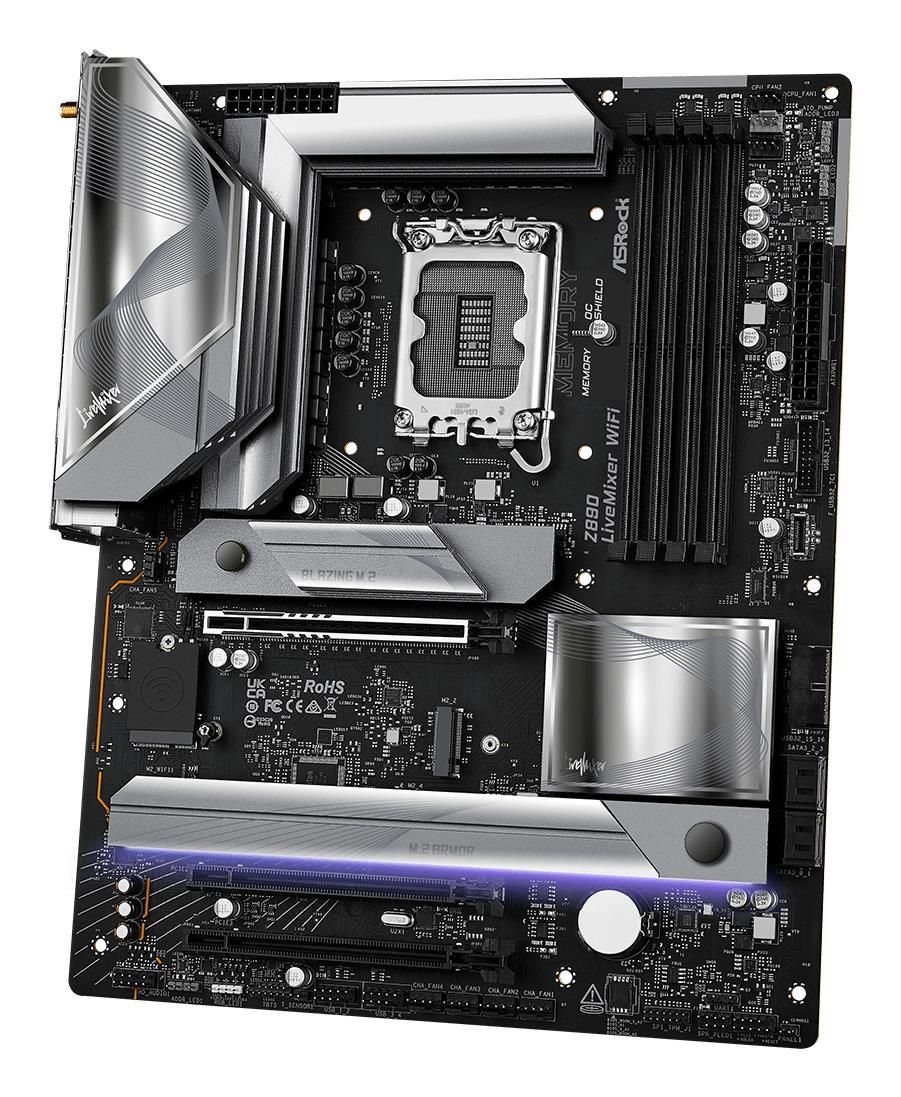

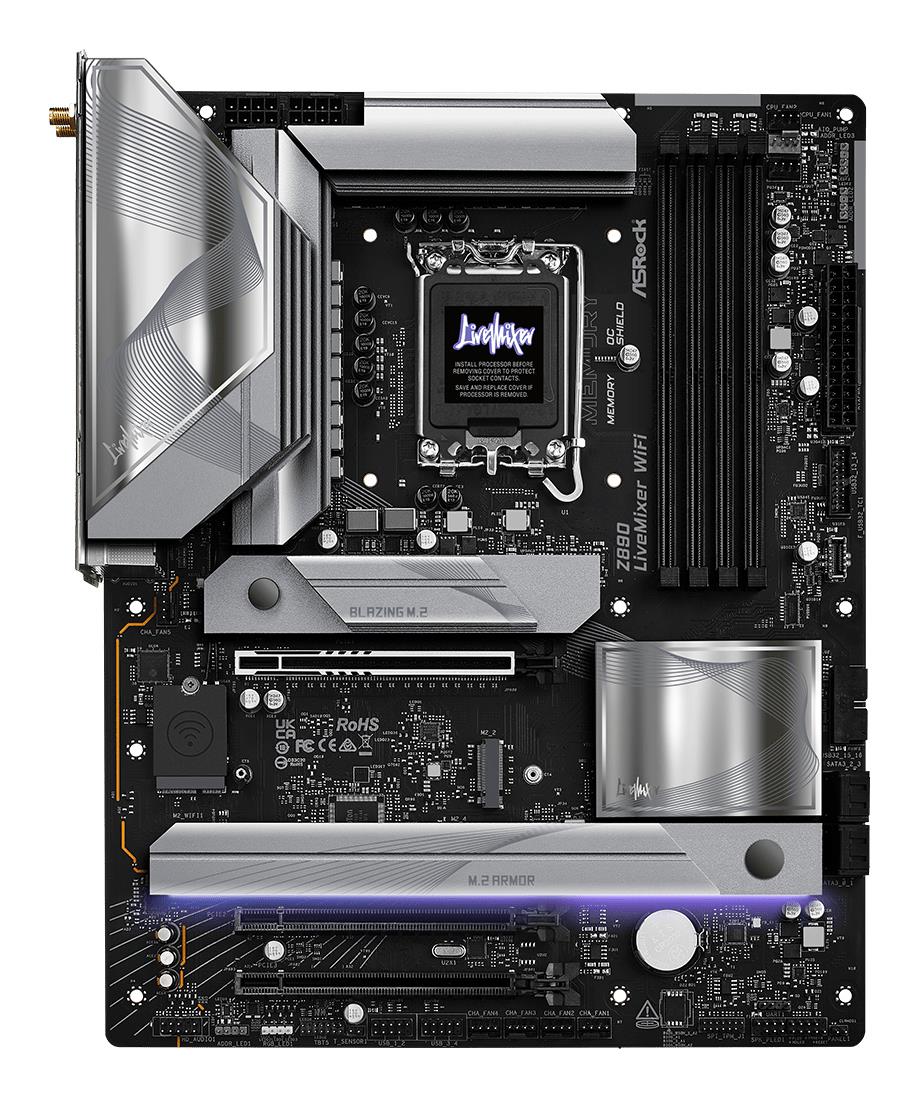

Mainboard|ASROCK|Intel Z890|LGA 1851 (Socket V1)|ATX|RAM DDR5-SDRAM|4xSlots|Wi-Fi Yes|Bluetooth Yes|Z890LIVEMIXERWIFI

Summary: Asrock Z890 LiveMixer WiFi. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E.... Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: Intel

Category Code: MBI

Unit Box Height: 0.075

Unit Box Length: 0.35

Unit Box Width: 0.28

Audio chip: Realtek ALC1220

Audio output channels: 7.1 channels

Component for: PC

Motherboard chipset: Intel Z890

Motherboard chipset family: Intel

Motherboard form factor: ATX

Compatible processor series: Intel Core Ultra (Series 2)

Processor manufacturer: Intel

Processor socket: LGA 1851 (Socket V1)

ECC сompatibility: Non-ECC

Maximum internal memory: 256 GB

Memory slots type: DIMM

Number of memory slots: 4

Supported memory clock speed (max): 9466 MHz

Supported memory types: DDR5-SDRAM

RAID levels: 0/1/10/5

RAID support: Yes

Supported storage drive interfaces: M.2,SATA III

ATX Power connector (24-pin): Yes

CPU fan connector: Yes

EPS power connector (8-pin): Yes

Front panel audio connector: Yes

Number of chassis fan connectors: 5

Number of CPU fan connectors: 2

Number of EPS power connectors (8-pin): 2

Number of SATA III connectors: 4

RGB LED pin header: Yes

TPM connector: Yes

USB 2.0 connectors: 4

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 4

USB 3.2 Gen 2x2 connectors: 1

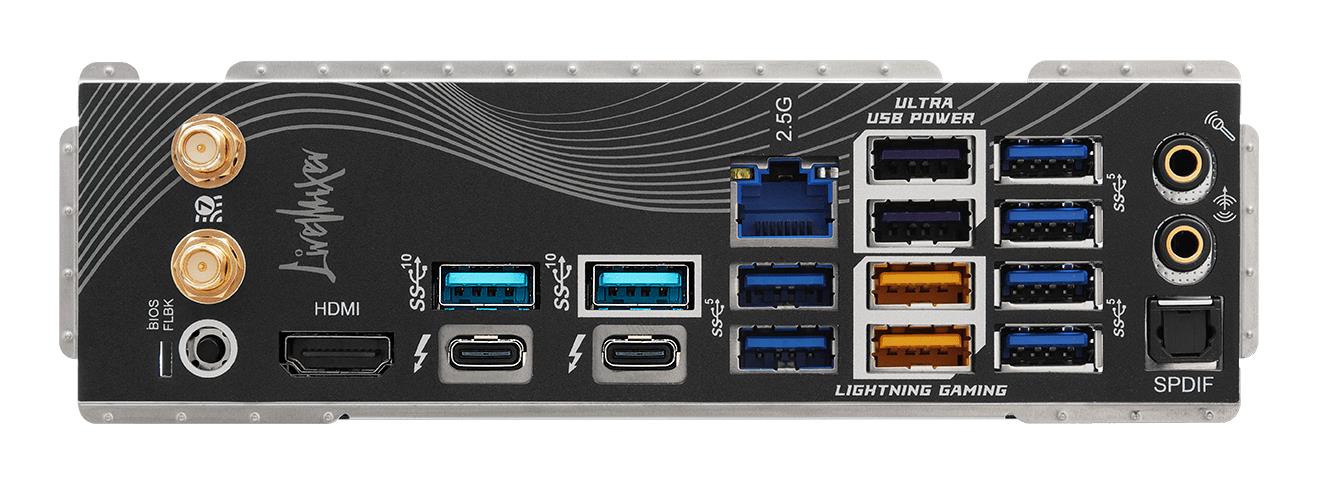

Ethernet LAN (RJ-45) ports: 1

HDMI ports quantity: 1

HDMI version: 2.1

Microphone in: Yes

S/PDIF out port: Yes

Thunderbolt ports quantity: 2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 10

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2

WiFi-AP antenna jack: 2

Bluetooth: Yes

Bluetooth version: 5.4

Ethernet interface type: 2.5 Gigabit Ethernet

Ethernet LAN: Yes

Top Wi-Fi standard: Wi-Fi 7 (802.11be)

Wi-Fi: Yes

Wi-Fi standards: 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)/Wi-Fi 7 (802.11be)

PCI Express x16 (Gen 4.x) slots: 2

PCI Express x16 (Gen 5.x) slots: 1

BIOS memory size: 256 Mbit

BIOS type: UEFI AMI

Depth: 244 mm

Width: 305 mm

Units per Pallet: 0

Unit Calculated Volume: 0.00735 cubm

Unit Calculated Weight: 2 kg
