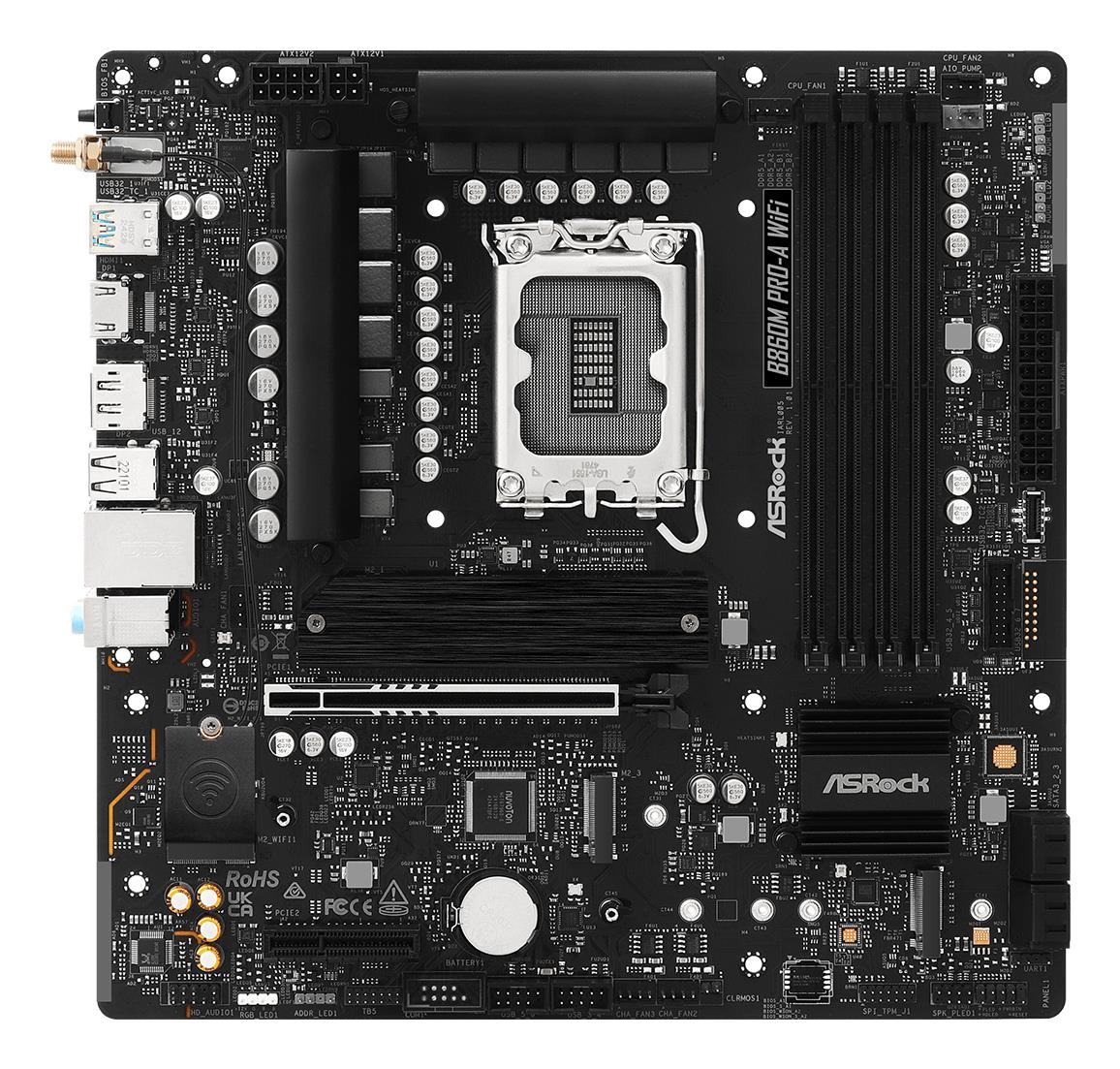

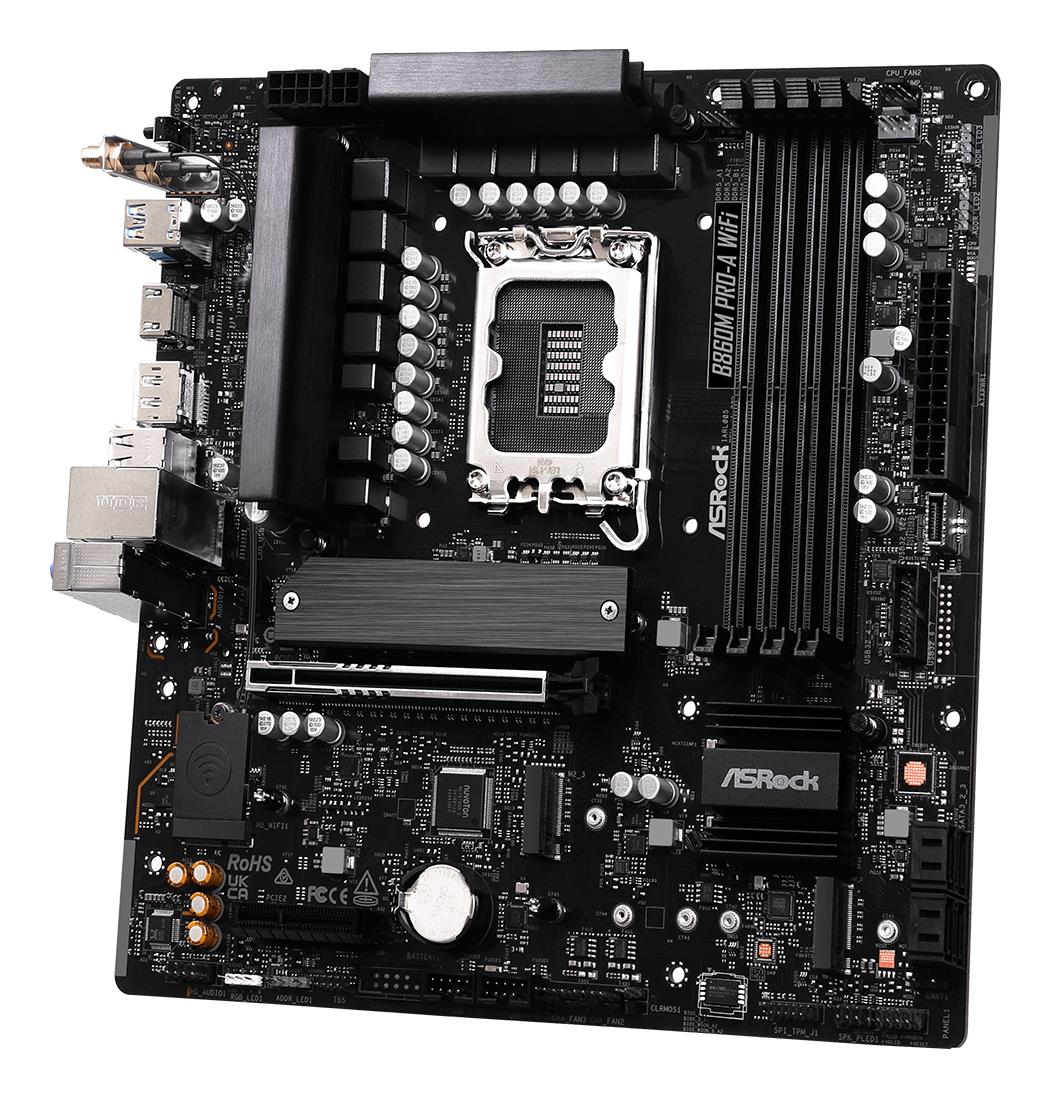

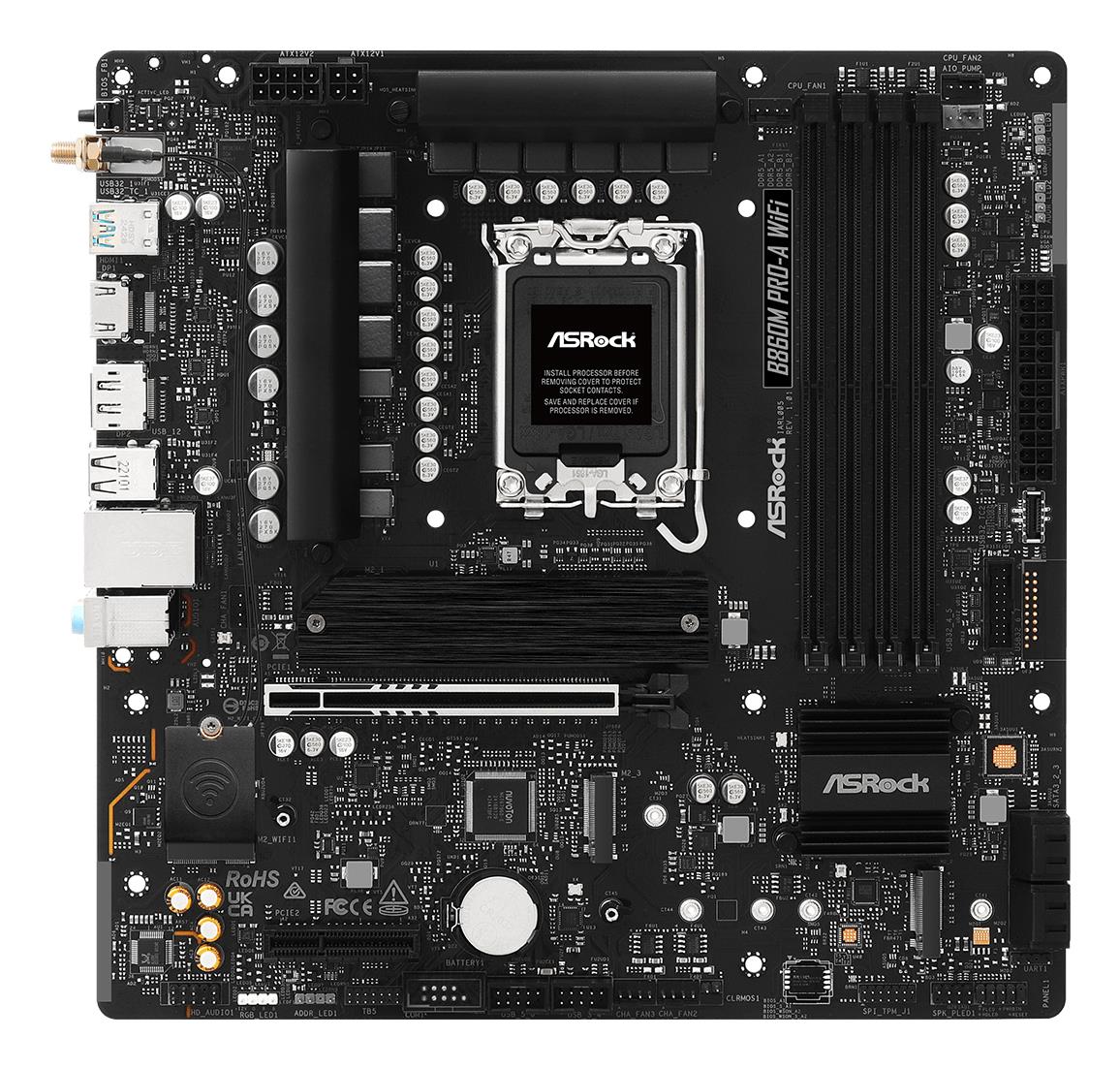

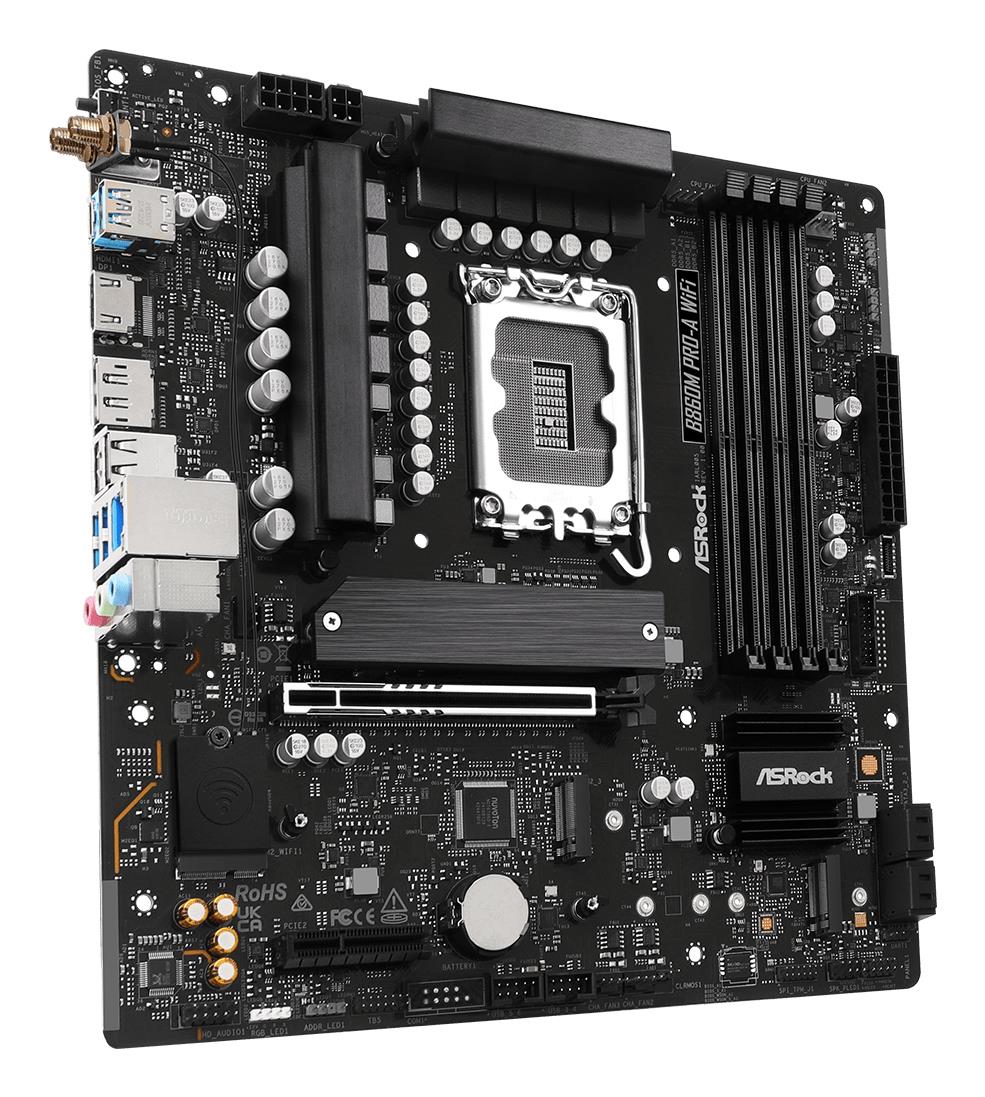

Mainboard|ASROCK|Intel B860 Express|LGA1851|Micro-ATX|Memory DDR5|Memory slots 4|B860MPRO-AWIFI

Summary: Asrock B860M Pro-A WiFi. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1). Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Dragon RTL8125BG, Top Wi-Fi standard: Wi-Fi 6E (802.11ax). Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel

Category Code: MBI

Unit Box Height: 0.06

Unit Box Length: 0.3

Unit Box Width: 0.265

Processor manufacturer: Intel

Processor socket: LGA 1851 (Socket V1)

ECC ?ompatibility: non-ECC

Maximum internal memory: 256 GB

Memory channels: Dual-channel

Memory slots type: DIMM

Number of memory slots: 4

Supported memory types: DDR5-SDRAM

Unbuffered memory: Yes

RAID levels: 0/10/5

RAID support: Yes

Supported storage drive interfaces: M.2,SATA III

Supported storage drive types: HDD & SSD

ATX Power connector (24-pin): Yes

CPU fan connector: Yes

EPS power connector (8-pin): Yes

Front panel audio connector: Yes

Number of chassis fan connectors: 3

Number of CPU fan connectors: 2

Number of EPS power connectors (8-pin): 1

Number of SATA III connectors: 4

RGB LED pin header: Yes

TPM connector: Yes

USB 2.0 connectors: 2

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2

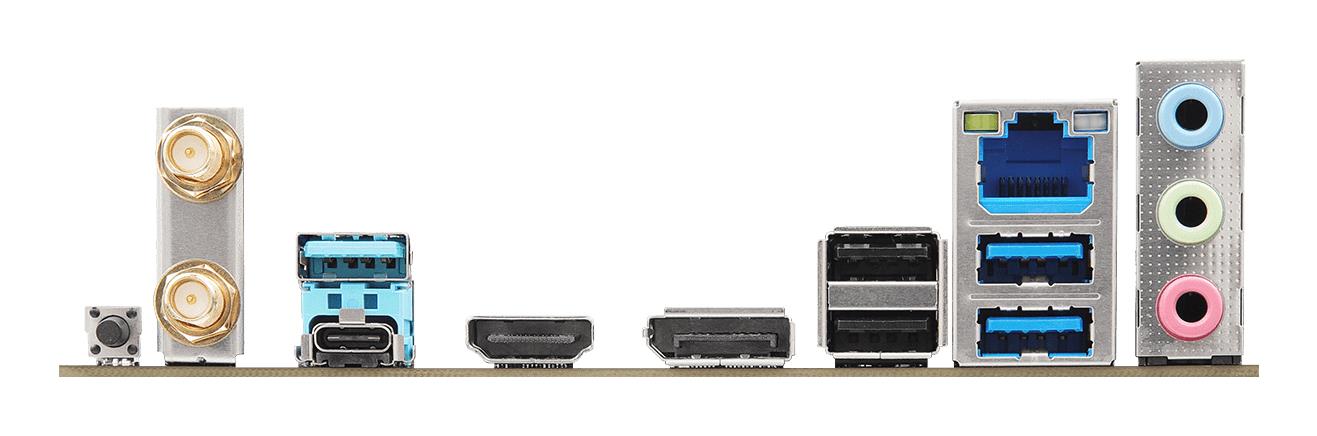

DisplayPort version: 1.4

DisplayPorts quantity: 1

Ethernet LAN (RJ-45) ports: 1

HDMI ports quantity: 1

Line-in: Yes

Microphone in: Yes

USB 2.0 ports quantity: 2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3

USB 3.2 Gen 2x2 Type-C ports quantity: 1

Bluetooth: Yes

Bluetooth version: 5.3

Ethernet interface type: 2.5 Gigabit Ethernet

Ethernet LAN: Yes

LAN controller: Dragon RTL8125BG

Top Wi-Fi standard: Wi-Fi 6E (802.11ax)

Wi-Fi: Yes

Wi-Fi standards: 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)

Audio chip: Realtek ALC897

Audio output channels: 7.1 channels

Component for: PC

Motherboard chipset: Intel B860

Motherboard chipset family: Intel

Motherboard form factor: Micro ATX

Windows operating systems supported: Windows 11 x64

Number of M.2 (M) slots: 1

PCI Express x16 (Gen 5.x) slots: 1

PCI Express x4 (Gen 4.x) slots: 1

BIOS memory size: 256 Mbit

BIOS type: UEFI AMI

Depth: 244 mm

Width: 244 mm

Antenna included: Yes

Cables included: SATA

Model: B860M PRO-A WIFI

Units per Pallet: 0

Unit Calculated Volume: 0.005456 cubm

Product Net Weight: 0.7 kg

Unit Calculated Weight: 1.28 kg
