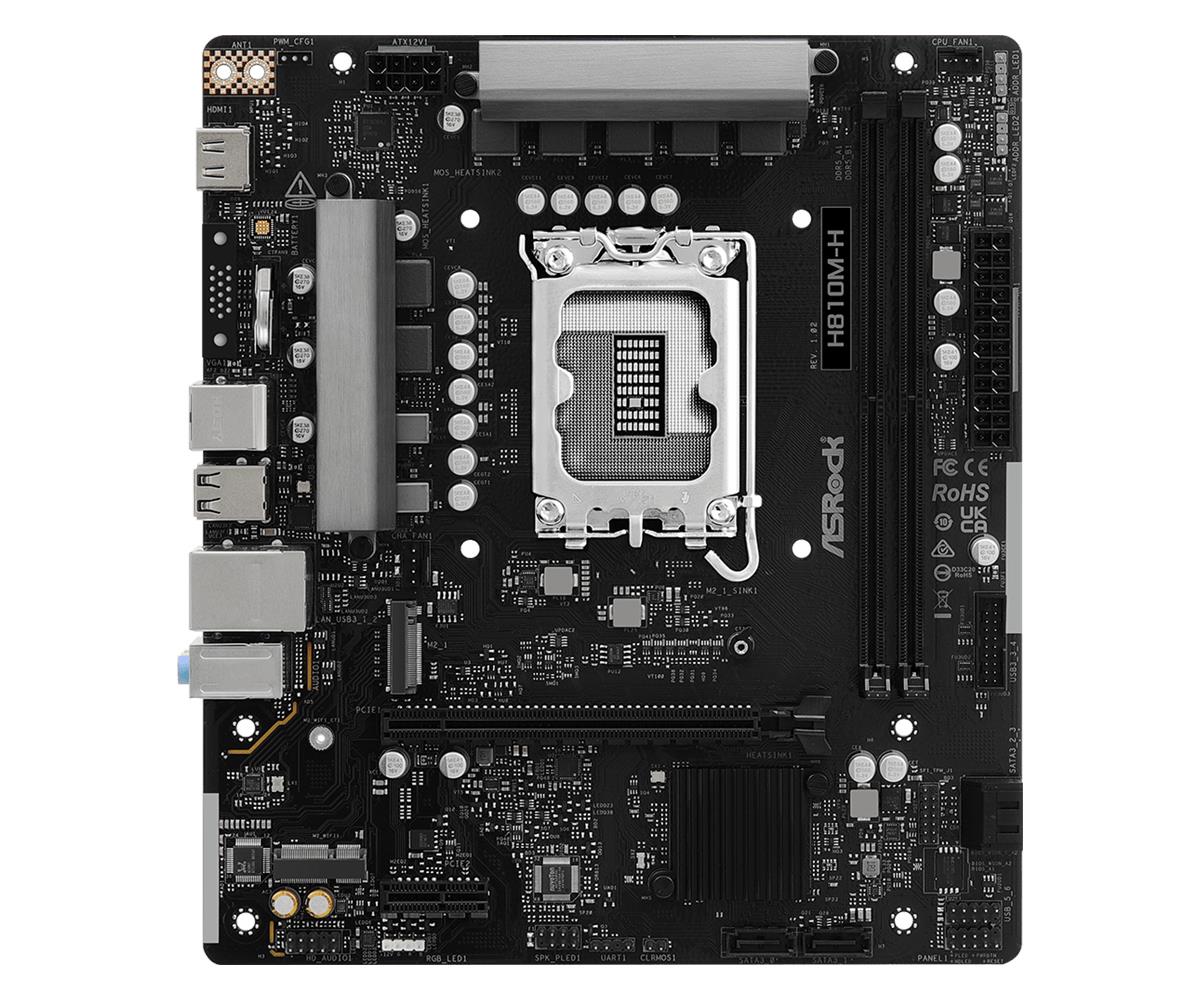

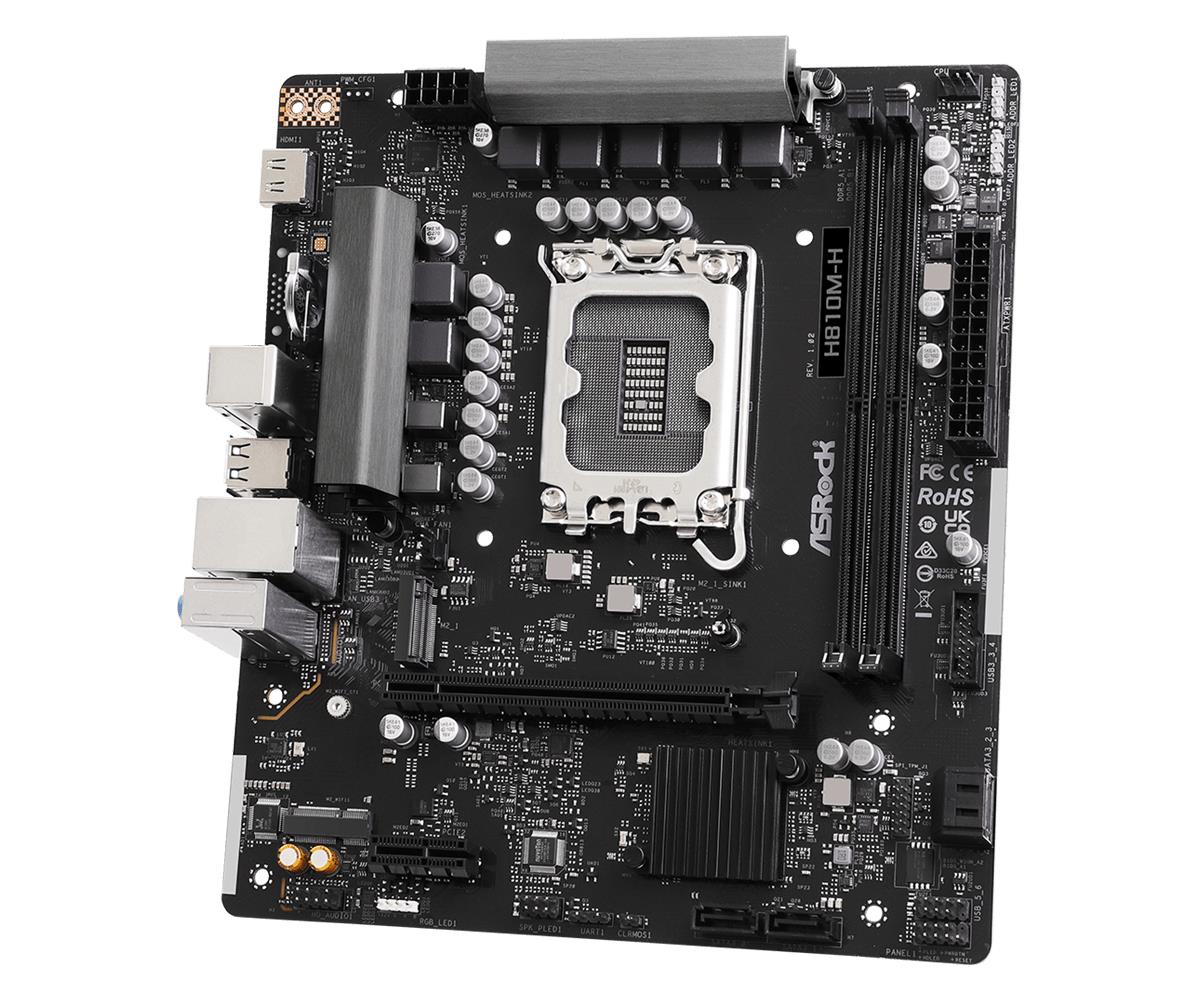

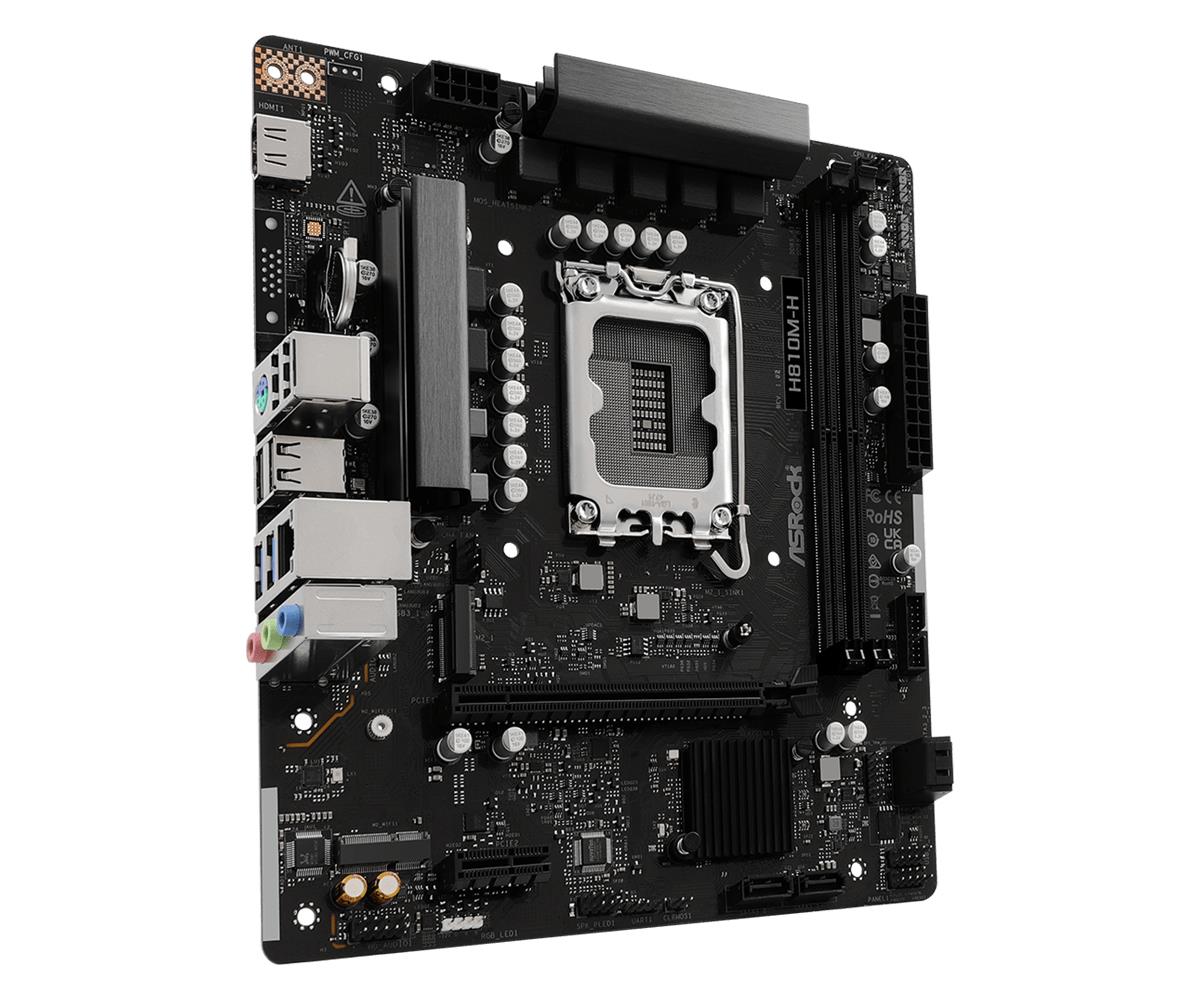

Mainboard|ASROCK|H810M-H|Intel H810|LGA 1851 (Socket V1)|micro ATX|RAM DDR5-SDRAM|2xSlots|1xNumber of M.2 (M) slots|H810M-H

Summary: Asrock H810M-H. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD. Maximum resolution: 3840 x 2160 pixels. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek RTL8111H

Category Code: MBI

Unit Box Height: 0.06

Unit Box Length: 0.28

Unit Box Width: 0.24

Audio chip: Realtek ALC897

Audio output channels: 7.1 channels

Certification: FCC, CE, ErP/EuP ready

Component for: PC

Motherboard chipset: Intel H810

Motherboard chipset family: Intel

Motherboard form factor: Micro ATX

Product colour: Black

Windows operating systems supported: Windows 11 x64

Compatible processor series: Intel Core Ultra (Series 2)

Processor manufacturer: Intel

Processor socket: LGA 1851 (Socket V1)

Supported processor sockets: Intel LGA1851

ECC сompatibility: ECC & Non-ECC

Maximum internal memory: 128 GB

Memory channels: Dual-channel

Memory slots type: DIMM

Number of memory slots: 2

Supported memory clock speed (max): 6400 MHz

Supported memory types: DDR5-SDRAM

Unbuffered memory: Yes

Number of storage drives supported: 5

Supported storage drive interfaces: M.2,SATA III

Supported storage drive types: HDD & SSD

HDCP: Yes

HDCP version: 2.3

High Dynamic Range (HDR) supported: Yes

Maximum resolution: 3840 x 2160 pixels

12V power connector: Yes

ATX Power connector (24-pin): Yes

CPU fan connector: Yes

Front panel audio connector: Yes

Number of chassis fan connectors: 1

Number of CPU fan connectors: 1

Number of RGB LED pin headers: 1

Number of SATA III connectors: 4

RGB LED pin header: Yes

TPM connector: Yes

USB 2.0 connectors: 2

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2

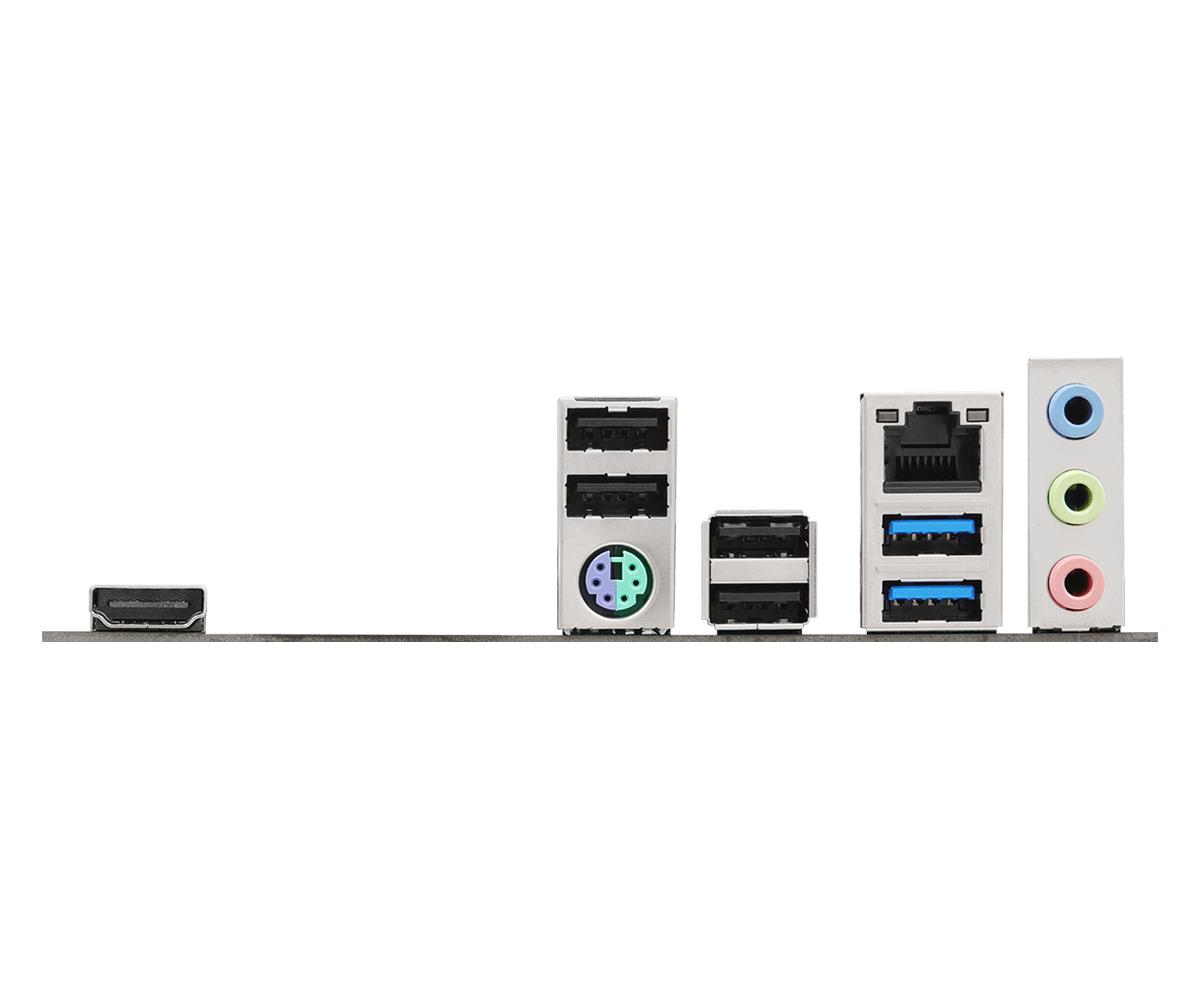

Ethernet LAN (RJ-45) ports: 1

HDMI ports quantity: 1

HDMI version: 2.1

Line-in: Yes

Microphone in: Yes

PS/2 ports quantity: 1

USB 2.0 ports quantity: 4

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4

Ethernet interface type: Gigabit Ethernet

Ethernet LAN: Yes

LAN controller: Realtek RTL8111H

Wi-Fi: No

1st M.2 highest PCI Express generation: 4.0

1st M.2 largest key size: 2280

Number of M.2 (M) slots: 1

PCI Express x1 (Gen 4.x) slots: 1

PCI Express x16 (Gen 4.x) slots: 1

BIOS memory size: 256 Mbit

BIOS type: UEFI AMI

Depth: 193 mm

Width: 220 mm

Cables included: SATA

Screws included: Yes

Model: H810M-H

Units per Pallet: 0

Unit Calculated Volume: 0.0044225 cubm

Unit Calculated Weight: 0.897 kg
