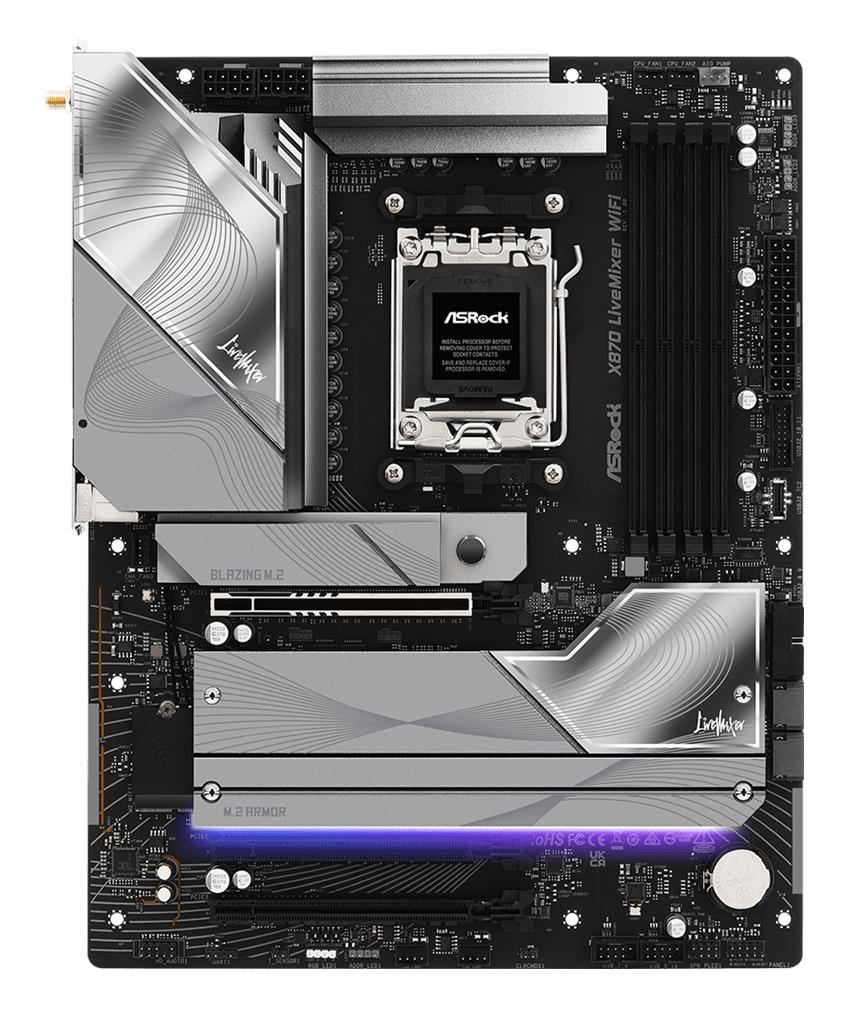

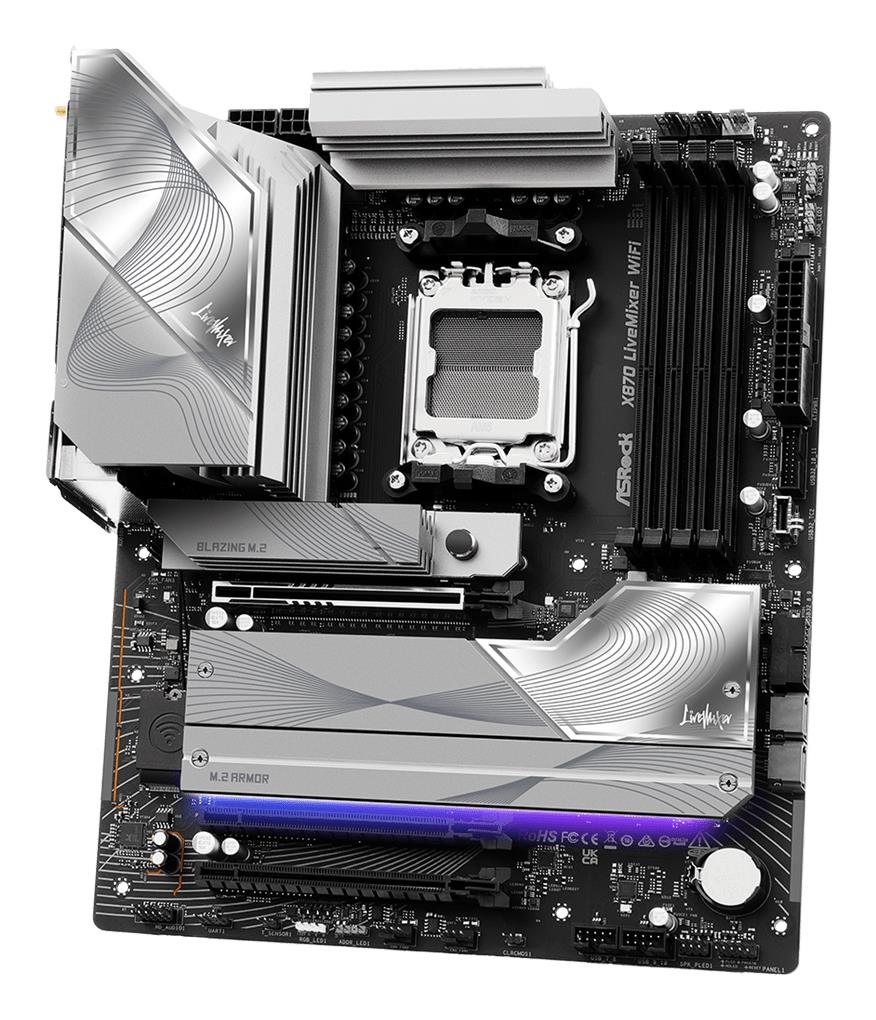

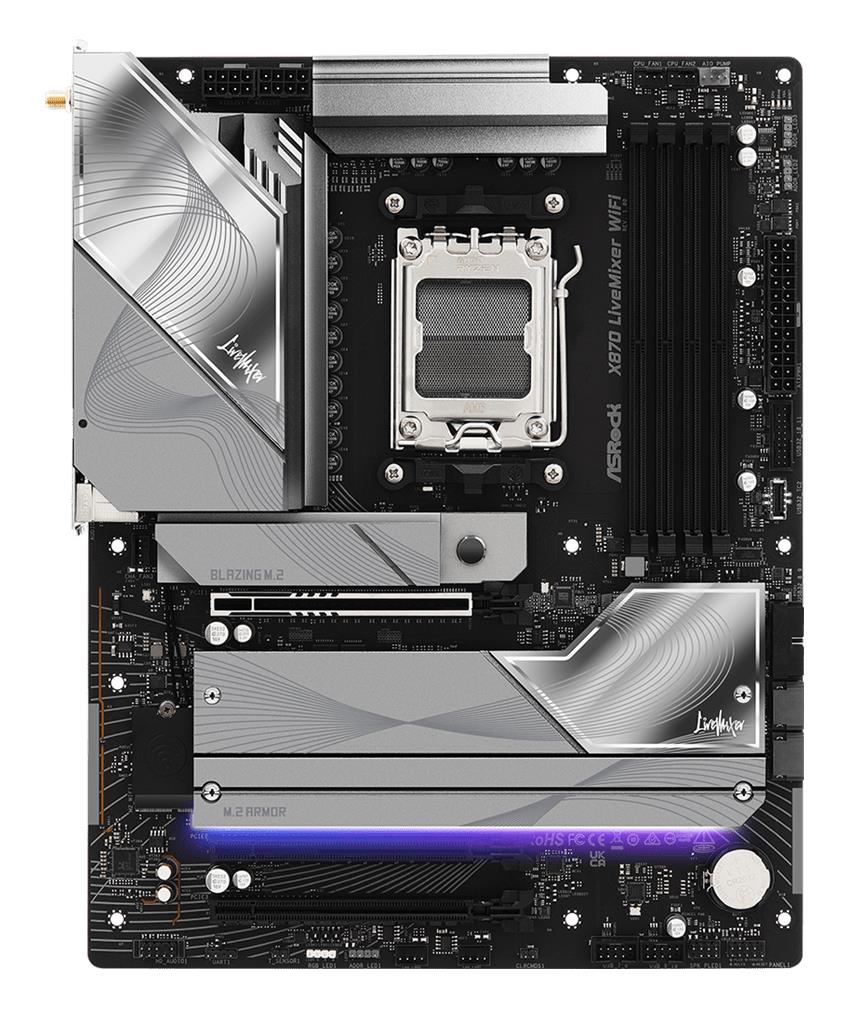

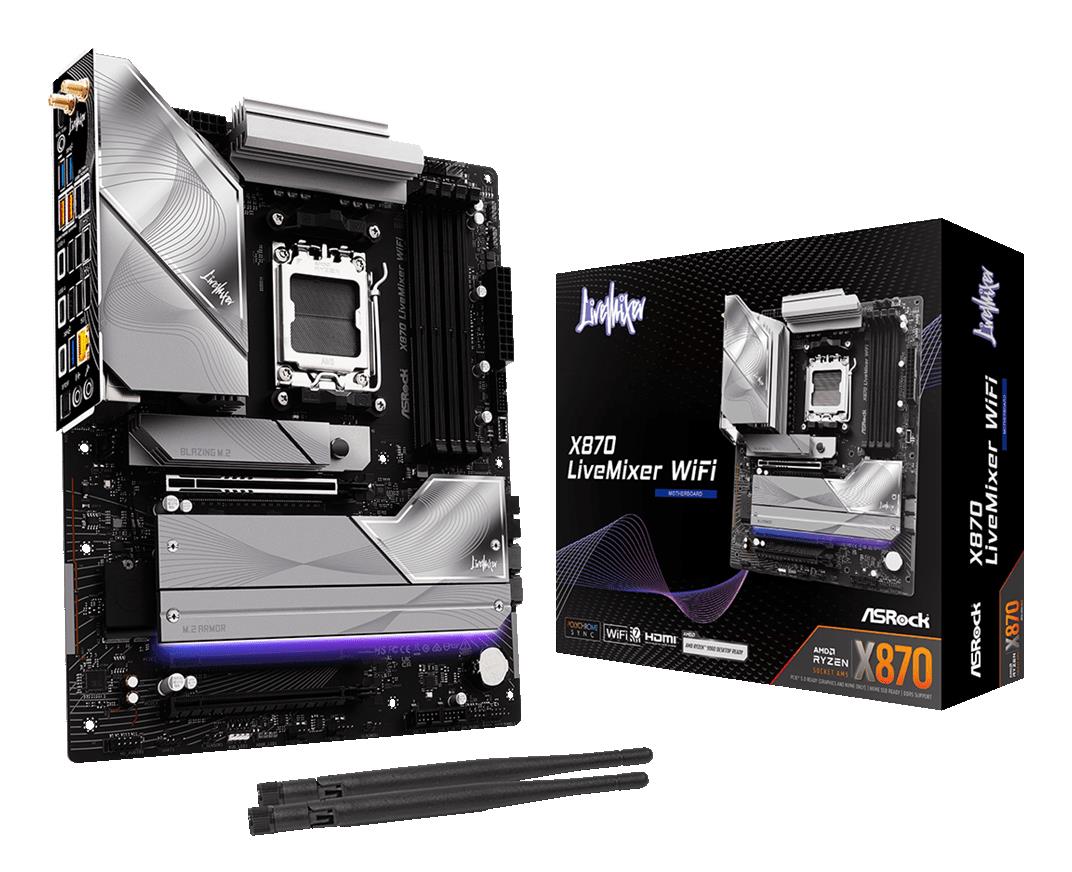

Mainboard|ASROCK|AMD X870|Socket AM5|ATX|RAM DDR5-SDRAM|4xSlots|On-board graphics card Yes|Wi-Fi Yes|Bluetooth Yes|1xNumber of M.2 (M) slots|X870LIVEMIXERWIFI

Summary: Asrock X870 LiveMixer WiFi. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: PCI Express 4.0, PCI Express 5.0, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Maximum resolution: 7680 x 4320 pixels. USB connector type: USB Type-A, USB Type-C

Category Code: MBA

Unit Box Height: 0.075

Unit Box Length: 0.35

Unit Box Width: 0.28

Audio chip: Realtek ALC4082

Audio output channels: 7.1 channels

Component for: PC

Motherboard chipset: AMD X870

Motherboard chipset family: AMD

Motherboard form factor: ATX

Product colour: Black

Windows operating systems supported: Windows 10 x64/Windows 11 x64

Compatible processor series: AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series

Processor manufacturer: AMD

Processor socket: Socket AM5

Supported processor sockets: Socket AM5

ECC сompatibility: ECC & Non-ECC

Maximum internal memory: 256 GB

Memory channels: Dual-channel

Memory slots type: DIMM

Number of memory slots: 4

Supported memory clock speed (max): 8000 MHz

Supported memory types: DDR5-SDRAM

Unbuffered memory: Yes

Number of storage drives supported: 6

RAID levels: 0/1/10

RAID support: Yes

Supported storage drive interfaces: PCI Express 4.0,PCI Express 5.0,SATA III

Supported storage drive types: HDD & SSD

HDCP: Yes

HDCP version: 2.3

High Dynamic Range (HDR) supported: Yes

Maximum resolution: 7680 x 4320 pixels

Parallel processing technology support: Not supported

12V power connector: Yes

ATX Power connector (24-pin): Yes

CPU fan connector: Yes

Front panel audio connector: Yes

Number of chassis fan connectors: 3

Number of CPU fan connectors: 2

Number of RGB LED pin headers: 1

Number of SATA III connectors: 2

Number of water pump connectors: 1

RGB LED pin header: Yes

TPM connector: Yes

USB 2.0 connectors: 2

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2

USB 3.2 Gen 2x2 connectors: 1

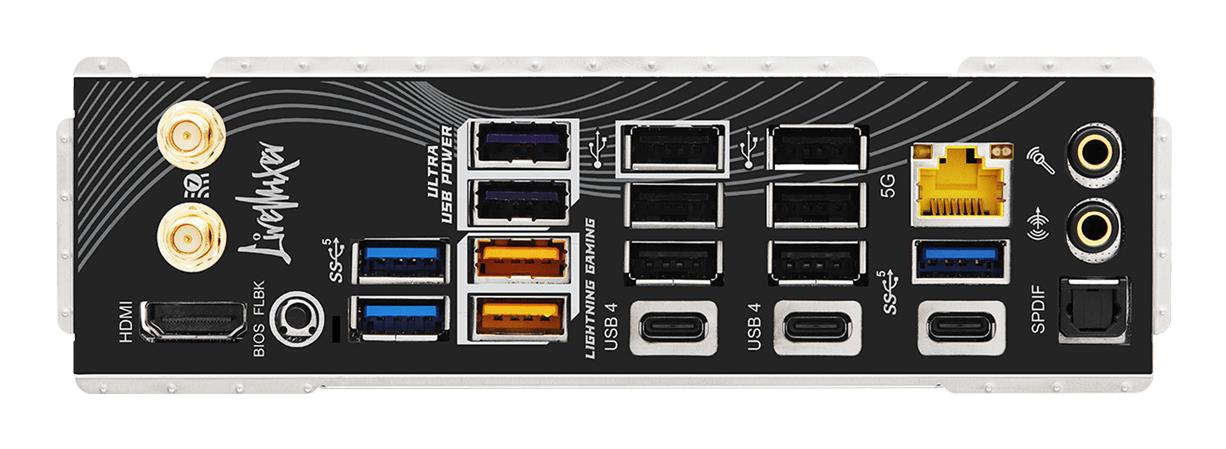

Ethernet LAN (RJ-45) ports: 1

HDMI ports quantity: 1

HDMI version: 2.1

Headphone outputs: 1

Microphone in: Yes

S/PDIF out port: Yes

USB 2.0 ports quantity: 6

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 7

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1

USB connector type: USB Type-A/USB Type-C

USB4 Gen 3x2 ports quantity: 2

WiFi-AP antenna jack: 2

Bluetooth: Yes

Bluetooth version: 5.4

Ethernet interface type: 2.5 Gigabit Ethernet/5 Gigabit Ethernet/Fast Ethernet/Gigabit Ethernet

Ethernet LAN: Yes

LAN controller: Realtek RTL8126

Top Wi-Fi standard: Wi-Fi 7 (802.11be)

Wi-Fi: Yes

Wi-Fi standards: 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)/Wi-Fi 7 (802.11be)

1st M.2 highest PCI Express generation: 5.0

1st M.2 largest key size: 2280

2nd M.2 highest PCI Express generation: 5.0

2nd M.2 largest key size: 2280

3rd M.2 highest PCI Express generation: 4.0

3rd M.2 largest key size: 2280

4th M.2 highest PCI Express generation: 4.0

4th M.2 largest key size: 2280

Number of M.2 (M) slots: 4

PCI Express x16 (Gen 3.x) slots: 2

PCI Express x16 (Gen 5.x) slots: 1

BIOS flashback button: Yes

BIOS memory size: 256 Mbit

BIOS type: UEFI AMI

Depth: 244 mm

Width: 305 mm

Antenna included: Yes

Cables included: SATA

Compliance certificates: CE/Federal Communications Commission (FCC)

Model: X870 LiveMixer WiFi

Units per Pallet: 0

Unit Calculated Volume: 0.00864 cubm

Unit Calculated Weight: 2.41 kg
