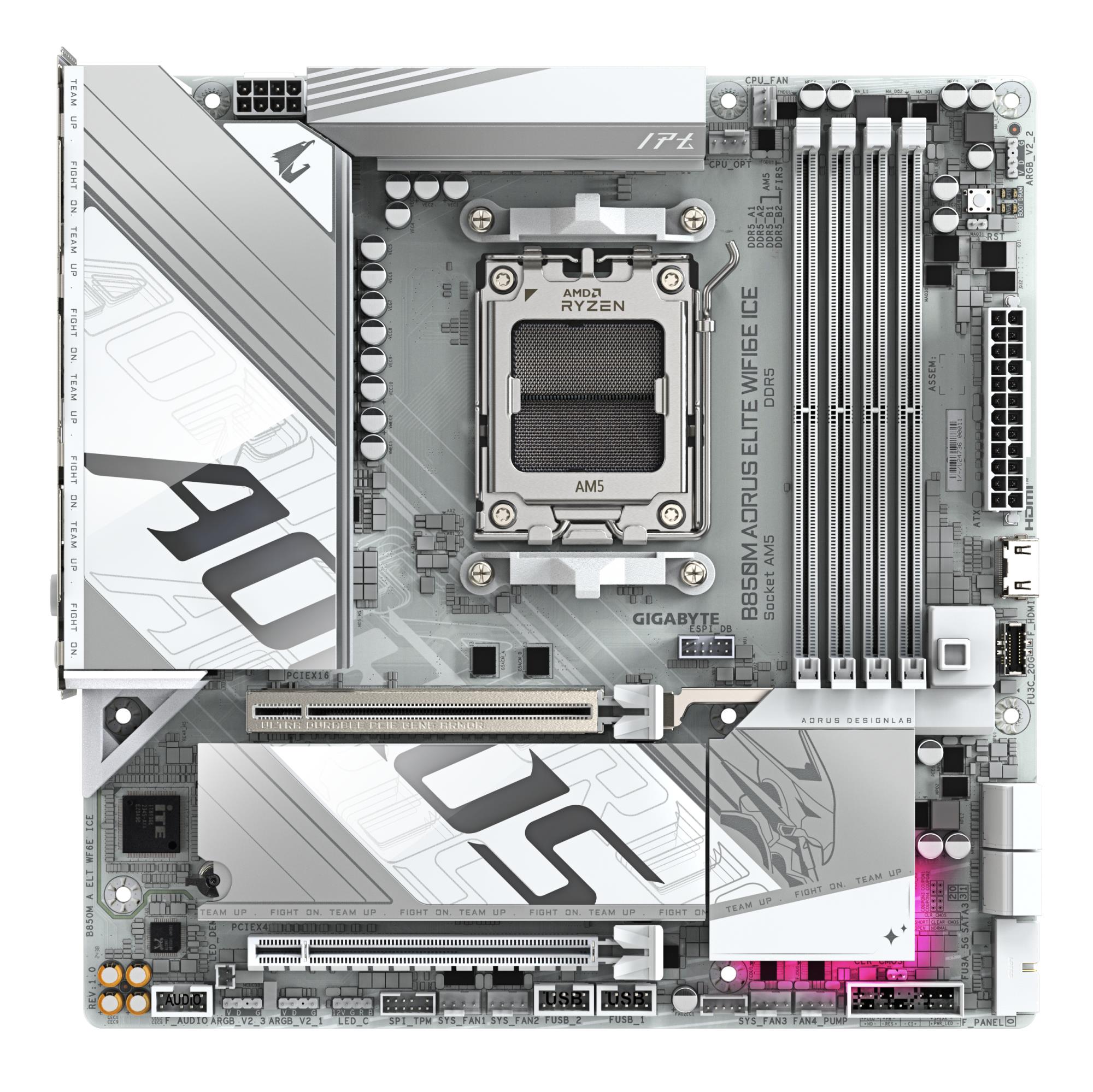

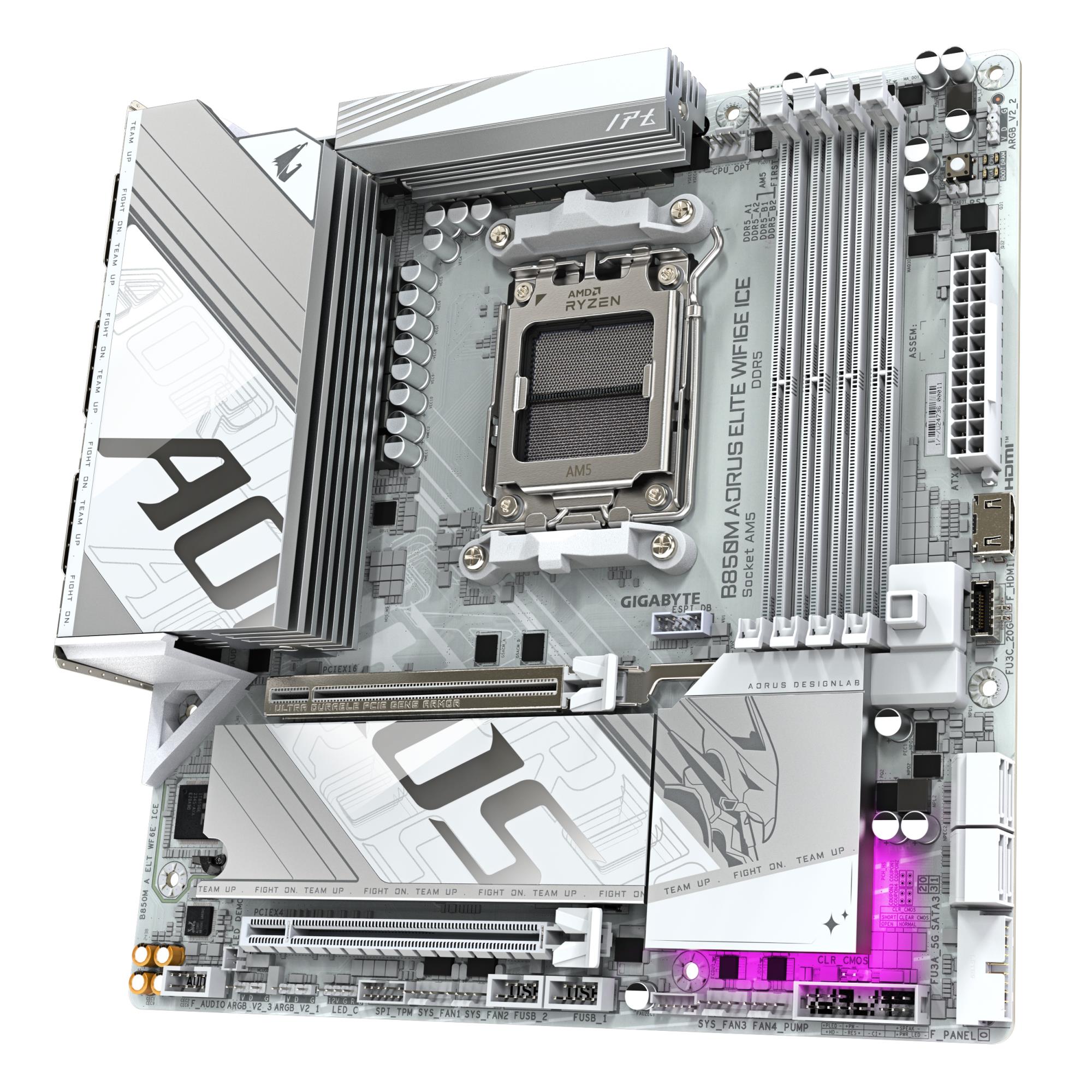

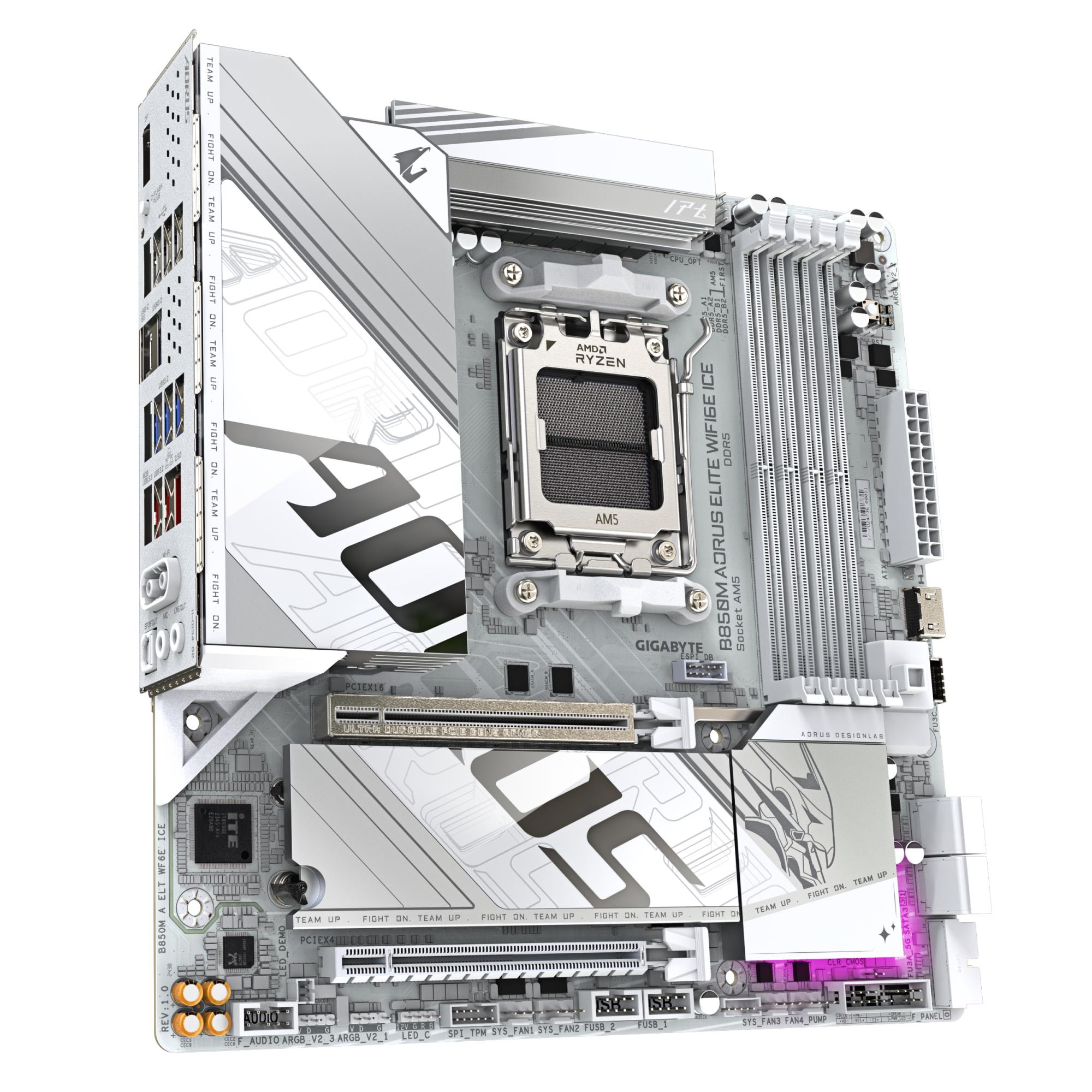

Mainboard|GIGABYTE|SAM5|Micro-ATX|Memory DDR5|Memory slots 4|1xPCI-Express 3.0 16x|1xPCI-Express 5.0 16x|2xM.2|1xHDMI|1xDisplayPort|4xUSB 2.0|7xUSB 3.2|2xUSB-C|1xOptical S/PDIF|1xRJ45|2xAudio port|B850MAELTWF6EICE
SKU: B850M A ELT WF6E ICE
€ 209.09
Pieejams : 3 gab.
AMD B850
micro ATX
Audio 7.1 channels
CPU AMD
Socket Socket AM5
Series AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series
Supported memory types DDR5-SDRAM
4xNumber of memory slots
Memory slots type DIMM
Supported storage drive interfaces M.2,SATA III
4096 x 2160 pixels
4xUSB 2.0 ports quantity
5xUSB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2xUSB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
1xUSB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1xEthernet LAN (RJ-45) ports
1xHDMI ports quantity
Wi-Fi Yes
Bluetooth Yes
Antenna included Yes
Weight 1.77 kg
-
Category Code: MBA
-
Unit Box Height: 0.07
-
Unit Box Length: 0.27
-
Unit Box Width: 0.275
-
PCI-Express 3.0 16x: 1
-
PCI-Express 5.0 16x: 1
-
M.2: 2
-
HDMI: 1
-
DisplayPort: 1
-
USB 2.0: 4
-
USB 3.2: 7
-
USB-C: 2
-
Optical S/PDIF: 1
-
RJ45: 1
-
Audio port: 2
-
SATA: Yes
-
USB-C: Yes
-
USB 2.0: Yes
-
USB 3.0: Yes
-
Bluetooth: Yes
-
WiFi: Yes
-
Model: B850M A ELT WF6E ICE
-
Socket: SAM5
-
Form Factor: Micro-ATX
-
Memory type: DDR5
-
Frequency speed: 4400/4800/5200/5600/5800/6000/6200/6400/6600/6800/7000/7200/7400/7600/7800/7900/7950/8000/8200 MHz
-
Memory slots: 4
-
Integrated video: Depending on CPU
-
Integrated audio: Yes
-
Integrated LAN: 2.5 Gigabit
-
RAID: SATA 0, 1, 10; NVMe 0, 1, 5, 10
-
TPM: Header
-
Unit Calculated Volume: 0.007302 cubm
-
Product Net Weight: 0.7 kg
-
Unit Calculated Weight: 1.98 kg
-
Manufacturer: GIGABYTE
