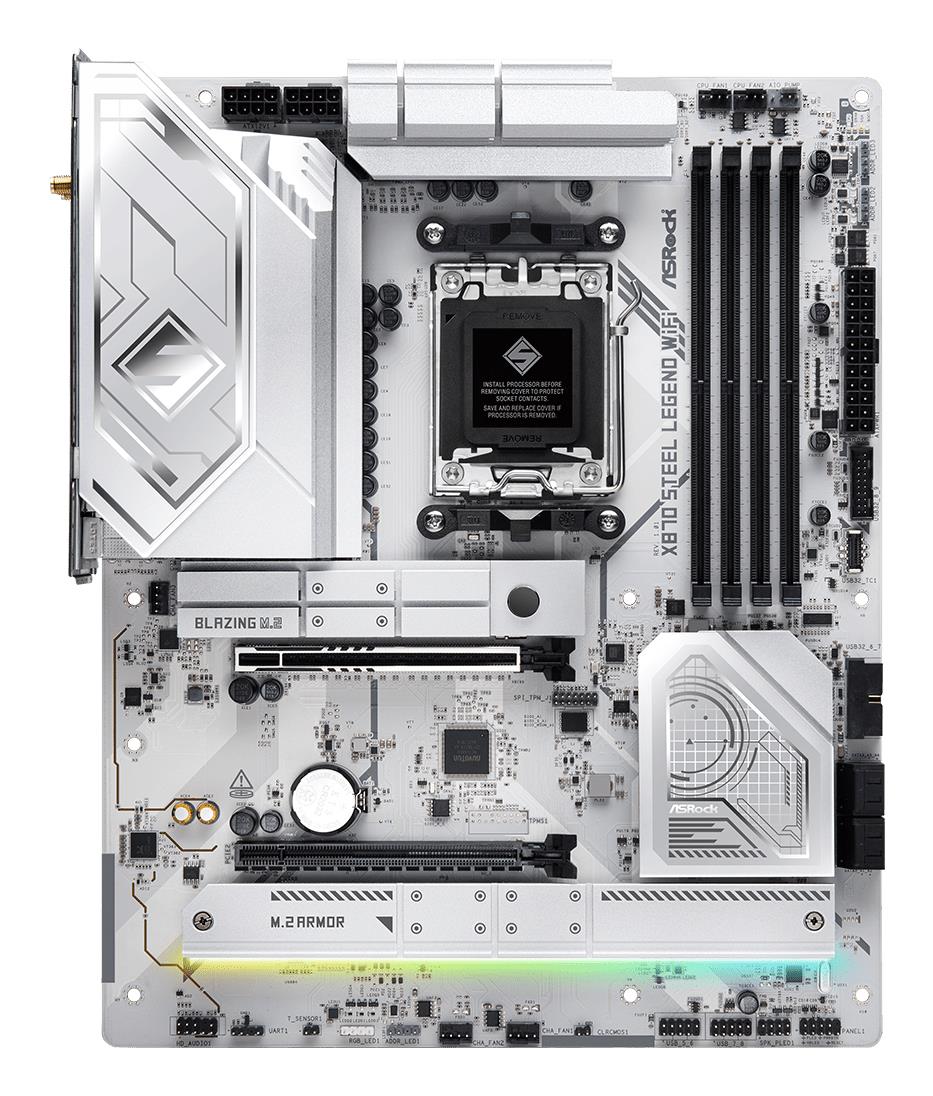

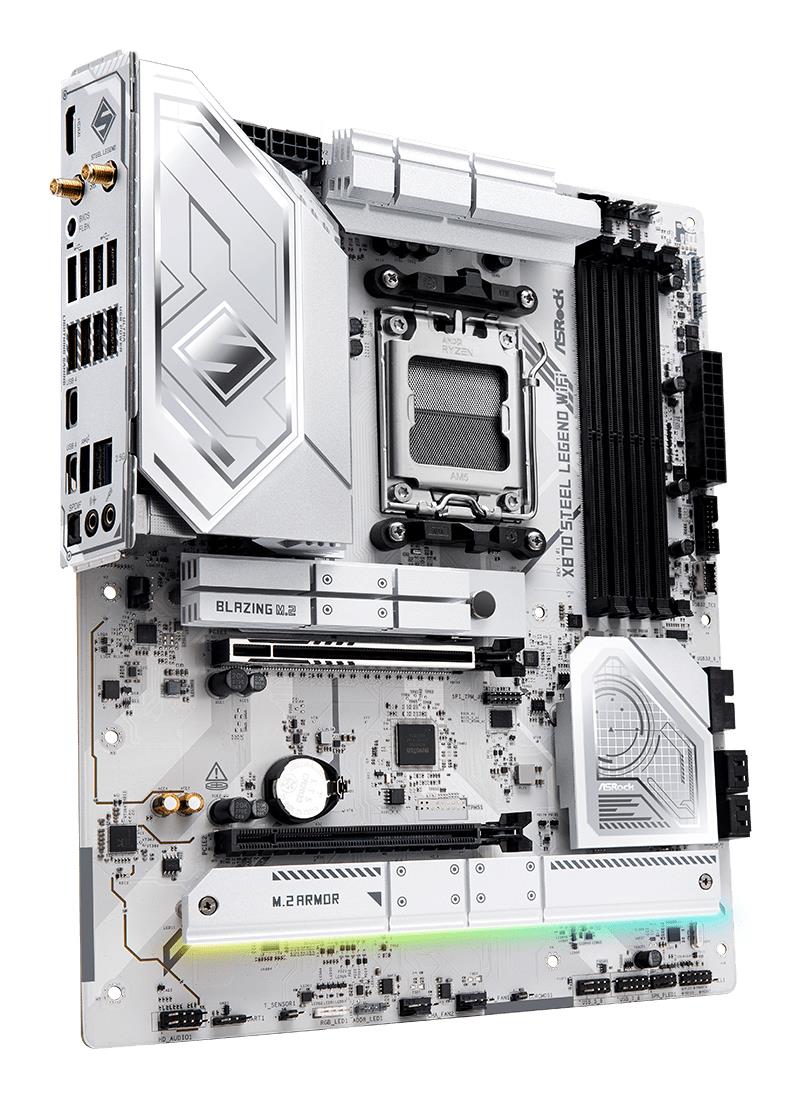

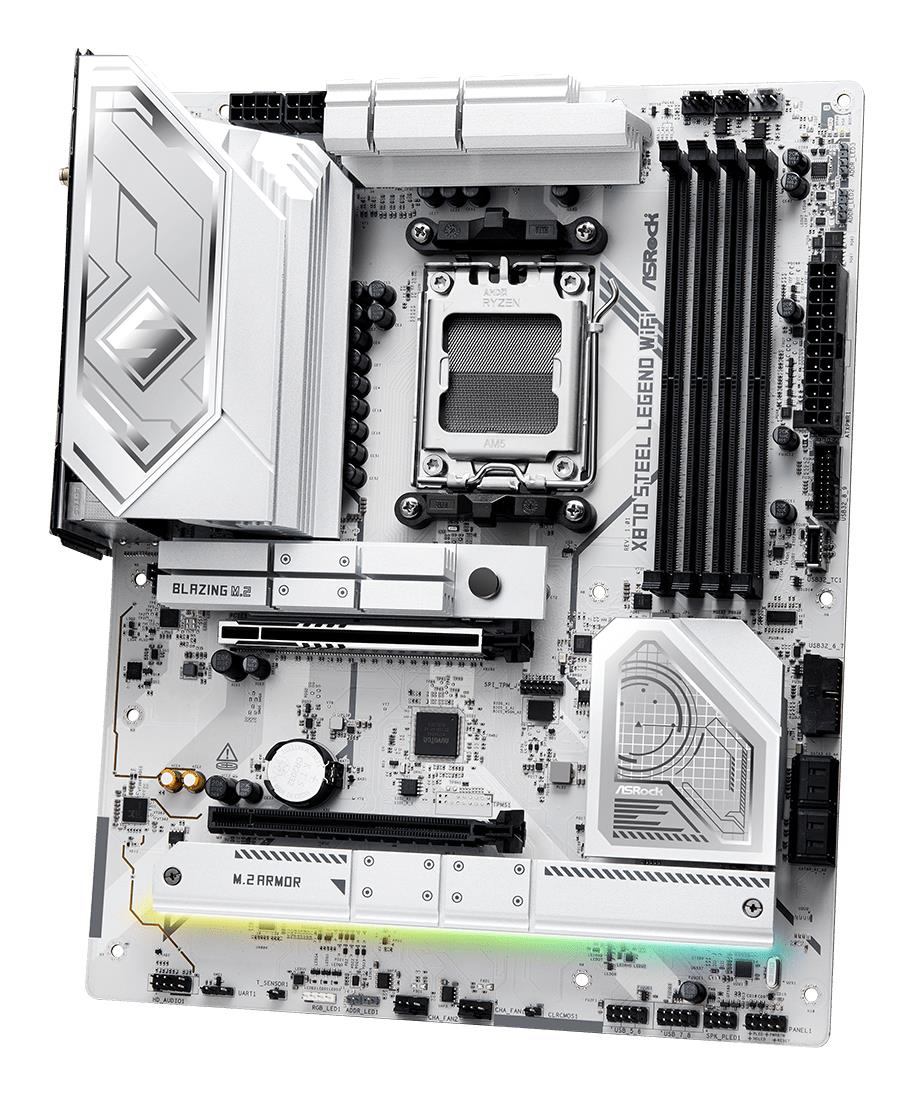

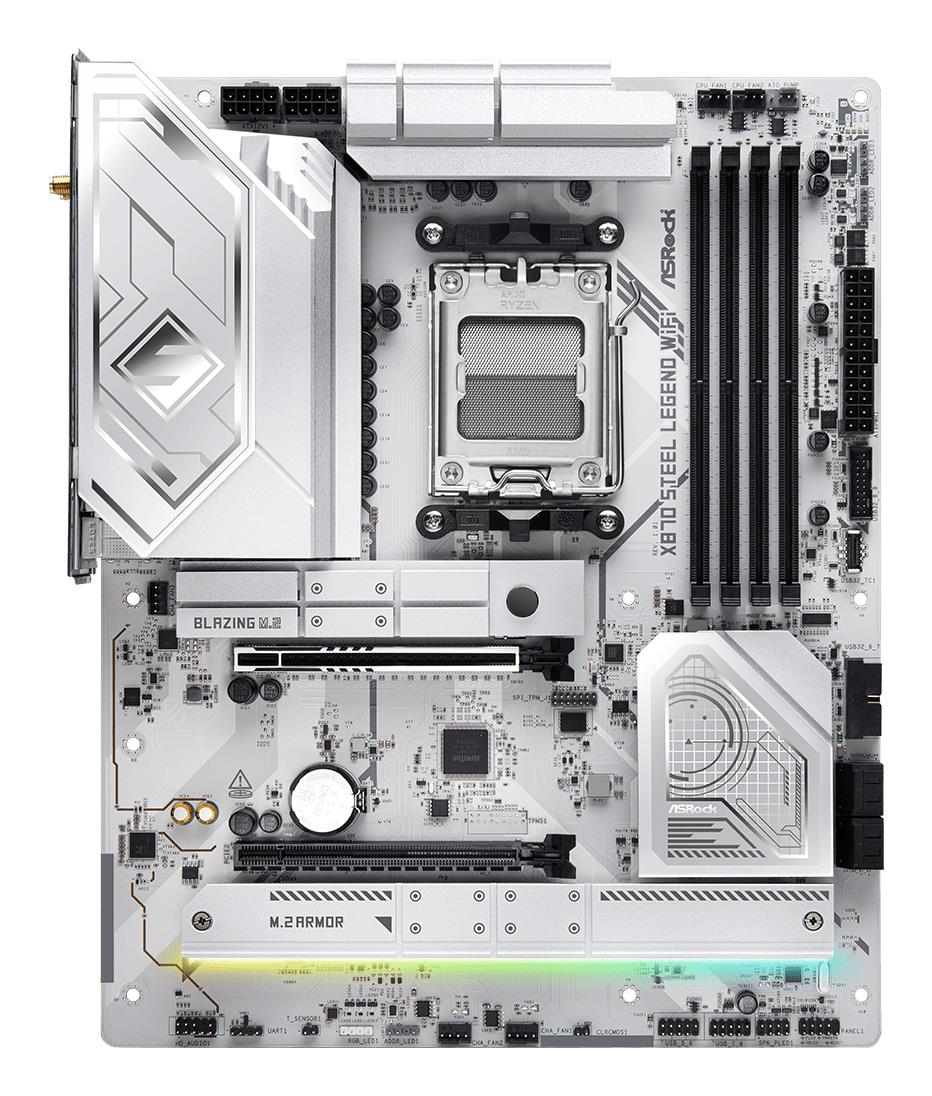

Mainboard|ASROCK|AMD X870|SAM5|ATX|Memory DDR5|Memory slots 4|1xPCI-Express 4.0 16x|1xPCI-Express 5.0 16x|4xM.2|1xHDMI|4xUSB 2.0|5xUSB 3.2|2xUSB-C|1xOptical S/PDIF|1xRJ45|2xAudio port|X870STEELLEGENDWIFI

Summary: Asrock X870 Steel Legend WiFi. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen™ 7, AMD Ryzen™ 9. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. RAID levels: 0, 1, 10. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Realtek RTL8125-BG, Top Wi-Fi standard: Wi-Fi 7 (802.11be). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: AMD

Category Code: MBA

Unit Box Height: 0.075

Unit Box Length: 0.355

Unit Box Width: 0.28

Compatible processor series: AMD Ryzen 7/AMD Ryzen 9

Processor manufacturer: AMD

Processor socket: Socket AM5

ECC ?ompatibility: ECC & non-ECC

Maximum internal memory: 256 GB

Memory channels: Dual-channel

Memory slots type: DIMM

Number of memory slots: 4

Supported memory types: DDR5-SDRAM

RAID levels: 0/1/10

RAID support: Y

ATX Power connector (24-pin): Y

CPU fan connector: Y

Front panel audio connector: Y

Number of chassis fan connectors: 3

Number of SATA III connectors: 4

RGB LED pin header: Y

USB 2.0 connectors: 2

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2

USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1

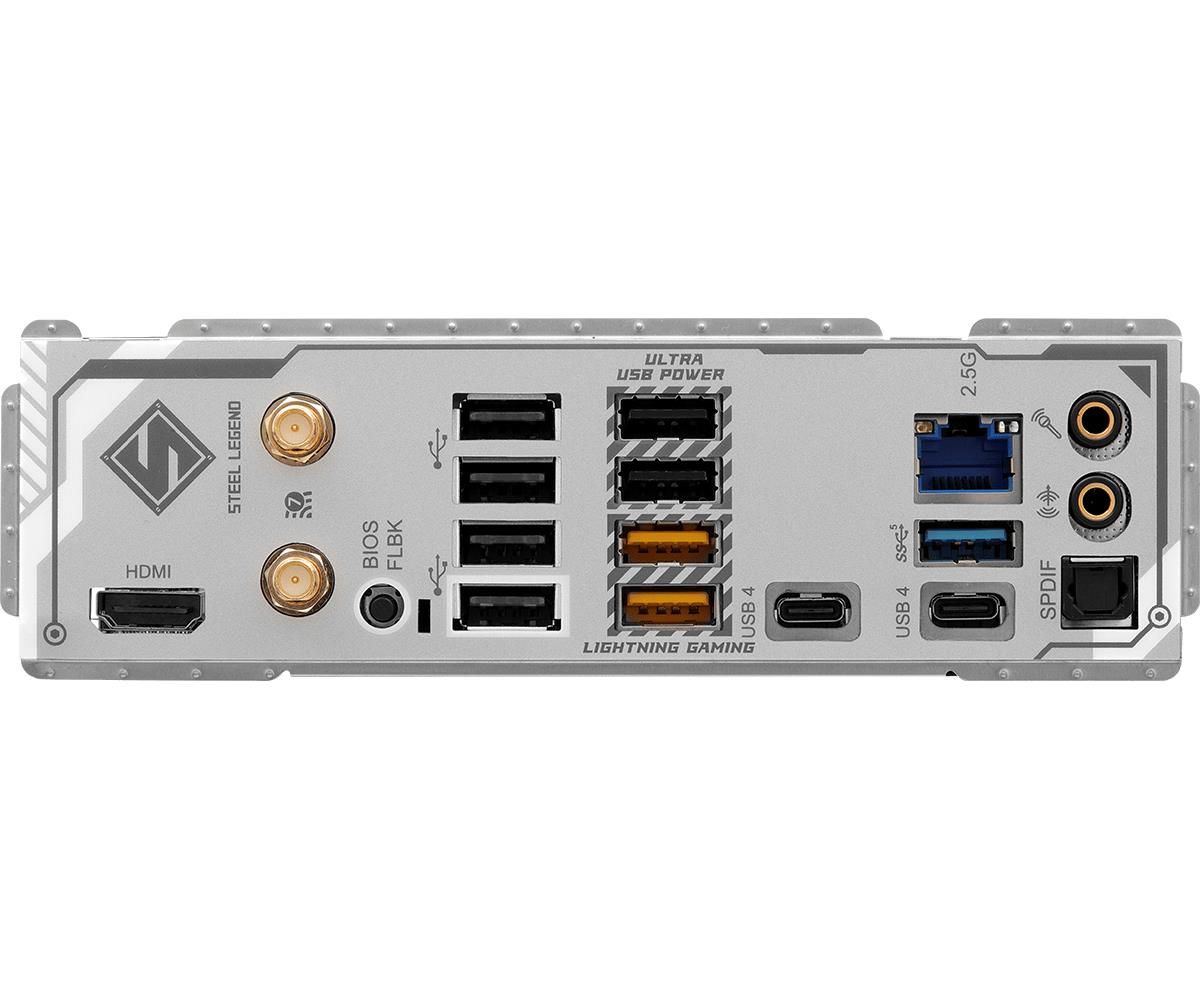

Ethernet LAN (RJ-45) ports: 1

HDMI ports quantity: 1

Microphone in: Y

S/PDIF out port: Y

USB 2.0 ports quantity: 4

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2

USB4 Gen 3x2 ports quantity: 4

Bluetooth: Y

Bluetooth version: 5.4

Ethernet interface type: 2.5 Gigabit Ethernet

Ethernet LAN: Y

LAN controller: Realtek RTL8125-BG

Top Wi-Fi standard: Wi-Fi 7 (802.11be)

Wi-Fi: Y

Wi-Fi standards: 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 7 (802.11be)

Audio output channels: 7.1 channels

Component for: PC

Motherboard chipset: AMD X870

Motherboard chipset family: AMD

Motherboard form factor: ATX

Windows operating systems supported: Windows 10 x64/Windows 11 x64

Number of M.2 (M) slots: 1

PCI Express x16 (Gen 4.x) slots: 1

PCI Express x16 (Gen 5.x) slots: 1

BIOS memory size: 256 Mbit

BIOS type: UEFI AMI

Depth: 244 mm

Width: 305 mm

Model: X870 STEEL LEGEND WIFI

Unit Calculated Volume: 0.009344 cubm

Unit Calculated Weight: 2.31 kg
