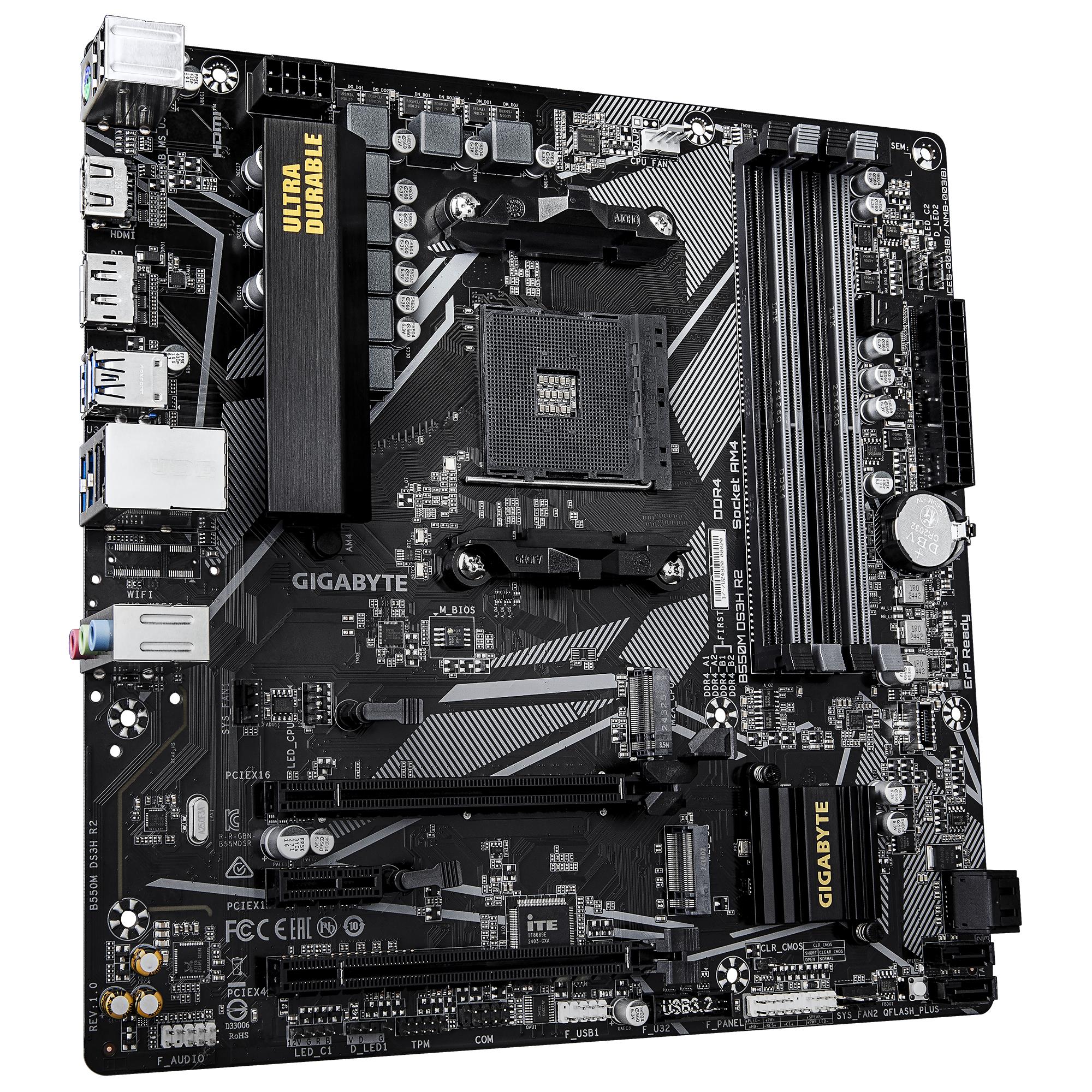

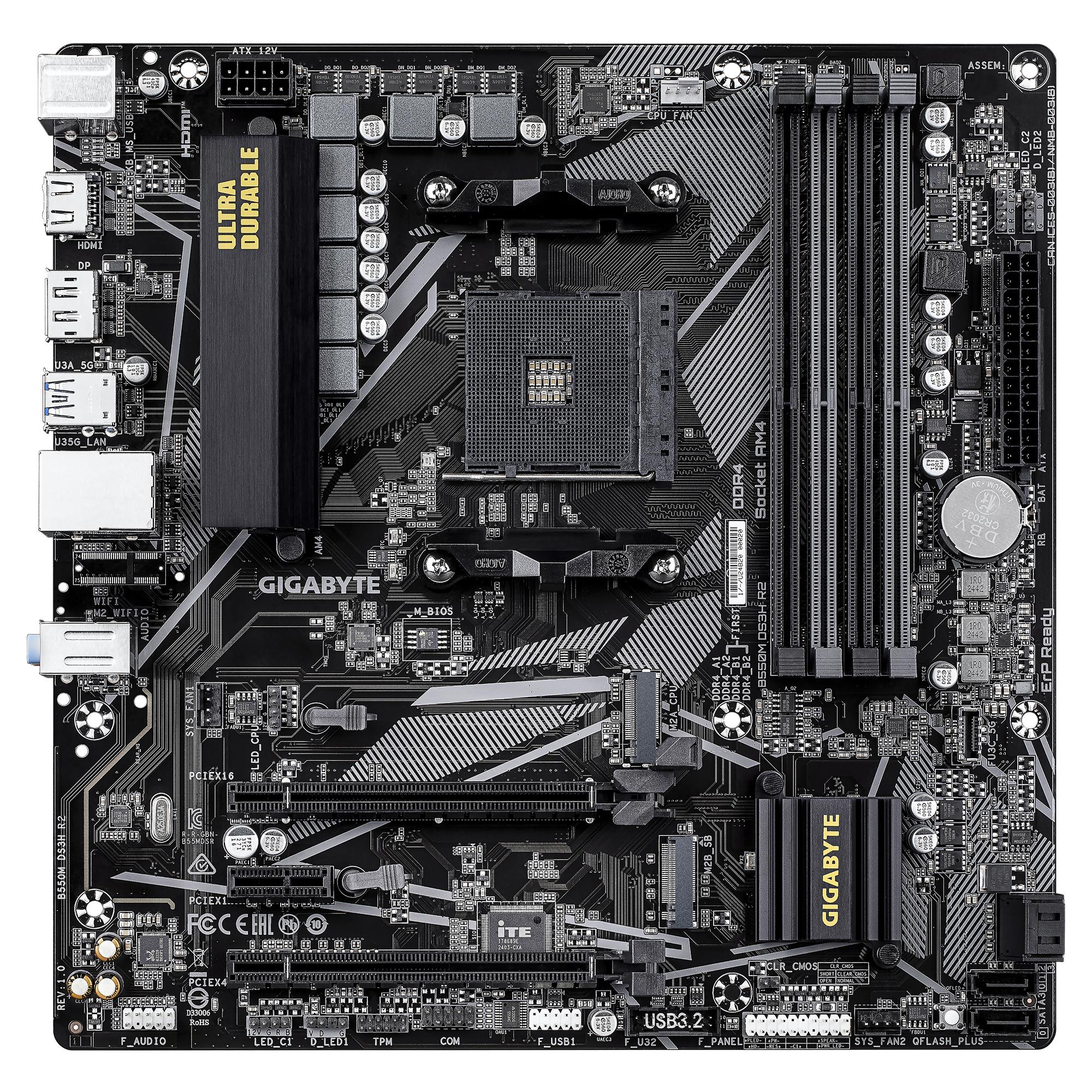

Mainboard|GIGABYTE|AMD B550|SAM4|Micro-ATX|Memory DDR4|Memory slots 4|B550MDS3HR2
SKU: B550M DS3H R2
€ 95.46
Pieejams : 50 gab.
AMD B550
micro ATX
Audio 7.1 channels
CPU AMD
Socket Socket AM4
Series AMD Ryzen 3000 Series/AMD Ryzen 4000 Series/AMD Ryzen 5000 Series
Supported memory types DDR4-SDRAM
4xNumber of memory slots
Memory slots type DIMM
Supported storage drive interfaces M.2,PCI Express 3.0,PCI Express 4.0,SATA III
5120 x 2880 pixels
2xUSB 2.0 ports quantity
4xUSB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
1xEthernet LAN (RJ-45) ports
1xHDMI ports quantity
Weight 870 g
-
Category Code: MBA
-
Unit Box Height: 0.055
-
Unit Box Length: 0.265
-
Unit Box Width: 0.265
-
M.2: 1
-
PCI-Express 3.0 16x: 1
-
PCI-Express 4.0 16x: 1
-

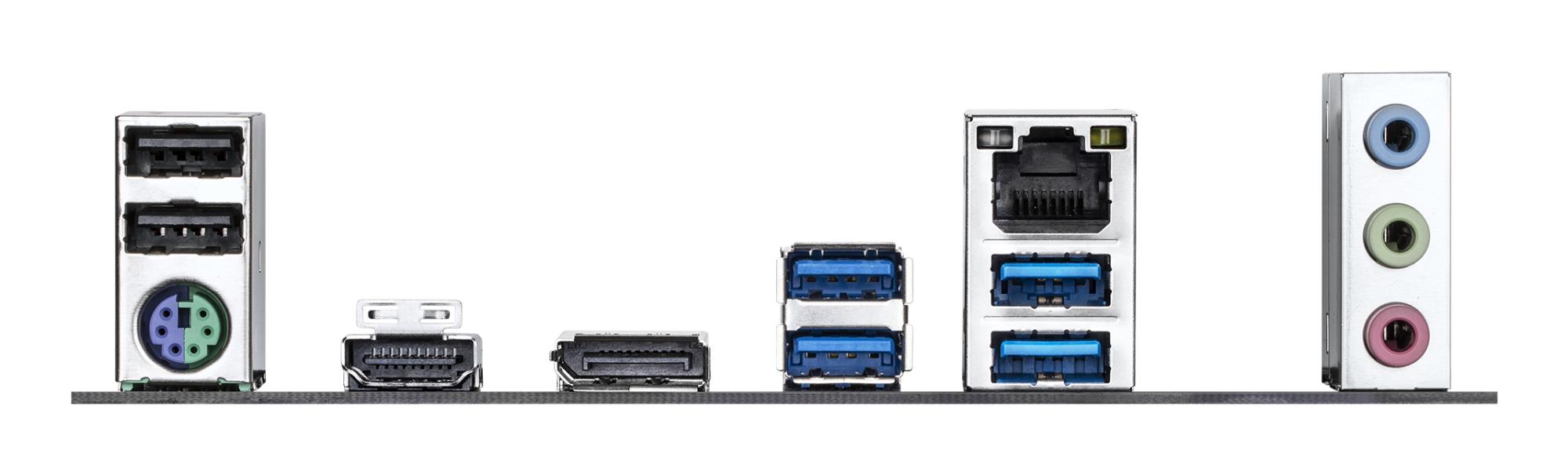

Audio port: 3
-
DisplayPort: 1
-
HDMI: 1
-
PS/2: 1
-
RJ45: 1
-
USB 2.0: 2
-
USB 3.2: 4
-
Bluetooth: Yes
-
SATA: Yes
-
USB 2.0: Yes
-
USB 3.2: Yes
-
WiFi: Yes
-
Model: B550M DS3H R2
-
Chipset: AMD B550
-
Socket: SAM4
-
Form Factor: Micro-ATX
-
Memory type: DDR4
-
Frequency speed: 2133/2400/2667/2933/3200/3400/3466/3600/3733/4000/4133/4266/4400/4600/4733 MHz
-
Memory slots: 4
-
Integrated video: Depending on CPU
-
Integrated audio: Realtek ALC1220
-
Integrated LAN: Gigabit
-
RAID: SATA 0, 1, 10; NVMe 0, 1, 10
-
Units per Pallet: 0
-
Unit Calculated Volume: 0.004628 cubm
-
Product Net Weight: 0.7 kg
-
Unit Calculated Weight: 0.955 kg
-
Manufacturer: GIGABYTE
