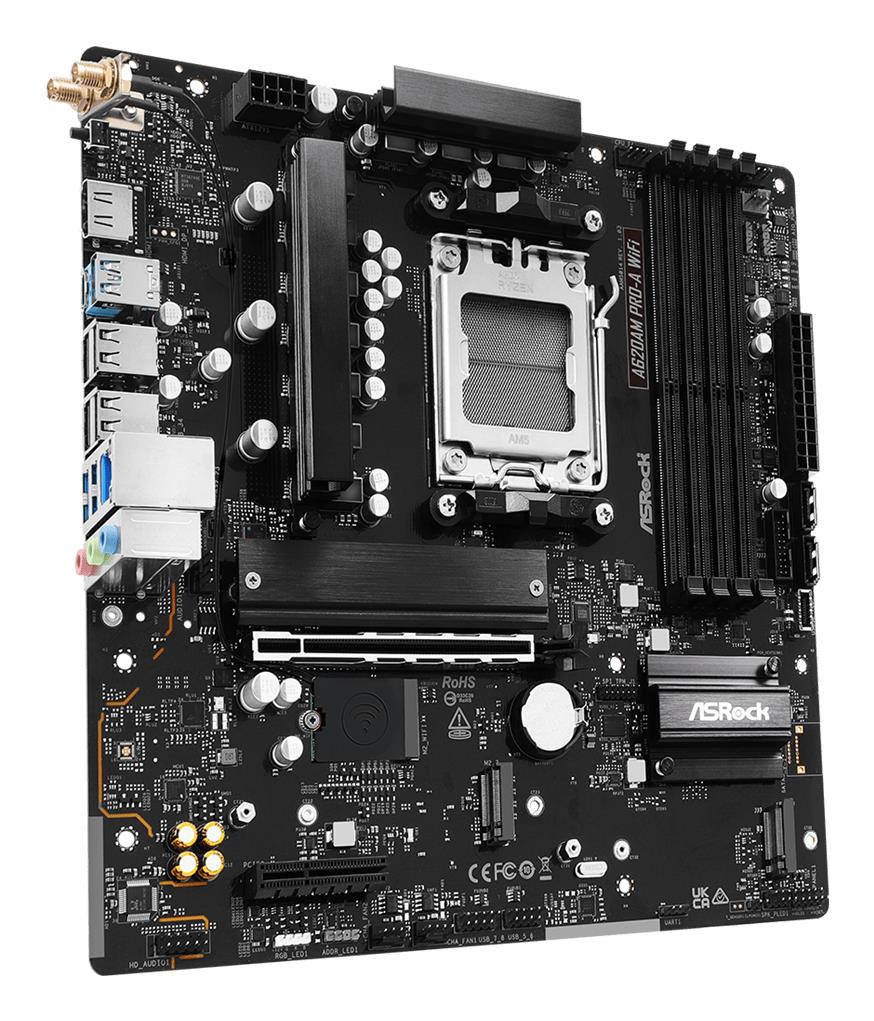

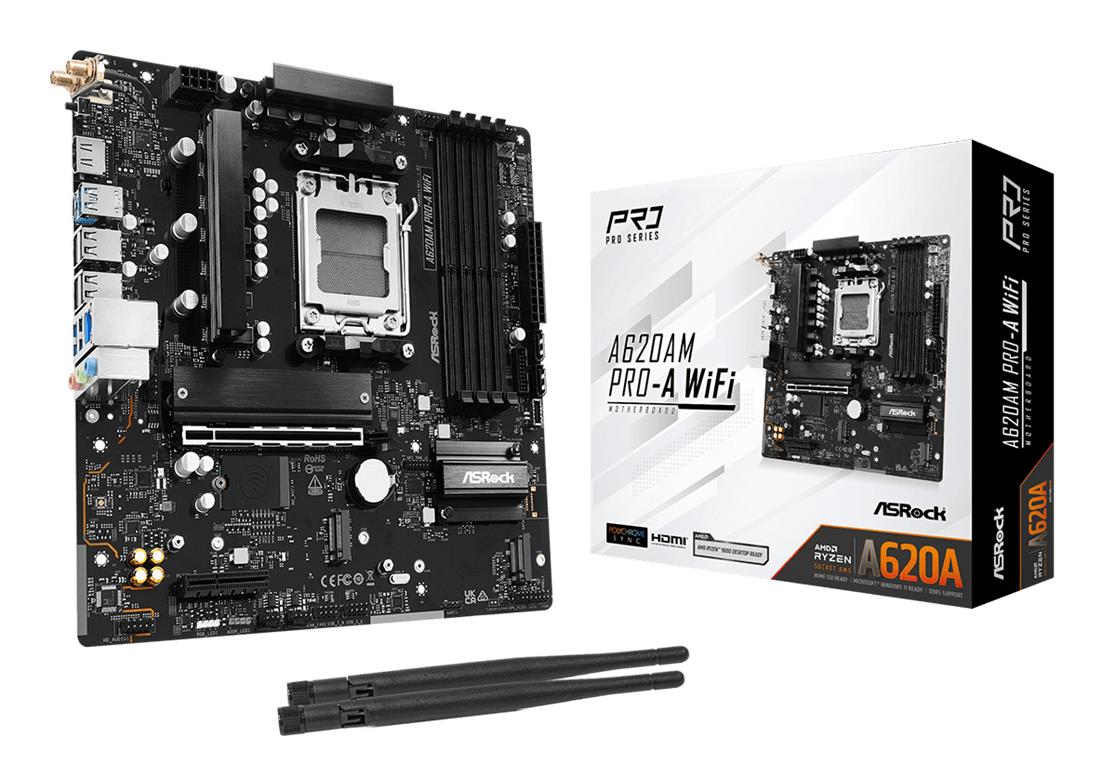

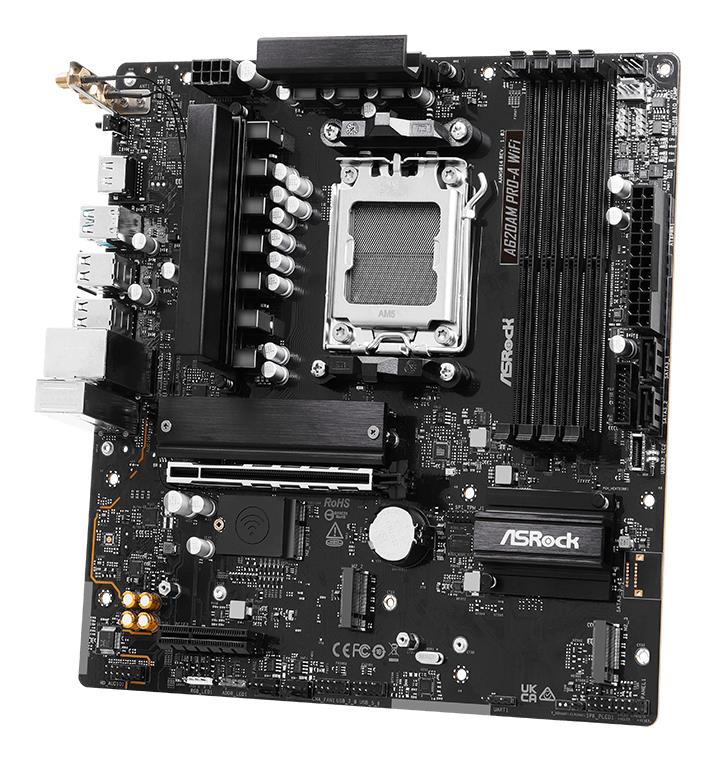

Mainboard|ASROCK|AMD A620A|micro ATX|RAM DDR5-SDRAM|2xSlots|Wi-Fi Yes|Bluetooth Yes|1xPCI Express x4 slots|A620AMPRO-AWIFI

Summary: Asrock A620AM PRO-A WIFI. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, NVMe, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Graphics card family: AMD, Graphics card: AMD RDNA 2, Maximum resolution: 3840 x 2160 pixels. Ethernet interface type: 2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet, LAN controller: Dragon RTL8125BG, Top Wi-Fi standard: Wi-Fi 6E (802.11ax)

Category Code: MBA

Unit Box Height: 0.06

Unit Box Length: 0.295

Unit Box Width: 0.26

Audio chip: Realtek ALC897

Audio output channels: 7.1 channels

Component for: PC

Cooling type: Passive

Motherboard chipset: AMD A620

Motherboard chipset family: AMD

Motherboard form factor: Micro ATX

Product colour: Black

Windows operating systems supported: Windows 10 x64/Windows 11 x64

Compatible processor series: AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series

Processor manufacturer: AMD

Processor socket: Socket AM5

ECC сompatibility: ECC & Non-ECC

Maximum internal memory: 256 GB

Memory channels: Dual-channel

Memory slots type: DIMM

Number of memory slots: 4

Supported memory clock speeds: 8000 MHz

Supported memory types: DDR5-SDRAM

Unbuffered memory: Yes

Number of HDDs supported: 2

RAID levels: 0/1/10

RAID support: Yes

Supported storage drive interfaces: M.2,NVMe,SATA III

Supported storage drive types: HDD & SSD

Graphics card: AMD RDNA 2

Graphics card family: AMD

HDCP: Yes

HDCP version: 2.3

High Dynamic Range (HDR) supported: Yes

Maximum resolution: 3840 x 2160 pixels

On-board graphics card: Yes

Parallel processing technology support: Not supported

12V power connector: Yes

ATX Power connector (24-pin): Yes

Audio connector: Yes

CPU fan connector: Yes

Front panel audio connector: Yes

Number of chassis fan connectors: 3

Number of CPU fan connectors: 2

Number of RGB LED pin headers: 1

Number of SATA III connectors: 2

Number of water pump connectors: 1

RGB LED pin header: Yes

TPM connector: Yes

USB 2.0 connectors: 2

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1

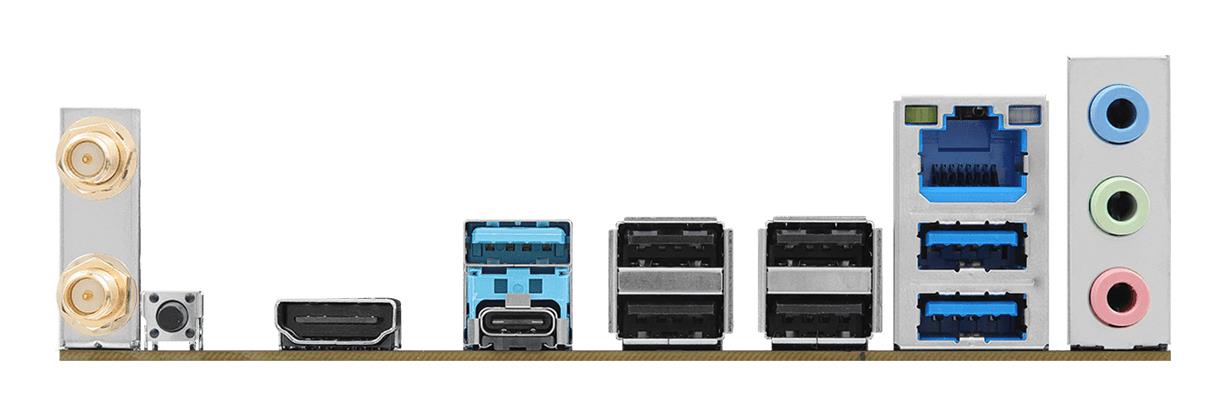

Ethernet LAN (RJ-45) ports: 1

HDMI ports quantity: 1

HDMI version: 2.1

Line-in: Yes

Microphone in: Yes

Rear speaker out: Yes

USB 2.0 ports quantity: 4

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1

Bluetooth: Yes

Bluetooth version: 5.2

Ethernet interface type: 2.5 Gigabit Ethernet/Fast Ethernet/Gigabit Ethernet

Ethernet LAN: Yes

LAN controller: Dragon RTL8125BG

Top Wi-Fi standard: Wi-Fi 6E (802.11ax)

Wi-Fi: Yes

Wi-Fi standards: 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)

Number of M.2 (M) slots: 3

PCI Express x16 (Gen 4.x) slots: 1

BIOS flashback button: Yes

BIOS memory size: 256 Mbit

BIOS type: UEFI AMI

AMD Extended Profiles for Overclocking (EXPO): Yes

Intel Extreme Memory Profile (XMP): Yes

Depth: 244 mm

Width: 244 mm

Antenna included: Yes

Cables included: SATA

M.2 standoff included: Yes

Screws included: Yes

Compliance certificates: CE/Federal Communications Commission (FCC)

PCI Express x4 (Gen 3.x) slots: 1

Model: A620AM PRO-A WIFI

Units per Pallet: 0

Unit Calculated Volume: 0.005632 cubm

Unit Calculated Weight: 1.251 kg
