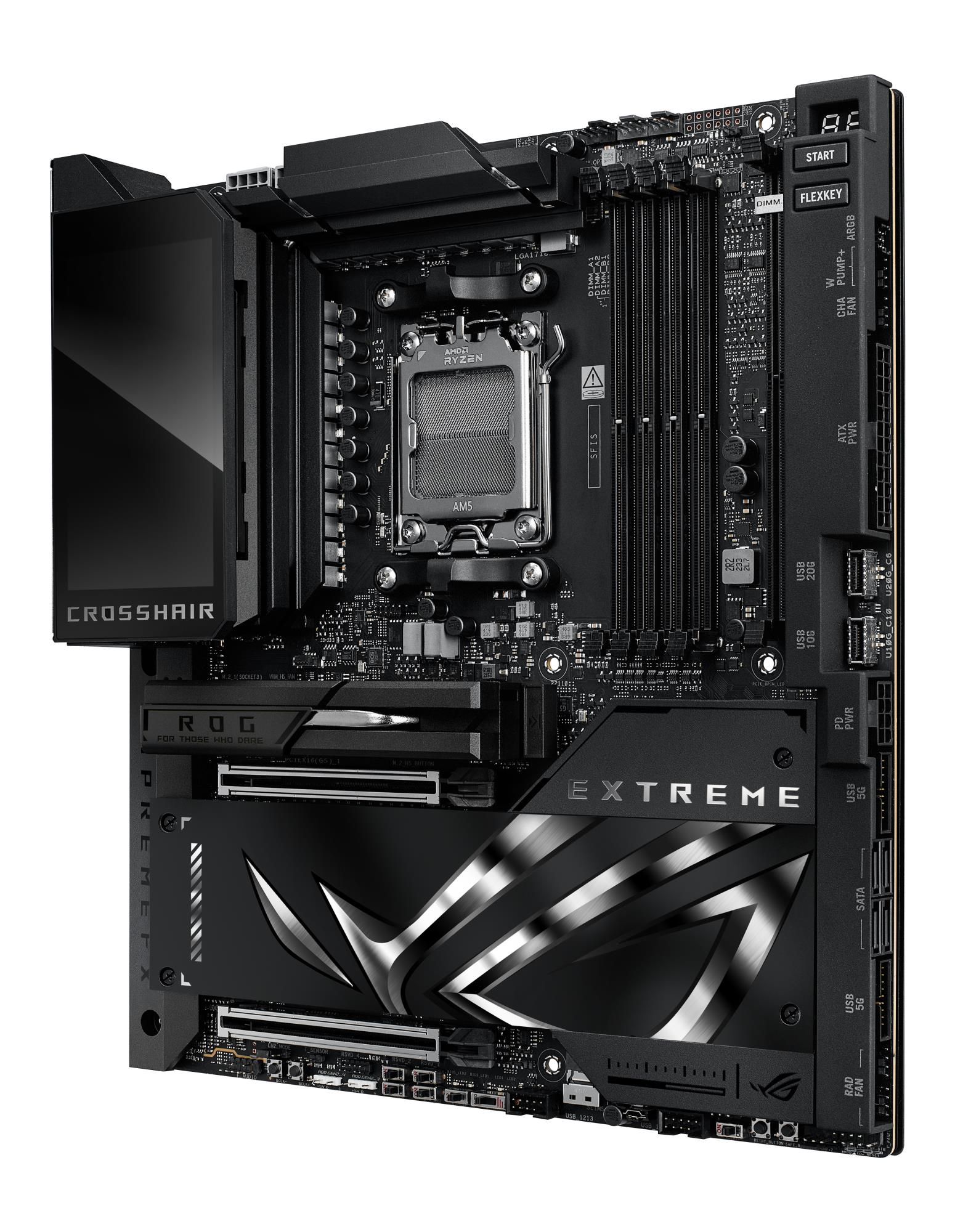

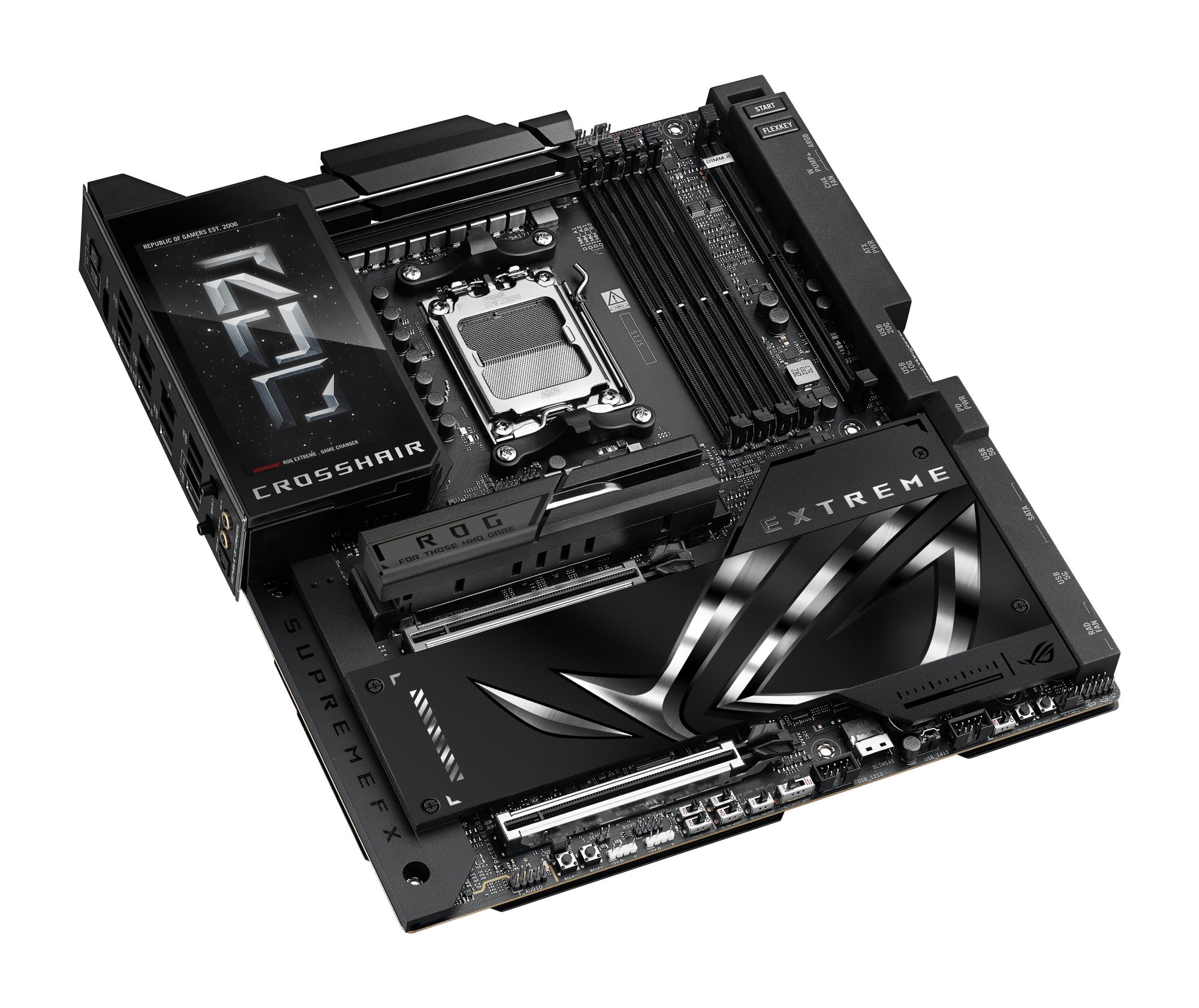

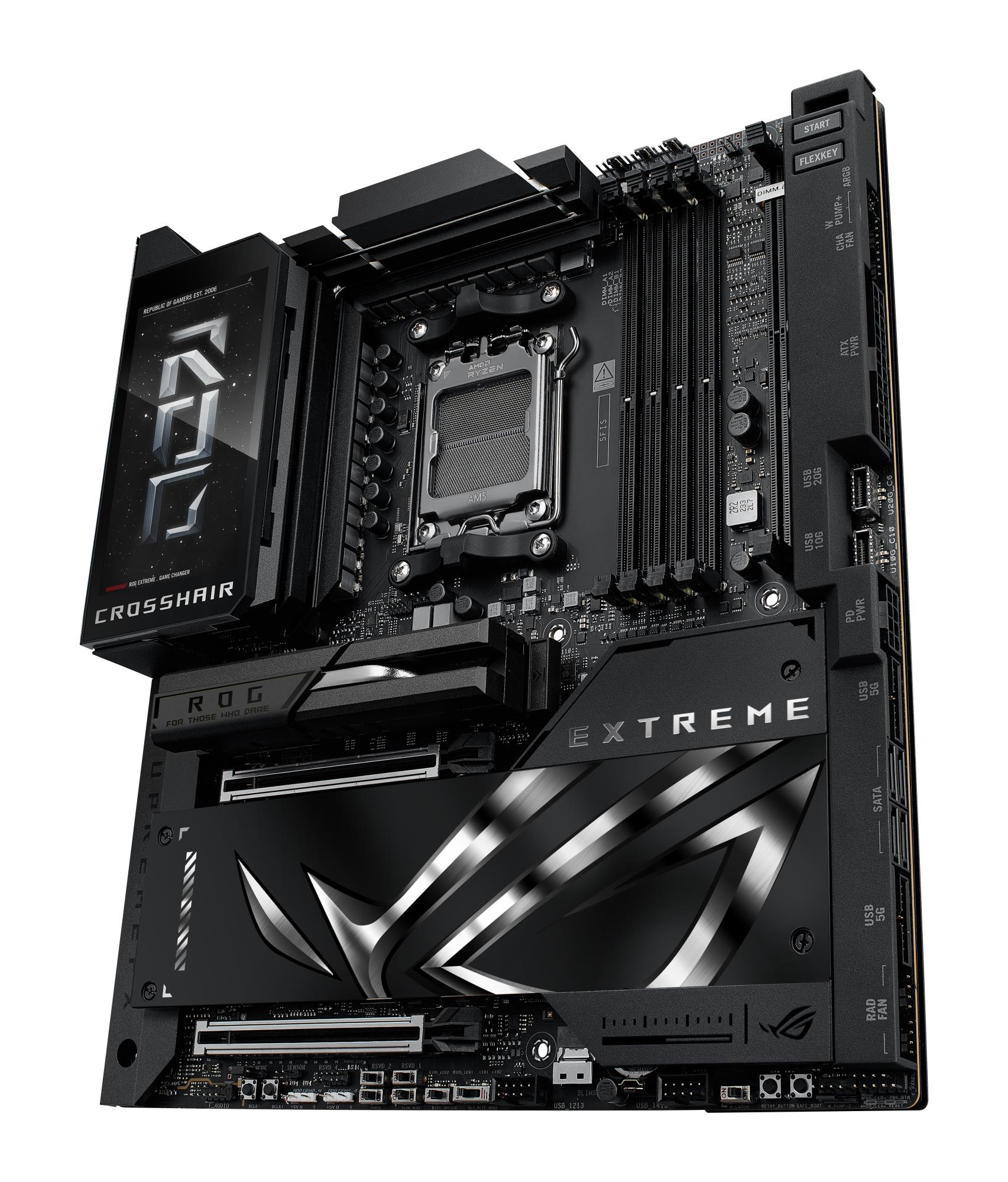

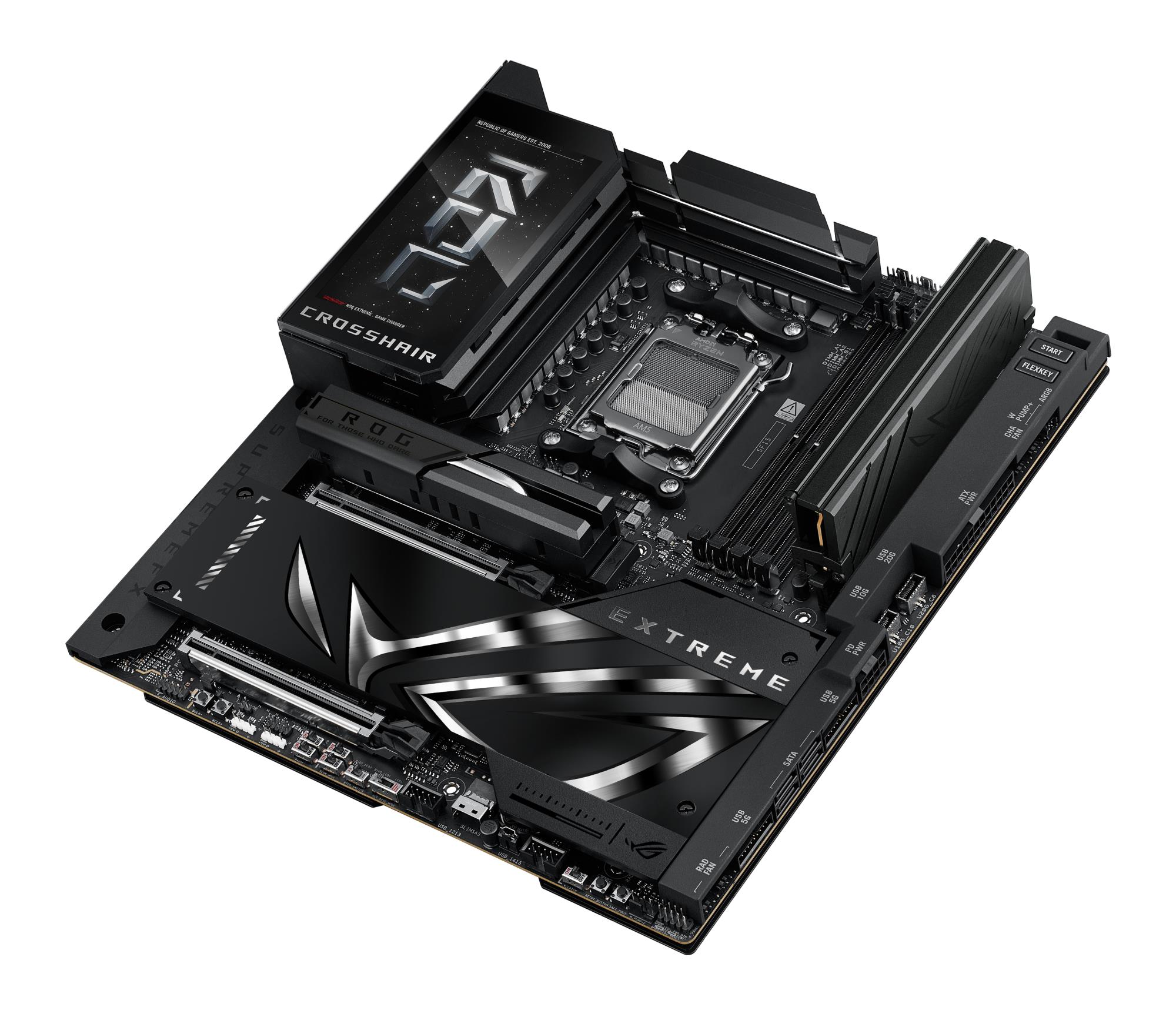

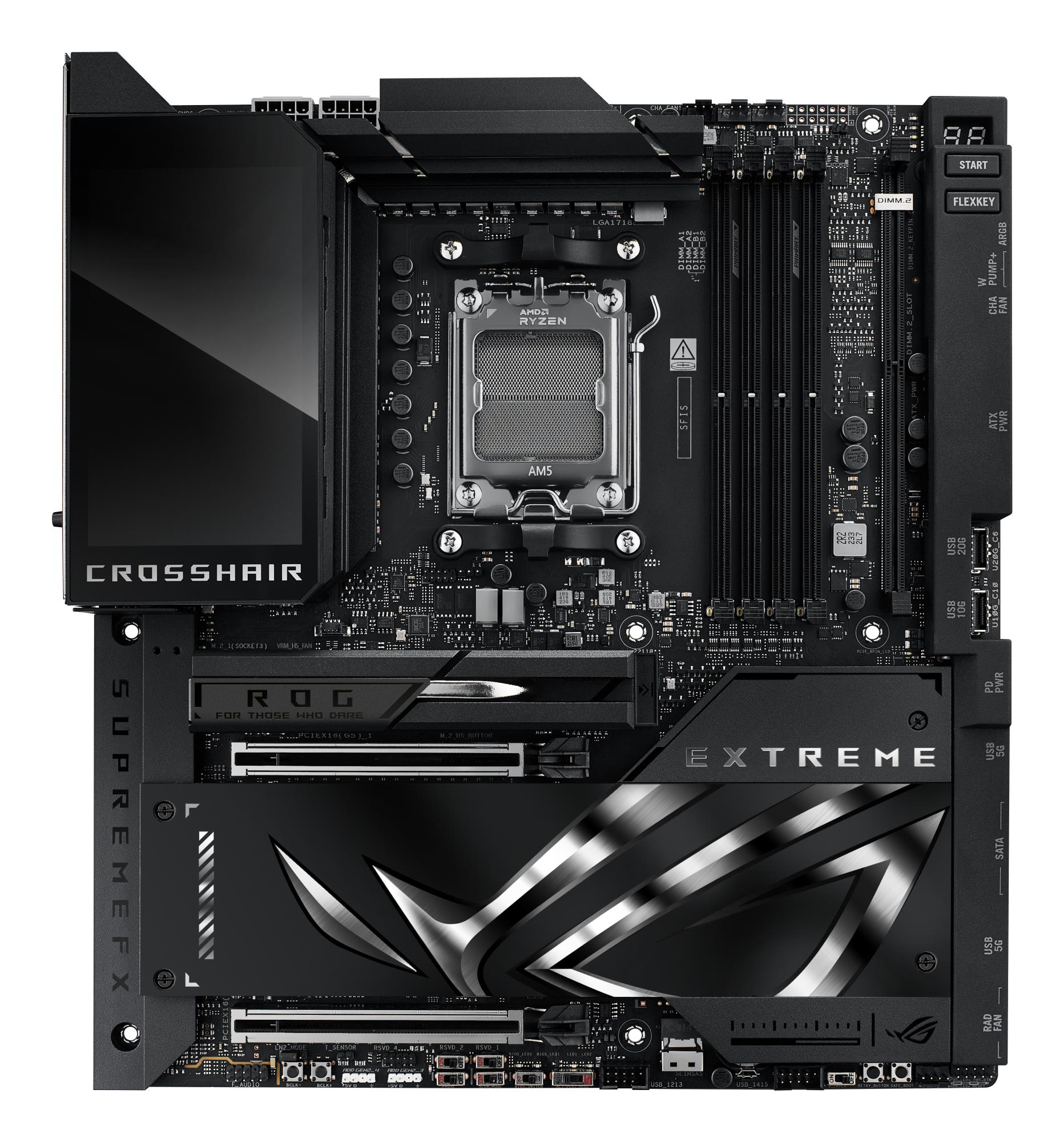

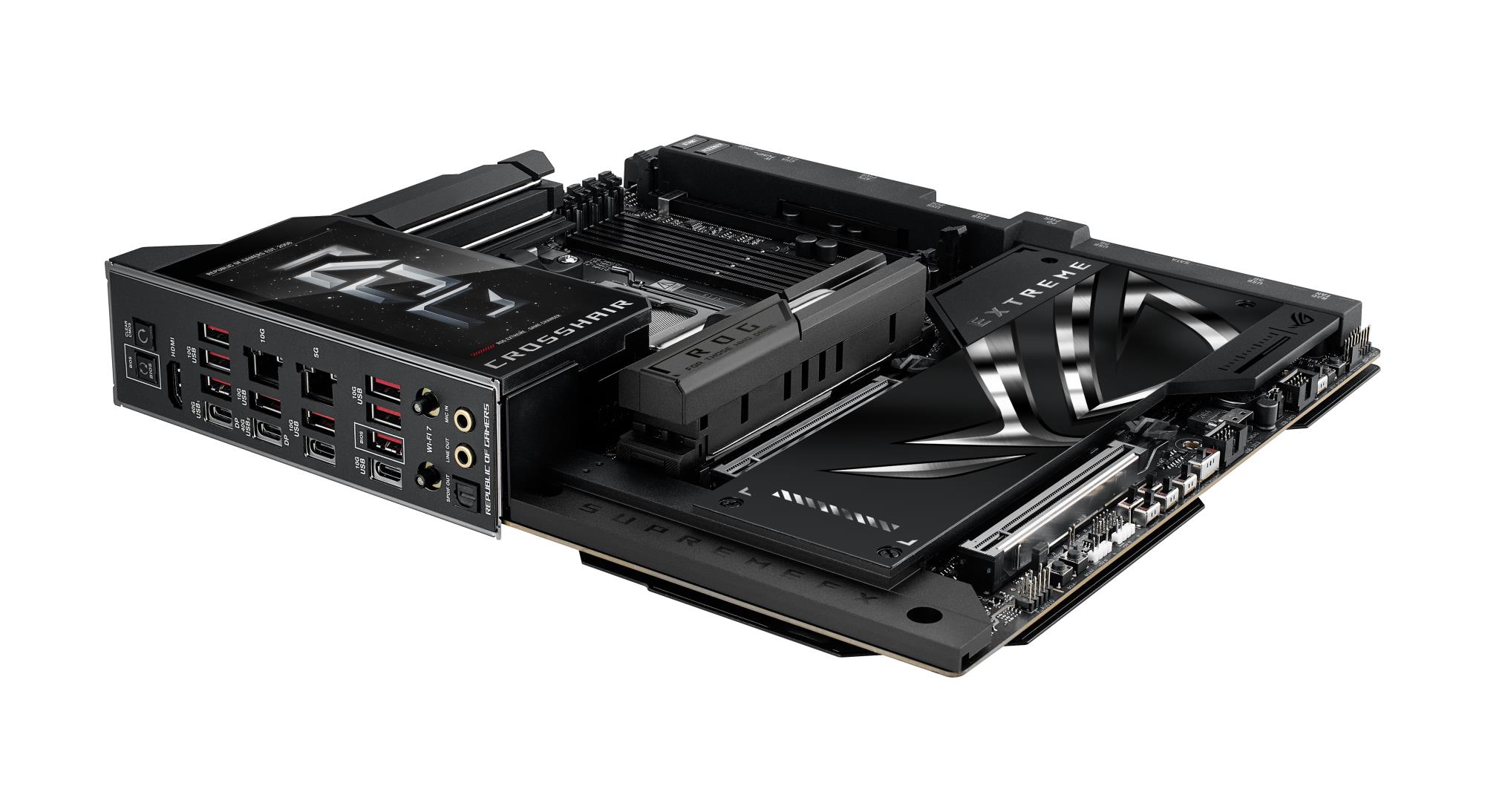

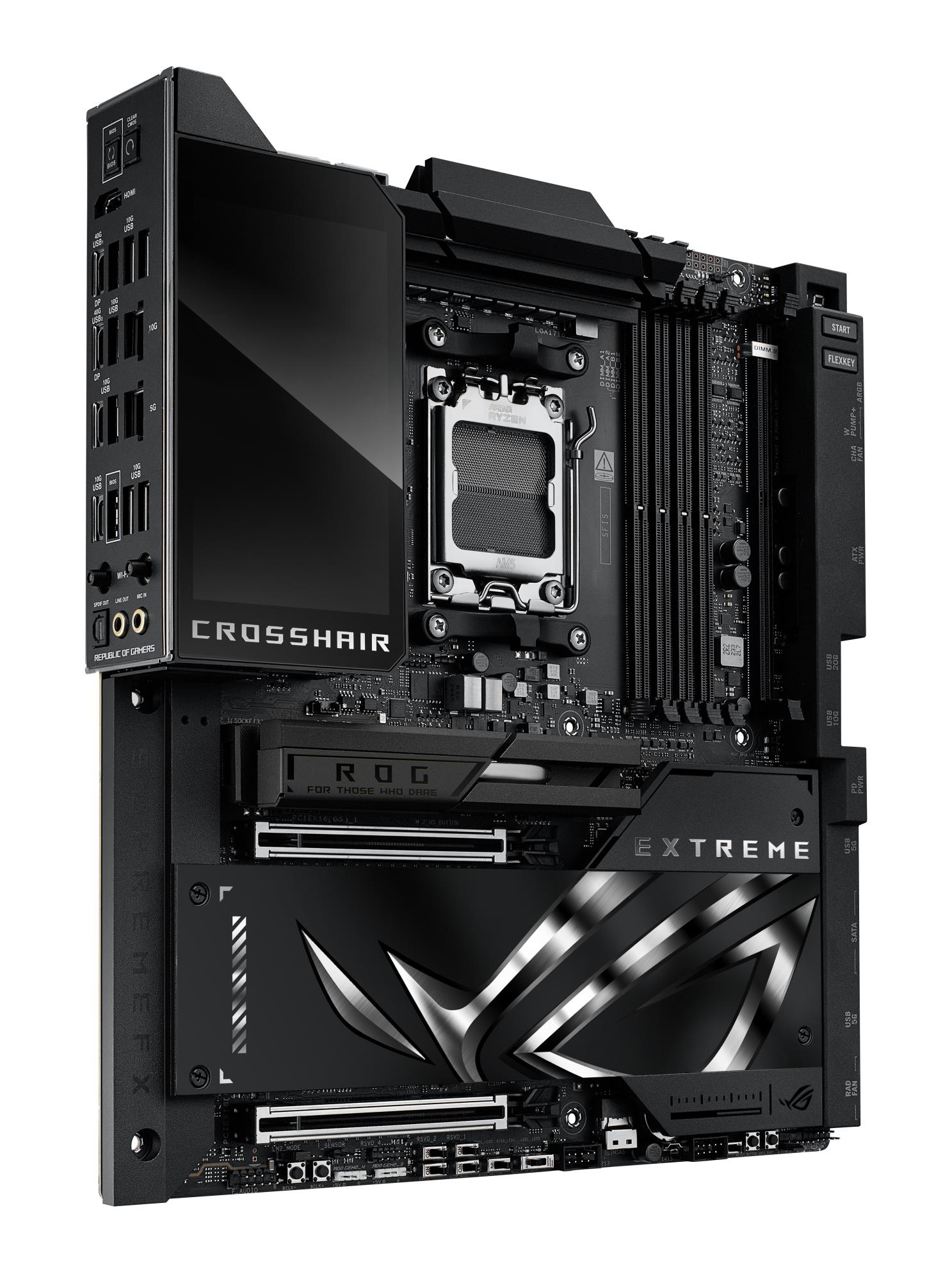

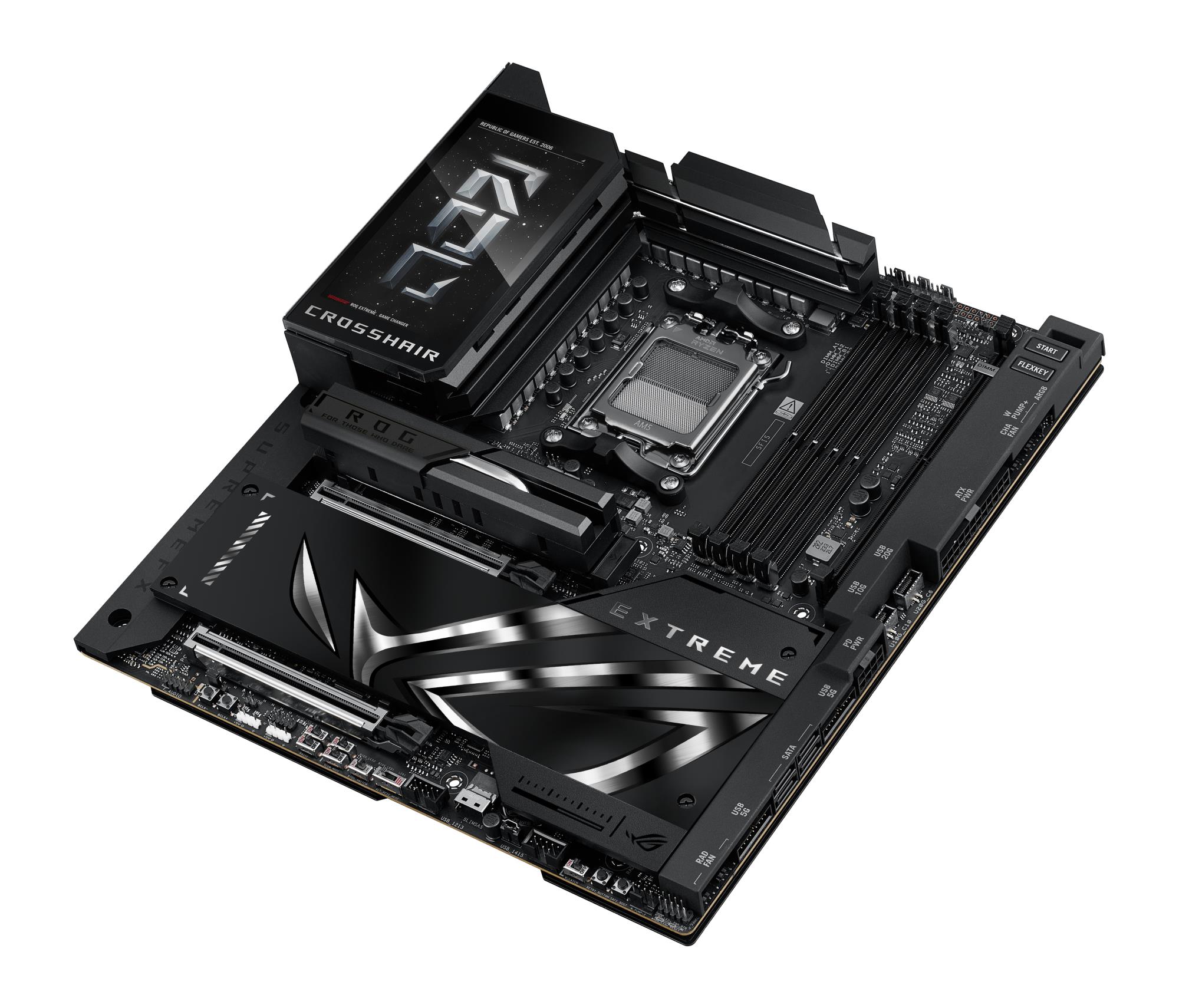

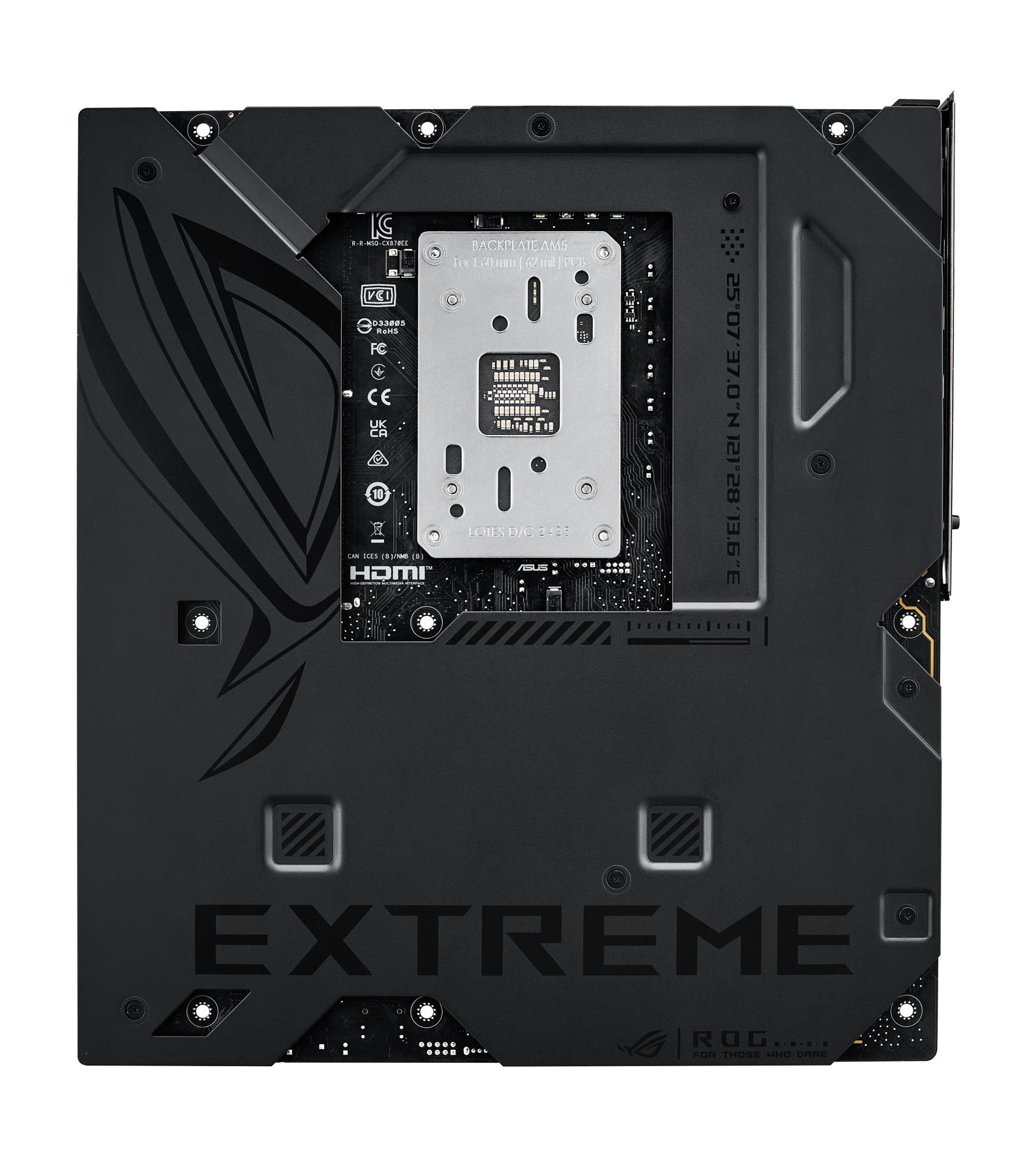

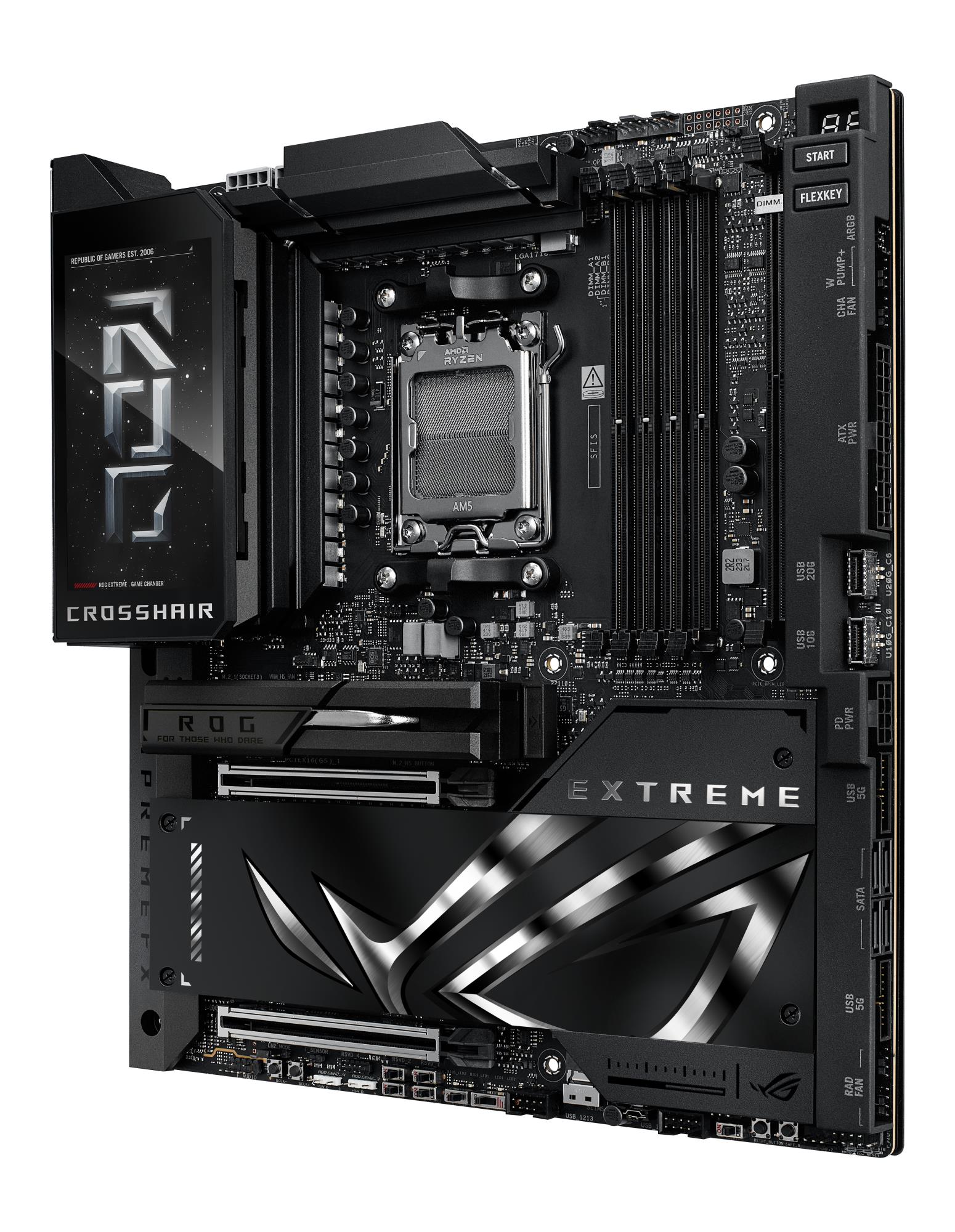

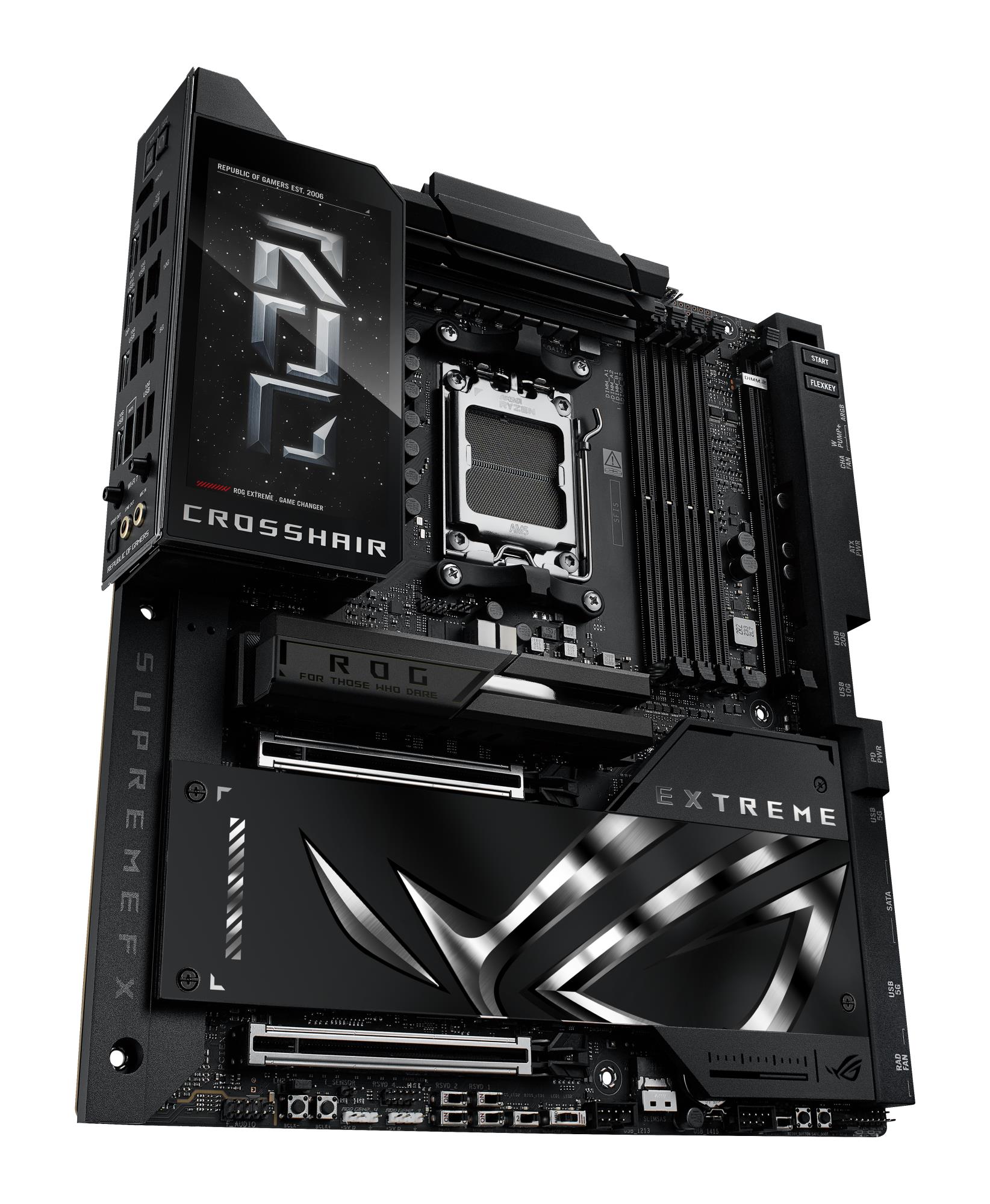

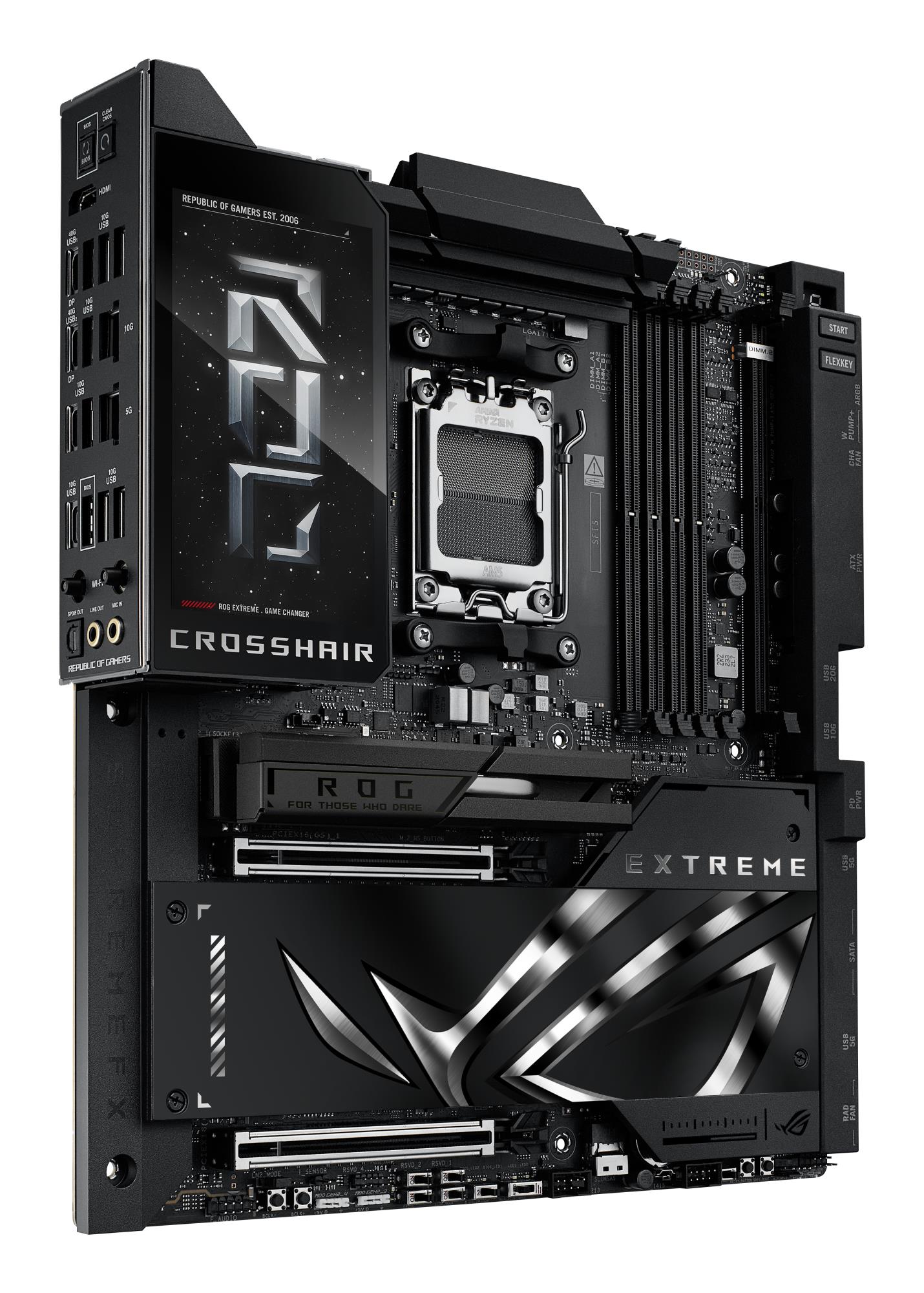

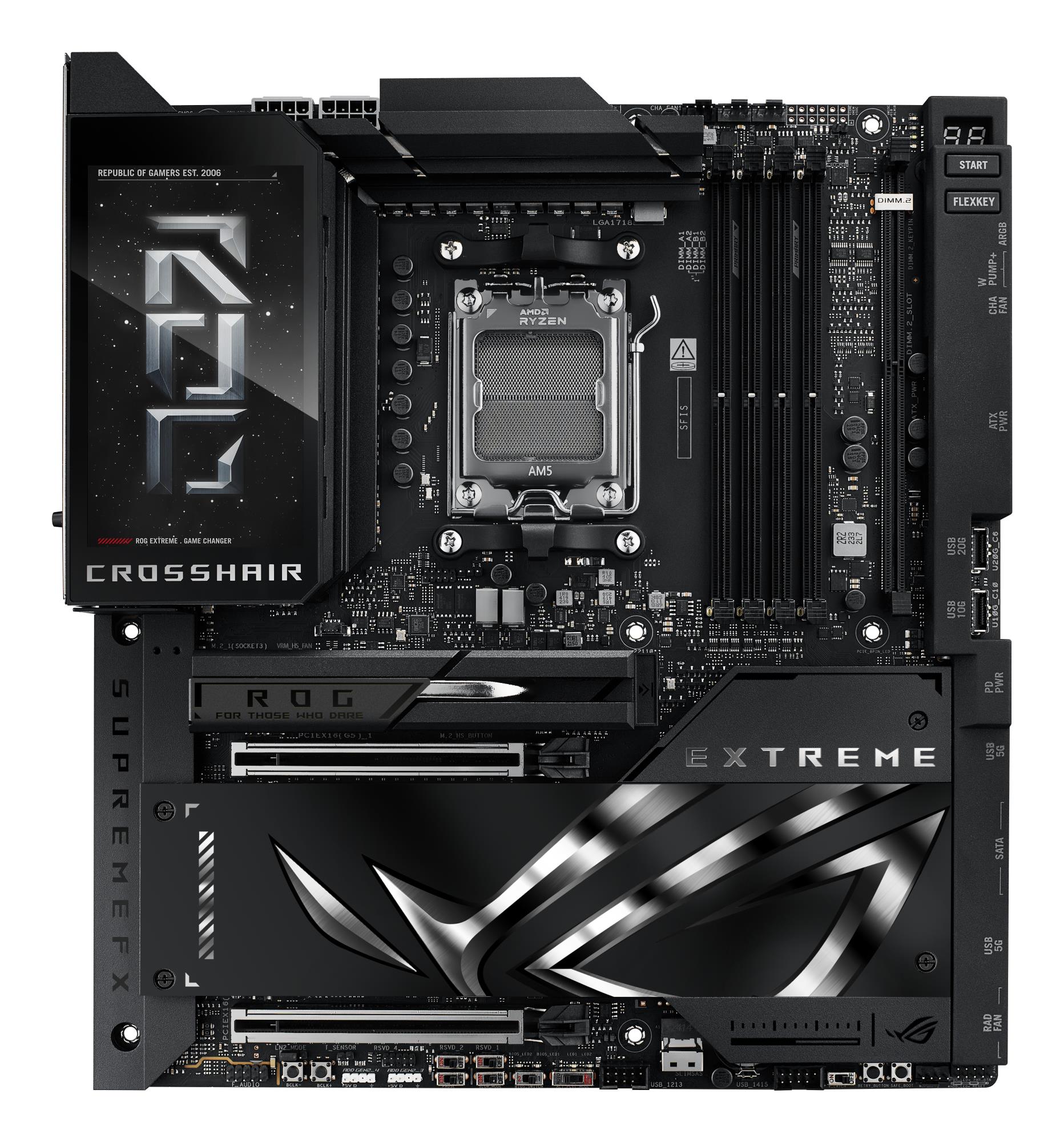

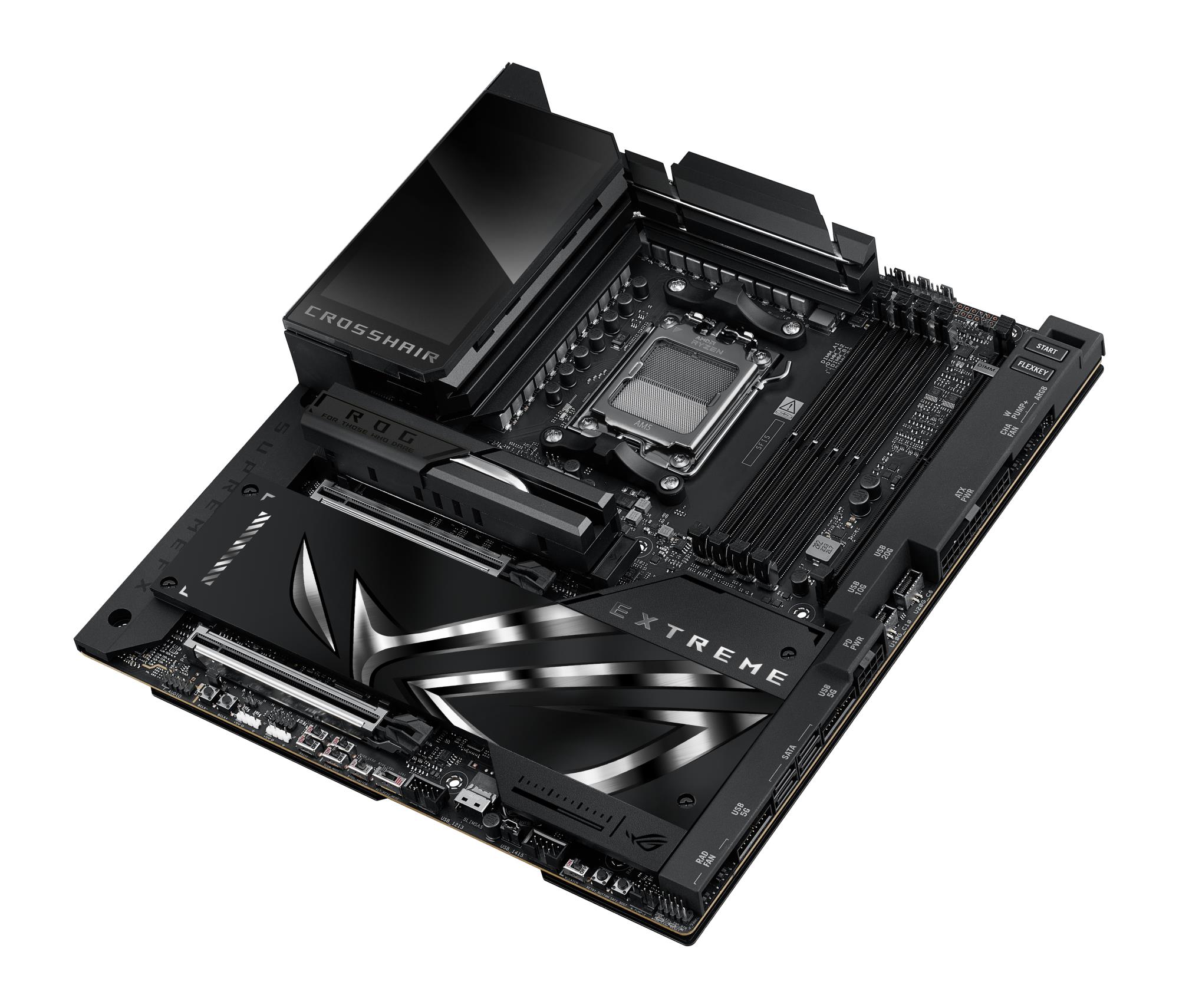

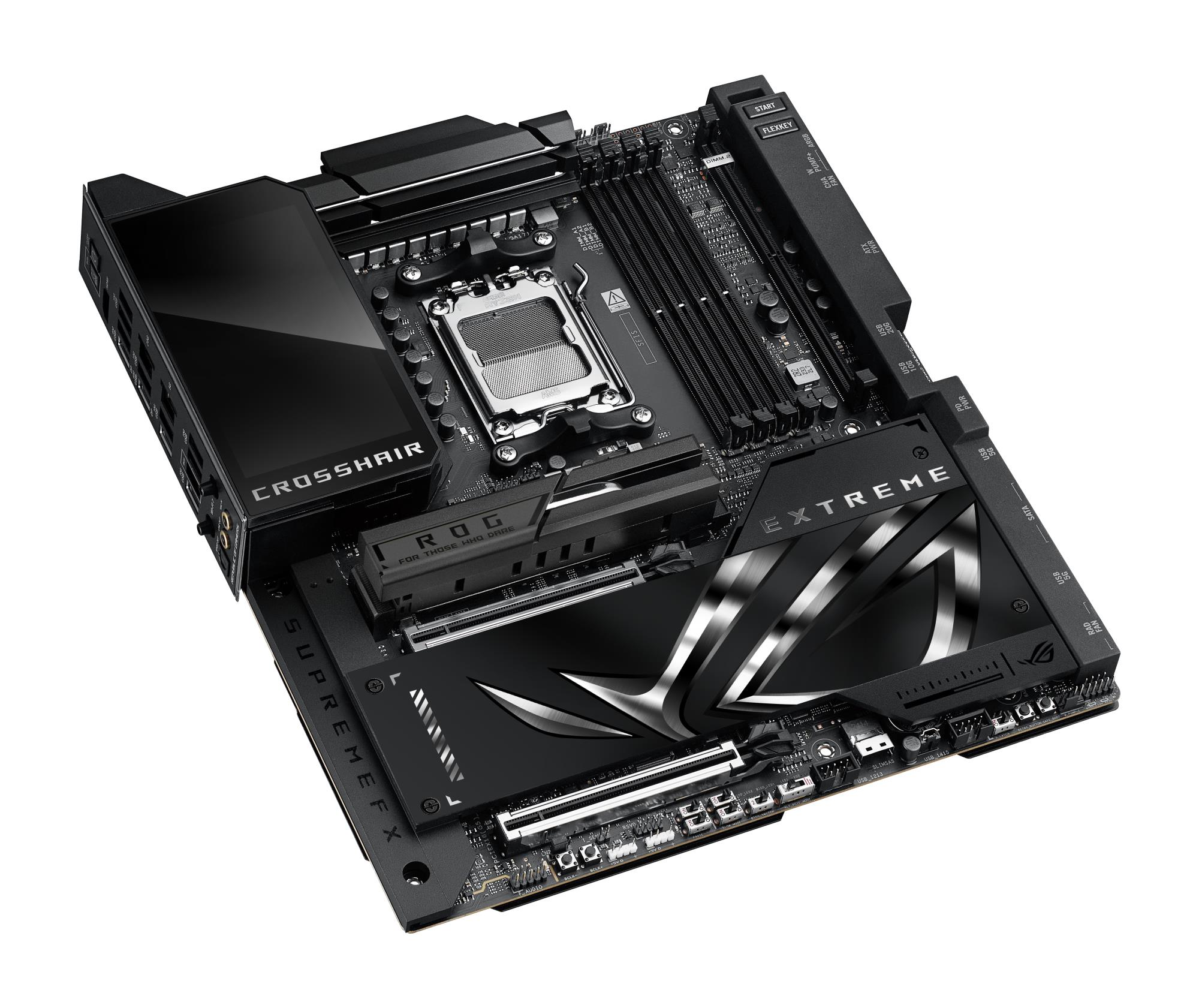

Mainboard|ASUS|AMD X870E|SAM5|EATX|Memory DDR5|Memory slots 4|CROSSHAIRX870EEXTREME
SKU: ROG CROSSHAIR X870E EXTREME
€ 1066.30
Pieejams : 6 gab.
AMD X870E
extended ATX
Audio 7.1 channels
CPU AMD
Socket Socket AM5
Series AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series
Supported memory types DDR5-SDRAM
4xNumber of memory slots
Memory slots type DIMM
Supported storage drive interfaces M.2,SATA III,SlimSAS
8xUSB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2xUSB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
2xEthernet LAN (RJ-45) ports
1xHDMI ports quantity
Wi-Fi Yes
Bluetooth Yes
Antenna included Yes
-
Summary: ASUS ROG CROSSHAIR X870E EXTREME. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, SlimSAS, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 5 Gigabit Ethernet, 10 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be), Wi-Fi standards: Wi-Fi 7 (802.11be). Component for: PC, Motherboard form factor: Extended ATX, Motherboard chipset family: AMD
-
Category Code: MBA
-
Unit Box Height: 0.125
-
Unit Box Length: 0.385
-
Unit Box Width: 0.325
-
Compatible processor series: AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series
-
Processor manufacturer: AMD
-
Processor socket: Socket AM5
-
Supported processor sockets: Socket AM5
-
ECC ?ompatibility: ECC & non-ECC
-
Maximum internal memory: 256 GB
-
Memory channels: Dual-channel
-
Memory slots type: DIMM
-
Number of memory slots: 4
-
Supported memory types: DDR5-SDRAM
-
Unbuffered memory: Y
-
Number of storage drives supported: 10
-
RAID levels: 0/1/10/5
-
RAID support: Y
-
Supported storage drive interfaces: M.2,SATA III,SlimSAS
-
Supported storage drive types: HDD & SSD
-
On-board graphics card: N
-
Parallel processing technology support: Not supported
-
12V power connector: Y
-
ATX Power connector (24-pin): Y
-
CPU fan connector: Y
-
EPS power connector (8-pin): Y
-
Front panel audio connector: Y
-
Front panel connector: Y
-
Number of chassis fan connectors: 2
-
Number of SATA III connectors: 4
-
RGB LED pin header: Y
-
USB 2.0 connectors: 2
-
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
-
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
-
USB 3.2 Gen 2x2 connectors: 1
-

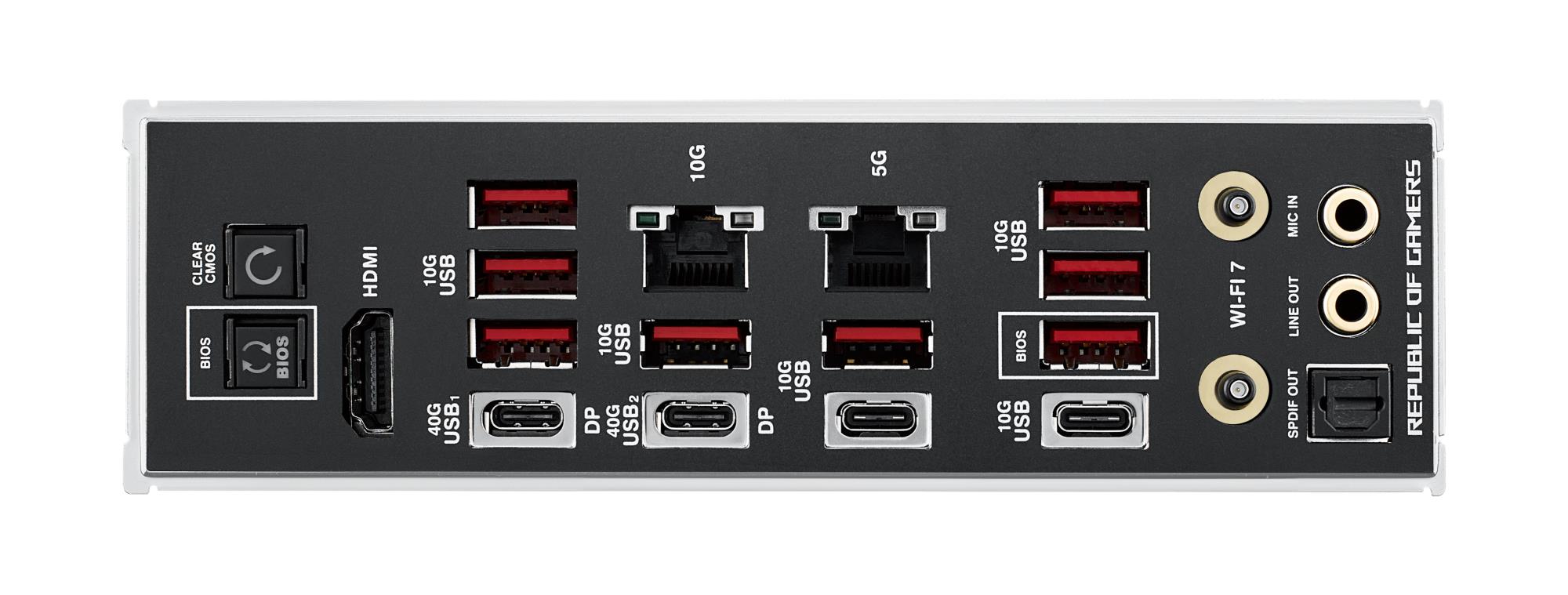

Ethernet LAN (RJ-45) ports: 2
-
HDMI ports quantity: 1
-
PS/2 ports quantity: 1
-
S/PDIF out port: Y
-
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 8
-
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 2
-
USB4 Gen 3x2 ports quantity: 2
-
WiFi-AP antenna jack: 1
-
Bluetooth: Y
-
Bluetooth version: 5.4
-
Ethernet interface type: 10 Gigabit Ethernet/5 Gigabit Ethernet
-
Ethernet LAN: Y
-
Top Wi-Fi standard: Wi-Fi 7 (802.11be)
-
Wi-Fi: Y
-
Wi-Fi standards: Wi-Fi 7 (802.11be)
-
Audio chip: Realtek ALC4082
-
Audio output channels: 7.1 channels
-
Component for: PC
-
Motherboard chipset: AMD X870E
-
Motherboard chipset family: AMD
-
Motherboard form factor: Extended ATX
-
Product colour: Black
-
Windows operating systems supported: Windows 11
-
1st M.2 highest PCI Express generation: 5.0
-
1st M.2 largest key size: 22110
-
2nd M.2 highest PCI Express generation: 5.0
-
2nd M.2 largest key size: 2280
-
3rd M.2 highest PCI Express generation: 5.0
-
3rd M.2 largest key size: 22110
-
4th M.2 highest PCI Express generation: 4.0
-
4th M.2 largest key size: 22110
-
5th M.2 highest PCI Express generation: 4.0
-
5th M.2 largest key size: 22110
-
Number of M.2 (M) slots: 5
-
PCI Express x16 (Gen 4.x) slots: 2
-
PCI Express x16 (Gen 5.x) slots: 2
-
BIOS memory size: 512 Mbit
-
BIOS type: UEFI AMI
-
Package depth: 320 mm
-
Package height: 125 mm
-
Package weight: 5661 g
-
Package width: 380 mm
-
Depth: 277 mm
-
Width: 305 mm
-

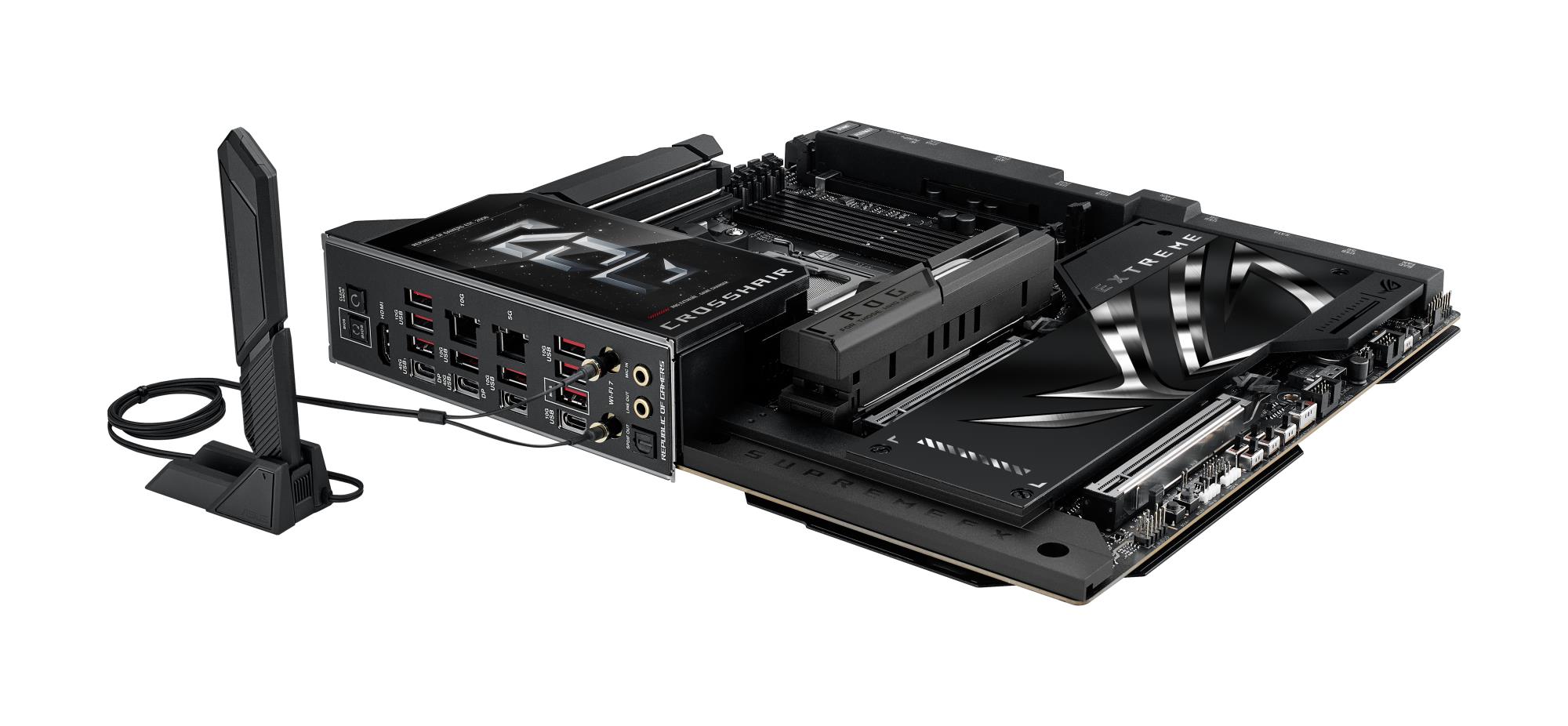

Antenna included: Y
-

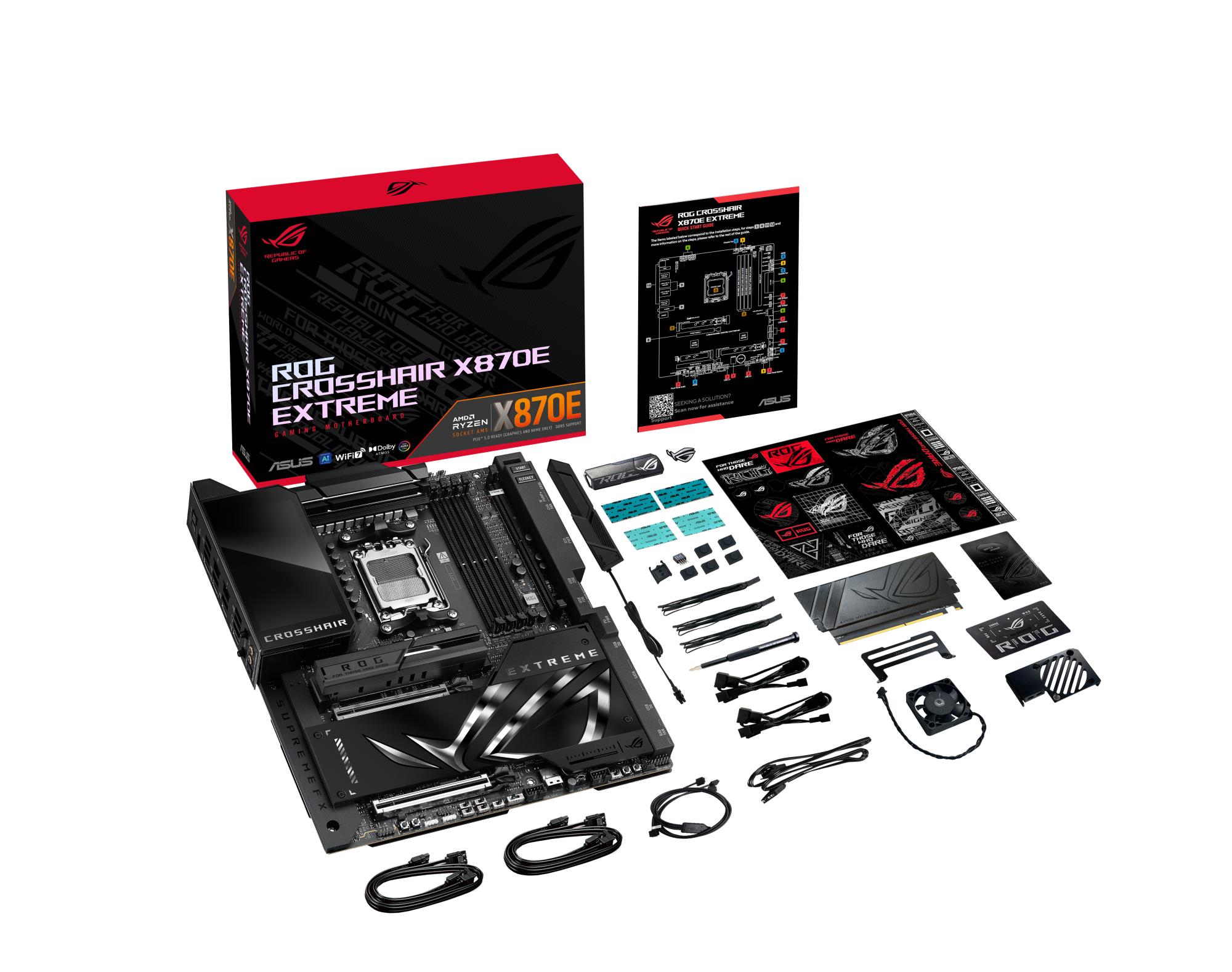

Cables included: SATA
-
Drivers included: Y
-
Model: ROG CROSSHAIR X870E EXTREME
-
Units per Pallet: 0
-
Unit Calculated Volume: 0.02512 cubm
-
Unit Calculated Weight: 5.72 kg
-
Manufacturer: ASUS
