Graphics Card|SPARKLE|Intel|Arc B580|2800 MHz|12 GB|GDDR6|192 bit|PCI Express x8 4.0|Active|SB580RW-12GOC
SKU: SB580RW-12GOC
€ 313.24
Pieejams : 7 gab.
Intel
Graphics processor Arc B580
2800 MHz
Memory 12 GB
Graphics card memory type GDDR6
192 bit
PCI Express x8 4.0

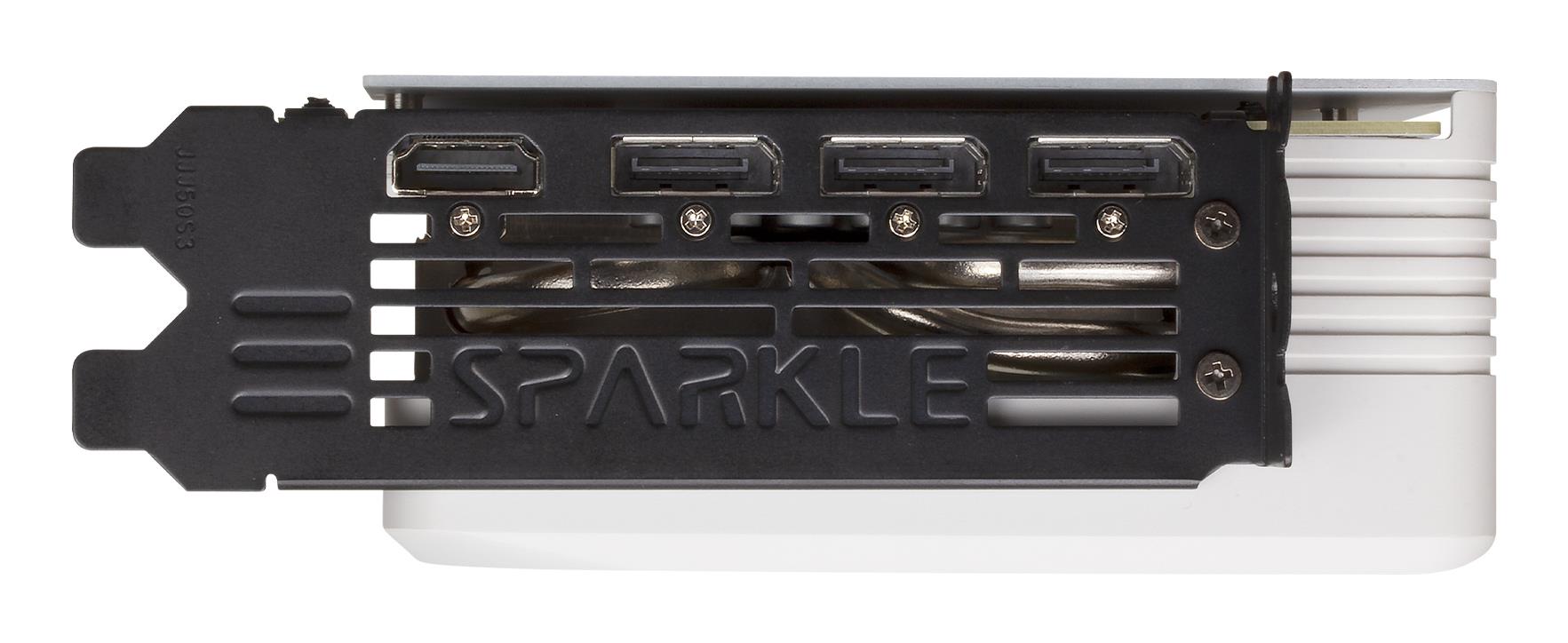

1xHDMI
3xDisplay ports
Cooling type Active
-
Summary: Sparkle Technology B580 ROC Luna OC Ultra. Graphics processor family: Intel, Graphics processor: Arc B580, Processor frequency: 2800 MHz. Discrete graphics card memory: 12 GB, Graphics card memory type: GDDR6, Memory bus: 192 bit. Maximum resolution: 7680 x 4320 pixels. DirectX version: 12 Ultimate, OpenGL version: 4.6. Interface type: PCI Express x8 4.0. Cooling type: Active, Number of fans: 2 fan(s), Illumination colour: Multi
-
Category Code: VGP
-
Unit Box Height: 0.195
-
Unit Box Length: 0.35
-
Unit Box Width: 0.09
-
CUDA: No
-
Graphics processor: Arc B580
-
Graphics processor family: Intel
-
Maximum resolution: 7680 x 4320 pixels
-
Parallel processing technology support: Not supported
-
Processor frequency: 2800 MHz
-
Ray accelerators: 20
-
Discrete graphics card memory: 12 GB
-
Graphics card memory type: GDDR6
-
Memory bandwidth (max): 456 GB/s
-
Memory bus: 192 bit
-
DisplayPort version: 2.1
-
DisplayPorts quantity: 3
-
HDMI ports quantity: 1
-
HDMI version: 2.1
-
Interface type: PCI Express x8 4.0
-
DirectX version: 12 Ultimate
-
Dual Link DVI: No
-
Intel® Xe Matrix Extensions (Intel® XMX) Engines: 160
-
OpenGL version: 4.6
-
Peak INT8 Performance: 233 TOPs
-
TV tuner integrated: No
-
Xe-cores: 20
-
Cooling type: Active
-
Fan diameter: 105 mm
-
Illumination: Yes
-
Illumination colour: Multi
-
Number of fans: 2 fan(s)
-
Number of slots: 2.2
-
Product colour: White
-
Minimum system power supply: 600 W
-
Supplementary power connectors: 2x 8-pin
-
Minimum RAM: 8000 MB
-
Minimum system requirements: 10th Gen Intel® CoreT / AMD RyzenT 3000 Series Processors or newer with compatible motherboards supporting Resizable BAR / Smart Access Memory
-
Windows operating systems supported: Windows 10/Windows 11/Yes
-
Depth: 44 mm
-
Height: 128 mm
-
Length: 230 mm
-
Weight: 880 g
-
Package type: Box
-
Compliance certificates: CE/Federal Communications Commission (FCC)
-
Units per Pallet: 0
-
Unit Calculated Volume: 0.007469 cubm
-
Product Net Weight: 0.88 kg
-
Unit Calculated Weight: 1.3 kg
