Graphics Card|GIGABYTE|NVIDIA|GeForce RTX 5060|2512 MHz|8 GB|GDDR7|128 bit|PCI Express 5.0|Active|GV-N5060WF2MAXOC-8GD

Summary: GIGABYTE GeForce RTX 5060 WINDFORCE MAX OC 8G Graphics Card - 8GB GDDR7, 128bit, PCI-E 5.0, 2512MHz Core Clock, 3 x DP, 1 x HDMI, NVIDIA DLSS 4, GV-N5060WF2MAX OC-8GD. Graphics processor family: NVIDIA, Graphics processor: GeForce RTX 5060, Processor frequency: 2512 MHz. Discrete graphics card memory: 8 GB, Graphics card memory type: GDDR7, Memory bus: 128 bit, Memory clock speed: 28000 MHz. Maximum resolution: 7680 x 4320 pixels. DirectX version: 12.0, OpenGL version: 4.6. Interface type: PCI Express 5.0. Cooling type: Active, Number of fans: 2 fan(s)

Category Code: VGP

Unit Box Height: 0.05

Unit Box Length: 0.3

Unit Box Width: 0.21

CUDA: Yes

CUDA Cores: 3840

Graphics processor: GeForce RTX 5060

Graphics processor family: NVIDIA

Maximum displays per videocard: 4

Maximum resolution: 7680 x 4320 pixels

Parallel processing technology support: Not supported

Processor frequency: 2512 MHz

Data transfer rate: 28 Gbit/s

Discrete graphics card memory: 8 GB

Graphics card memory type: GDDR7

Memory bus: 128 bit

Memory clock speed: 28000 MHz

DisplayPort version: 2.1b

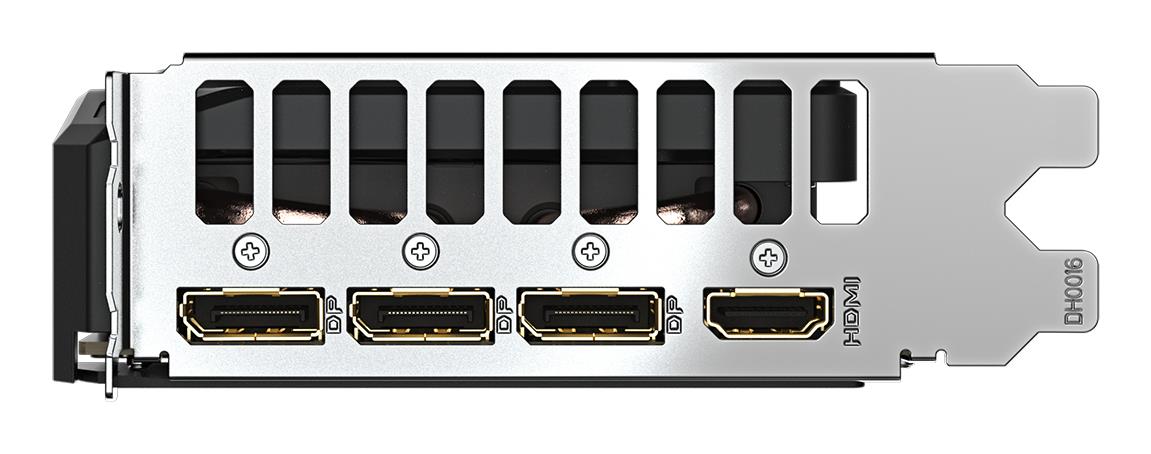

DisplayPorts quantity: 3

HDMI ports quantity: 1

HDMI version: 2.1b

Interface type: PCI Express 5.0

DirectX version: 12.0

Dual Link DVI: No

NVIDIA G-SYNC: Yes

OpenGL version: 4.6

Overclocked (OC) edition: Yes

TV tuner integrated: No

Warranty period: 3 year(s)

Cooling technology: GIGABYTE WINDFORCE 2X

Cooling type: Active

Form Factor: Full-Height/Half-Length (FH/HL)

Number of fans: 2 fan(s)

Number of slots: 2

Product colour: Black

Minimum system power supply: 550 W

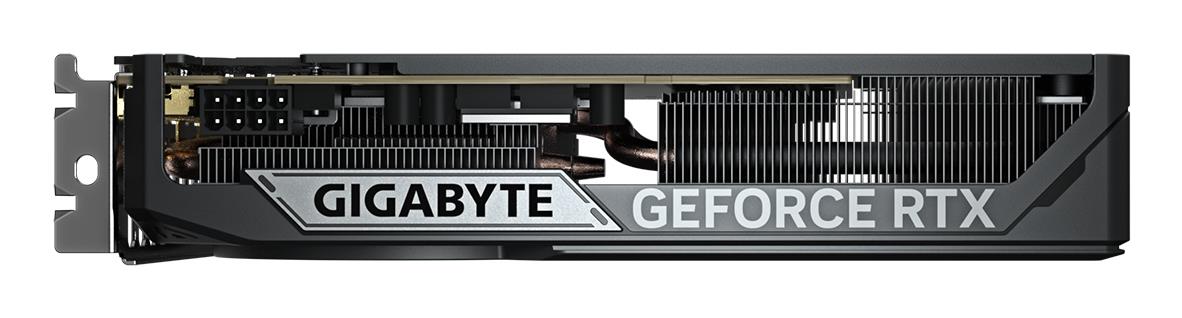

Supplementary power connectors: 1x 8-pin

Thermal Design Power (TDP): 109 W

Depth: 40 mm

Height: 116 mm

Length: 199 mm

Weight: 490 g

Package depth: 295 mm

Package height: 50 mm

Package type: Box

Package weight: 810 g

Package width: 210.5 mm

Products per shipping (inner) case: 1 pc(s)

Units per Pallet: 0

Unit Calculated Volume: 0.003872 cubm

Product Net Weight: 0.748 kg

Unit Calculated Weight: 0.809 kg

Manufacturer: GIGABYTE
