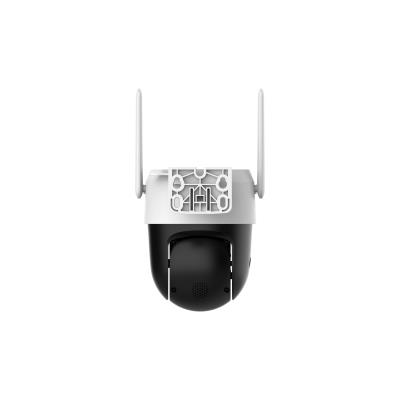

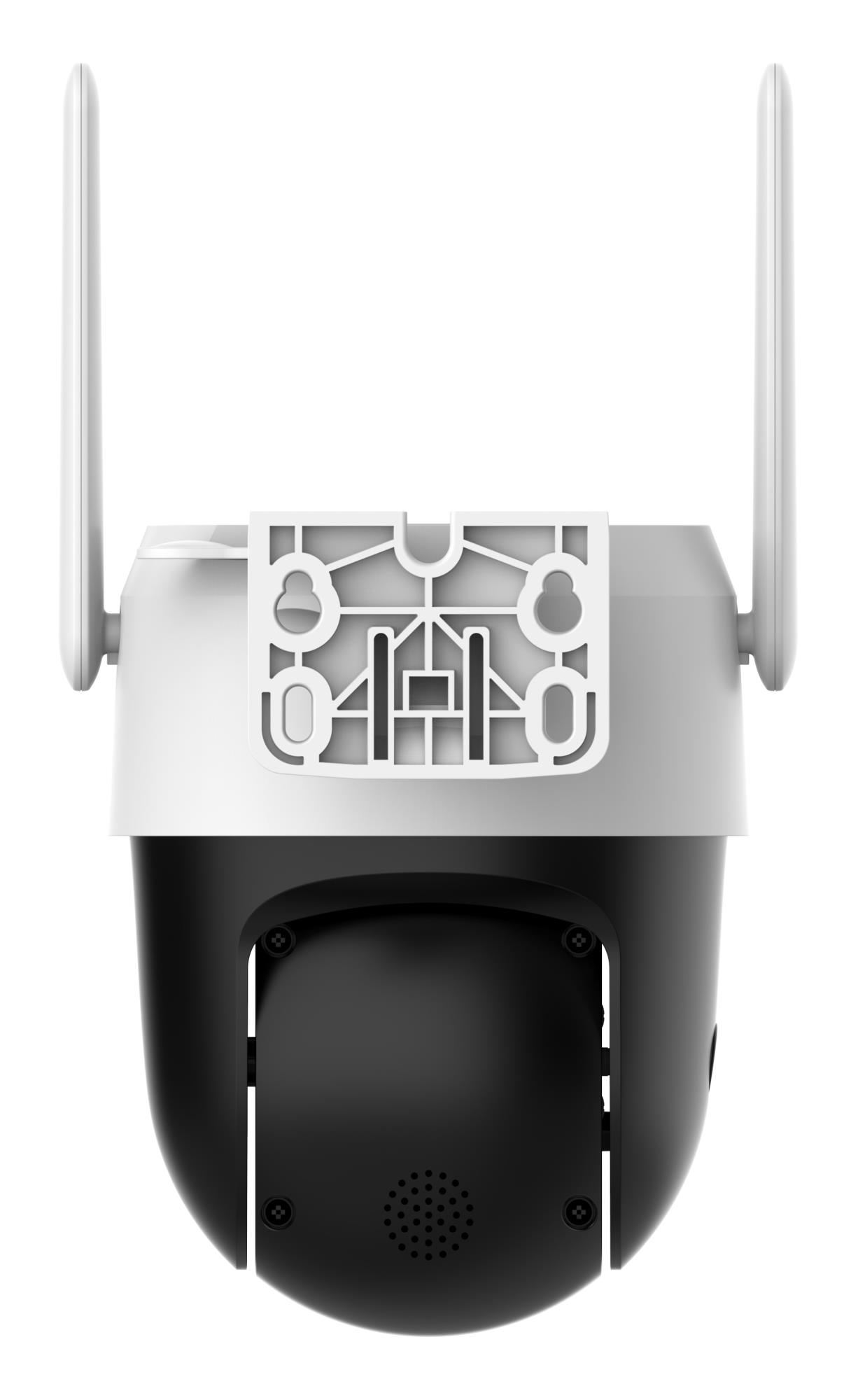

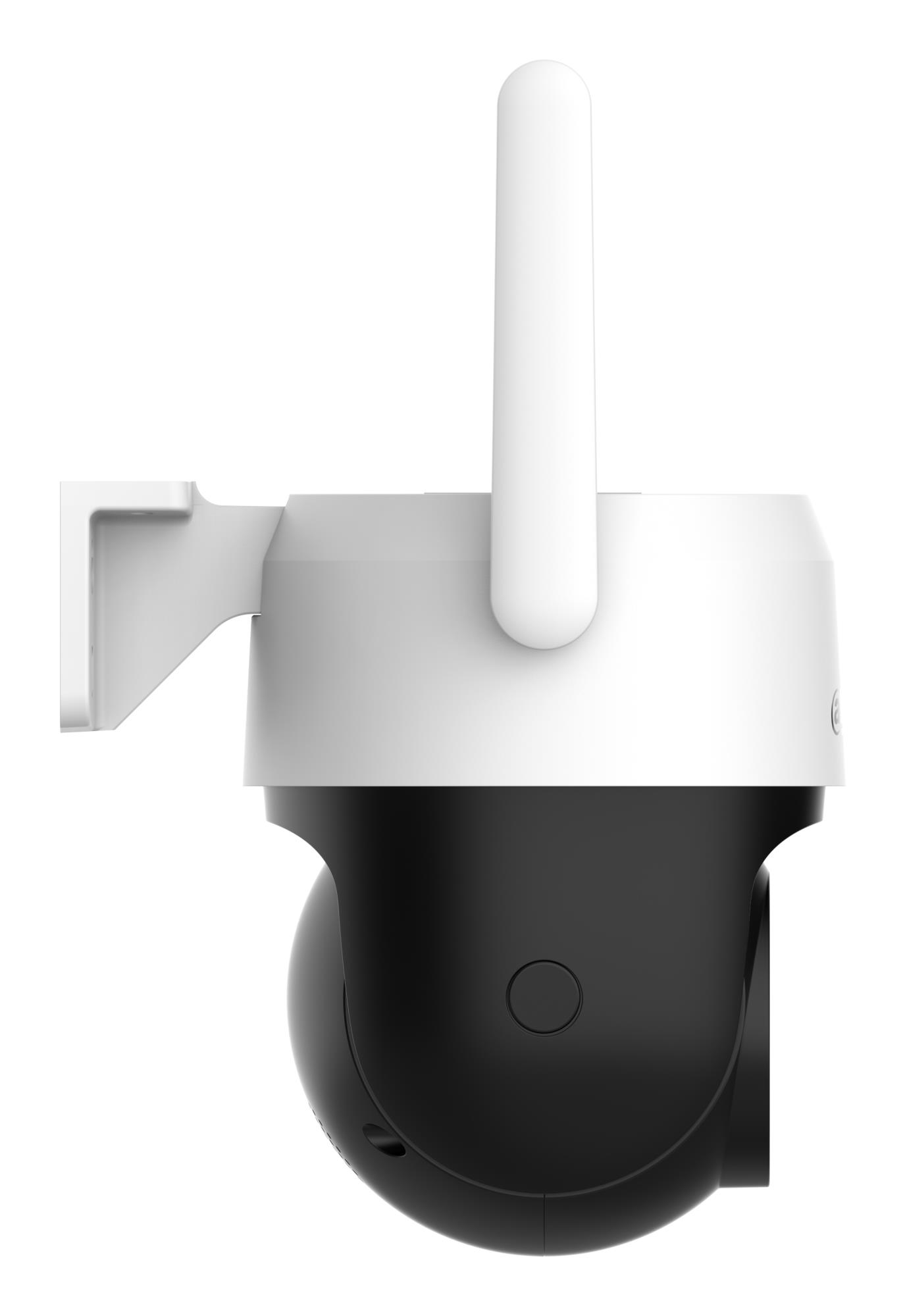

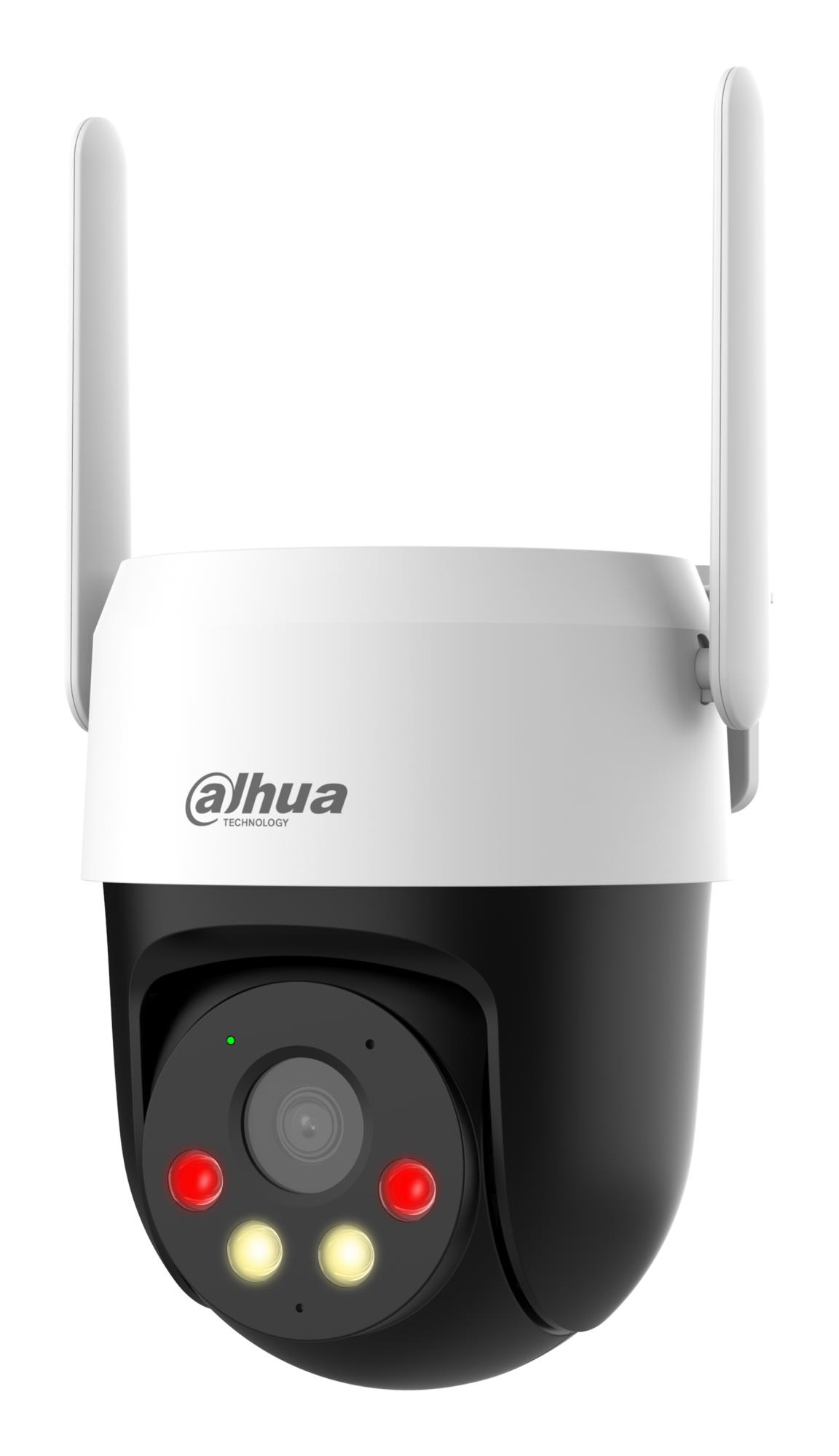

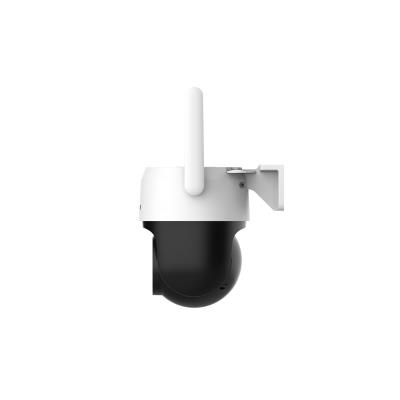

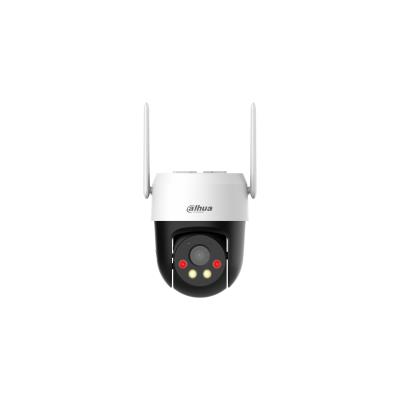

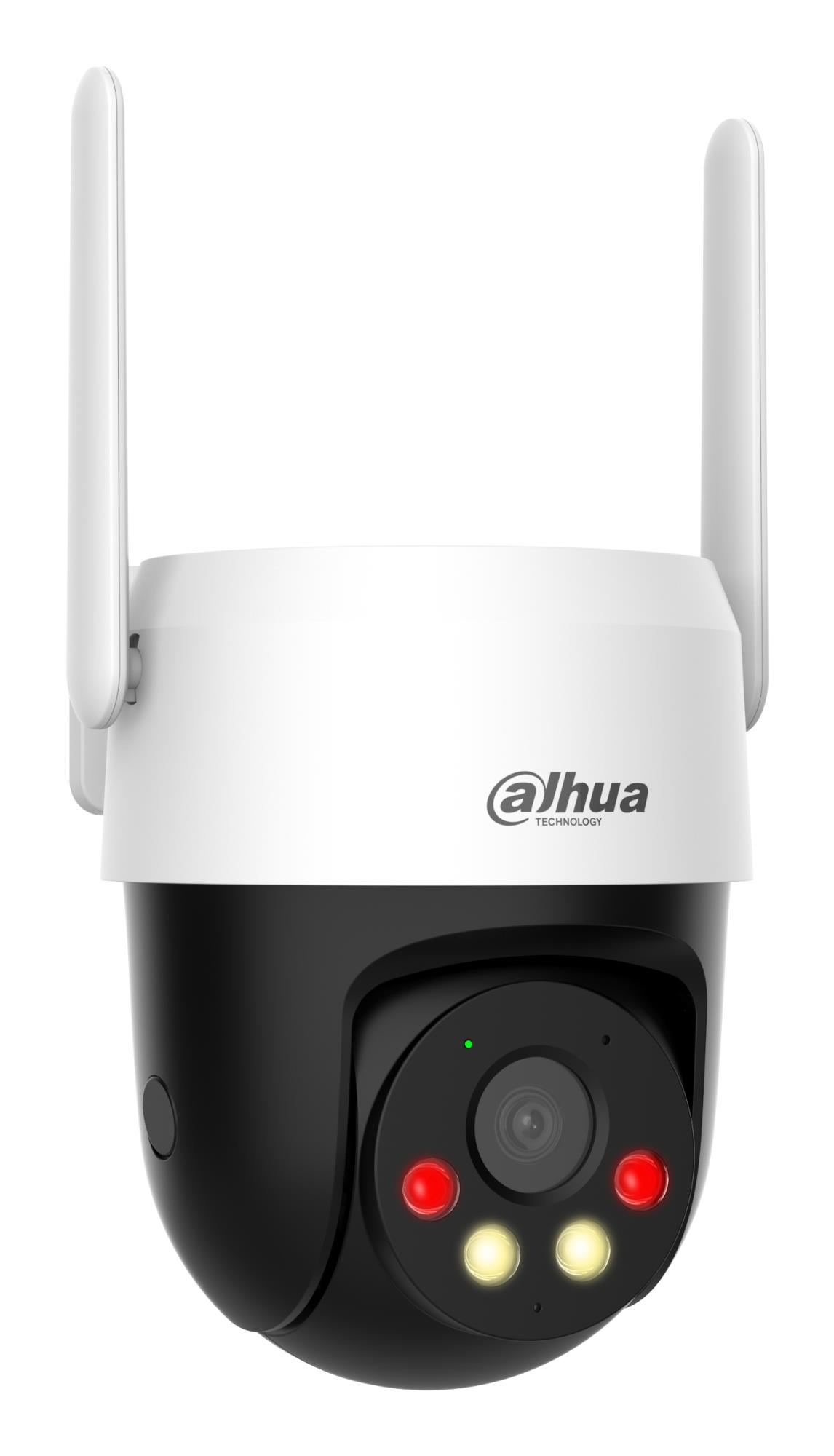

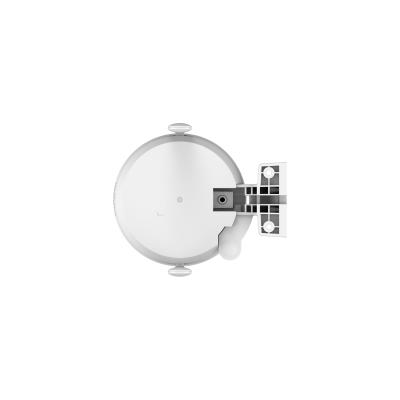

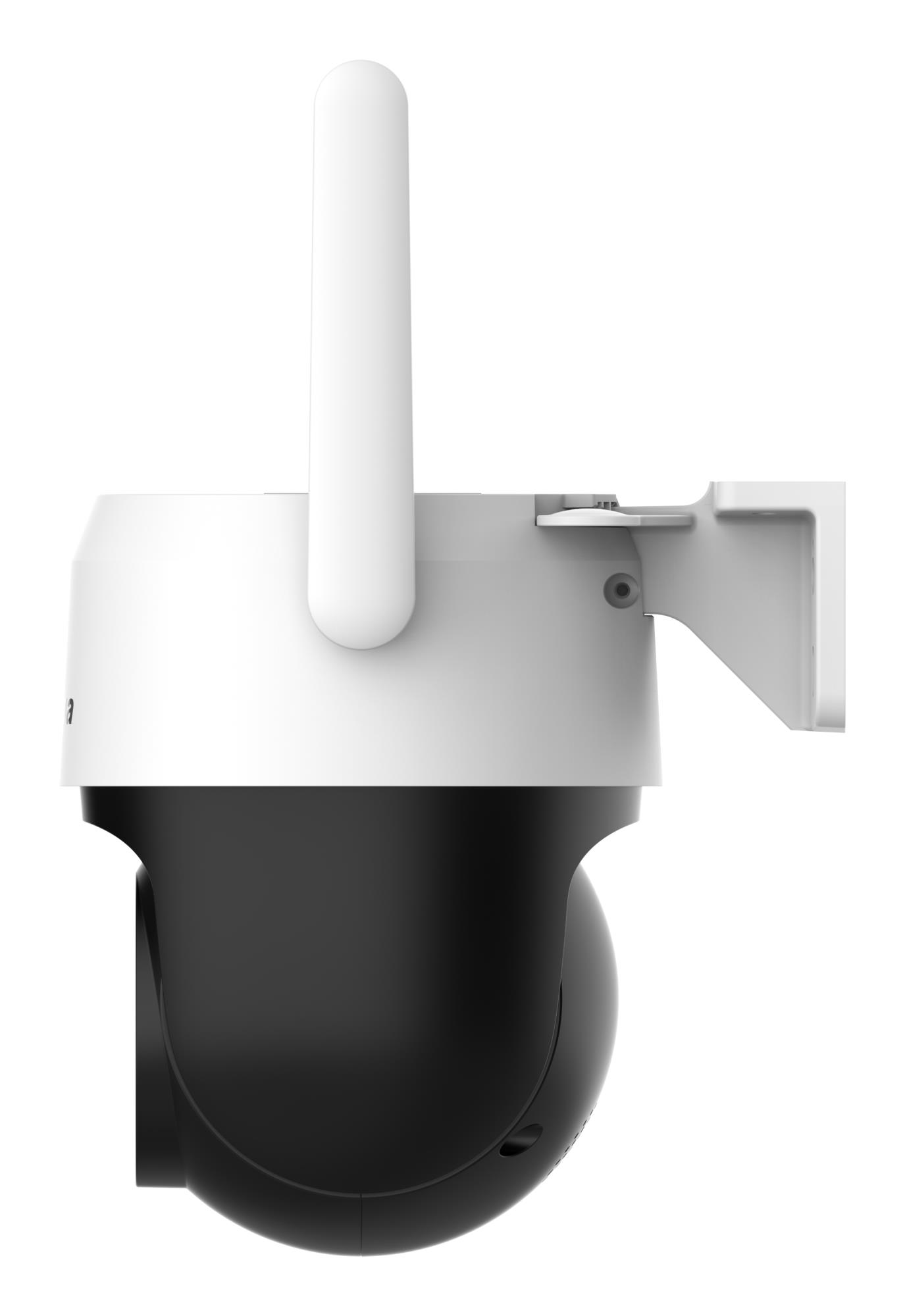

WRL CAMERA 5MP PT DOME 4G/P5AE-PV-4G DAHUA

Summary: Dahua Technology 5MP Fixed-focal 4G Pan & Tilt Network Camera. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wireless. Mounting type: Ceiling/wall, Product colour: Black, White, Form factor: Turret. Angle of rotation: 180°, Lens viewing angle, horizontal: 81.27°, Lens viewing angle, vertical: 47.73°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Fixed focal length: 4 mm

Category Code: NCI

Unit Box Height: 0.145

Unit Box Length: 0.225

Unit Box Width: 0.145

Auto-tracking: Yes

Built-in light: Yes

Connectivity technology: Wireless

Day/night mode: Yes

Placement supported: Outdoor

Plug and Play: Yes

PTZ control: Yes

Type: IP security camera

Wide Dynamic Range (WDR): Yes

Form Factor: Turret

Housing material: Plastic

International Protection (IP) code: IP66

LED indicators: Yes

Mounting type: Ceiling/wall

Product colour: Black/White

Protection features: Dustproof/Rain proof/Waterproof/Wind resistant

Weatherproof: Yes

Angle of rotation: 180 °

Camera pan control: Yes

Camera shutter speed: 1/25 - 1/100000 s

Camera shutter type: Electronic

Camera tilt control: Yes

Lens viewing angle, diagonal: 94.41 °

Lens viewing angle, horizontal: 81.27 °

Lens viewing angle, vertical: 47.73 °

Pan range: 0 - 345 °

Tilt angle range: 0 - 90 °

Digital Wide Dynamic Range (DWDR) (panoramic camera): Yes

Optical sensor size: 1/2.8 "

Sensor type: CMOS

Fixed focal length: 4 mm

Fixed focus: Yes

Maximum aperture number: 1.6

LED type: IR/White

Night vision: Yes

Night vision distance: 30 m

Number of illumination LEDs: 4

Bit rate: H264: 64 - 8192 kbps H265: 25 - 6400 kbps

Maximum resolution: 2880 x 1620 pixels

Total megapixels: 5 MP

Video compression formats: H.264+/H.264B/H.264H/H.264M/H.265/H.265+/M-JPEG

Video streaming: Yes

Audio system: 2-way

Built-in microphone: Yes

Built-in speaker(s): Yes

Voice codecs: G.711a/G.711Mu/G.726/PCM

4G standard: LTE-FDD

Bluetooth: No

Ethernet LAN: No

Live view: Yes

Mobile network connection: Yes

Mobile network generation: 4G

SIM card slot: Yes

Wi-Fi: No

Built-in HDD: No

Card reader integrated: Yes

Compatible memory cards: MicroSD (TransFlash)

Maximum memory card size: 256 GB

Alert notification type: Push notification

Intelligent Video Surveillance (IVS) system features: Human detection/Intrusion/Tripwire/Vehicle detection

Privacy protection: Yes

Video motion detection: Yes

Management software: DMSS

Remotely operated: Yes

Reset button: Yes

DC output current: 1 A

DC output voltage: 12

Power consumption (max): 9 W

Power consumption (typical): 3 W

Power source type: DC

Surge protection voltage: 2 kV

Operating relative humidity (H-H): 0 - 95 %

Operating temperature (T-T): -30 - 55 °C

Mobile operating systems supported: Android/iOS

Diameter: 111 mm

Height: 140.5 mm

Weight: 500 g

Compliance certificates: CE

AC adapter included: Yes

Mounting brackets included: Yes

Number of cameras: 1

Quick start guide: Yes

Screws included: Yes

Iris: Yes

Model: P5AE-PV-4G

Unit Calculated Volume: 0.004731 cubm

Unit Calculated Weight: 0.76 kg
