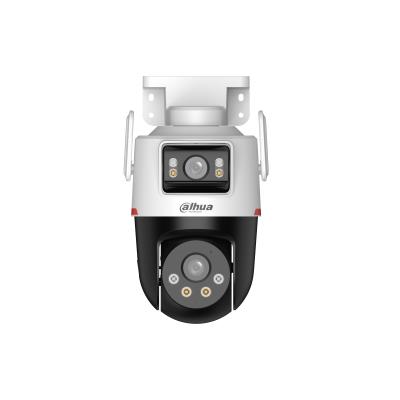

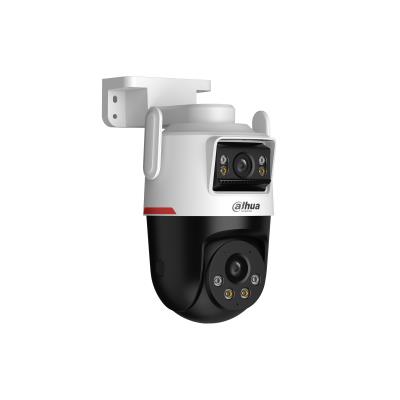

WRL CAMERA 3+3MP PT DOME/P3D-3F-PV-P DAHUA

Summary: Dahua Technology P3D-3F-PV-P. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired & Wireless. Mounting type: Corner, Product colour: White, Form factor: Bulb. Angle of rotation: 180°, Vertical field of view (thermal module): 48°, Horizontal field of view (thermal module): 10589°. Sensor type: CMOS. Maximum resolution: 2304 x 1296 pixels, Total megapixels: 6 MP, Video compression formats: H.264, H.264H, H.264B, M-JPEG

Category Code: NCI

Unit Box Height: 0.136

Unit Box Length: 0.23

Unit Box Width: 0.187

Connectivity technology: Wired & Wireless

Day/night mode: Yes

Placement supported: Indoor & outdoor

Type: IP security camera

Form Factor: Bulb

International Protection (IP) code: IP66

Mounting type: Corner

Product colour: White

Angle of rotation: 180 °

Horizontal field of view (thermal module): 10589 °

Vertical field of view (thermal module): 48 °

Sensor type: CMOS

Maximum aperture number: 1

Number of lenses: 1

Night vision: Yes

Bit rate: 512 kbps-4096 kbps

Maximum resolution: 2304 x 1296 pixels

Total megapixels: 6 MP

Video compression formats: H.264/H.264B/H.264H/M-JPEG

Audio formats supported: G.711 µ-law/G.711 A-law/G.726/PCM

Channel bandwidth: 2400 MHz

Ethernet LAN: Yes

Wi-Fi: Yes

Wi-Fi standards: 802.11b/802.11g/Wi-Fi 4 (802.11n)

Card reader integrated: Yes

Compatible memory cards: MicroSD (TransFlash)

Ethernet LAN (RJ-45) ports: 1

Motion sensor: Yes

Management software: Smart PSS Lite; DSS; DMSS

Power consumption (max): 9.8 W

Power consumption (Power over Ethernet (PoE)): 11.1 W

Power consumption (typical): 2.3 W

Power source type: PoE

Operating relative humidity (H-H): 0 - 95 %

Operating temperature (T-T): -30 - 50 °C

Depth: 159.4 mm

Height: 210 mm

Weight: 585 g

Width: 119.1 mm

Number of cameras: 2

Model name: P3D-3F-PV-P

Units per Pallet: 0

Unit Calculated Volume: 0.007192 cubm

Unit Calculated Weight: 1.08 kg

Manufacturer: DAHUA
