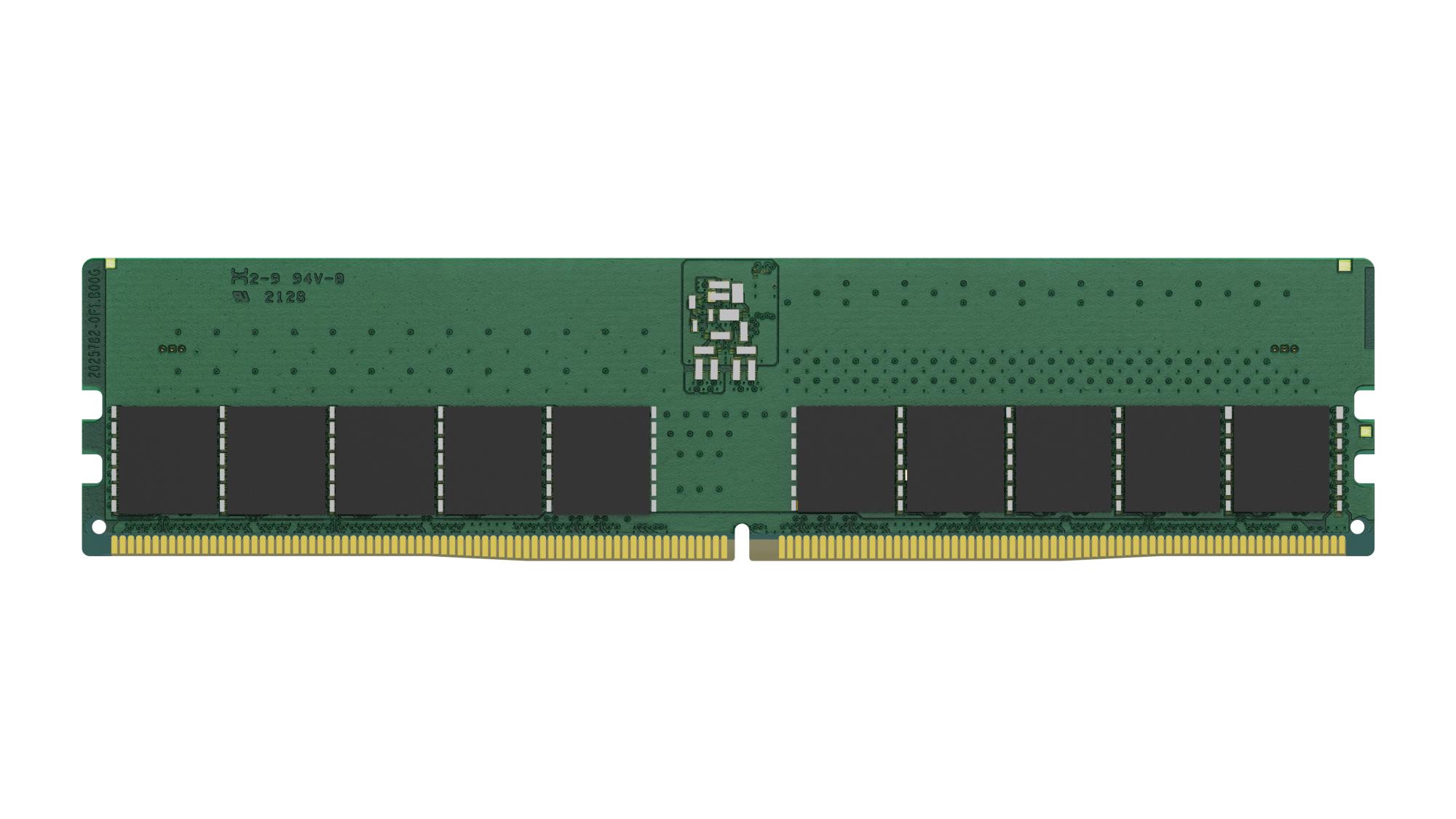

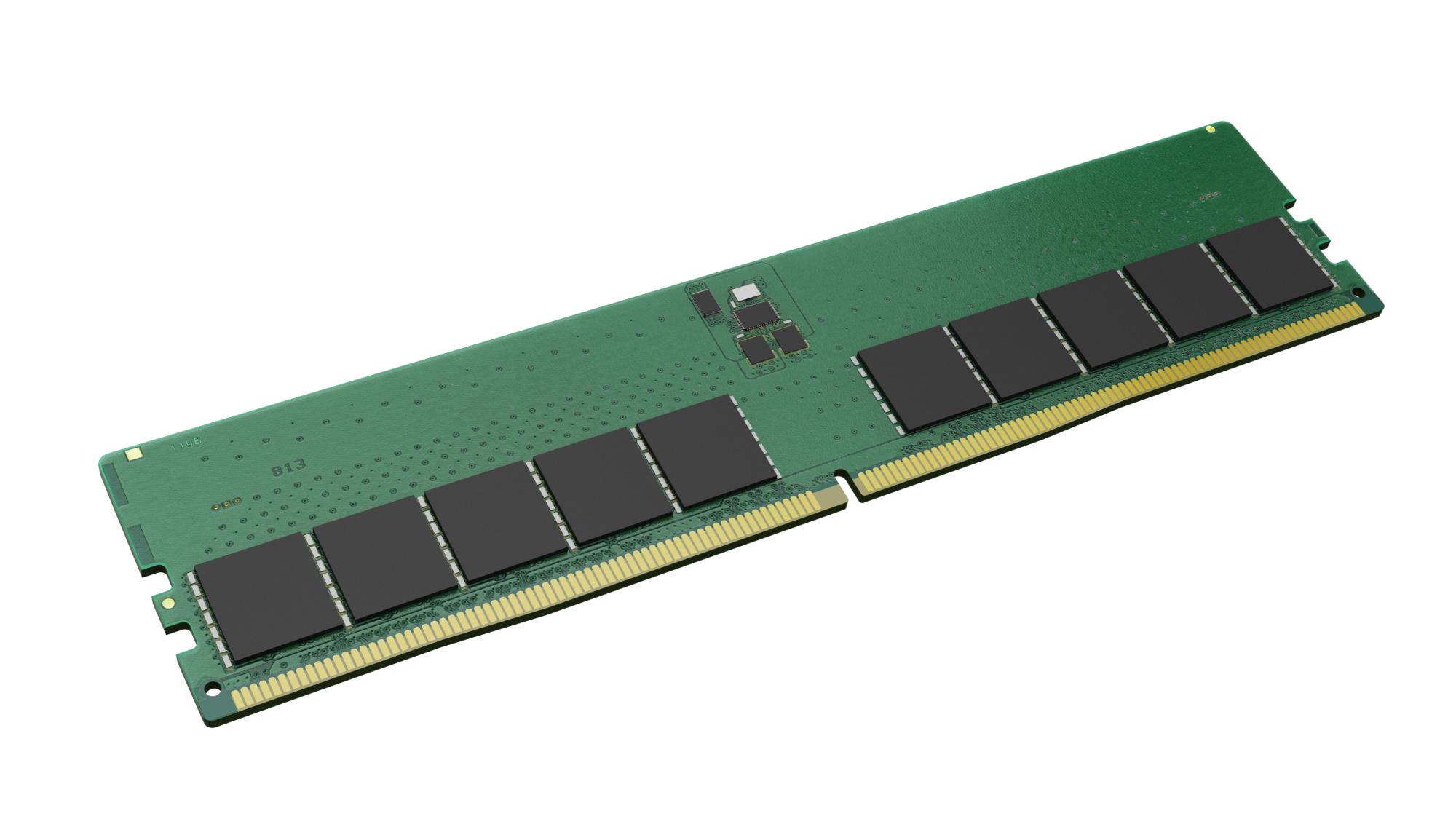

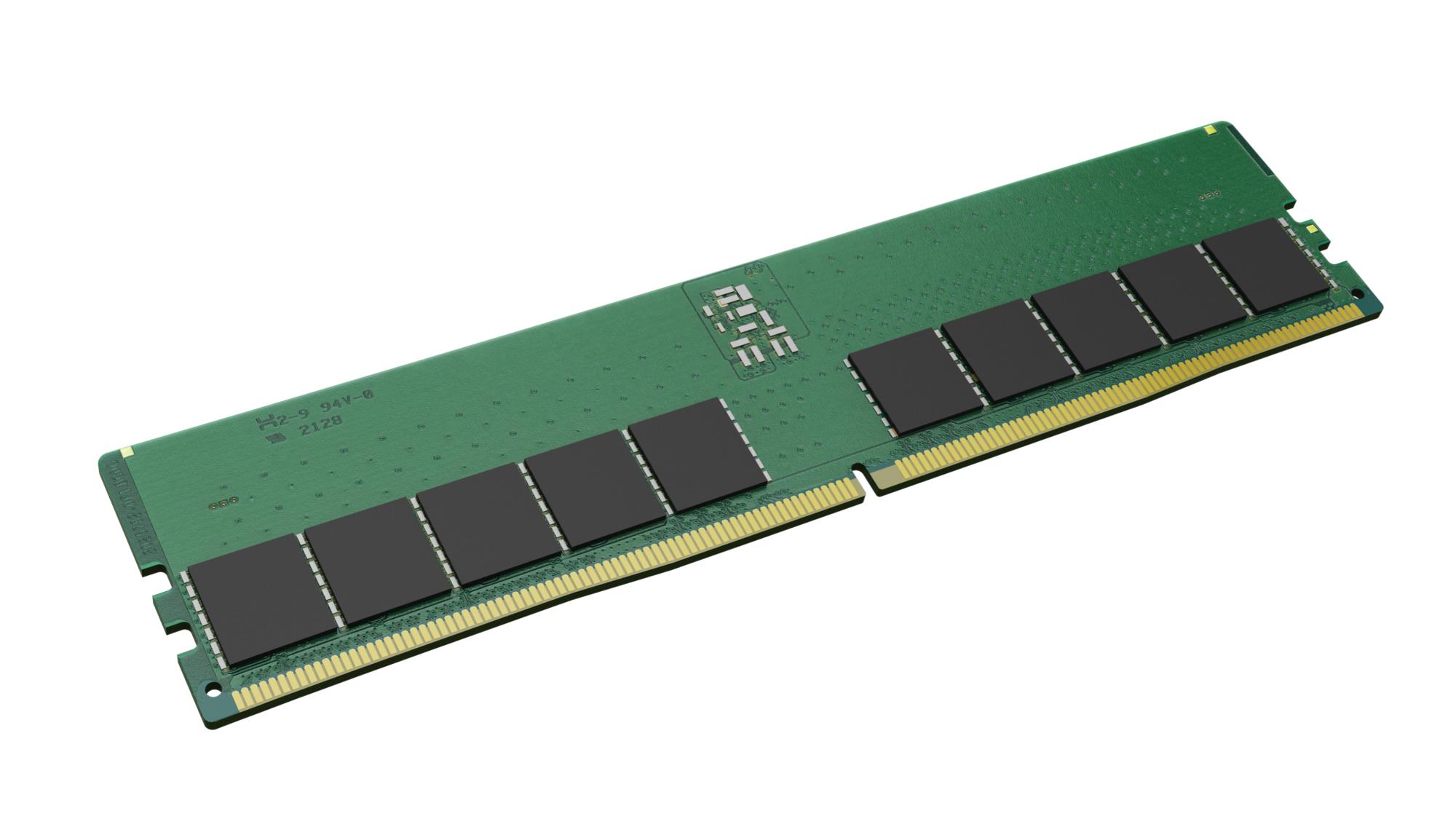

Server Memory Module|KINGSTON|DDR5| 48 GB|Unregistered (unbuffered)|CL 46|1.1 V|288-pin DIMM|KSM56E46BD8KM-48HM

Summary: Kingston Technology KSM56E46BD8KM-48HM. Component for: PC/Server, Internal memory: 48 GB, Memory layout (modules x size): 1 x 48 GB, Internal memory type: DDR5, Memory form factor: 288-pin DIMM, CAS latency: 46

Category Code: MES

Unit Box Height: 0.008

Unit Box Length: 0.16

Unit Box Width: 0.045

Buffered memory type: Unregistered (unbuffered)

CAS latency: 46

Component for: PC/Server

ECC: No

Internal memory: 48 GB

Internal memory type: DDR5

JEDEC standard: Yes

Lead plating: Gold

Memory data transfer rate: 5600 MT/s

Memory form factor: 288-pin DIMM

Memory layout (modules x size): 1 x 48 GB

Memory ranking: 2

Memory voltage: 1.1 V

On-Die ECC: Yes

Programming power voltage (VPP): 1.8 V

Refresh row cycle time: 295 ns

Row active time: 32 ns

Row cycle time: 48 ns

Row Precharge Time (TRP): 16

SPD profile: Yes

Operating temperature (T-T): 0 - 95 °C

Storage temperature (T-T): -55 - 100 °C

Compliance certificates: RoHS

Doesn't contain: Halogen

Height: 31.25 mm

Width: 133.35 mm

Units per Pallet: 0

Unit Calculated Volume: 5.76E-05 cubm

Unit Calculated Weight: 0.029 kg
