Power Supply|XILENCE|750 Watts|Efficiency 80 PLUS GOLD|PFC Active|XN173
SKU: XN173
€ 109.89
Pieejams : 6 gab.
750 W
100 - 240 V
Efficiency 92 %
80 PLUS certification 80 PLUS Gold
PC
ATX
Fan diameter 140 mm
Package type Box
XN173
XP750MR9.2
-
Summary: Xilence Performance X Series XP750MR9.2. Total power: 750 W, AC input voltage: 100 - 240 V, Power Factor Correction (PFC) type: Active. Motherboard power connector: 20+4 pin ATX, Cabling type: Semi-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Red, Cooling type: Active, Fan diameter: 14 cm. Compliance certificates: RoHS, WEEE
-
Category Code: PSU
-
Unit Box Height: 0.195
-
Unit Box Length: 0.29
-
Unit Box Width: 0.095
-

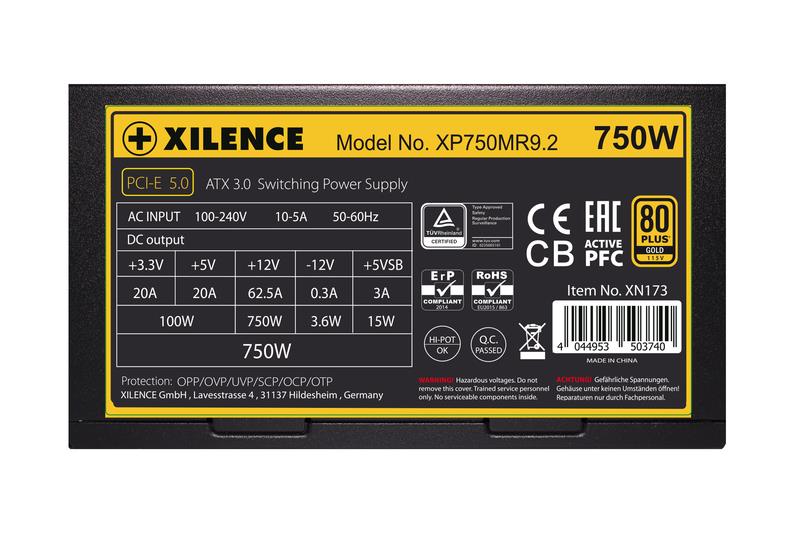

AC input voltage: 100 - 240 V
-
Efficiency: 92 %
-
Max output current (+12V): 62.5 A
-
Max output current (+3.3V): 20 A
-
Max output current (+5V): 20 A
-
Max output current (+5Vsb): 3 A
-
Max output current (-12V): 0.3 A
-
Power Factor Correction (PFC) type: Active
-
Power protection features: Over current/Over power/Over voltage/Short circuit/Under voltage
-
Total power: 750 W
-

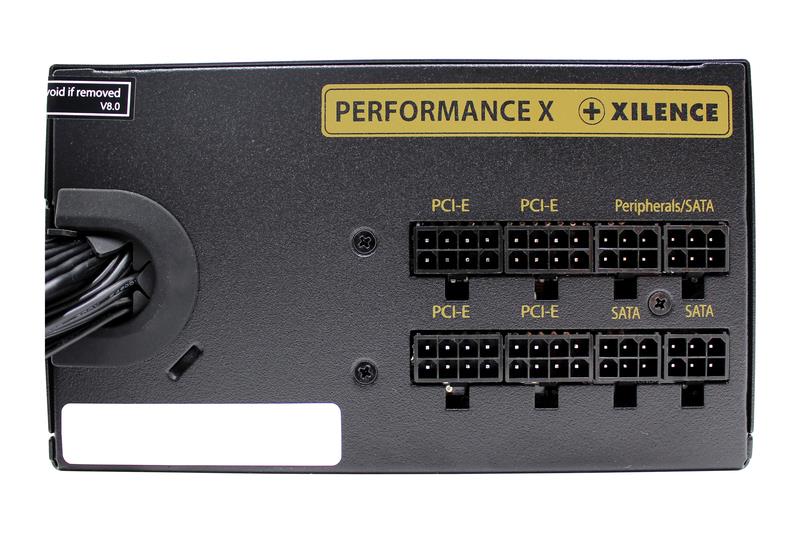

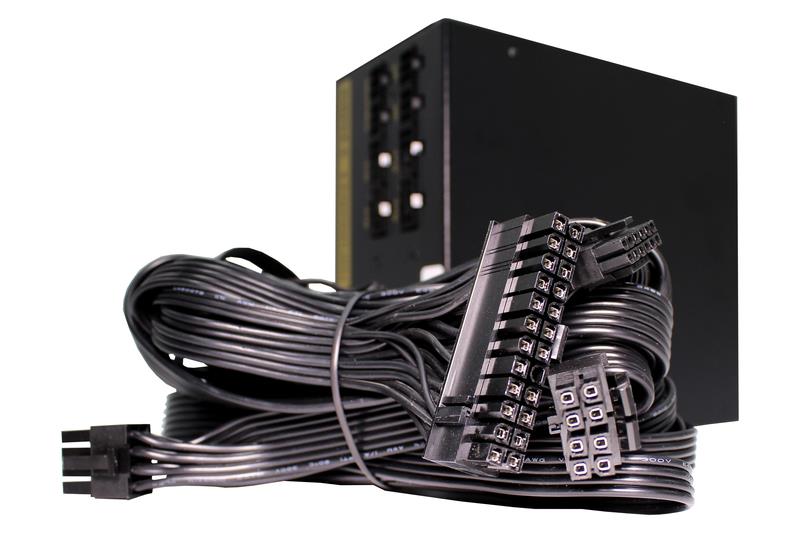

Cabling type: Semi-Modular
-
CPU P4 connector (4-pin): 1
-
CPU power connector (4+4 pin): Yes
-
Motherboard power connector: 20+4 pin ATX
-
Number of SATA power connectors: 6
-
PCI Express power connectors (6+2 pin): 3
-
PCI Express power connectors (8-pin): 1
-
80 PLUS certification: 80 PLUS Gold
-
ATX version: 3.0
-
Bearing technology: FDB
-
Power supply unit (PSU) form factor: ATX
-
Purpose: PC
-
Cooling type: Active
-

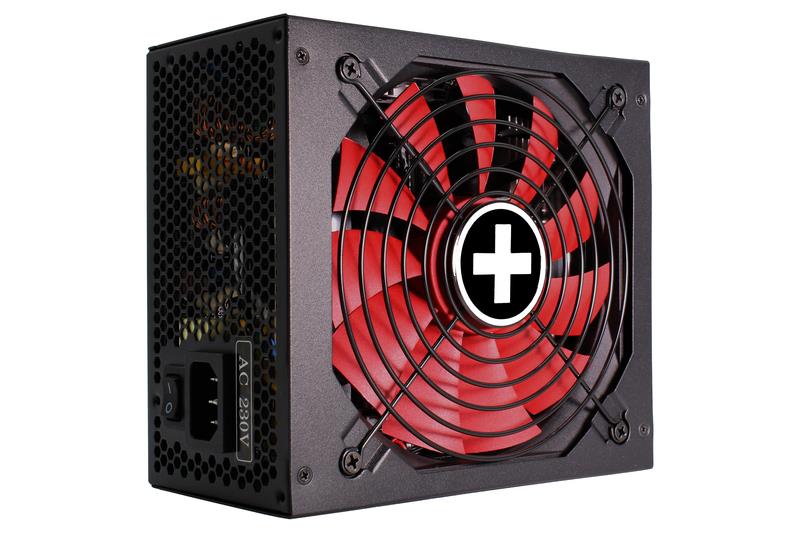

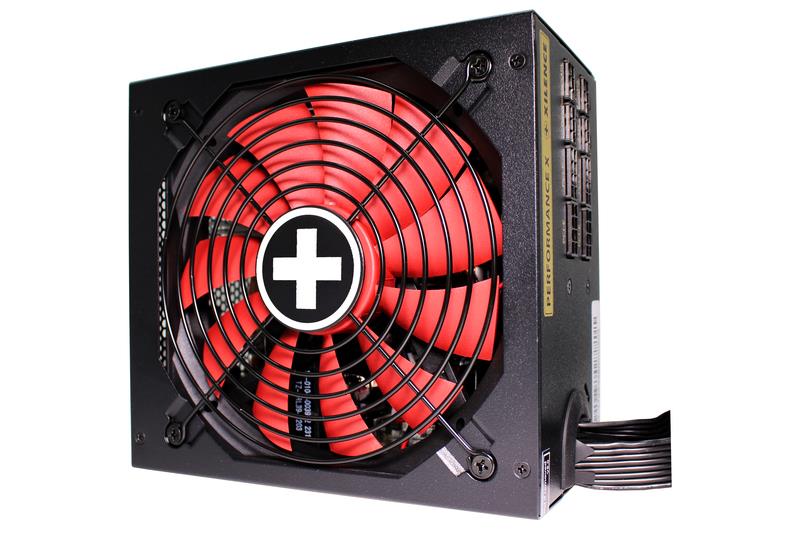

Fan diameter: 140 mm
-
Number of fans: 1 fan(s)
-
Product colour: Black/Red
-
Compliance certificates: RoHS/WEEE
-
Depth: 160 mm
-
Height: 86 mm
-
Width: 150 mm
-
Package type: Box
-
Sustainability certificates: ErP
-
Sustainability compliance: Yes
-
Model name: XN173 | XP750MR9.2
-
Unit Calculated Volume: 0.005372 cubm
-
Unit Calculated Weight: 2.72 kg
