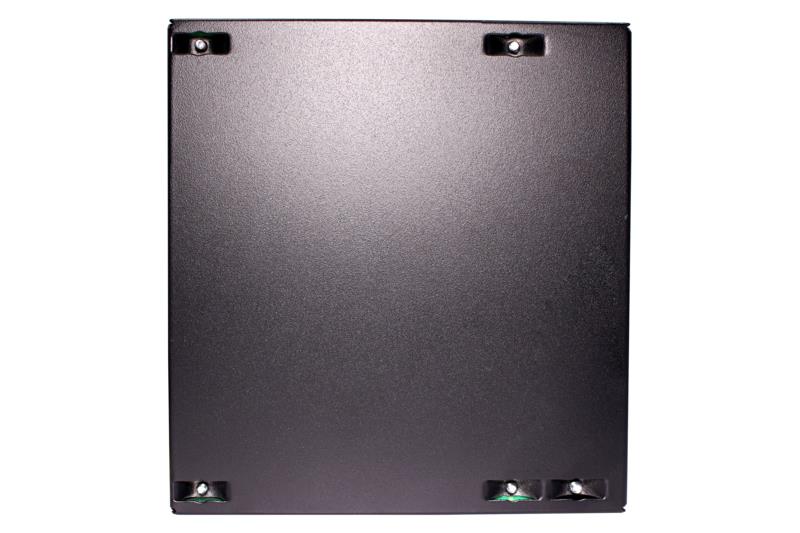

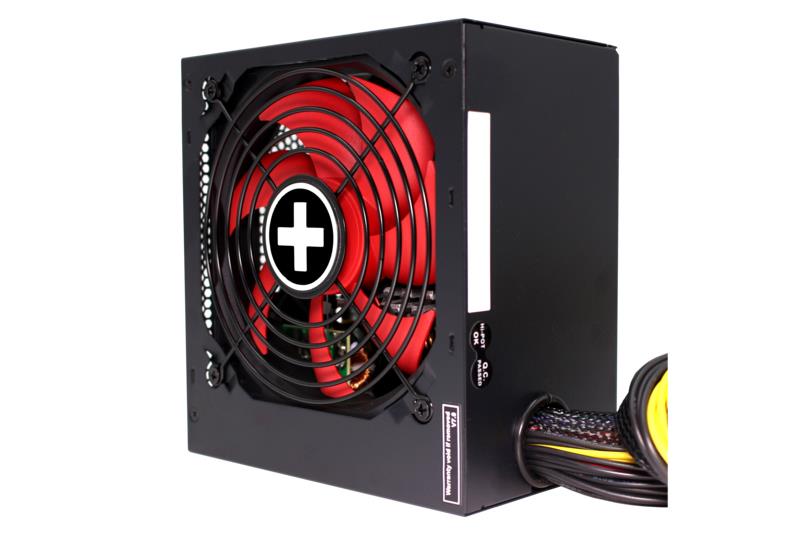

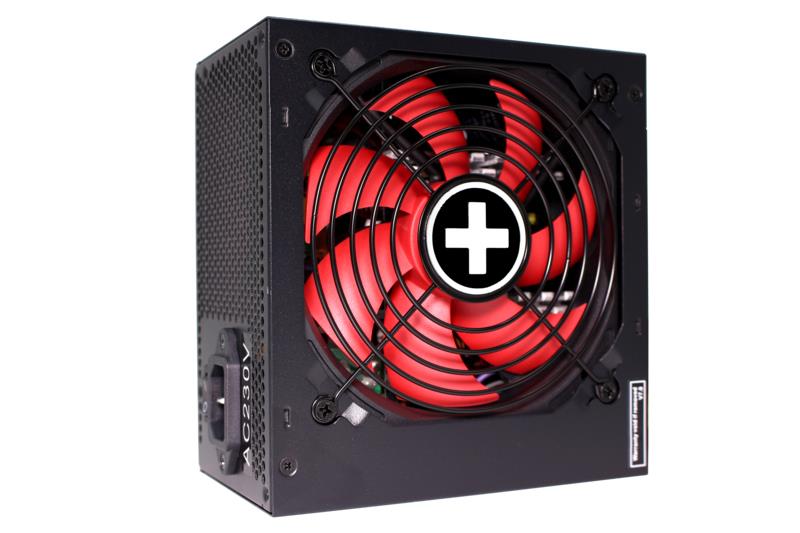

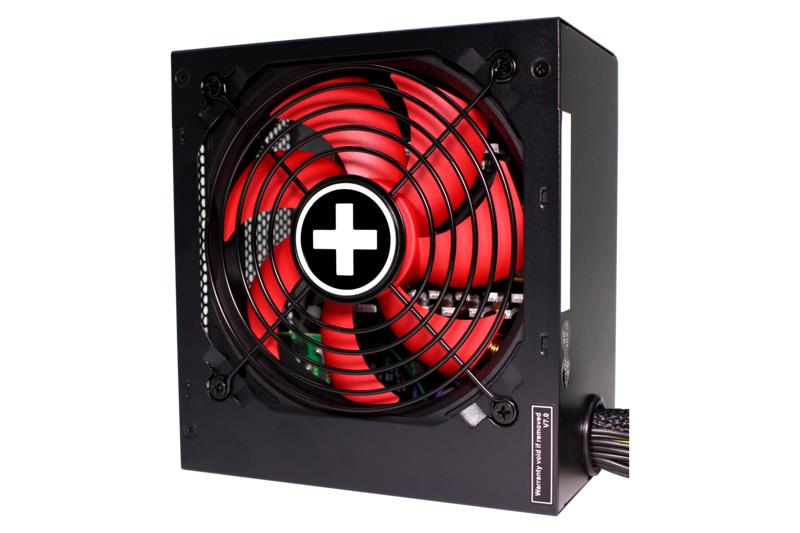

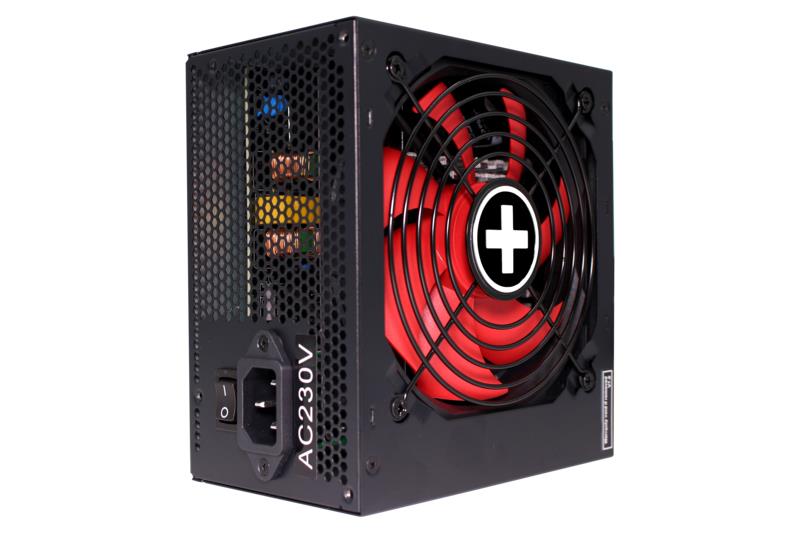

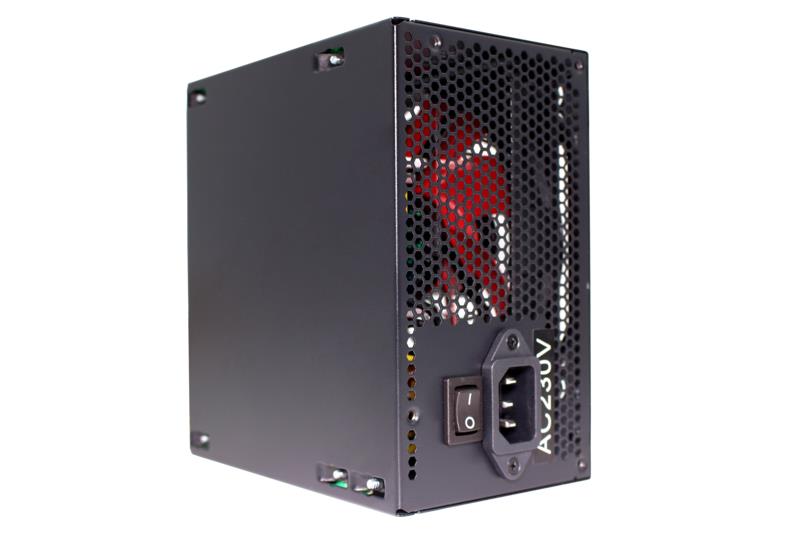

Power Supply|XILENCE|650 Watts|Efficiency 80 PLUS BRONZE|PFC Active|XN220
SKU: XN220
€ 58.95
Pieejams : 11 gab.
650 W
200 - 240 V
Efficiency 85 %
80 PLUS certification 80 PLUS Bronze
PC
ATX
Noise level 29 dB
Fan diameter 140 mm
XN220
XP650R10
-
Summary: Xilence XN225. Total power: 650 W, AC input voltage: 200 - 240 V, AC input frequency: 50 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 50 cm, Cabling type: Non-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Bronze. Product colour: Black, Red, Cooling type: Active, Fan diameter: 14 cm. Compliance certificates: CB, CE, REACH, RoHS, cTUVus, WEEE, Certification: ErP2014
-
Category Code: PSU
-
Unit Box Height: 0.185
-
Unit Box Length: 0.26
-
Unit Box Width: 0.1
-

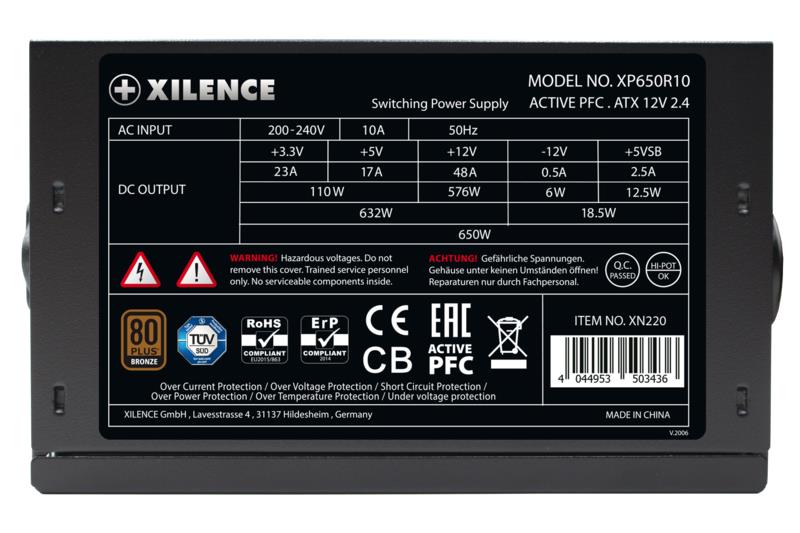

AC input frequency: 50 Hz
-
AC input voltage: 200 - 240 V
-
Combined power (+12V): 576 W
-
Combined power (+5Vsb): 12.5 W
-
Combined power (-12V): 6 W
-
Efficiency: 85 %
-
Input current: 10 A
-
Max output current (+12V1): 48 A
-
Max output current (+3.3V): 23 A
-
Max output current (+5V): 17 A
-
Max output current (+5Vsb): 2.5 A
-
Max output current (-12V): 0.5 A
-
Power Factor Correction (PFC) type: Active
-
Power protection features: Over current/Over voltage/Overheating/Overload/Under voltage
-
Total power: 650 W
-

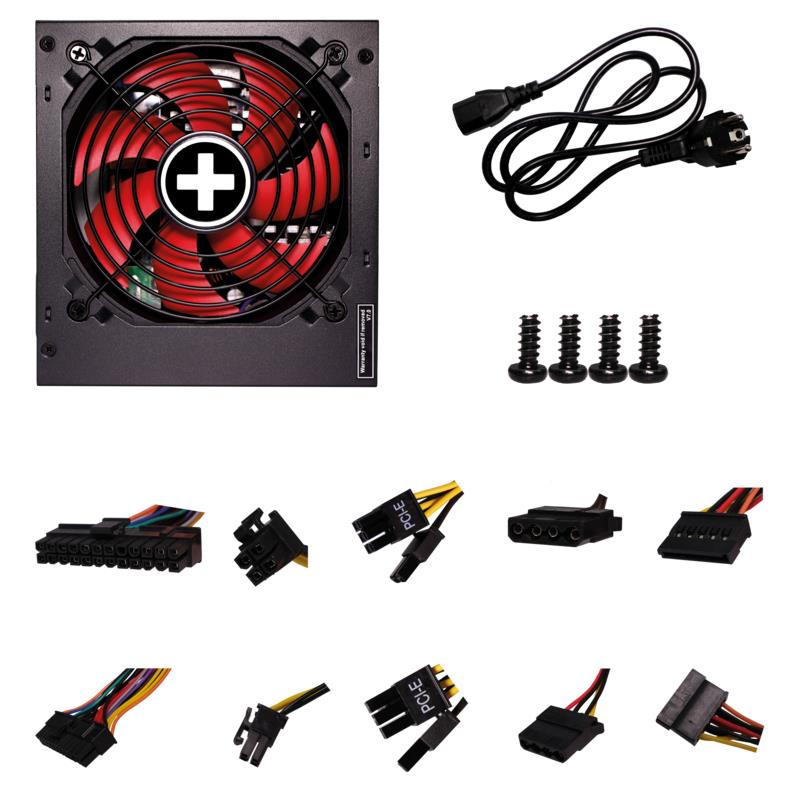

Cabling type: Non-Modular
-
CPU power connector (4+4 pin): Y
-
Floppy disk drive connector: Y
-
Floppy drive power connector: 1
-
Motherboard power cable length: 500 mm
-
Motherboard power connector: 20+4 pin ATX
-
Number of PATA power connectors: 3
-
Number of SATA power connectors: 6
-
PCI Express power connectors (6+2 pin): 2
-
80 PLUS certification: 80 PLUS Bronze
-
ATX version: 2.4
-
Noise level: 29 dB
-
Power supply unit (PSU) form factor: ATX
-
Purpose: PC
-
Cooling type: Active
-
Fan diameter: 140 mm
-
Number of fans: 1 fan(s)
-
Product colour: Black/Red
-
Certification: ErP2014
-
Compliance certificates: CB/CE/cTUVus/REACH/RoHS/WEEE
-
Package depth: 440 mm
-
Package height: 265 mm
-
Package weight: 1980 g
-
Package width: 580 mm
-
Sustainability certificates: ErP
-
Sustainability compliance: Y
-
Model name: XN220 | XP650R10
-
Unit Calculated Volume: 0.00481 cubm
-
Unit Calculated Weight: 1.81 kg
