Power Supply|BE QUIET|ATX|PC|200 - 240 V|750 W|BP012EU

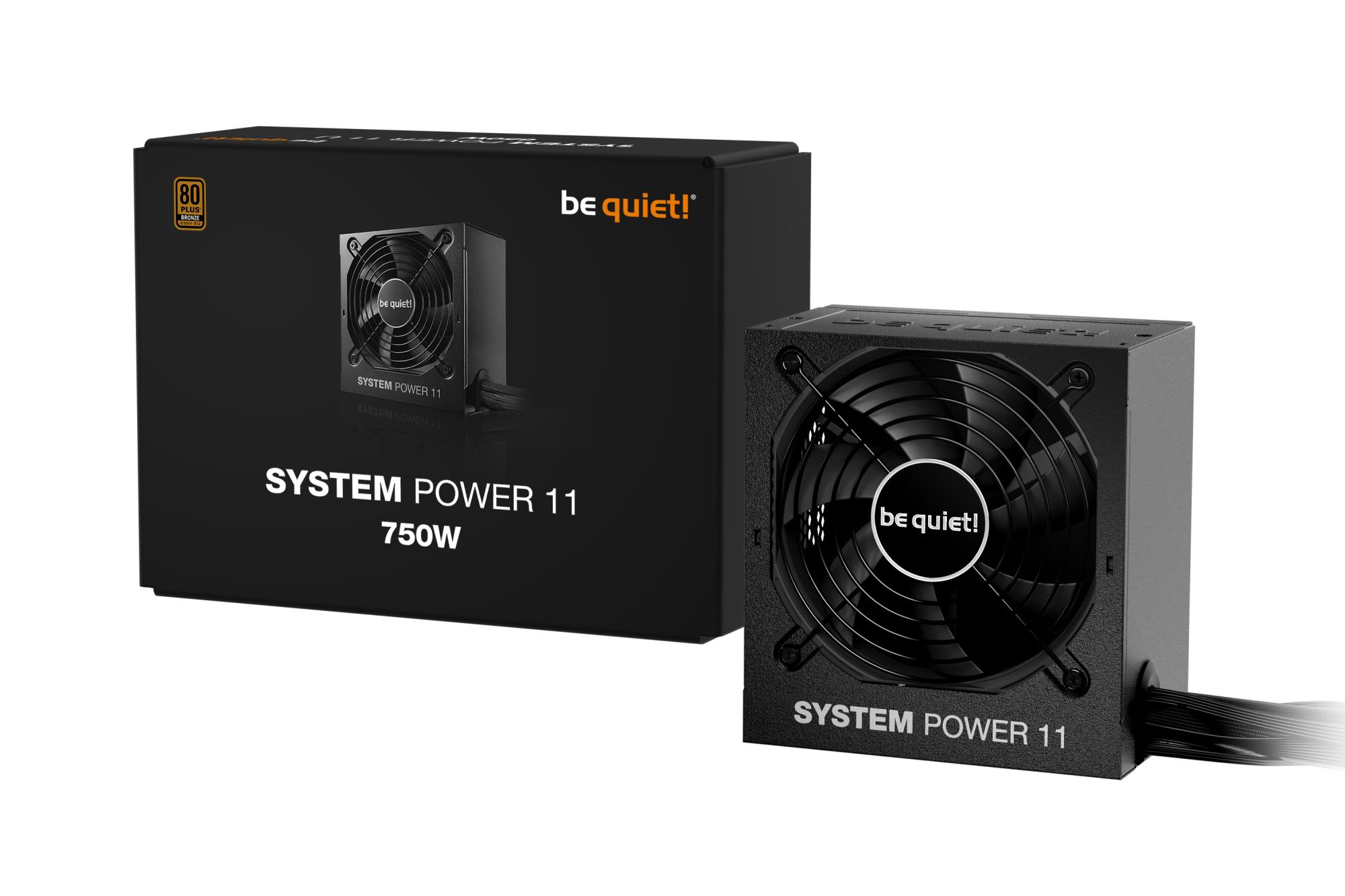

Summary: be quiet! System Power 11 750W. Total power: 750 W, AC input voltage: 200 - 240 V, AC input frequency: 50 Hz. Motherboard power connector: 20+4 pin ATX, Cabling type: Non-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Bronze. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Compliance certificates: CB, CE, RoHS, TÜV mark, UKCA, WEEE

Category Code: PSU

Unit Box Height: 0.098

Unit Box Length: 0.198

Unit Box Width: 0.278

AC input frequency: 50 Hz

AC input voltage: 200 - 240 V

Combined power (+12V): 750 W

Combined power (+3.3V): 120 W

Combined power (+5V): 120 W

Combined power (+5Vsb): 15 W

Combined power (-12V): 3.6 W

Efficiency: 90 %

Hold time: 17.34 ms

Input current: 4 A

Max output current (+12V1): 62.5 A

Max output current (+3.3V): 20 A

Max output current (+5V): 20 A

Max output current (+5Vsb): 3 A

Max output current (-12V): 0.3 A

Number of +12V rail(s): 1

Power factor: 0.98

Power protection features: Over current/Over power/Over voltage/Overheating/Short circuit/Surge & inrush/Under voltage

Total power: 750 W

Cabling type: Non-Modular

CPU P4 connector (4-pin): 1

CPU power connector (4+4 pin): Yes

EPS power connector (8-pin): Yes

Motherboard power connector: 20+4 pin ATX

Number of SATA power connectors: 6

PCI Express power connectors (12-pin): 1

PCI Express power connectors (6+2 pin): 3

Peripheral (Molex) power connectors (4-pin): 1

80 PLUS certification: 80 PLUS Bronze

ATX version: 3.1

Bearing technology: Rifle

EPS version: 2.92

Mean time between failures (MTBF): 100000 h

Noise level: 33.4 dB

Power supply unit (PSU) form factor: ATX

Purpose: PC

Cooling type: Active

Fan diameter: 120 mm

Fan speed: 0 - 2100 rpm

Number of fans: 1 fan(s)

On/off switch: Yes

Product colour: Black

Compliance certificates: CB/CE/RoHS/TÜV mark/UKCA/WEEE

Waste Electrical and Electronic Equipment (WEEE) compliance: Yes

Depth: 86 mm

Height: 140 mm

Weight: 2040 g

Width: 150 mm

Package depth: 268 mm

Package height: 97 mm

Package type: Box

Package weight: 2400 g

Package width: 195 mm

Sustainability certificates: ENERGY STAR/ErP

Products per shipping (inner) case: 6 pc(s)

Shipping (inner) case gross weight: 15600 g

Shipping (inner) case height: 218 mm

Shipping (inner) case length: 556 mm

Shipping (inner) case width: 311 mm

Cable ties included: Yes

Screws included: Yes

Units per Pallet: 0

Unit Calculated Volume: 0.006699 cubm

Unit Calculated Weight: 2.73 kg

Manufacturer: BE QUIET
