Power Supply|ADATA|XPG CORE REACTOR II VE|850 Watts|Efficiency 80 PLUS GOLD|COREREACTORIIVE850G-BKCEU

Summary: XPG COREREACTOR II VE 850W Power Supply. Total power: 850 W, AC input voltage: 100 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 24-pin ATX, Motherboard power cable length: 65 cm, SATA power cable length: 150,450 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Certification: CB / CE / FCC / TUV / cTUVus / BSMI / CCC NOM / FCC IC / UKCA / TUV / TUV S-Mark / cTUVus

Category Code: PSU

Unit Box Height: 0.12

Unit Box Length: 0.3

Unit Box Width: 0.205

AC input frequency: 47 - 63 Hz

AC input voltage: 100 - 240 V

Input current: 12 A

Max output current (+12V): 70.8 A

Max output current (+3.3V): 20 A

Max output current (+5V): 20 A

Max output current (+5Vsb): 3 A

Max output current (-12V): 0.3 A

Power factor: 0.99

Power protection features: Over current/Over power/Over voltage/Overheating/Short circuit/Surge & inrush protection (SIP)/Under voltage

Total power: 850 W

ATX power connector (12+4 pin): Y

ATX Power connector (24-pin): Y

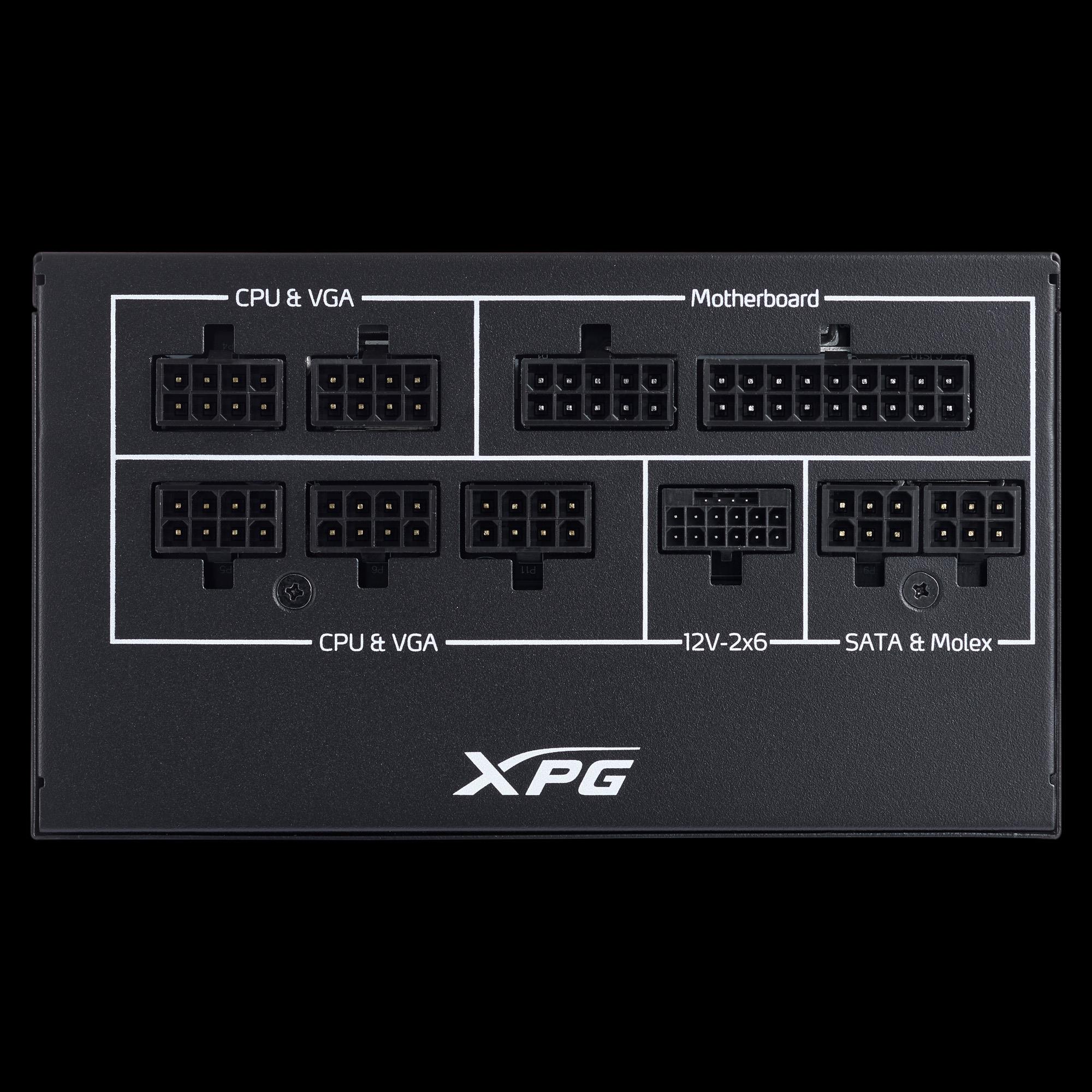

Cabling type: Fully-Modular

CPU power cable length: 750 mm

CPU power connector (4+4 pin): Y

EPS power connector (4+4 pin): Y

EPS power connector (8-pin): Y

Motherboard power cable length: 650 mm

Motherboard power connector: 24-pin ATX

Number of SATA power connectors: 6

PCI Express power connectors (12+4 pin) cable length: 600 mm

PCI Express power connectors (12-pin): 1

PCI Express power connectors (6+2 pin): 3

Peripheral (Molex) power connectors (4-pin): 2

SATA power cable length: 150/450 mm

80 PLUS certification: 80 PLUS Gold

ATX version: 3.1

Bearing technology: FDB

Mean time between failures (MTBF): 100000 h

Power supply unit (PSU) form factor: ATX

Purpose: PC

Cooling type: Active

Fan diameter: 120 mm

Number of fans: 1 fan(s)

Product colour: Black

Certification: CB / CE / FCC / TUV / cTUVus / BSMI / CCC NOM / FCC IC / UKCA / TUV / TUV S-Mark / cTUVus

Depth: 140 mm

Height: 86 mm

Weight: 1450 g

Width: 150 mm

Package weight: 3030 g

Model name: XPG CORE REACTOR II VE

Unit Calculated Volume: 0.00875 cubm

Product Net Weight: 2.8 kg

Unit Calculated Weight: 2.98 kg
