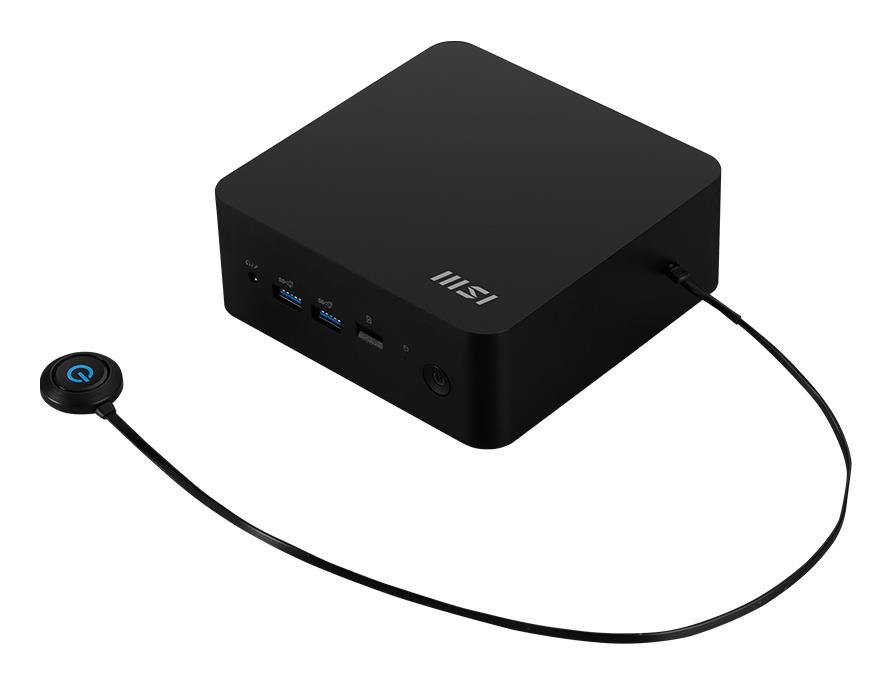

PC CUBI NUC AI CU7-155H 16GB/1TB CUBI NUC AI 1UMG-06SEU MSI
SKU: CUBI NUC AI 1UMG-06SEU
€ 900.29
Pieejams : 9 gab.
Mini PCs
Product model code Cubi NUC AI 1UMG
CPU Family name Intel Core Ultra
CPU Model Number u7-155U
DDR5
Frequency speed 5600 MHz
16GB
SSD 1TB
LAN Gigabit
OS Windows 11 Pro
-
Summary: MSI Cubi NUC AI 1UMG-06SEU. Processor family: Intel Core Ultra 7, Processor model: 155H. Internal memory: 16 GB, Internal memory type: DDR5-SDRAM, Memory clock speed: 5600 MHz. Total storage capacity: 1 TB, Storage media: SSD, Card reader integrated. On-board graphics card model: Intel Arc Graphics. Wi-Fi. Operating system installed: Windows 11 Pro. Chassis type: Mini PC. Product type: Mini PC. Weight: 630 g. Product colour: Black
-
Category Code: DTM
-
Unit Box Height: 0.095
-
Unit Box Length: 0.225
-
Unit Box Width: 0.21
-
Efficient cores: 8
-
Efficient-core base frequency: 0.9 GHz
-
Efficient-core Max Turbo Frequency: 3.8 GHz
-
Low Power Efficient-core Base Frequency: 700 MHz
-
Low Power Efficient-core Max Turbo Frequency: 2.5 GHz
-
Low Power Efficient-cores: 2
-
Maximum turbo power: 115 W
-
Number of processors supported: 1
-
Performance cores: 6
-
Performance-core base frequency: 1.4 GHz
-
Performance-core Max Turbo Frequency: 4.8 GHz
-
Processor base power: 28 W
-
Processor boost frequency: 4.8 GHz
-
Processor cache: 24 MB
-
Processor cache type: Smart Cache
-
Processor cores: 16
-
Processor family: Intel Core Ultra 7
-
Processor generation: Intel® Core™ Ultra (Series 1)
-
Processor manufacturer: Intel
-
Processor model: 155H
-
Processor threads: 22
-
AI software frameworks supported by NPU: DirectML/ONNX RT/OpenVINO/Windows ML
-
Neural processor unit (NPU): Intel AI Boost
-
Sparsity support: Yes
-
Windows Studio effects support: Yes
-
Internal memory: 16 GB
-
Internal memory type: DDR5-SDRAM
-
Maximum internal memory: 64 GB
-
Memory clock speed: 5600 MHz
-
Memory layout (slots x size): 1 x 16 GB
-
Memory slots: 2x SO-DIMM
-
Supported memory types: DDR5-SDRAM
-
Card reader integrated: Yes
-
Compatible memory cards: MicroSD (TransFlash)
-
M.2 SSD size: 2280 (22 x 80 mm)
-
Number of SSDs installed: 1
-
NVMe: Yes
-
Optical drive type: No
-
SSD Capacity: 1000 GB
-
SSD form factor: M.2
-
SSD interface: PCI Express 4.0
-
Storage media: SSD
-
Total SSDs capacity: 1000 GB
-
Total storage capacity: 1000 GB
-
Discrete graphics card: No
-
Discrete graphics card model: Not available
-
On-board GPU manufacturer: Intel
-
On-board graphics card: Yes
-
On-board graphics card family: Intel Arc Graphics
-
On-board graphics card model: Intel Arc Graphics
-
Bluetooth: Yes
-
Bluetooth version: 5.3
-
Ethernet LAN: Yes
-
Ethernet LAN data rates: 2500 Mbit/s
-
LAN controller: Intel I226-V
-
Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
-
Wi-Fi: Yes
-
Wi-Fi standards: Wi-Fi 6E (802.11ax)
-
WLAN controller model: Intel Wi-Fi 6E AX211
-

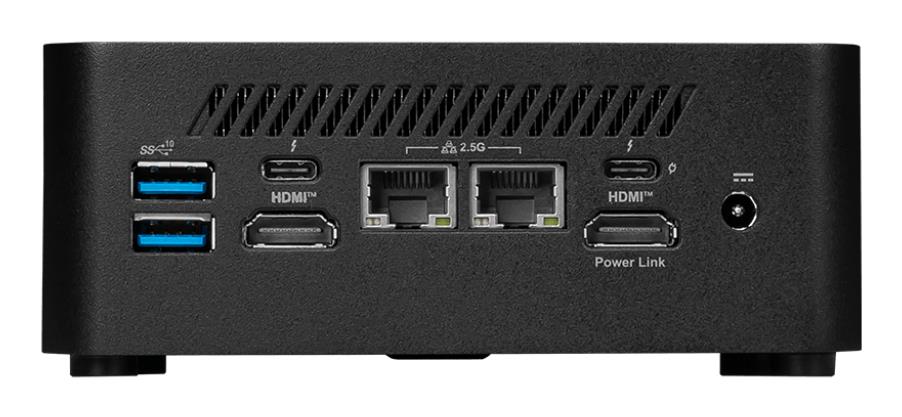

Combo headphone/mic port: Yes
-
DC-in jack: Yes
-
DVI port: No
-
Ethernet LAN (RJ-45) ports: 2
-
HDMI ports quantity: 2
-
HDMI version: 2.1
-
Intel® Thunderbolt 4: Yes
-
Microphone in: No
-
Thunderbolt 4 ports quantity: 2
-
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
-
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
-

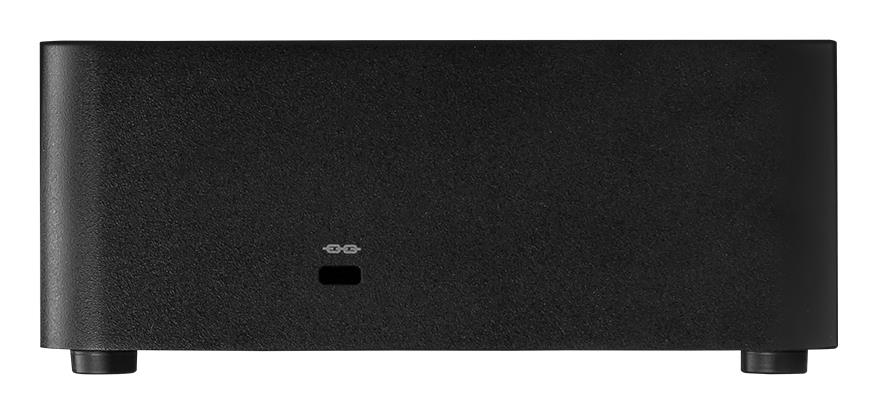

Cable lock slot: Yes
-
Cable lock slot type: Kensington
-
Chassis type: Mini PC
-
Housing material: Plastic
-
Product colour: Black
-

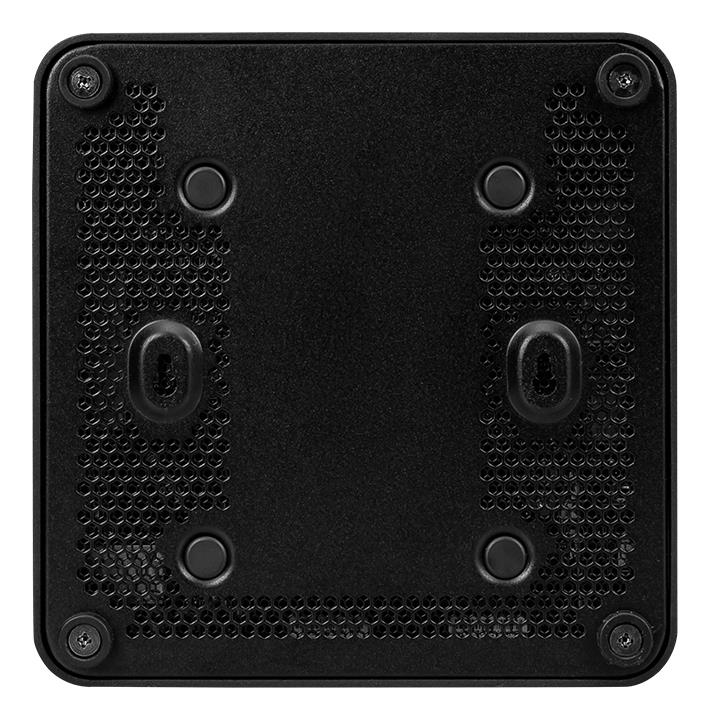

VESA mounting: Yes
-
Built-in speaker(s): No
-
Motherboard chipset: Intel SoC
-
Motherboard form factor: NUC
-
Product Type: Mini PC
-
Trusted Platform Module (TPM): Yes
-
Trusted Platform Module (TPM) version: 2.0
-
Operating system installed: Windows 11 Pro
-
Operating relative humidity (H-H): 0 - 85 %
-
Operating temperature (T-T): 0 - 35 °C
-
Storage relative humidity (H-H): 0 - 90 %
-
Storage temperature (T-T): -20 - 60 °C
-
Certification: FCC(Class B), CB/CE, UL(CUL), BSMI, VCCI, RCM(C-Tick)
-
Depth: 115.2 mm
-
Height: 37.5 mm
-
Package depth: 220 mm
-
Package height: 94 mm
-
Package weight: 1450 g
-
Package width: 205 mm
-
Weight: 630 g
-
Width: 119.6 mm
-
AC adapter included: Yes
-
Keyboard included: No
-
Mouse included: No
-
Power cord included: Yes
-
Display included: No
-
Cooling type: Active
-
Graphics card family: Intel
-
Number of displays supported: 4
-
Number of M.2 (M) slots: 2
-
Panel mounting interface: 100 x 100 mm
-
Power supply type: External AC adapter
-
Warranty period: 3 year(s)
-
CPU Family name: Intel Core Ultra
-
CPU Model Number: u7-155U
-
Units per Pallet: 0
-
Unit Calculated Volume: 0.004489 cubm
-
Unit Calculated Weight: 1.52 kg
