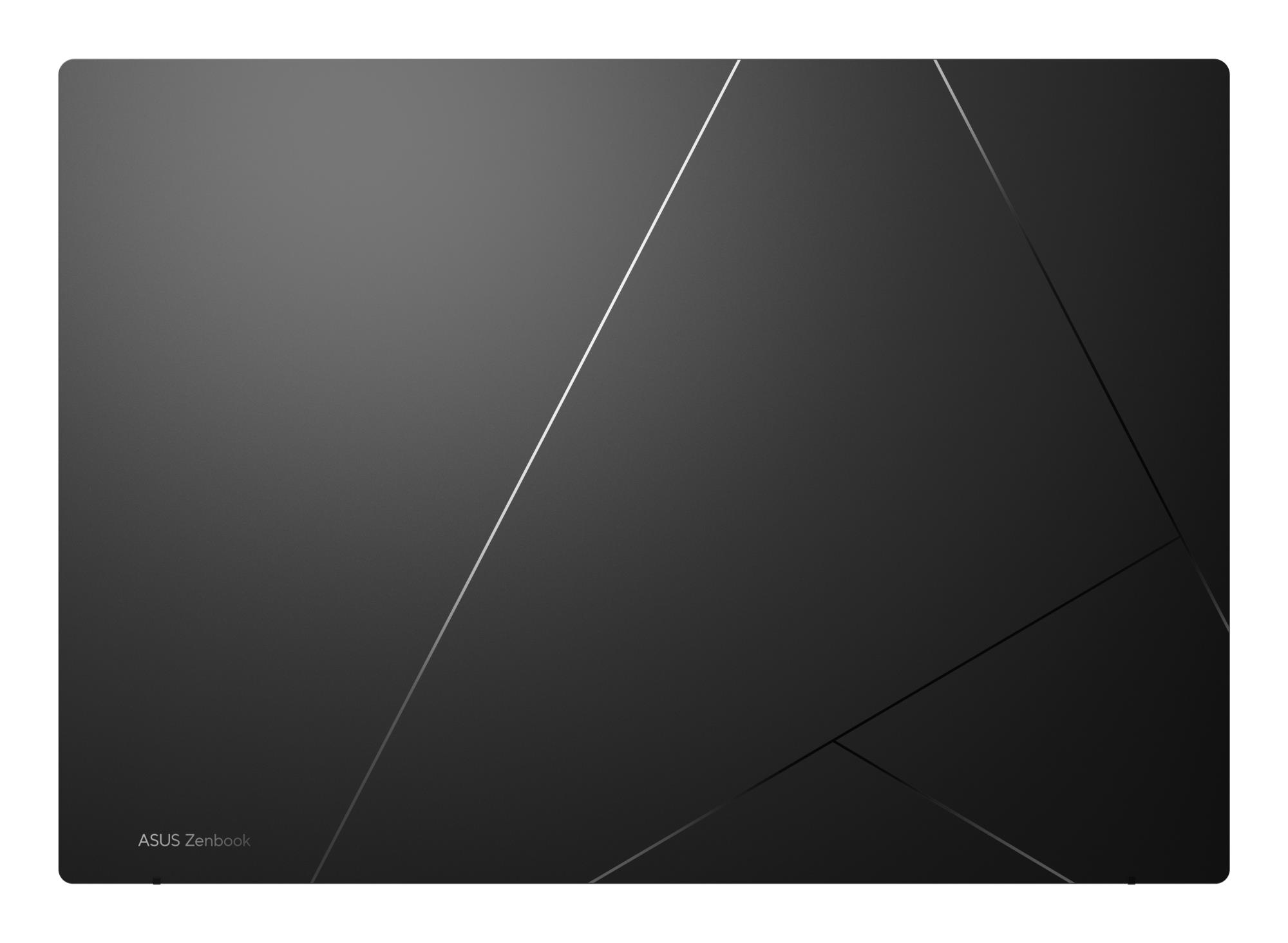

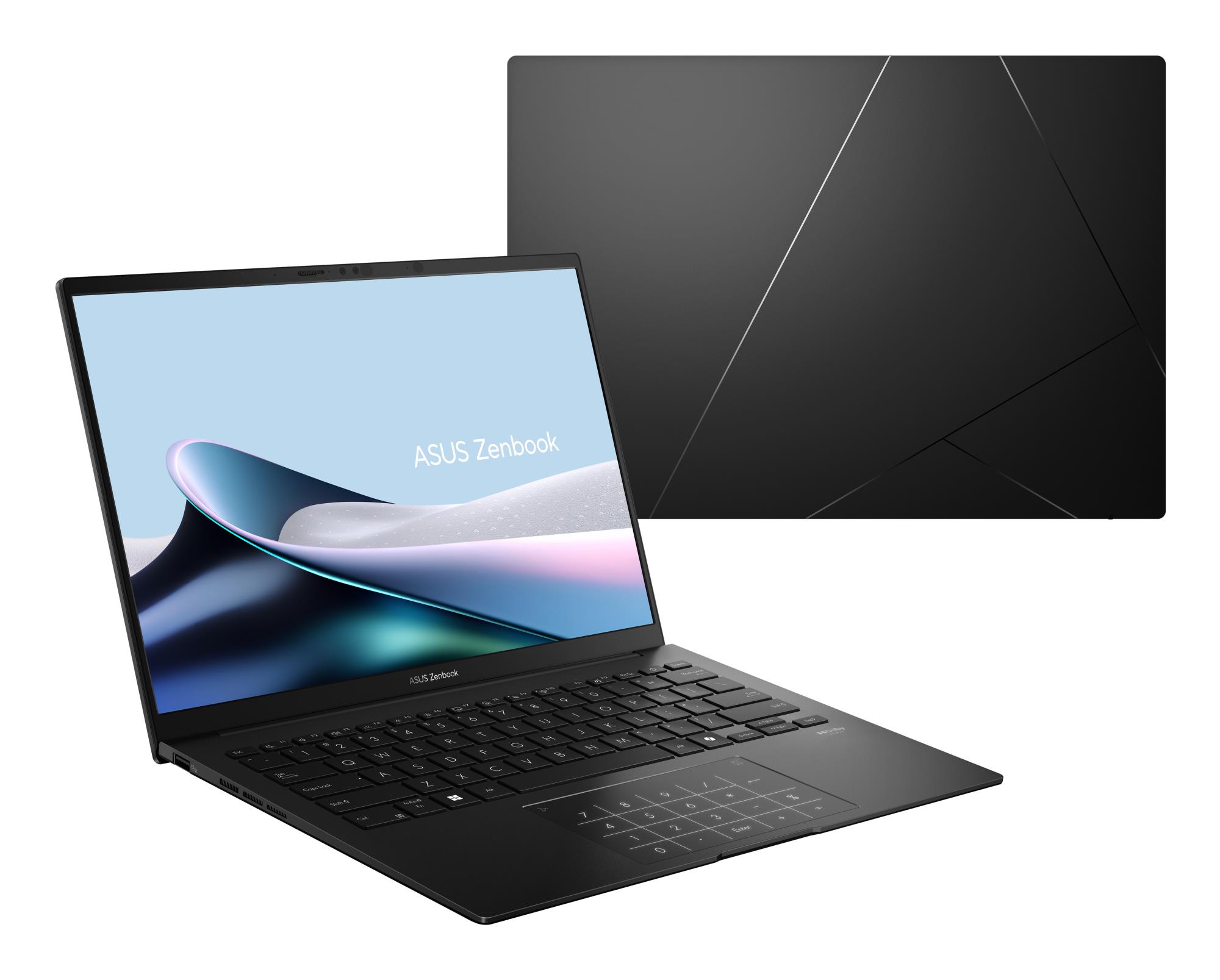

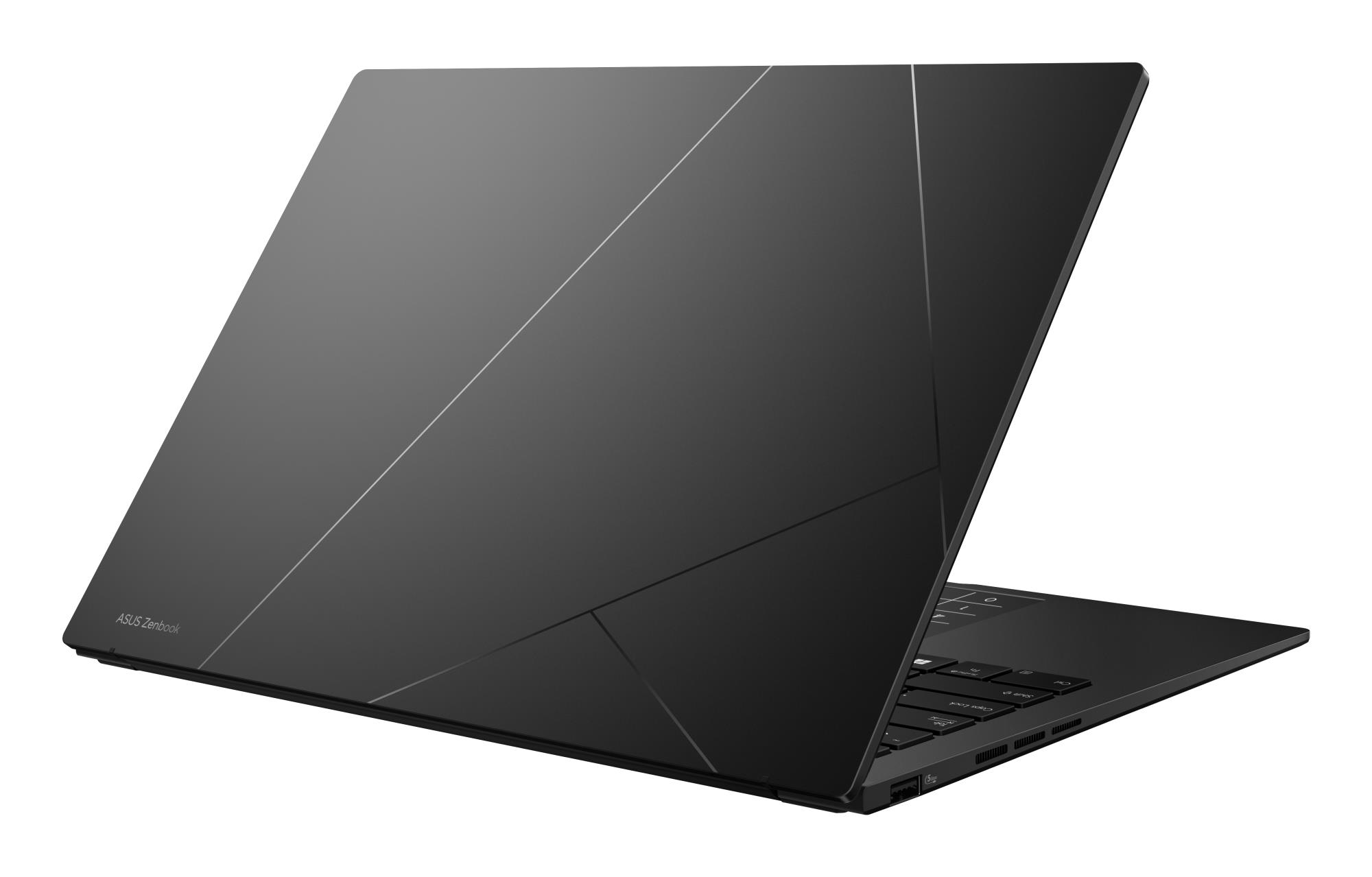

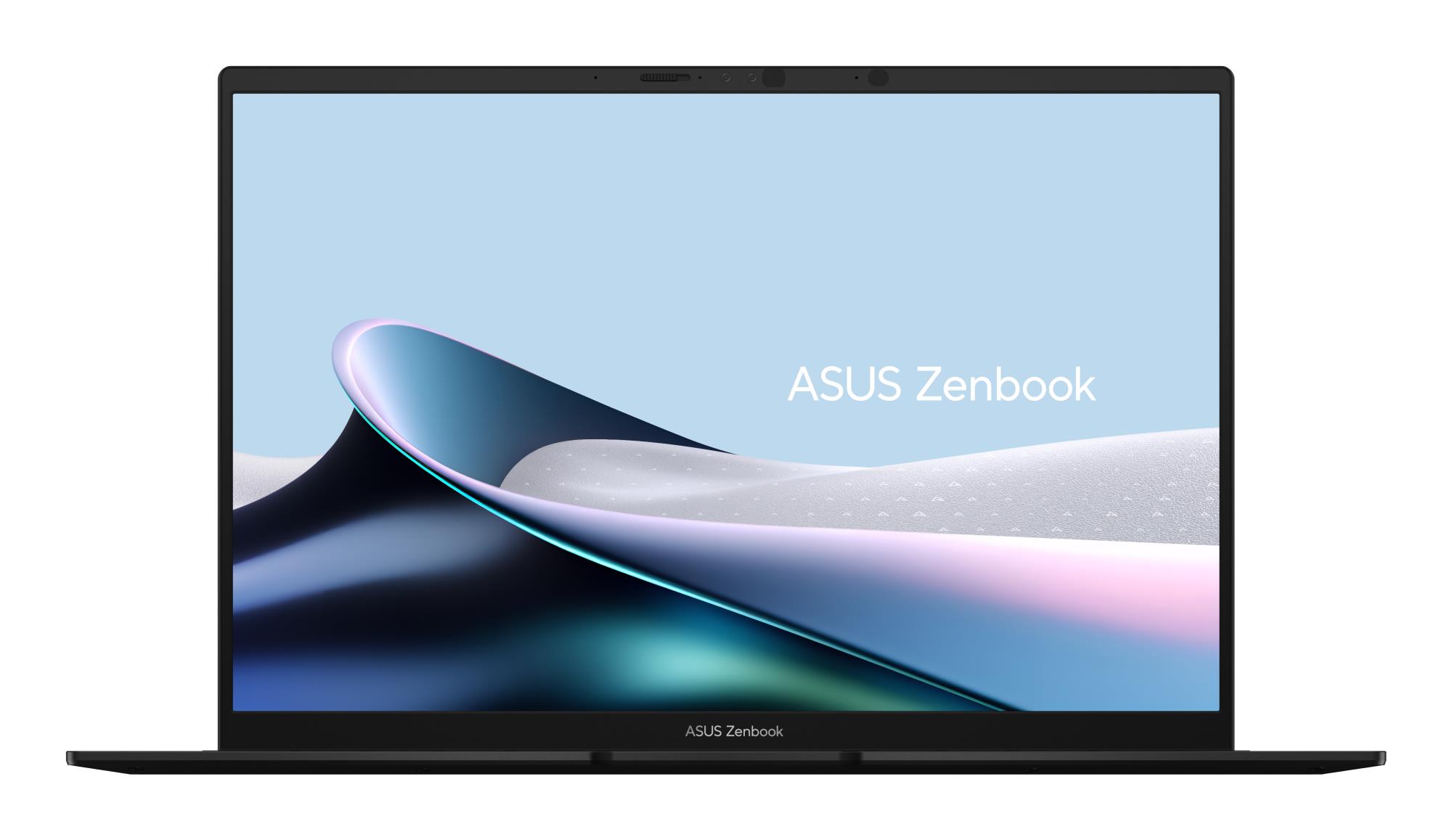

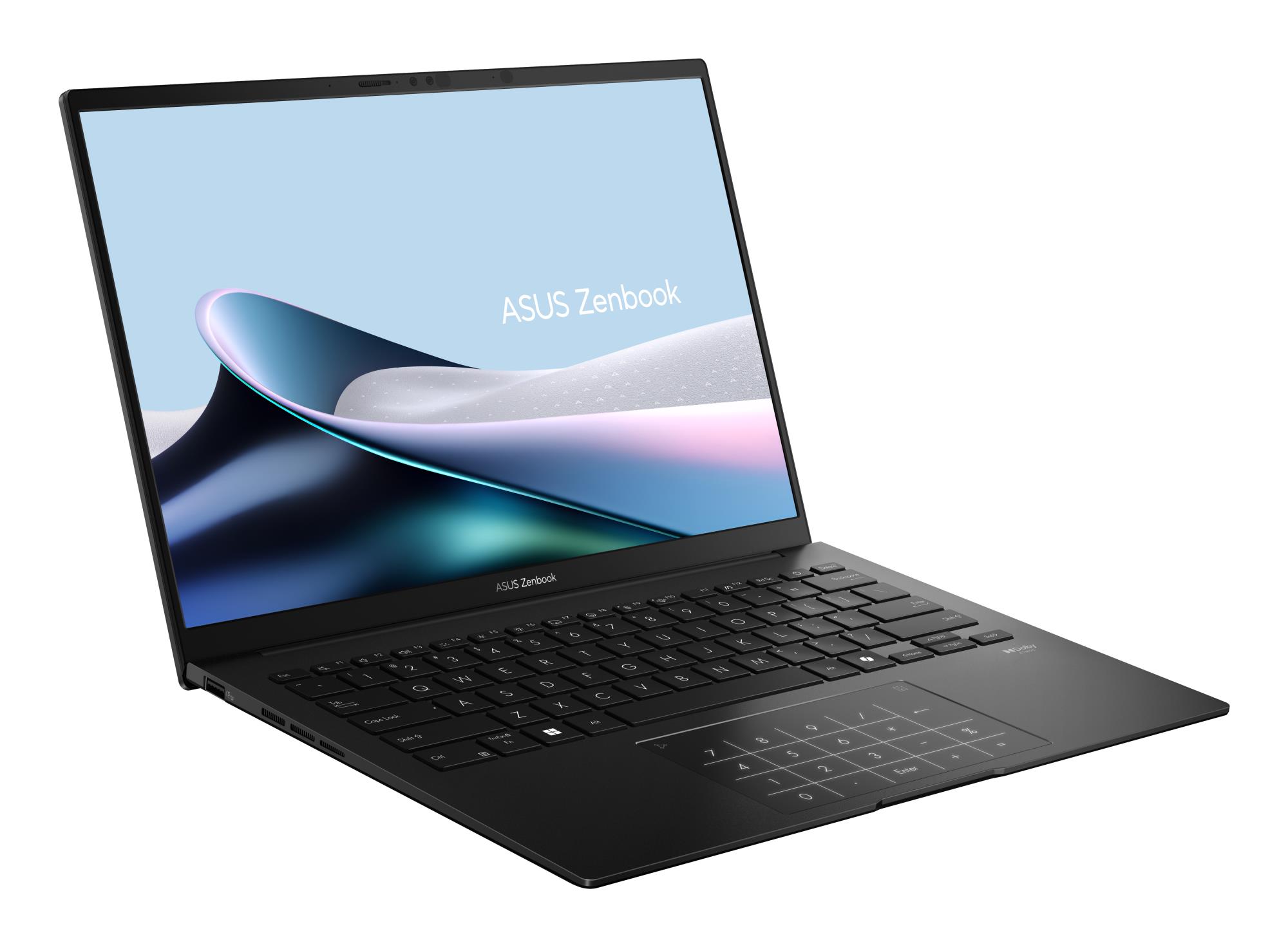

Notebook|ASUS|ZenBook Series|14 OLED|UM3406KA-PP164W|CPU AMD Ryzen AI 7|350|2000 MHz|14"|2880x1800|RAM 32GB|LPDDR5x|SSD 1TB|AMD Radeon Graphics|Integrated|ENG|NumberPad|Windows 11 Home|Black|1.2 kg|90NB14U1-M009E0

Summary: ASUS Zenbook 14 OLED UM3406KA-PP164W. Product type: Laptop, Form factor: Clamshell. Processor family: AMD Ryzen AI 7, Processor model: 350, Processor frequency: 2 GHz. Display diagonal: 35.6 cm (14"), HD type: 3K, Display resolution: 2880 x 1800 pixels. Internal memory: 32 GB, Internal memory type: LPDDR5x-SDRAM. Total storage capacity: 1 TB, Storage media: SSD. On-board graphics card model: AMD Radeon 860M. Operating system installed: Windows 11 Home. Product colour: Black

Category Code: NB

Unit Box Height: 0.28

Unit Box Length: 0.41

Unit Box Width: 0.075

L2 cache: 8 MB

L3 cache: 16 MB

Processor boost frequency: 5 GHz

Processor cache type: L2 & L3

Processor cores: 8

Processor family: AMD Ryzen AI 7

Processor frequency: 2 GHz

Processor generation: AMD Ryzen AI 300 Series

Processor manufacturer: AMD

Processor model: 350

Processor threads: 16

Colour gamut: 100 %

Contrast ratio (typical): 1000000:1

Display brightness: 400 cd/m²

Display diagonal: 14 "

Display number of colours: 1.07 billion colours

Display resolution: 2880 x 1800 pixels

Display response rise/fall: 0.2 ms

Display surface: Gloss

HD type: 3K

High Dynamic Range (HDR) supported: Yes

High Dynamic Range (HDR) technology: DisplayHDR True Black 600

Maximum display brightness (HDR): 600 cd/m²

Maximum refresh rate: 120 Hz

Native aspect ratio: 16:10

Panel type: OLED

RGB colour space: DCI-P3

Touchscreen: No

Certified refurbished: No

Colour name: Jade Black

Form Factor: Clamshell

Housing material: Aluminium

Market positioning: Home

Product colour: Black

Product Type: Laptop

Copilot+ PC: No

Neural processor unit (NPU): AMD Ryzen AI

NPU performance up to: 50 TOPs

Total processor performance up to: 66 TOPs

Internal memory: 32 GB

Internal memory type: LPDDR5x-SDRAM

Maximum internal memory: 32 GB

Memory form factor: On-board

Number of SSDs installed: 1

NVMe: Yes

Optical drive type: No

SSD Capacity: 1000 GB

SSD form factor: M.2

SSD interface: PCI Express 4.0

Storage media: SSD

Total SSDs capacity: 1000 GB

Total storage capacity: 1000 GB

Discrete graphics card: No

Discrete graphics card model: Not available

On-board GPU manufacturer: AMD

On-board graphics card: Yes

On-board graphics card family: AMD Radeon

On-board graphics card model: AMD Radeon 860M

Audio system: Smart Amp

Built-in microphone: Yes

Speakers manufacturer: Harman Kardon

Front camera: Yes

Front camera HD type: Full HD

Front camera resolution: 1920 x 1080 pixels

Infrared (IR) camera: Yes

Privacy camera: Yes

Privacy type: Privacy shutter

Antenna type: 2x2

Bluetooth: Yes

Bluetooth version: 5.3

Ethernet LAN: No

Mobile network connection: No

Top Wi-Fi standard: Wi-Fi 6E (802.11ax)

Wi-Fi standards: Wi-Fi 6E (802.11ax)

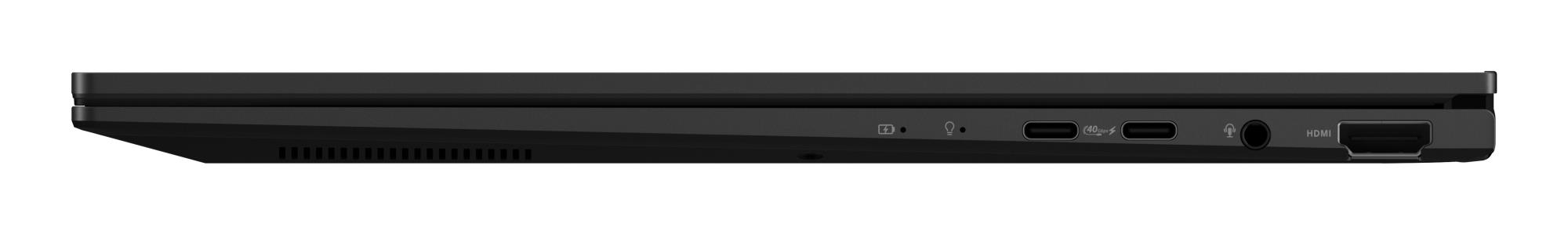

Combo headphone/mic port: Yes

HDMI ports quantity: 1

HDMI version: 2.1

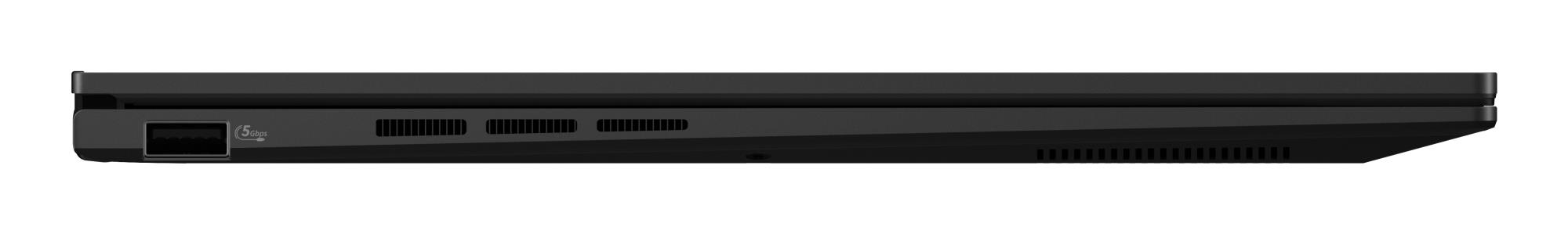

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1

USB Type-C DisplayPort Alternate Mode: Yes

USB4 Gen 3x2 ports quantity: 1

Repairability index: 9.4

Copilot key: Yes

Keyboard backlit: Yes

Numeric keypad: No

Pointing device: NumberPad

Microsoft Copilot: Yes

Operating system architecture: 64-bit

Operating system installed: Windows 11 Home

Trial software: 1-month trial for new Microsoft 365 customers. Credit card required, McAfee 30 days

Battery capacity: 75 Wh

Battery technology: Lithium-Ion (Li-Ion)

Number of battery cells: 4

AC adapter frequency: 50 - 60 Hz

AC adapter input voltage: 100 - 240 V

AC adapter output current: 3.25 A

AC adapter output voltage: 20 V

AC adapter power: 65 W

USB Power Delivery (USB PD): Yes

USB Type-C charging port: Yes

Face recognition: Yes

Password protection: Yes

Password protection type: BIOS/User

Trusted Platform Module (TPM): Yes

Windows Hello: Yes

Compliance certificates: REACH

Sustainability certificates: ENERGY STAR/EPEAT Gold

Depth: 220.1 mm

Height: 14.9 mm

Weight: 1200 g

Width: 312.4 mm

AC adapter included: Yes

Bag included: Yes

NB Family name: ZenBook Series

Model name: 14 OLED

Unit Calculated Volume: 0.00861 cubm

Unit Calculated Weight: 2.61 kg
